Southbend (Middleby) HDG-60V Gas Griddles
Description

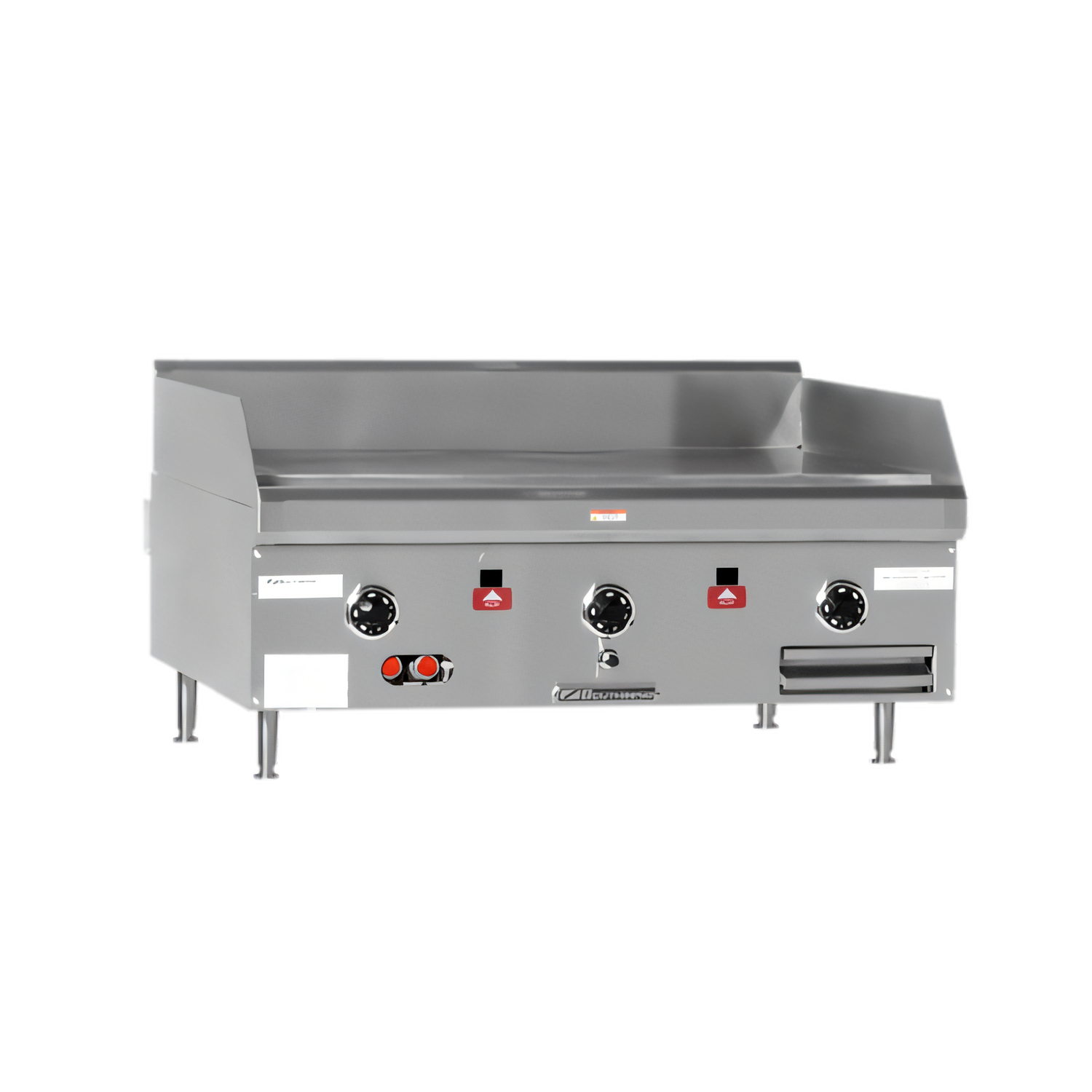

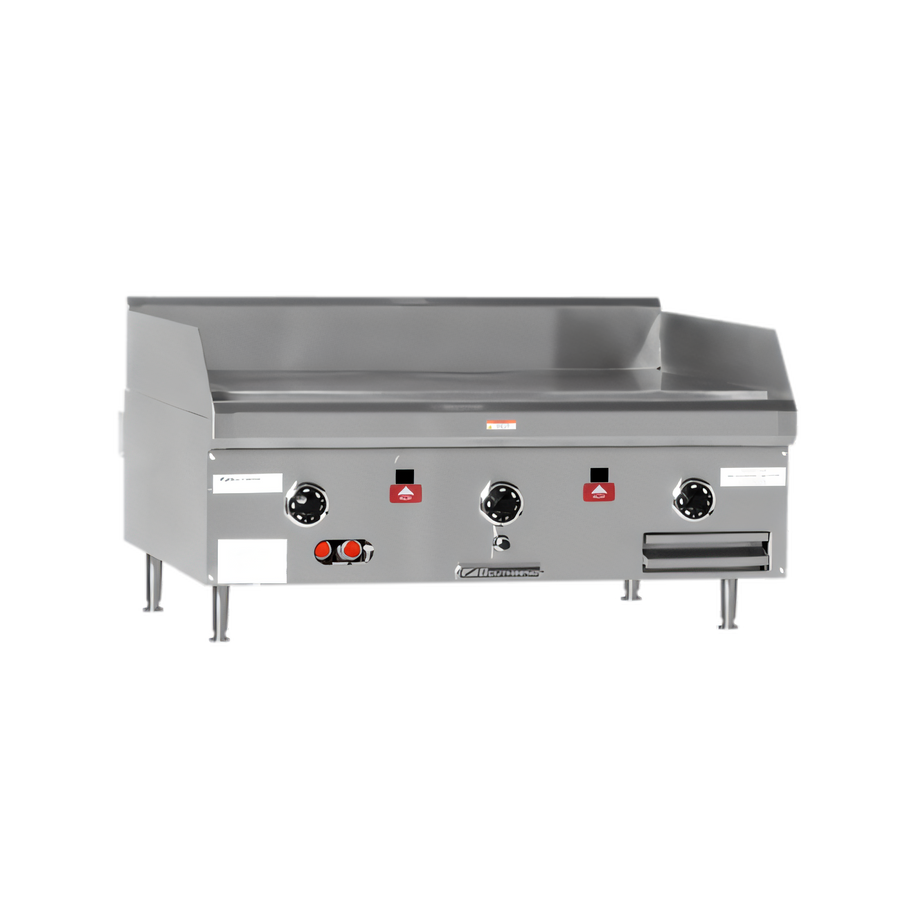

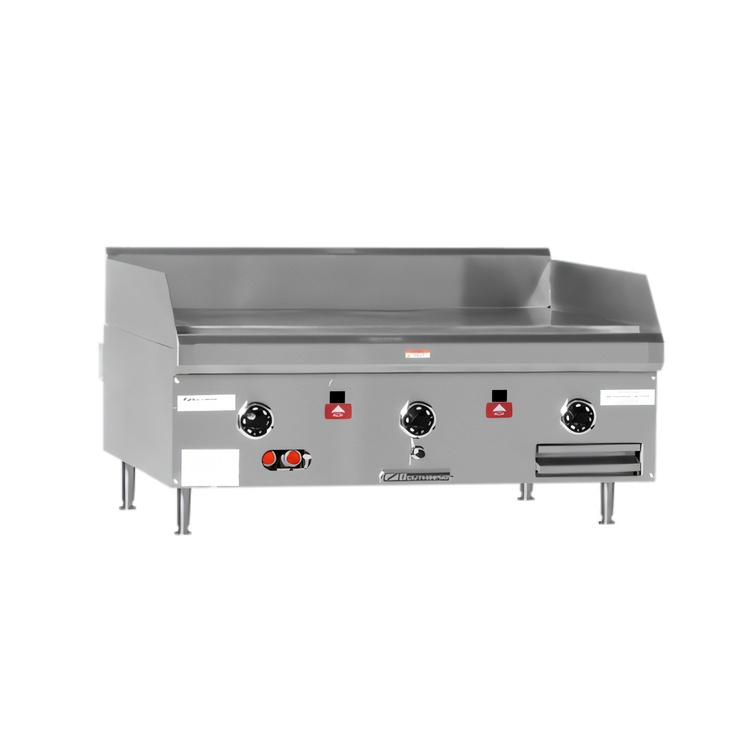

Southbend HDG-60V 60" High-Volume Gas Griddle
Heavy-Duty Counterline Series • Thermostatic • 150,000 BTUEngineered for the busiest kitchens, the Southbend HDG-60V delivers a massive 60 inch cooking surface, lightning-fast recovery and precise temperature control—all in a rugged stainless-steel package that’s built to keep pace with rush-hour demands.
Why chefs choose the HDG-60V
- Five 30,000 BTU U-shaped burners (150,000 BTU total) generate even, edge-to-edge heat.

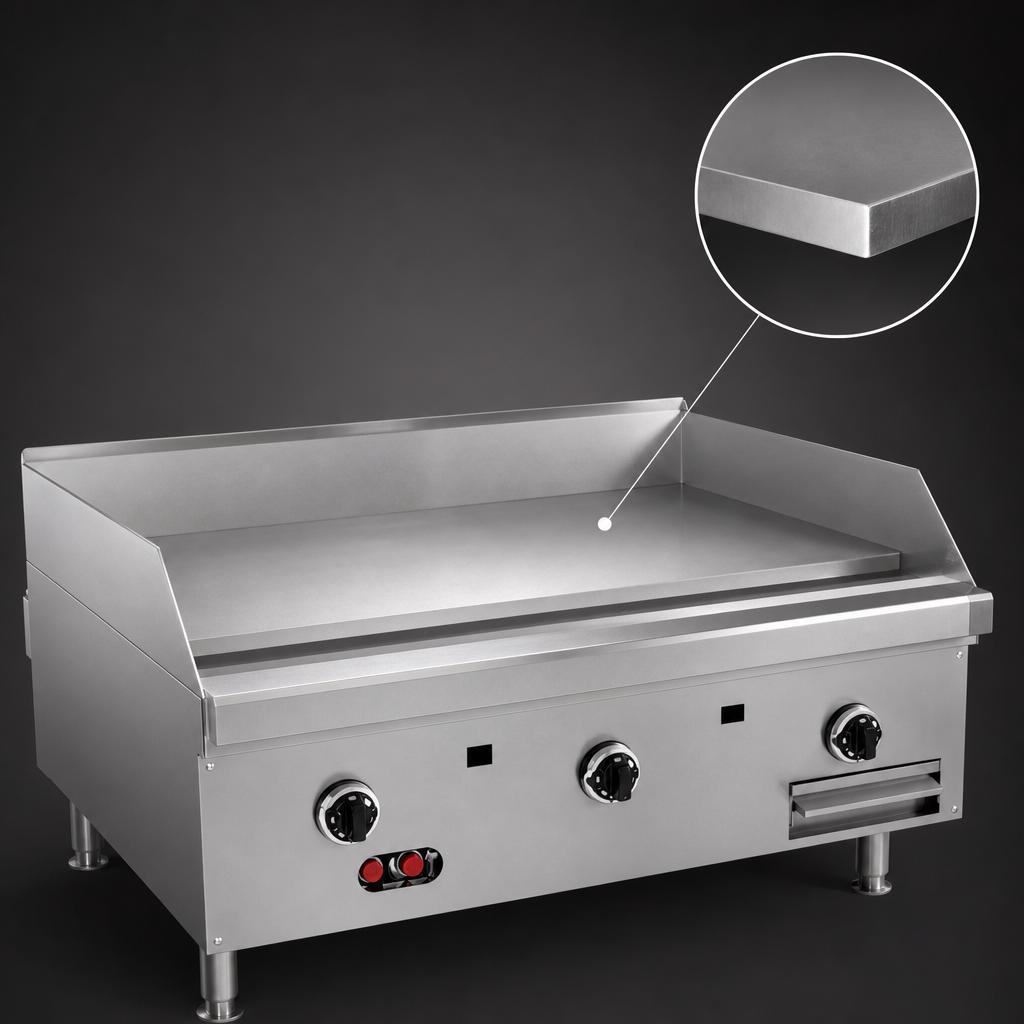

- 1" polished steel plate stores heat for quick recovery and a consistent sear.
- Exclusive NO COLD Zone design eliminates hot & cold spots across the entire surface.

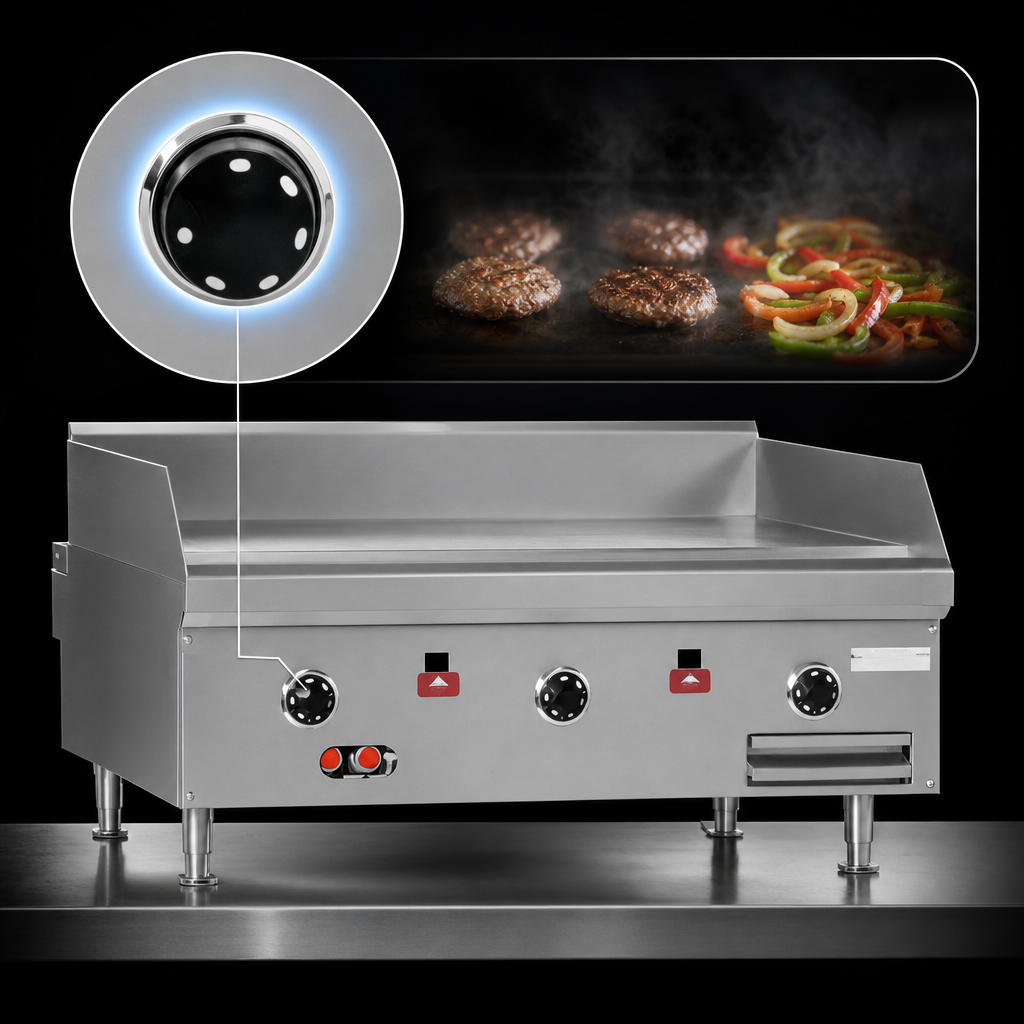

- “Insta-on” thermostatic controls for each 12" section—set and hold 200 °F to 550 °F.
- Battery powered electronic spark ignition—no standing pilot lighting hassles.
- Individual flame-failure safety devices protect against pilot outage.
- Dual 16-quart grease drawers swap out fast to keep service moving.
- 5" rear and 4" side splash guards keep surrounding stations clean.
- Stainless-steel front, sides, vent, towel bar & integrated stand with 4" casters for rock-solid durability.
- Certified CSA & NSF for worry-free code compliance.
At-a-Glance Specs
| Model | HDG-60V |
|---|---|
| Cooking surface (W × D) | 60" × 24" / 1524 mm × 610 mm |
| Plate thickness | 1" polished rolled steel |
| Total BTU (Natural/LP) | 150,000 BTU/hr |
| Burners | 5 × 30,000 BTU U-shaped w/ runner tube |
| Temperature range | 200 °F – 550 °F (93 °C – 288 °C) |
| Ignition | Battery powered electronic spark |
| Gas connection | 3/4" NPT (rear) w/ pressure regulator |
| Grease capacity | 2 drawers, 16 qt each |
| Shipping weight | 780 lb / 353 kg |
| Shipping crate (W × D × H) | 69" × 48" × 40.6" (1753 mm × 1220 mm × 1031 mm) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Requires minimum 7" W.C. natural gas (11" W.C. propane) and installation under a vented hood. 0" clearance to non-combustible surfaces; 12" side & 8" rear clearance to combustibles.
