Southbend (Middleby)  |  SKU: HDG-60

Southbend (Middleby) HDG-60 Gas Griddles

$9,403.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Hdg parts manual (post 7/6/2010) Middleby financial flyer Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

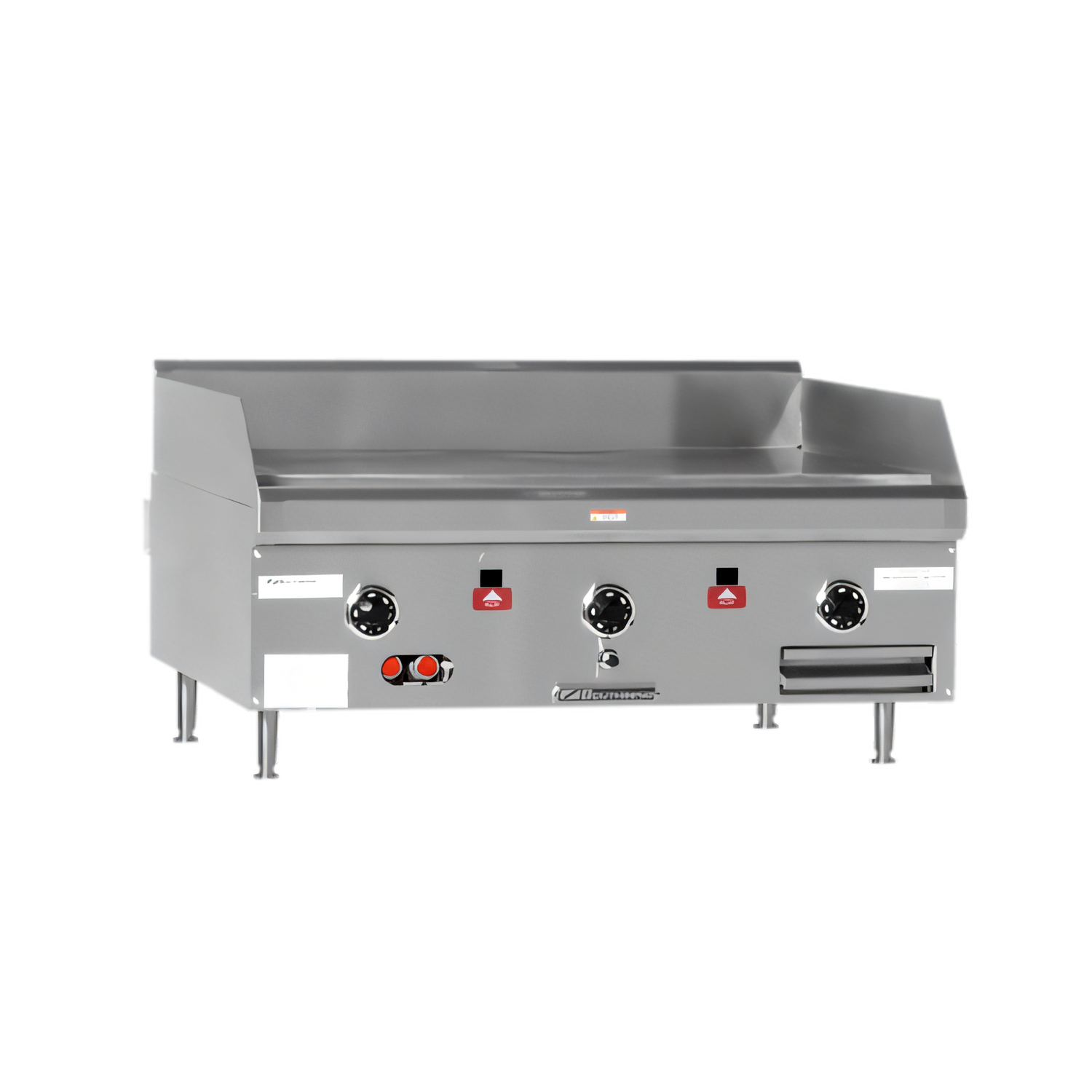

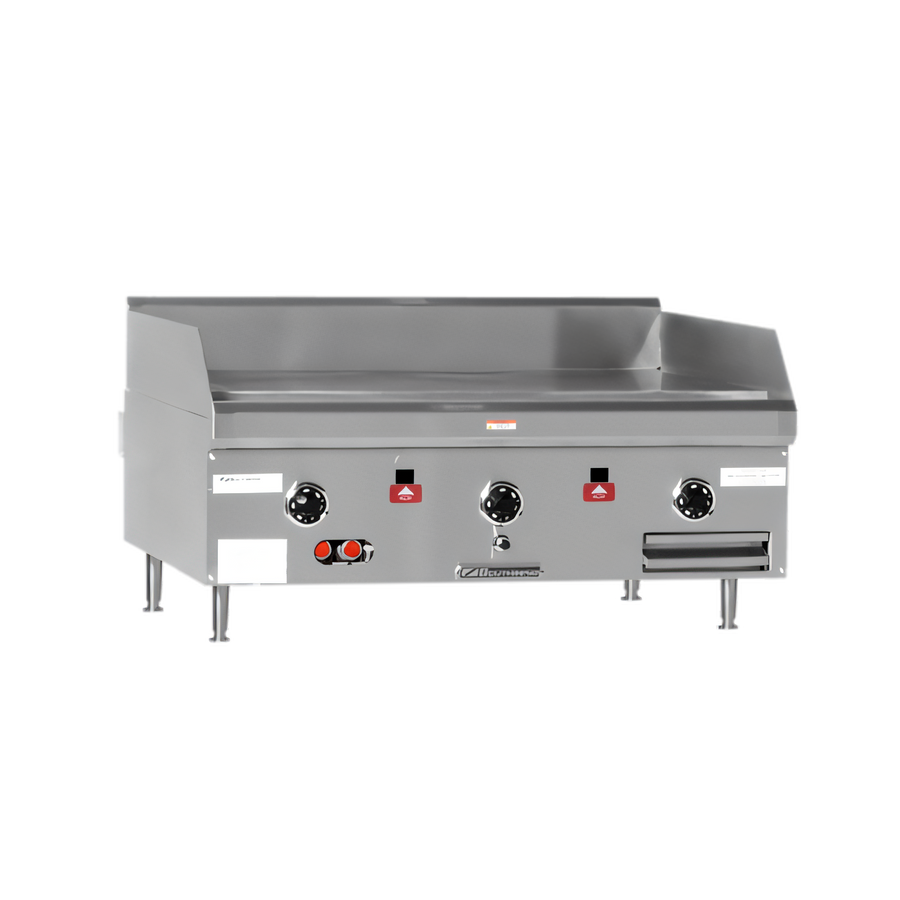

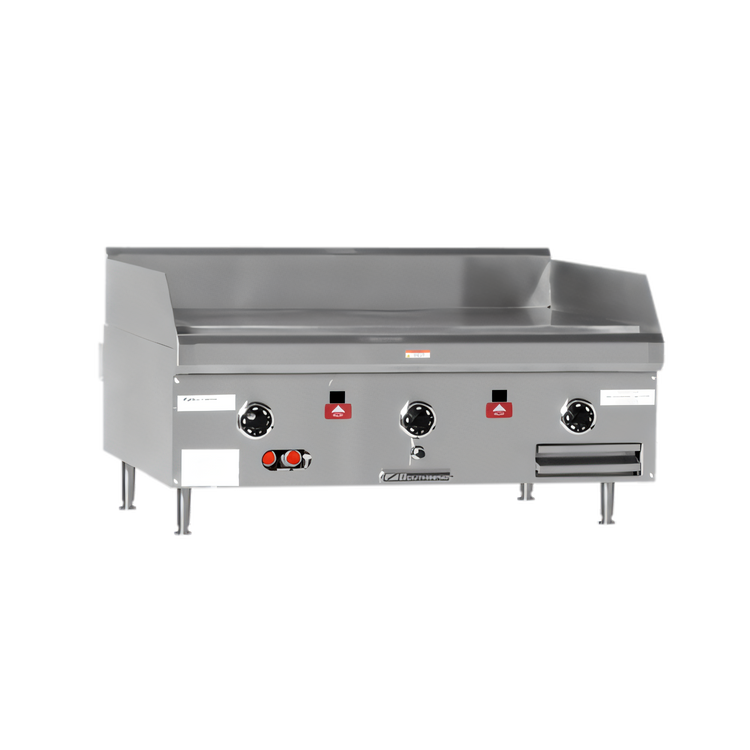

Southbend HDG-60 Counterline Gas Griddle – 60"

Heavy-duty | Thermostatic | Countertop | 150,000 BTU

Built for the busiest commercial kitchens, the Southbend HDG-60 delivers 5 feet of consistently-heated grilling space, rock-solid construction, and the precision of “Insta-on” thermostatic controls. From breakfast rush to late-night service, this heavy-duty griddle keeps pace without missing a beat.

Key Features

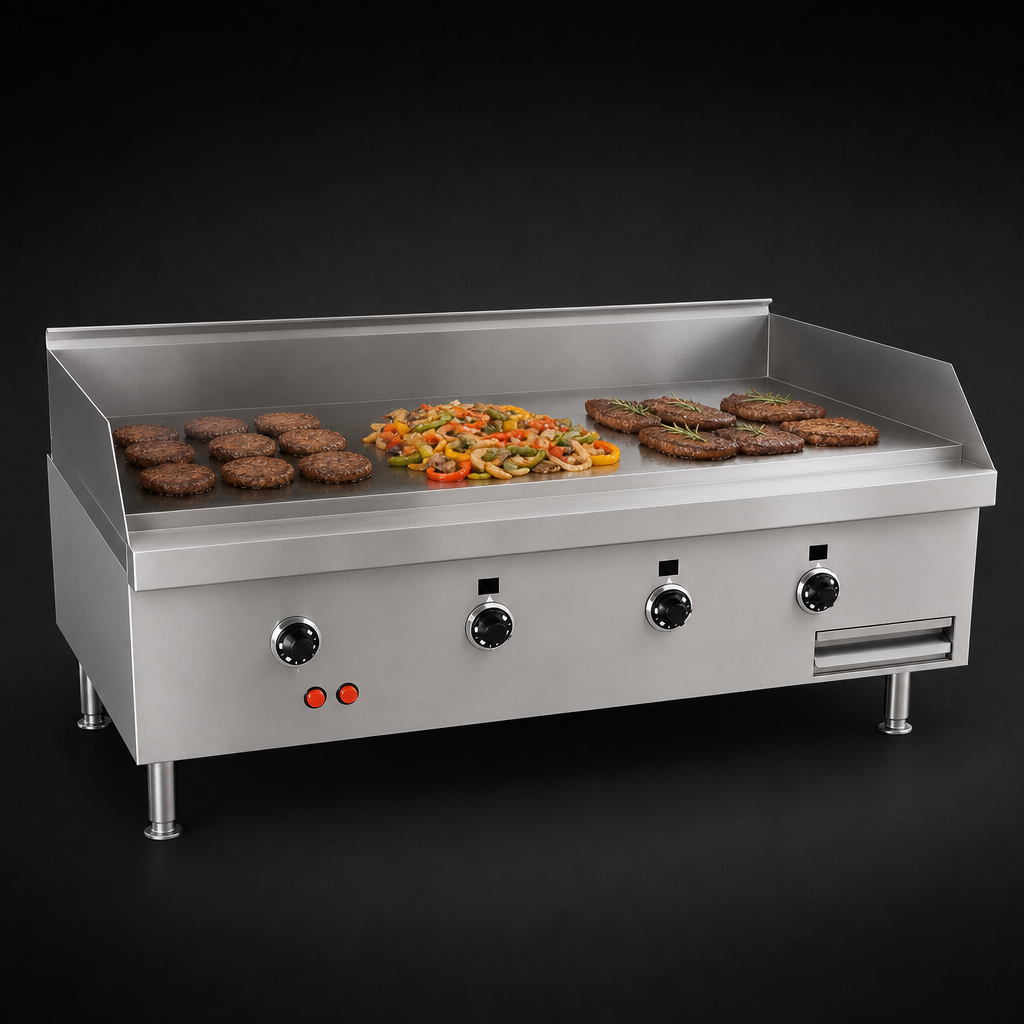

  • 60" W × 24" D cooking surface provides 10 ft² of usable plate

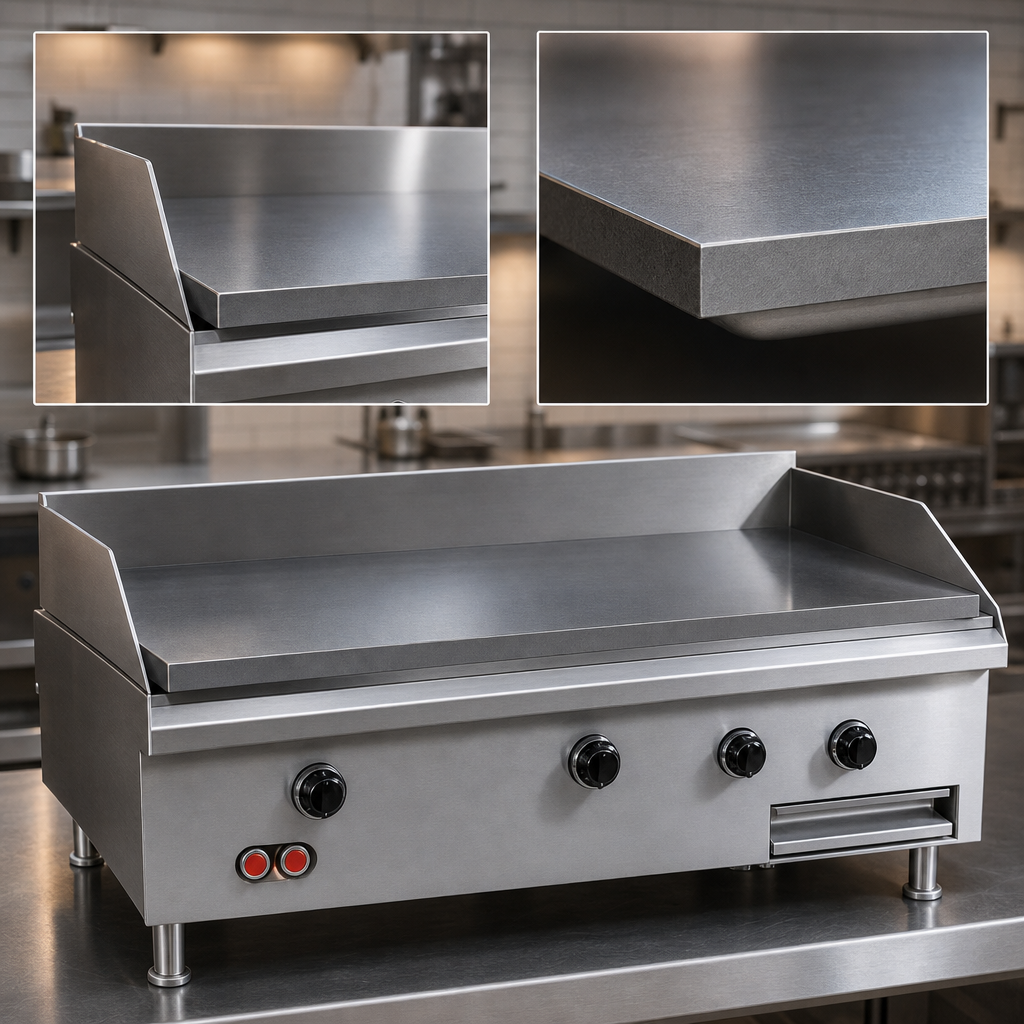

  • 1" thick polished rolled-steel plate for superior heat retention & fast recovery
  • Five 30,000 BTU, “U”-shaped burners (one every 12") – total 150,000 BTU
  • Exclusive “NO COLD” Zone design ensures uniform heat distribution across the entire plate
  • Independent thermostatic controls (200 °F – 550 °F) with embedded load-sensing probes
  • Battery-powered electronic spark ignition – no external power required
  • Flame-failure safety device on every burner for added protection
  • Stainless steel front, vent & sides; aluminized steel rear/bottom; fully-insulated double-wall sides
  • 5" rear & 4" side splash guards keep grease contained
  • Large-capacity grease drawer and protected flue opening for cleaner operation
  • 4" adjustable stainless steel legs level the unit on any counter
  • 3/4" rear gas connection with factory-supplied pressure regulator
  • CSA & NSF certified for commercial use
Specifications
Model HDG-60 (Thermostatic)
Cooking surface 60" W × 24" D (1524 mm × 610 mm)
Plate thickness 1" (25 mm) polished steel
Total BTU 150,000 BTU/hr (natural or propane)
Burners 5 @ 30,000 BTU each
Temperature range 200 °F – 550 °F (93 °C – 288 °C)
Controls Independent “Insta-on” thermostats with flame-failure safety
Ignition Battery spark ignition (electronic)
Gas connection 3/4" NPT (rear), minimum supply – 7" W.C. natural / 11" W.C. propane
Overall dimensions* 60" W × 31.75" D × 16" H †
Shipping weight 705 lb (320 kg)
Certifications CSA, NSF
Warranty 1 year parts & labor (commercial use)

*Overall depth/height are nominal; refer to spec sheet for detailed drawings.
†Height measured to cook surface with legs at minimum setting.

Popular Options & Accessories (sold separately)
  • Stainless steel equipment stand (with or without cutting board shelf)
  • Casters for stand
  • Grooved or chrome-plated griddle plates
  • 2" insulated spacer for mounting on refrigerated bases
Installation & Clearance
  • Unit must be installed under a properly sized, code-compliant ventilation hood.
  • Minimum clearance to combustible surfaces: 12" on sides, 8" at rear (0" to non-combustible).
  • If casters and flex gas hose are used, a safety restraining device is required.
Commercial use only: Warranty is void if equipment is installed in a residential application.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

16.13in

Width

60.0in

Depth

33.75in

Shipping Weight

705.0lbs

Cooking Surface Width (side - side)

55" - 60"

Controls

thermostat / solid state controls

Exterior Finish

stainless steel front & sides

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Plate Thickness

1"

Specifications

Griddle, countertop, gas, 60" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides & 4" adjustable legs, 150,000 BTU, CSA, NSF
