Southbend (Middleby) HDG-60-30 Gas Griddles
Description
Southbend HDG-60-30 Counterline Gas Griddle – 60" x 30"
Heavy-duty, thermostatic, 150,000 BTU performance for high-volume kitchensGive your line the power, precision and durability it deserves with Southbend’s flagship 60" Counterline griddle. The HDG-60-30 pairs a massive 30" deep, 1" thick polished steel plate with five independent U-shaped burners and “Insta-on” thermostatic controls, delivering even heat from corner to corner and lightning-fast temperature recovery. From breakfast rush to late-night service, this NSF- & CSA-certified workhorse keeps pace without breaking a sweat.
Why Choose the HDG-60-30

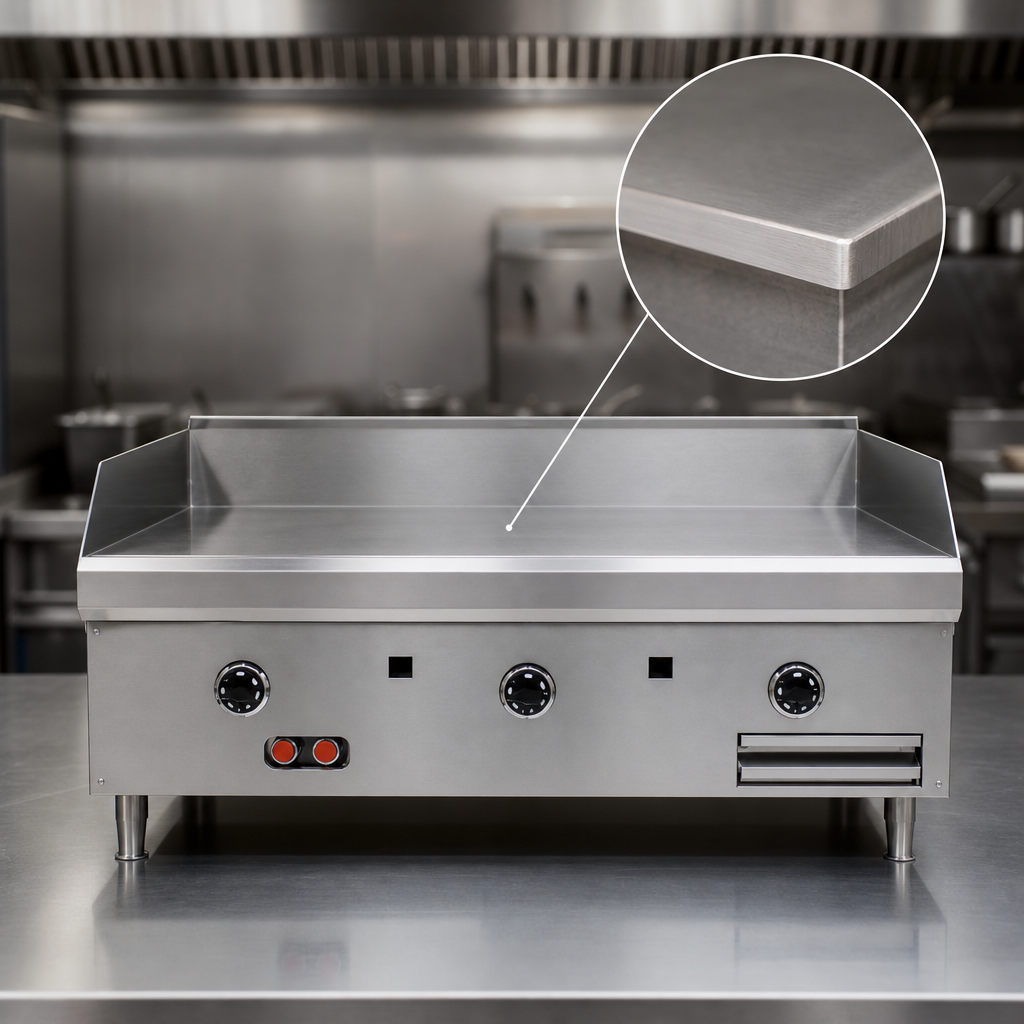

- True NO-COLD Zone – 1" polished rolled-steel plate distributes heat uniformly across the entire 60" x 30" surface.

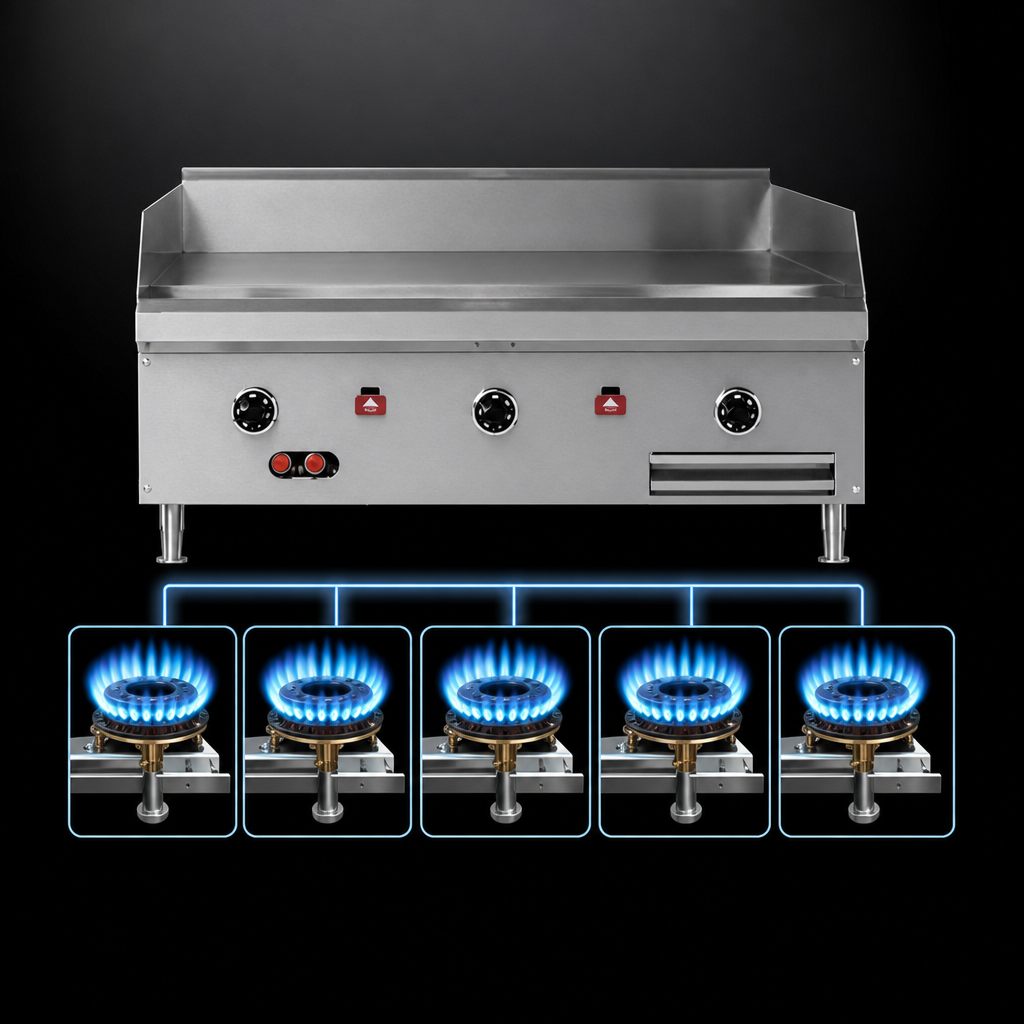

- Five 30,000 BTU Burners – 150,000 BTU total output with embedded load-sensing thermostats (200 °F–550 °F).
- Battery Spark Ignition – Reliable, match-free starts anywhere you need to set up.
- Flame-Failure Safety – Automatic gas shut-off protects staff and property.
- Rugged Construction – #3 polished stainless steel front, sides & vent, plus reinforced, insulated double-wall sides.
- Cook-Line Ready – 5" rear & 4" side splash guards, extra-large grease drawer and protected flue opening keep operations clean and compliant.
- Quick Install – 3/4" rear gas connection with regulator and 4" stainless adjustable legs included.
At-a-Glance Specs
| Model | HDG-60-30 (Thermostatic) |
|---|---|
| Cooking Surface | 60" W × 30" D (1,524 × 762 mm) |
| Plate Thickness | 1" (25 mm) polished rolled steel |
| Heat Source | 5 U-shaped burners @ 30,000 BTU each (150,000 BTU total) |
| Temperature Range | 200 °F – 550 °F (93 °C – 288 °C) |
| Ignition | Electronic battery spark |
| Gas Connection | 3/4" rear NPT (regulator included) – 7" W.C. Natural, 11" W.C. LP |
| Overall Dimensions | 60" W × 35.4" D × 16" H to plate (899 mm D, 406 mm H) + 5" rear splash |
| Legs | 4" stainless steel, adjustable |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Factory Options & Accessories
- Chrome-plated or grooved plate
- Stainless steel stand (with or without casters)
- Stainless plate shelf & cutting board
- 2" insulator base for refrigerated mounting
Alkaline batteries are not covered under warranty. This equipment is intended for commercial use only.
