Southbend (Middleby) HDG-48V Gas Griddles
Description

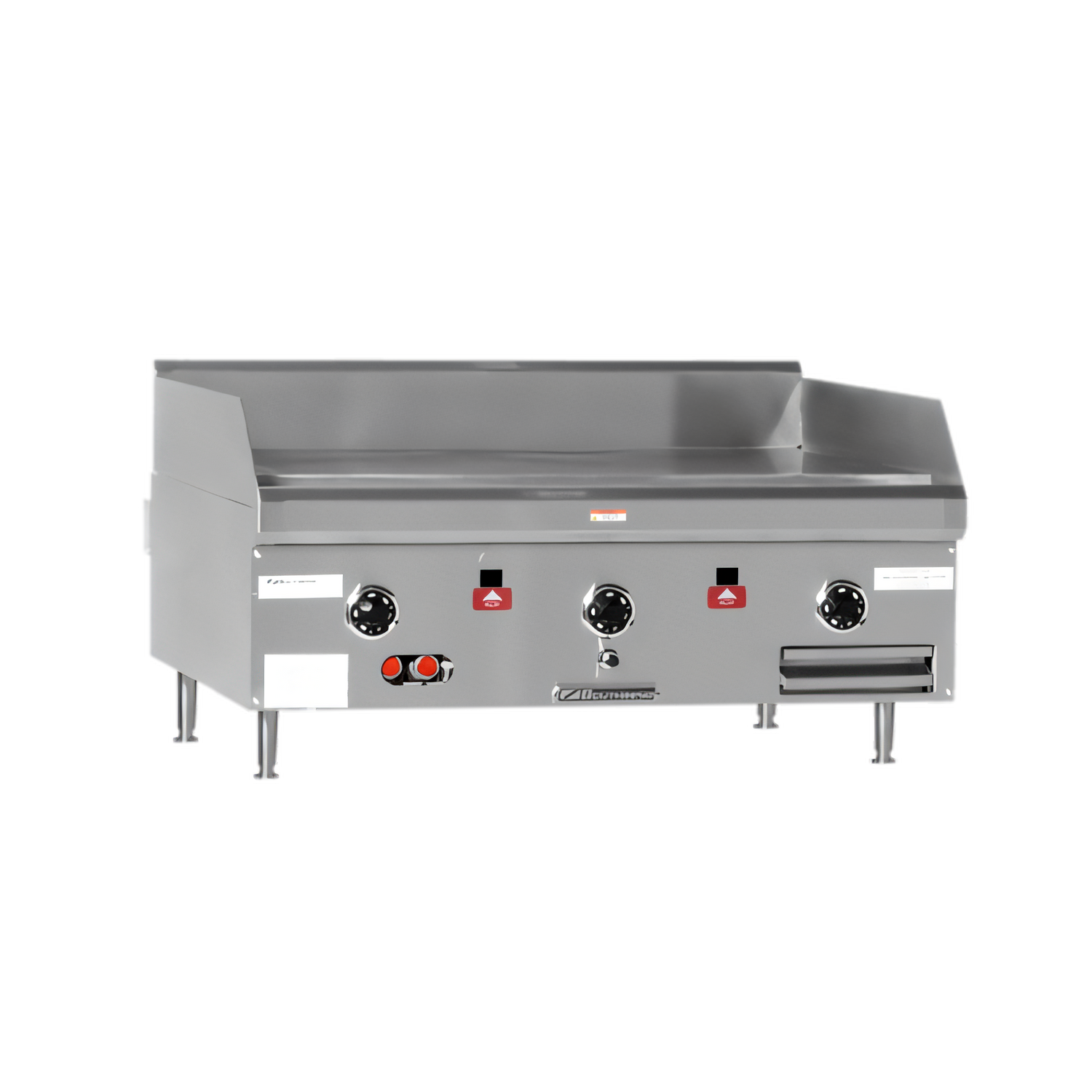

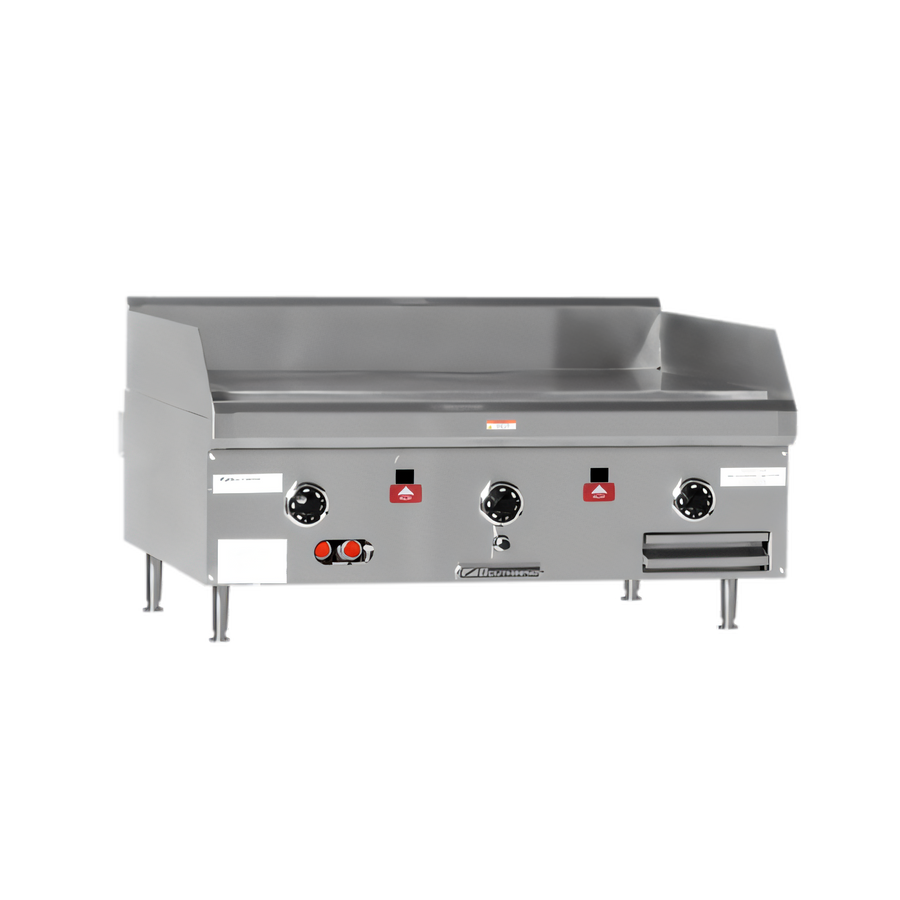

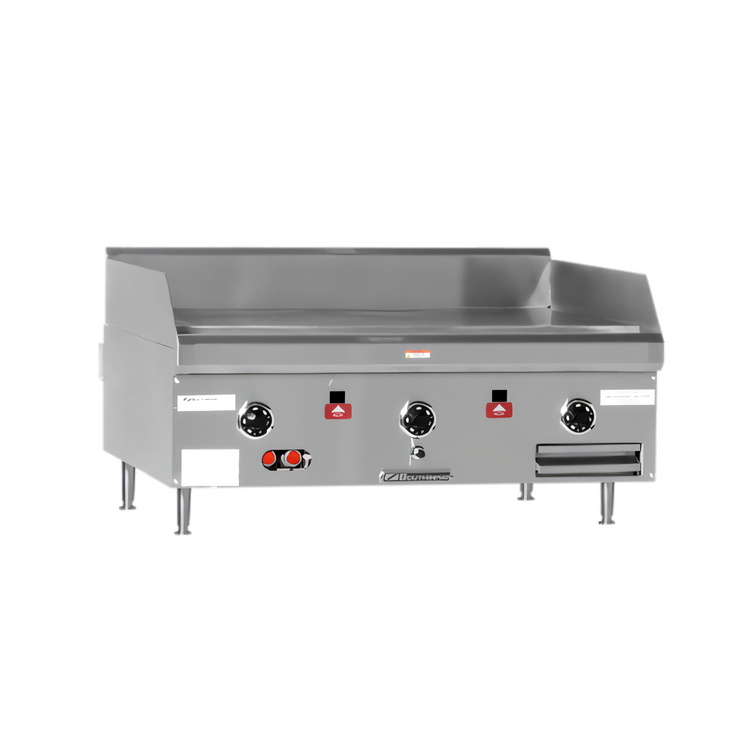

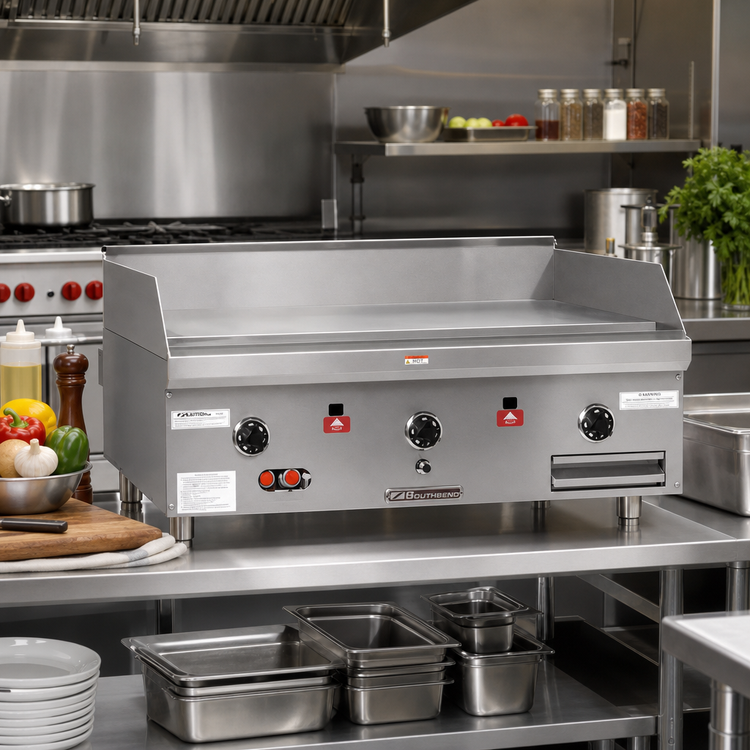

Southbend HDG-48V Counterline High-Volume Gas Griddle – 48"
1" polished steel plate • 120,000 BTU • Thermostatic controlsBuilt for the busiest kitchens, the Southbend HDG-48V delivers an unmatched combination of speed, consistency, and durability. Four powerful burners blanket the entire 48" cooking surface with steady, uniform heat, while “Insta-on” thermostats give you precise temperature control from 200–550 °F for flawless breakfast, lunch, and dinner production.
Why you’ll love it

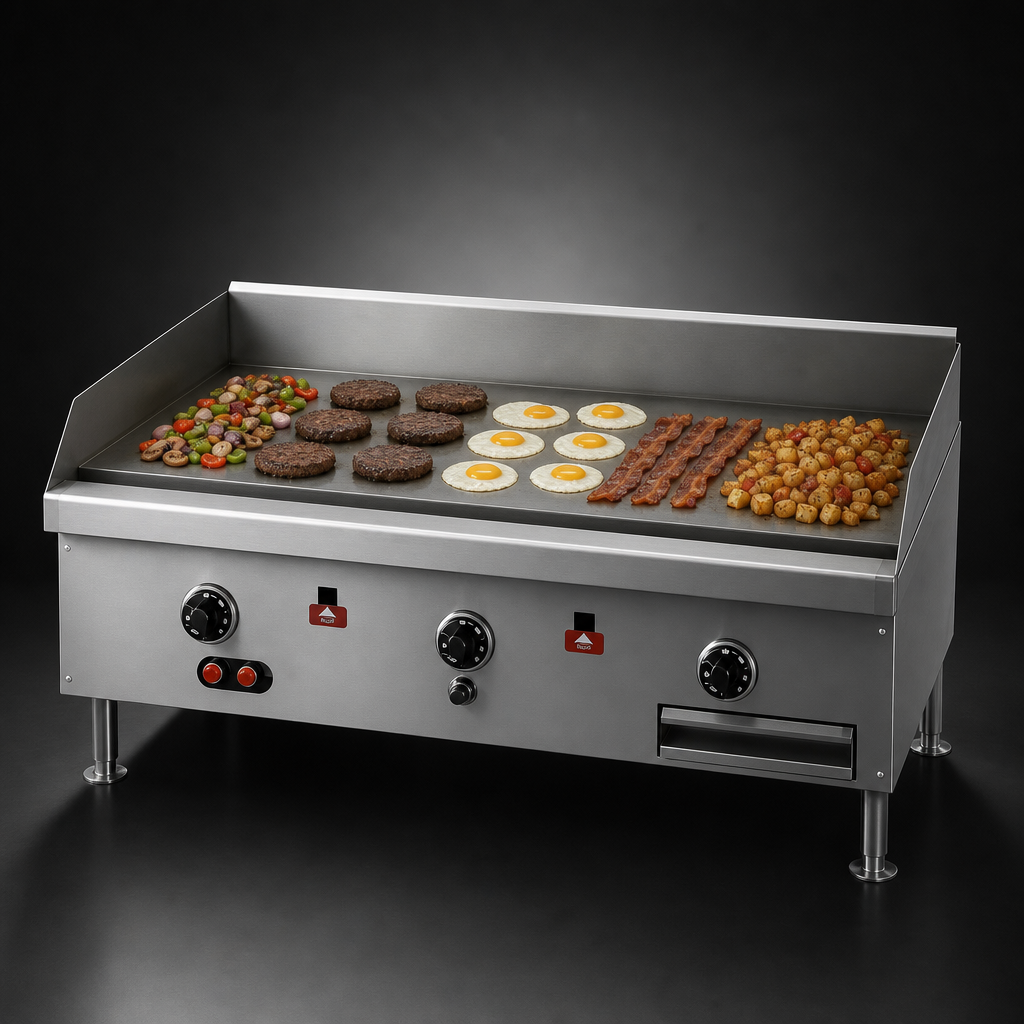

- High-output performance: 30,000 BTU per 12" section (120,000 BTU total) handles high-volume orders with ease.

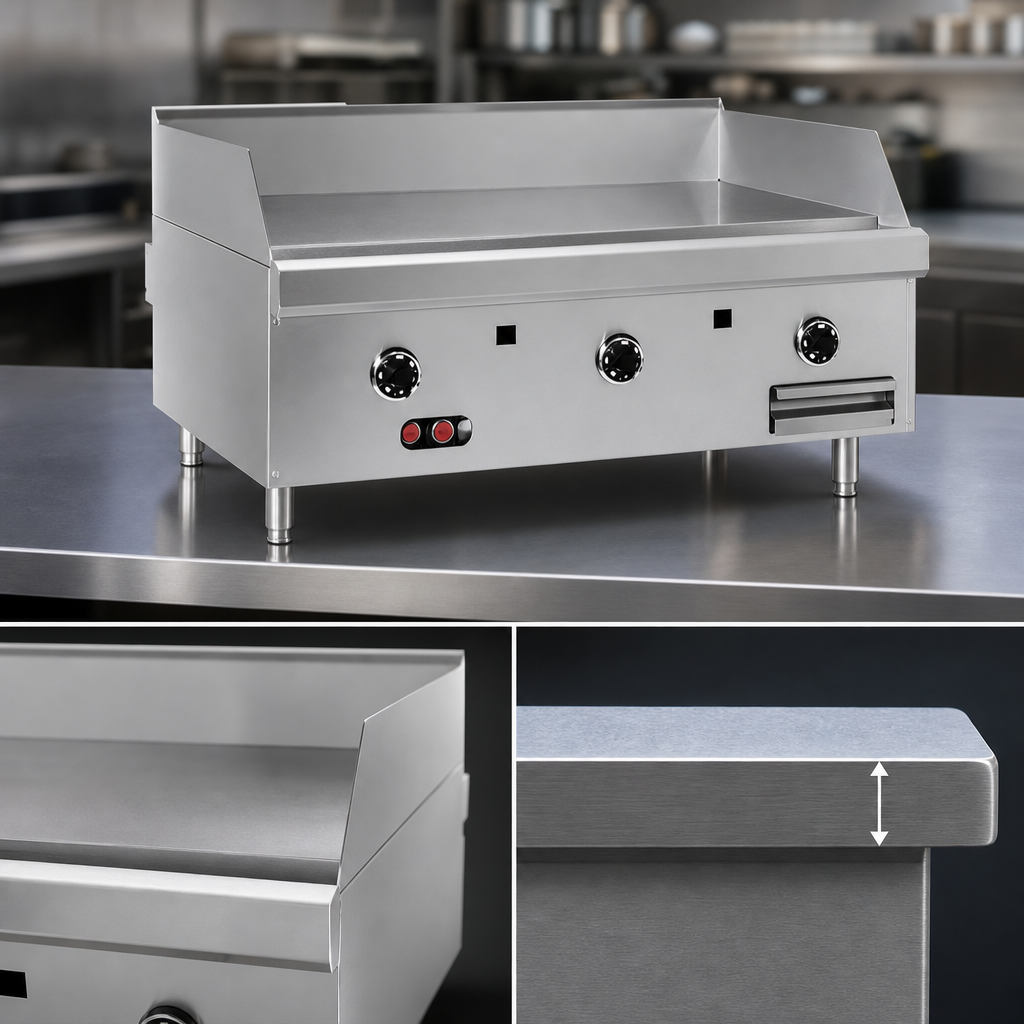

- 1" thick polished steel plate: Heats evenly, recovers fast, and resists warping under continuous use.
- Exclusive “NO COLD” Zone: Uniform heat distribution eliminates hot and cold spots across the entire cooking area.
- “Insta-on” thermostatic controls: Independent embedded sensors maintain set temps within 200–550 °F.
- Battery spark ignition & flame-failure protection: Reliable lighting and automatic gas shut-off for added safety.
- Quick-swap grease management: Two 16-quart basins let you change pans on the fly during peak service.
- All-stainless exterior: Front, sides, vent, towel bar, and integrated stand withstand daily commercial abuse and clean up fast.
- Fully insulated double-wall sides: Keeps operator areas cooler and improves energy efficiency.
- Field-proven reliability: NSF & CSA certified and backed by Southbend’s 1-year parts & labor warranty.
Technical specifications
| Model | HDG-48V |
|---|---|
| Type | Countertop, gas, thermostatic griddle with integrated stand |
| Cooking surface (W × D) | 48" × 24" (1,152 in² / 3,000 cm²) |
| Plate thickness | 1" (25 mm) polished steel |
| Heat output | 120,000 BTU/hr (natural gas) |
| Burners / Controls | 4 “U” shaped burners with independent thermostats (200–550 °F) |
| Ignition | Battery powered electronic spark |
| Safety | Flame-failure device on each pilot |
| Gas connection | 3/4" NPT (rear) with pressure regulator Min. supply: 7" W.C. (NG) / 11" W.C. (LP) |
| Splash guards | 5" rear, 4" sides |
| Grease capacity | 2 pans × 16 qt (15 L) each |
| Overall dimensions* | 48" W × 33.5" D × 40.6" H (1219 × 851 × 1031 mm) |
| Shipping weight* | 600 lb (272 kg) |
| Certifications | CSA Gas, NSF |
*Dimensions and weight include integrated stand and 4" casters.
Installation & maintenance tips
- Install under a properly sized, vented hood.
- Allow 12" clearance on sides and 8" at rear from combustible surfaces.
- Connect with a 3/4" gas hose rated to ANSI Z21.69 and use a restraining device when unit is on casters.
- Season the plate before first use and scrape/clean regularly for optimal performance.
Warranty
1-year parts & labor coverage when installed and serviced by a Southbend Authorized Service Agency. Alkaline batteries and normal-wear items (ignitors, bulbs, etc.) carry a 90-day warranty.
