Southbend (Middleby)  |  SKU: HDG-48-M

Southbend (Middleby) HDG-48-M Gas Griddles

$5,903.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

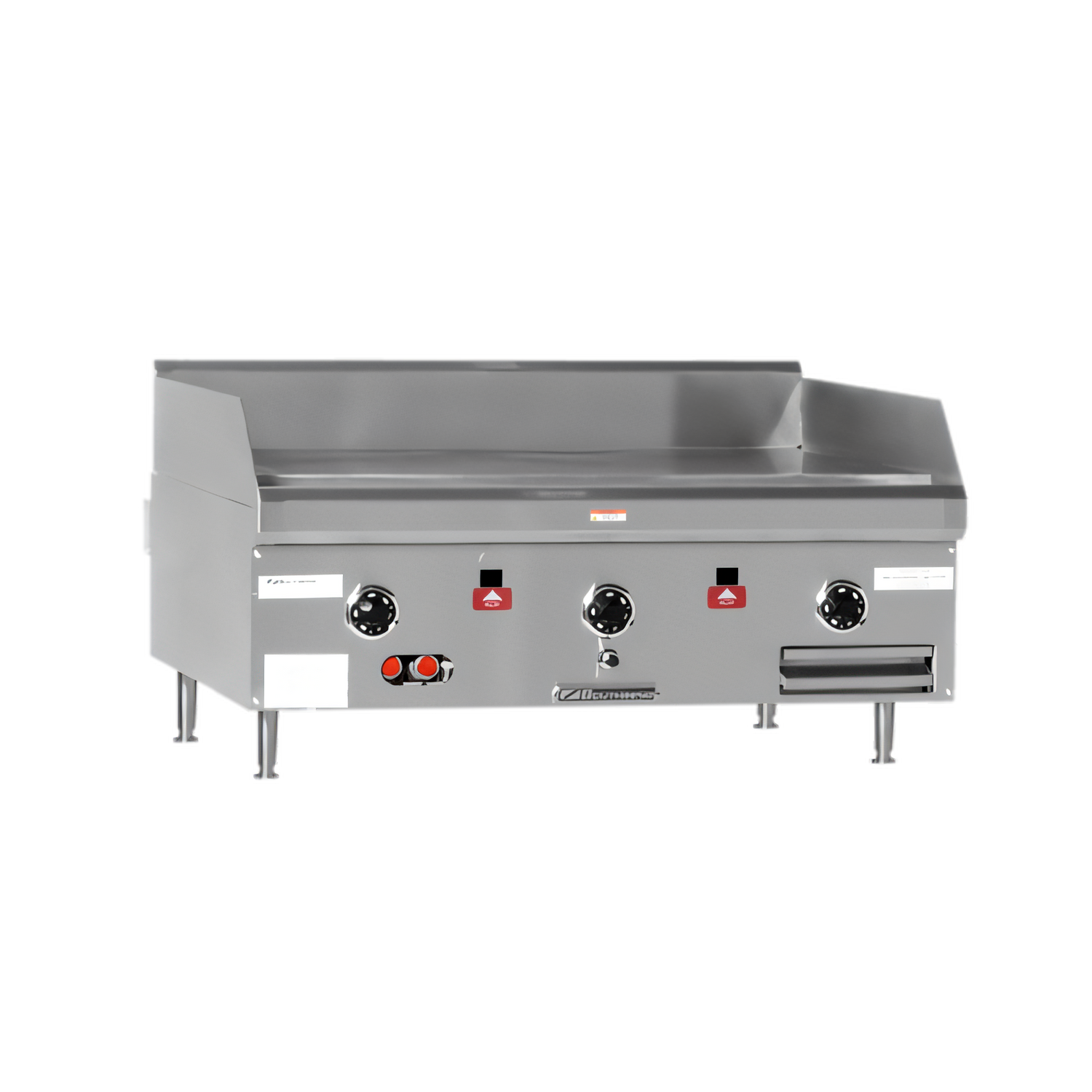

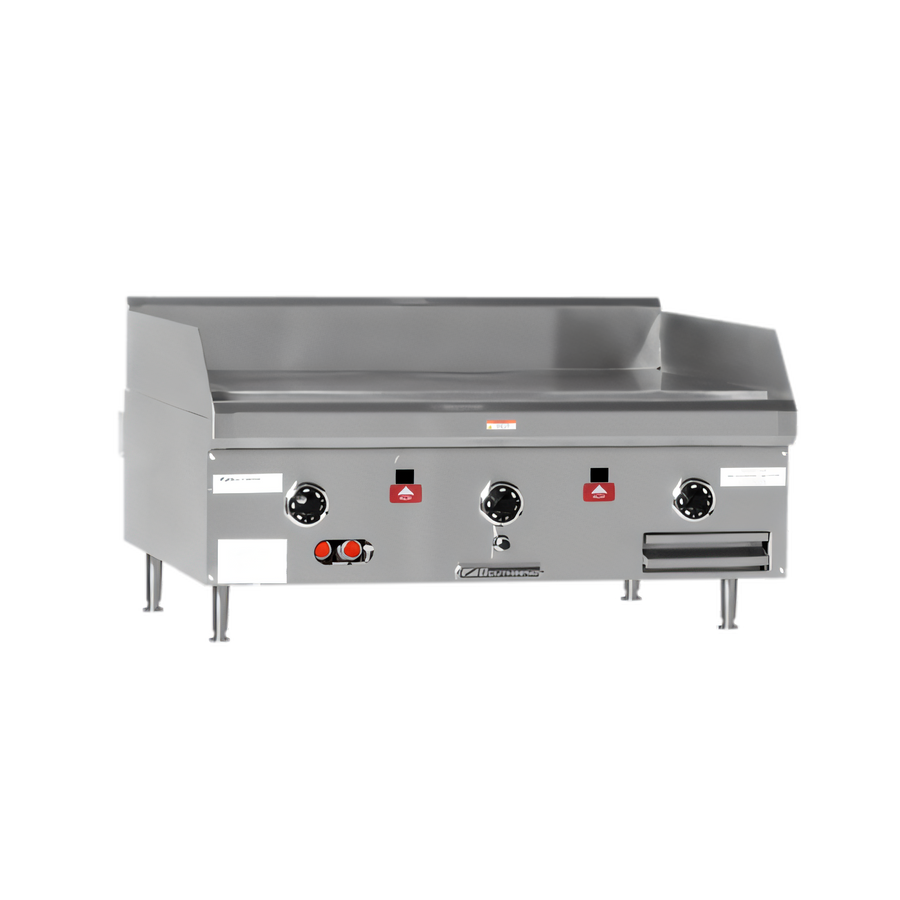

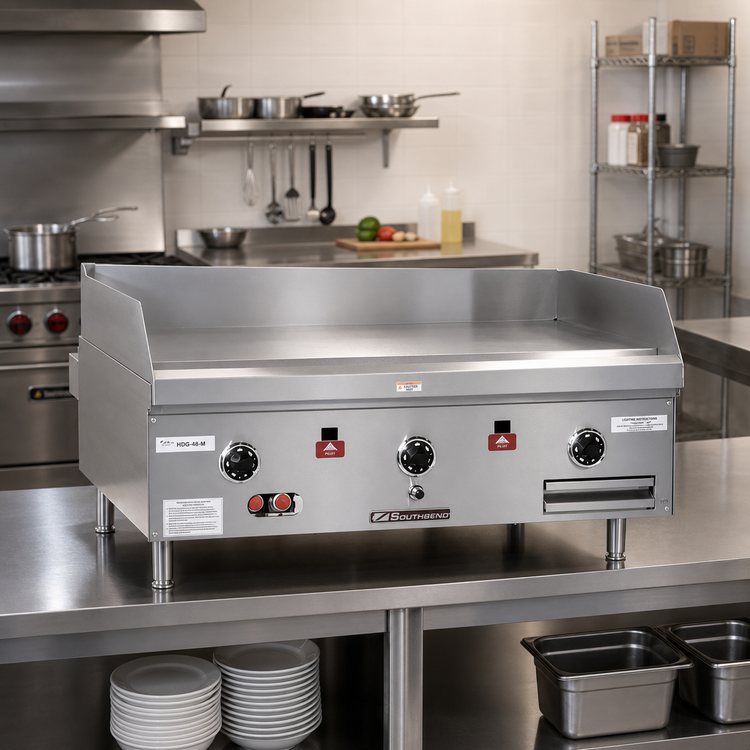

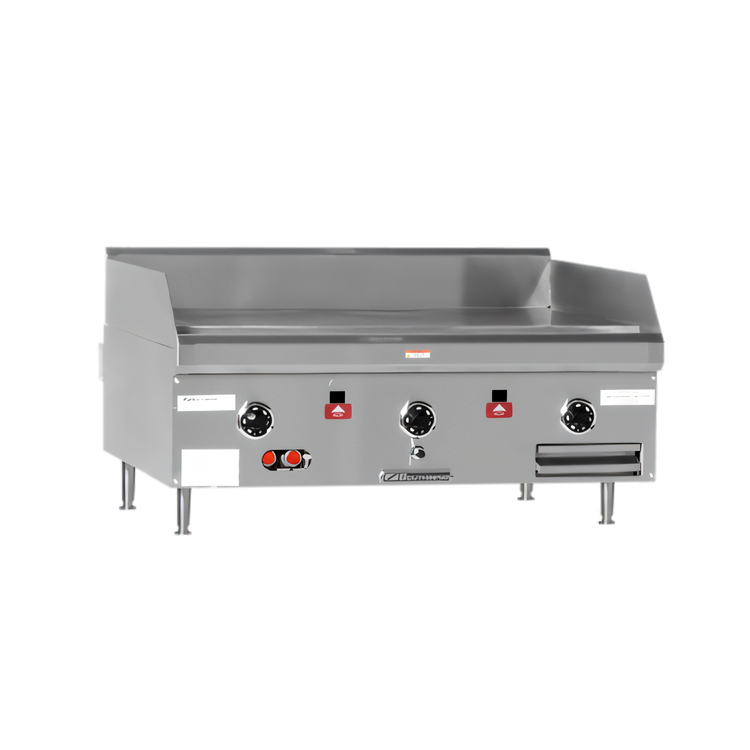

Southbend HDG-48-M Heavy-Duty Manual Gas Countertop Griddle

48" W x 24" D Cooking Surface • 80,000 BTU • CSA & NSF Certified

Built to thrive on the toughest cook lines, the HDG-48-M packs four high-performance burners under a full 4-foot plate, giving you the fire-power and heat uniformity you need for flawless pancakes at dawn and sizzling burgers at lunch—all from one rugged, space-saving countertop unit.

Key Features

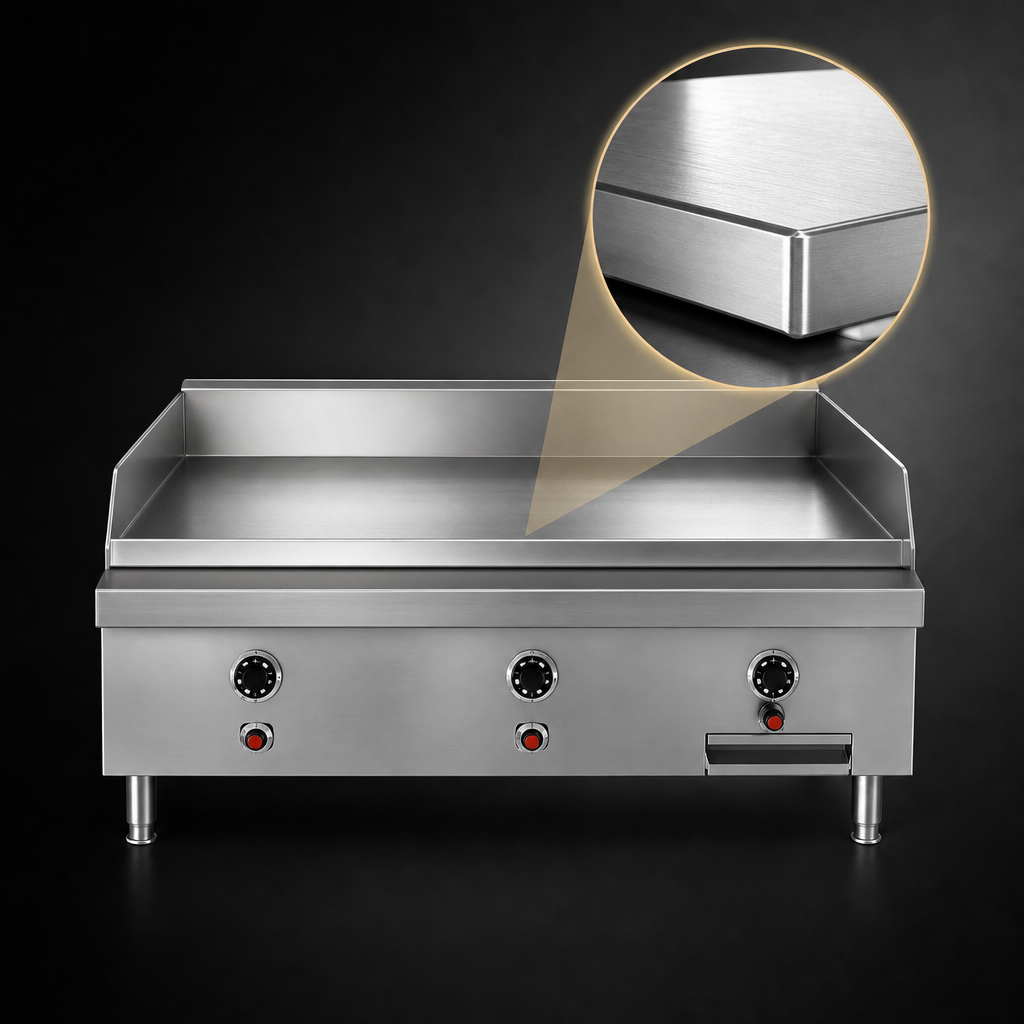

  • 1" thick polished rolled-steel plate for exceptional heat retention and quick recovery.
  • Four 20,000 BTU “U”-shaped burners (one every 12") deliver a combined 80,000 BTU/hr.
  • Manual, infinitely-adjustable gas valves give chefs instant flame control.
  • Battery-powered spark ignition—no electrical connection required.
  • Exclusive “NO COLD Zone” design promotes even heat across the entire surface.
  • Stainless-steel front, vent and sides with double-wall insulation for maximum durability.
  • 5" rear and 4" side splash guards help keep surrounding surfaces clean.
  • Large-capacity, easy-pull grease drawer streamlines cleanup.
  • 4" stainless-steel adjustable legs make leveling simple.
  • 3/4" rear gas connection with pressure regulator included.

Specifications

Model HDG-48-M

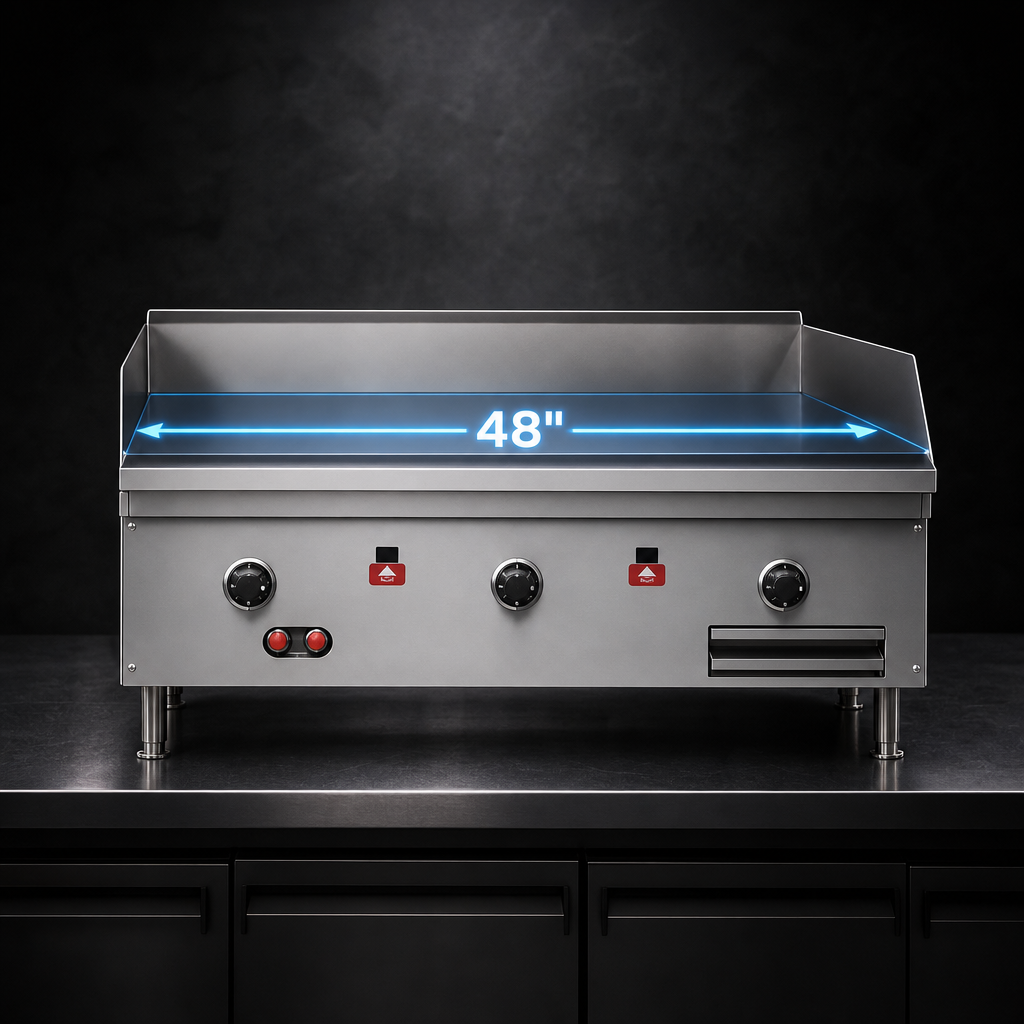

Cooking Surface 48" W × 24" D (1219 mm × 610 mm)
Plate Thickness 1" (25 mm) polished steel
Burners 4 × 20,000 BTU “U”-shaped burners
Total Heat Output 80,000 BTU/hr (Natural or LP)
Control Type Manual gas valves, infinitely adjustable
Ignition Battery spark ignition
Gas Connection 3/4" NPT (rear) – regulator included
Overall Dimensions* 48" W × 31.75" D × 16" H (including splash)
Shipping Weight* ≈ 545 lb (247 kg)
Certifications CSA, NSF
Warranty 1-year parts & labor

*Dimensions and weight are approximate and include factory-installed 4" legs.

Optional Accessories (sold separately)

  • Stainless-steel equipment stand (with or without cutting board shelf)
  • Grooved or chrome-plated griddle plates
  • Casters for mobile stand
  • 2" insulated base for mounting on a refrigerated base
For commercial use only. Install under a properly vented hood. Maintain minimum clearances of 12" (sides) and 8" (rear) from combustible surfaces. Follow all local codes and Southbend installation instructions.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

16.13in

Width

48.0in

Depth

33.75in

Shipping Weight

545.0lbs

Cooking Surface Width (side - side)

43" - 48"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

manual controls

Exterior Finish

stainless steel front & sides

Plate Thickness

1"

Specifications

Griddle, countertop, gas, 48" W x 24" D cooking surface, 1" thick polished steel plate, manual controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 80,000 BTU, CSA, NSF
