Southbend (Middleby)  |  SKU: HDG-48

Southbend (Middleby) HDG-48 Gas Griddles

$7,125.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Hdg parts manual (post 7/6/2010) Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

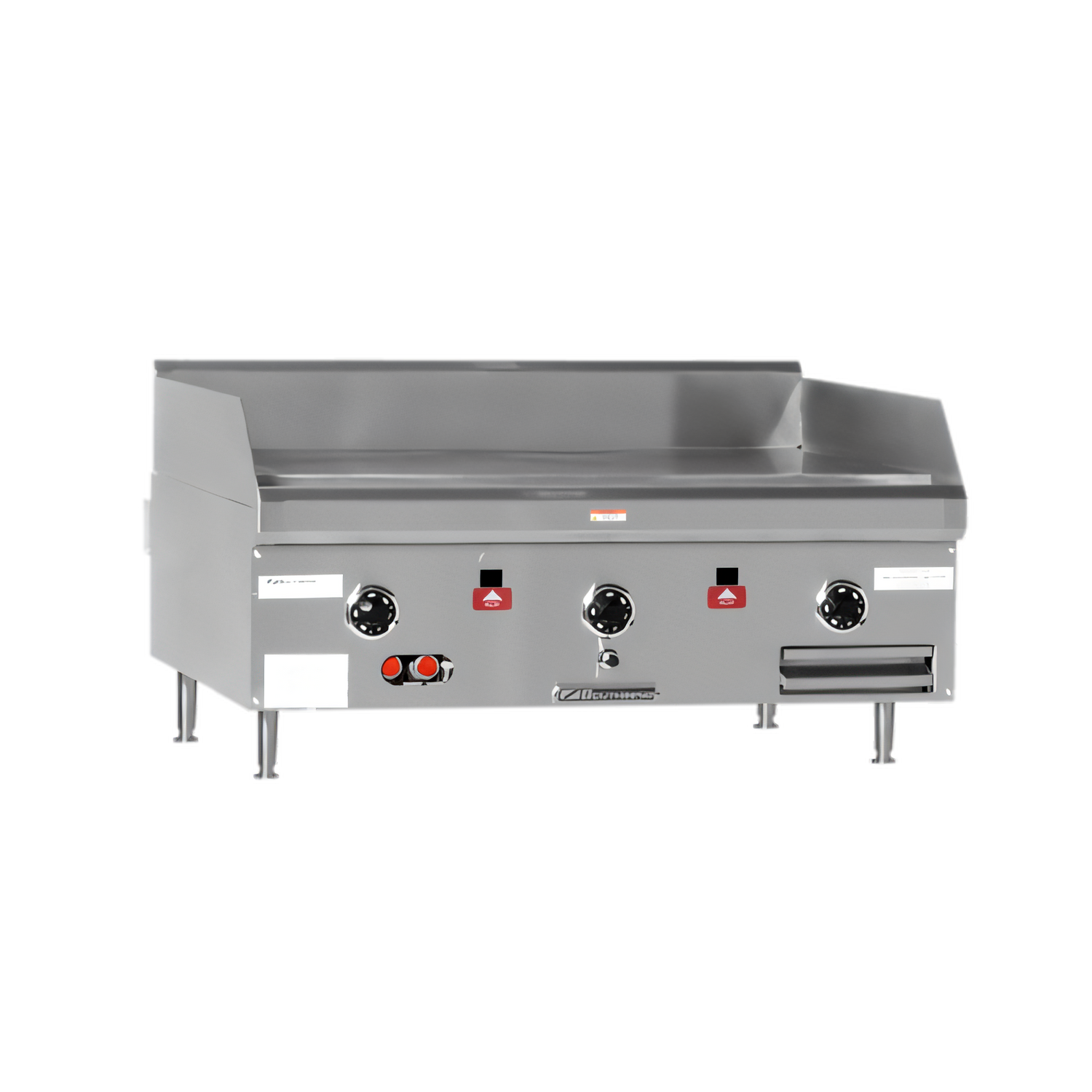

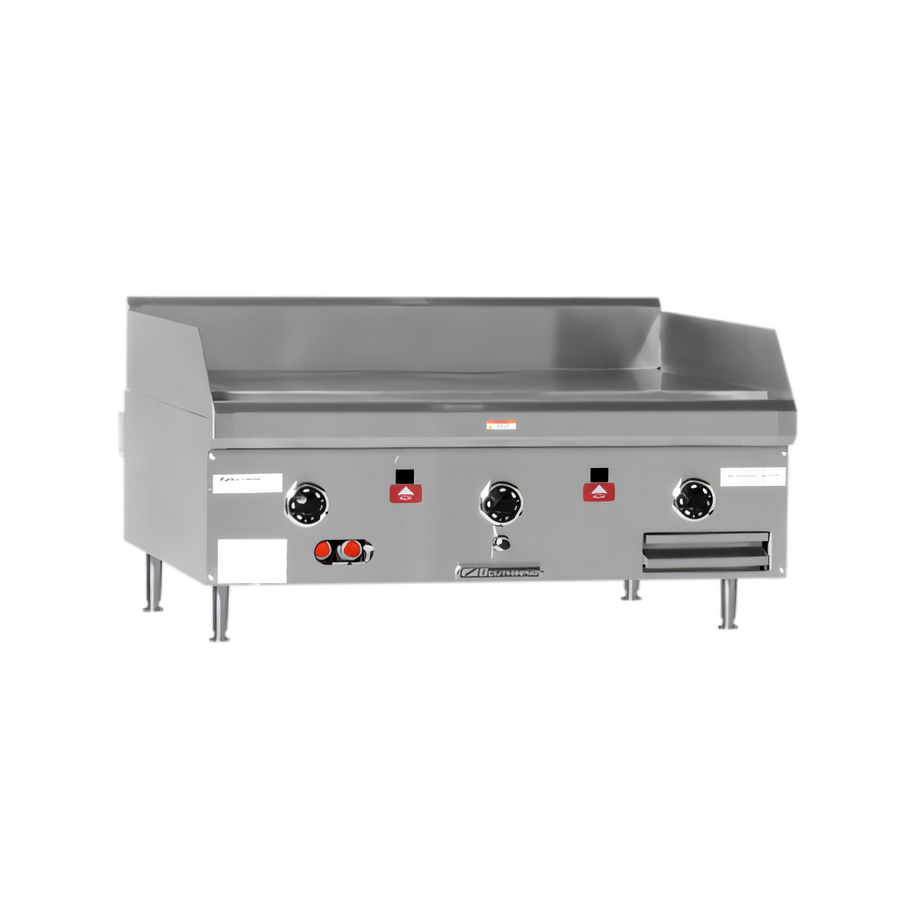

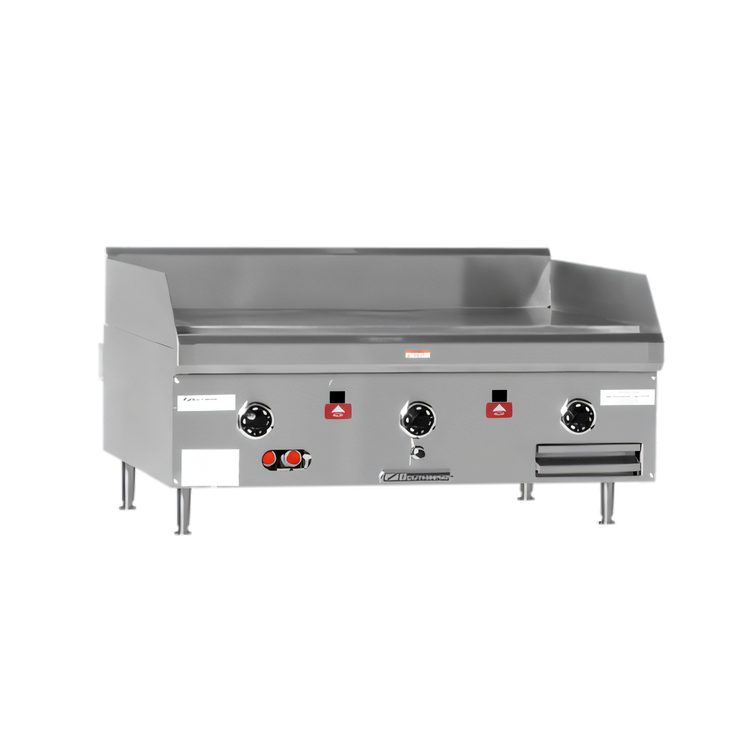

Southbend HDG-48 Heavy-Duty Counterline Gas Griddle – 48" Thermostatic (Quick Ship)

120,000 BTU | 48" × 24" Cooking Surface | CSA & NSF Listed

Need a rugged griddle that shows up fast and keeps up with rush-hour tickets? The Southbend HDG-48 delivers a generous 48-inch, “No-Cold-Zone” plate powered by four precision thermostats, so bacon, burgers and pancakes hit the window at the perfect temp—every time.

Key Features & Benefits
  • Quick-Ship model typically leaves the factory in days—not weeks.
  • 1" thick polished rolled-steel plate stores heat for rapid recovery and even browning.
  • Four 30,000 BTU “U” burners (one every 12") create a 120,000 BTU powerhouse.

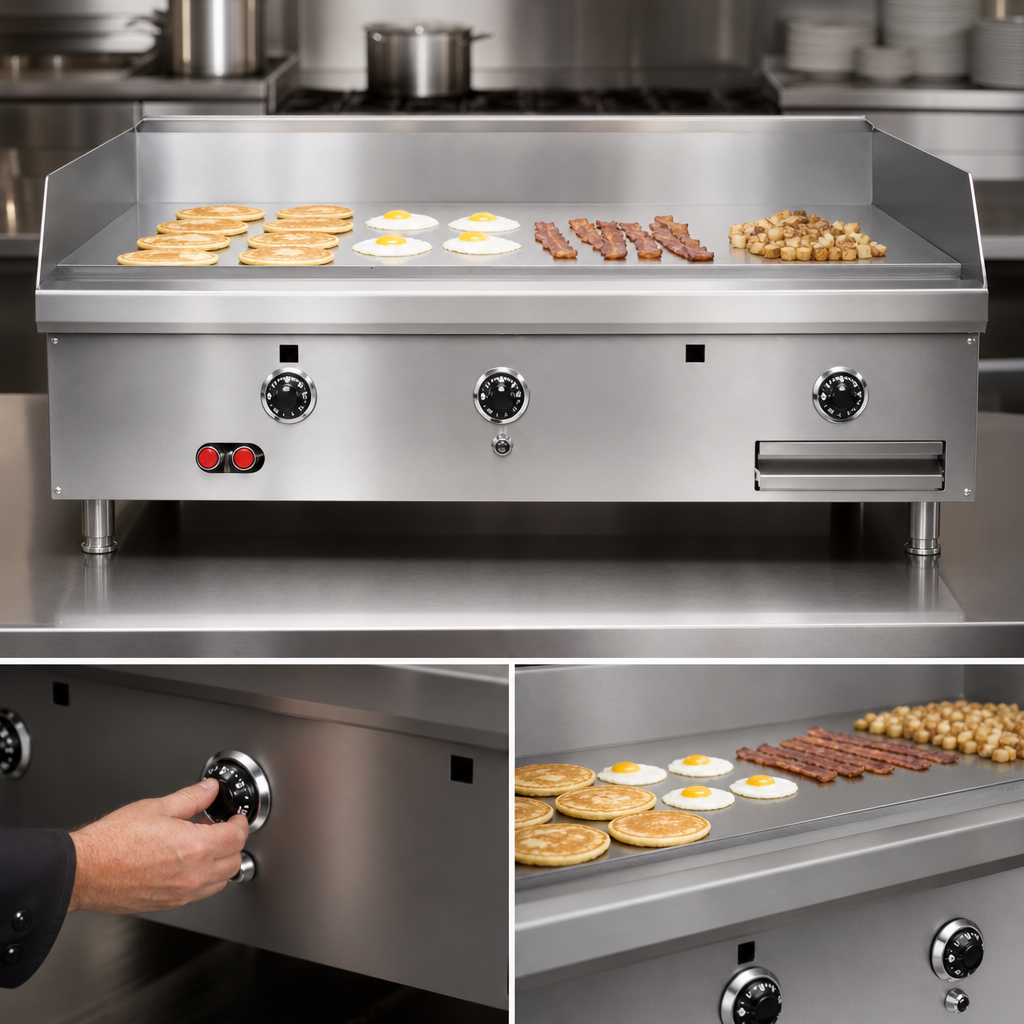

  • “Insta-On” thermostatic controls hold any zone between 200 °F – 550 °F.

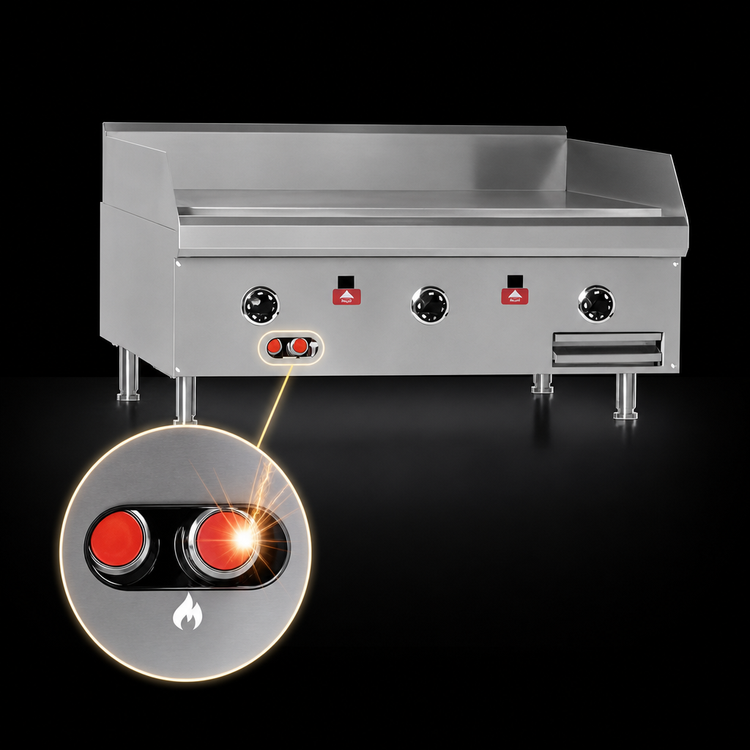

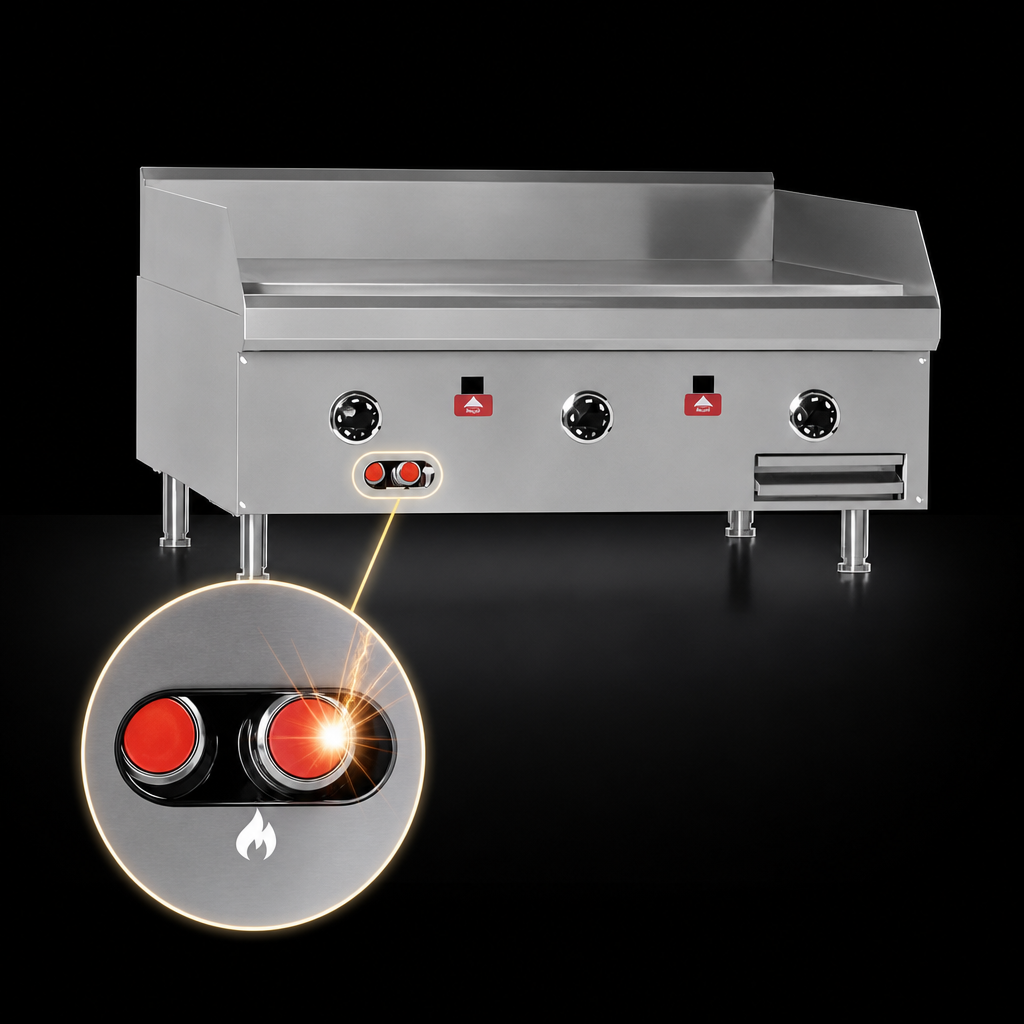

  • Battery-powered electronic spark ignition—no external electricity required.
  • Flame-failure safety on every pilot for added peace of mind.
  • 5" rear & 4" side splash guards keep grease where it belongs.
  • Front-mounted, large-capacity grease drawer lifts out for fast clean-up.
  • All-stainless front, sides & 4" adjustable legs stand up to daily abuse.
Engineered for High-Volume Kitchens
  • Embedded load-sensing thermostats respond quickly to load changes.
  • Exclusive “No Cold Zone” design distributes heat evenly across the plate.
  • Protected flue opening directs heat and vapors straight to your hood.
  • Zero side clearance to non-combustibles; 12" sides / 8" rear to combustibles.
  • 3/4" rear gas connection with regulator included for simple hook-up.
Specification Snapshot
Model HDG-48 (Thermostatic)
Cooking surface 48" W × 24" D  (1,152 sq in)
Plate thickness 1" polished rolled steel
Burners / Zones 4 × 30,000 BTU “U” burners (independent)
Total input 120,000 BTU/hr  (Natural or Propane)
Temp range 200 °F – 550 °F
Overall size* 48" W × 31.8" D × 16" H to plate  +5" rear splash
Gas connection 3/4" NPT rear, regulator included
Min. 7" W.C. NAT  |  11" W.C. LP
Shipping weight ≈ 545 lb
Construction Stainless front, sides & vent; aluminized rear/bottom
Certifications CSA, NSF
Warranty 1 year parts & labor (commercial use)

*Dimensions are to the top of the cooking surface. Height will vary with 4" adjustable legs.

What’s Included
  • HDG-48 gas griddle with 4" stainless steel adjustable legs
  • Factory-installed gas pressure regulator
  • Battery for spark ignition
  • Owner’s manual & warranty documentation
Commercial Use Only: Unit must be installed under a properly sized ventilation hood by a qualified technician. Do not allow oversized cookware to overhang the front rail.
Need Flexible Payments?

Ask about Middleby Equipment Financing for rapid credit decisions and fixed monthly payments that keep cash flow moving.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

16.13in

Width

48.0in

Depth

33.75in

Shipping Weight

545.0lbs

Cooking Surface Width (side - side)

43" - 48"

Controls

thermostat / solid state controls

Exterior Finish

stainless steel front & sides

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Plate Thickness

1"

Specifications

(QUICK SHIP) Griddle, countertop, gas, 48" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides & 4" adjustable legs, 120,000 BTU, CSA, NSF
