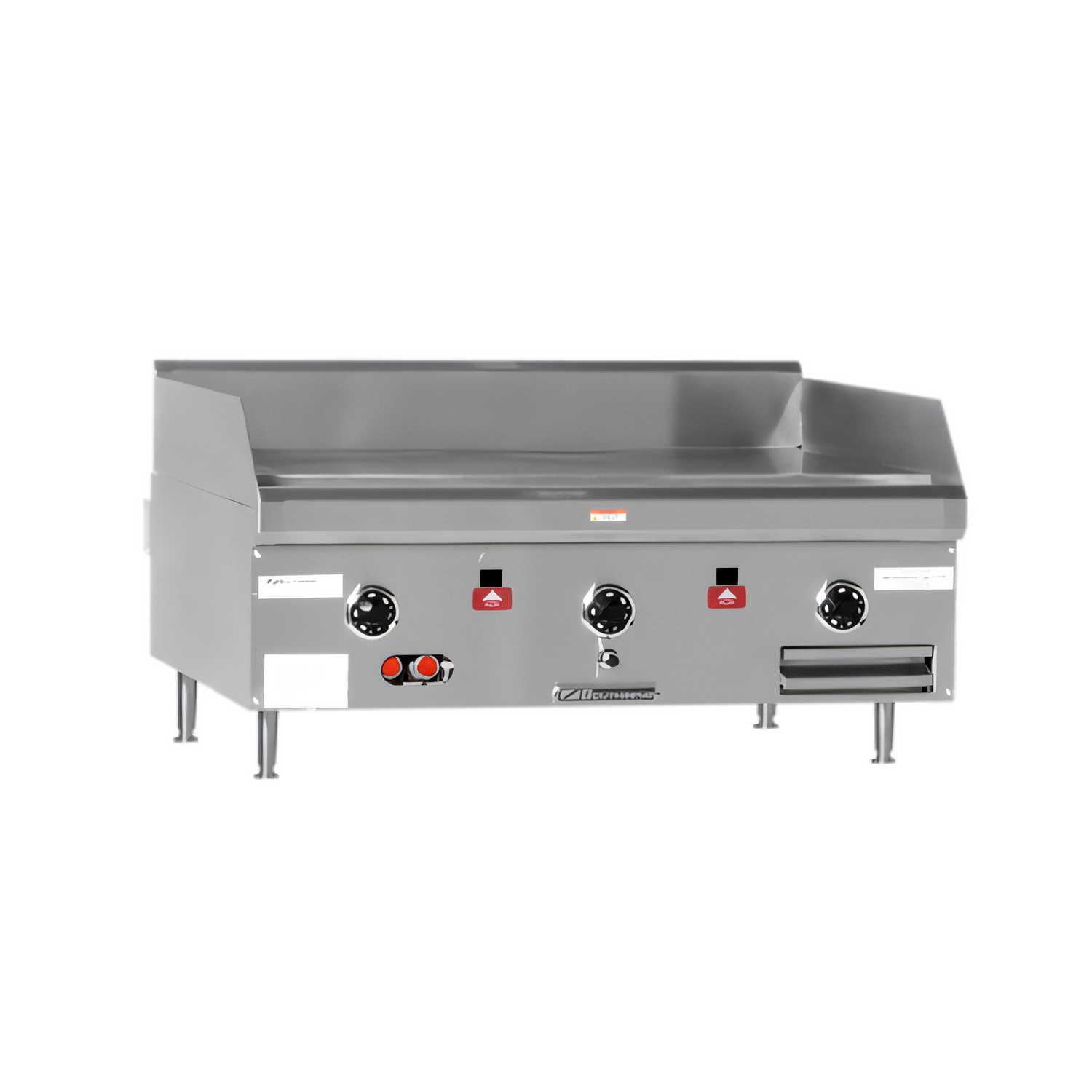

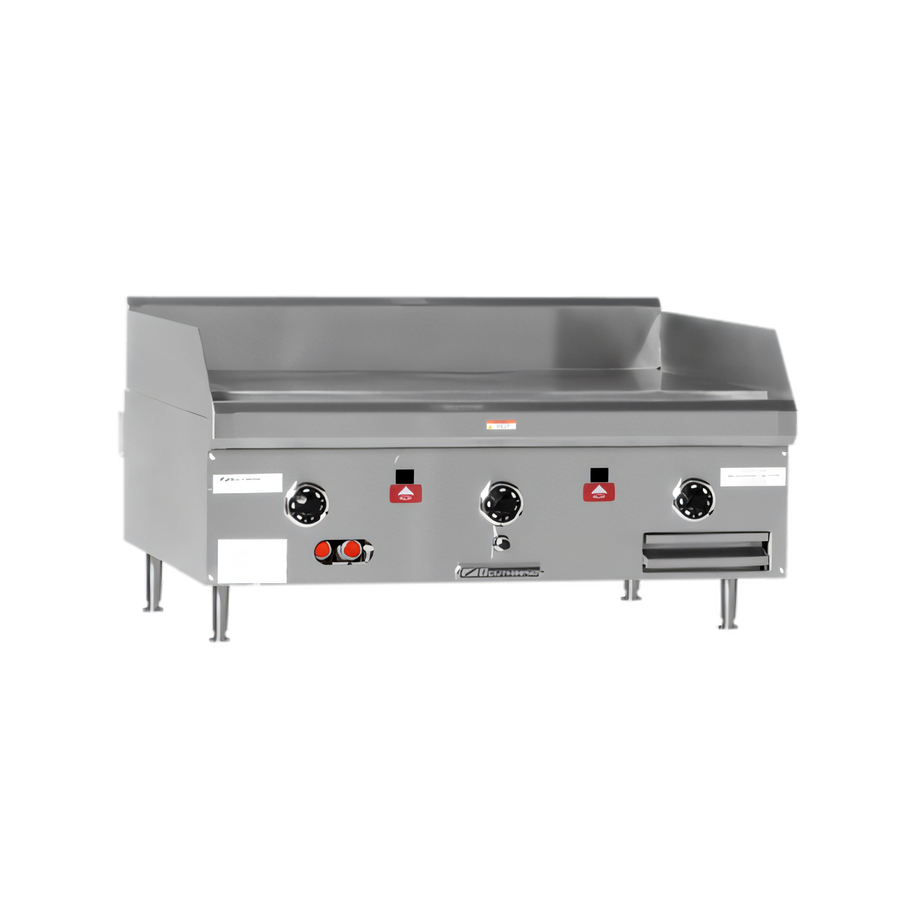

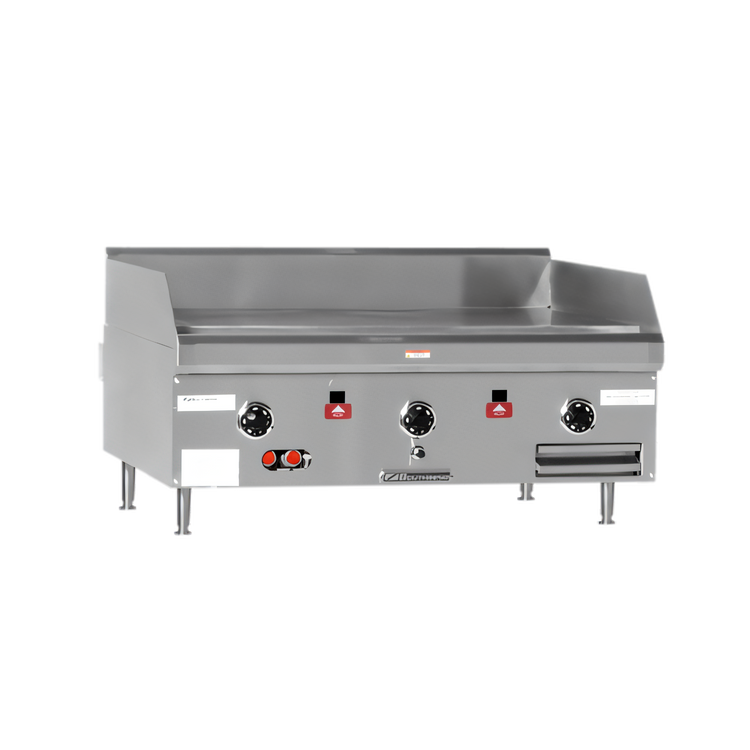

Southbend HDG-48-30 Heavy Duty Countertop Gas Griddle, 48 x 30 Inch Cooking Surface, Thermostatic, 120,000 BTU

SKU: HDG-48-30
$8,578.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Southbend (Middleby)

Southbend HDG-48-30 Heavy Duty Countertop Gas Griddle, 48 x 30 Inch Cooking Surface, Thermostatic, 120,000 BTU

1-Inch Polished Steel Plate, Battery Spark Ignition, Stainless Steel Front & Sides

Built for busy kitchens, this thermostatic countertop griddle delivers a large 48 x 30 inch cooking surface with consistent heat, safety features, and rugged stainless steel construction.

  • 48 x 30 inch cooking surface with a 1-inch thick polished steel plate for dependable performance.
  • Four burners deliver 120,000 BTU total output for strong recovery and even heating.
  • Thermostatic Insta-on controls provide precise temperature control from 200°F to 550°F.
  • Battery spark ignition and a flame failure safety device support safer operation.
  • Stainless steel front, vent, and sides with reinforced insulated construction for durability.
  • 4-inch adjustable stainless steel legs and a 3/4-inch rear gas connection support installation flexibility.

Overall Dimensions:

48.0"W x 37.8"D x 16.13"H

Product Weight:

666.0 lb

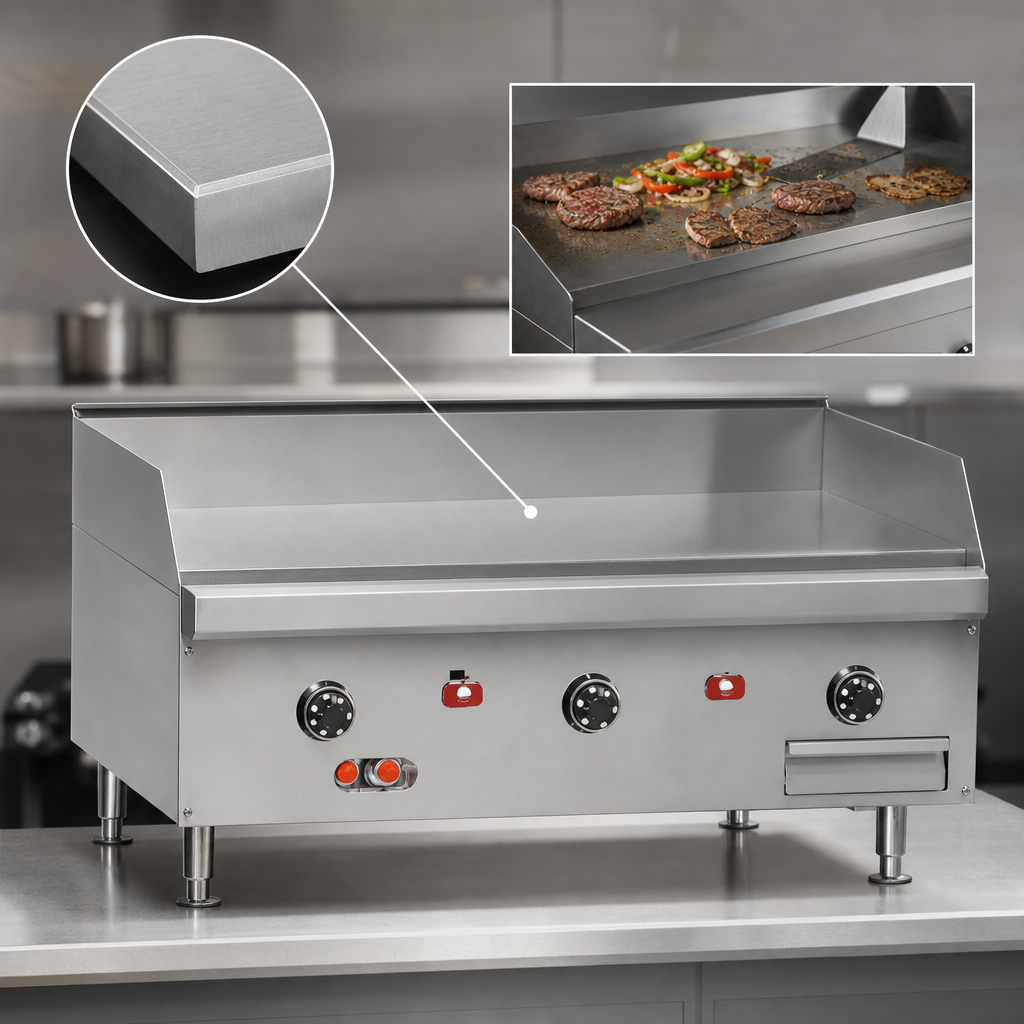

1-Inch Polished Steel Griddle Plate

Fully welded polished rolled steel plate is built for durability and even heat distribution.

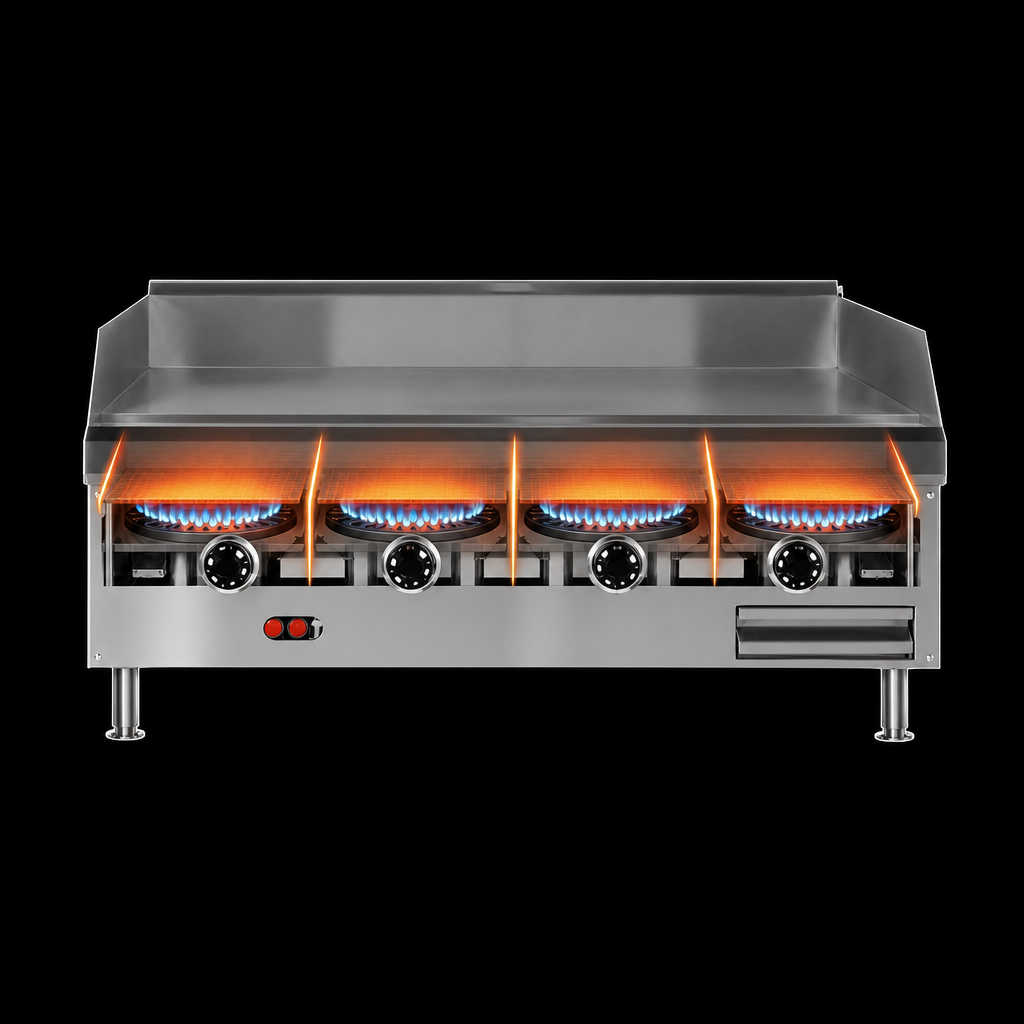

Four Burner Heating System

Four burners provide 30,000 BTU per 12-inch section for a total of 120,000 BTU.

Thermostatic Insta-On Controls

Independent thermostatic controls offer precise temperature settings from 200°F to 550°F.

Battery Spark Ignition

Electronic battery spark ignition helps simplify start-up.

Flame Failure Safety Device

Built-in flame failure protection helps shut off gas if the flame goes out.

Stainless Steel Exterior

Stainless steel front, vent, and sides provide a durable, easy-to-clean exterior; rear and bottom panels are aluminized steel.

Adjustable Stainless Steel Legs

4-inch adjustable legs help level the unit during installation.

Uniform Heat Design

The no-cold-zone design is intended to distribute heat evenly across the cooking surface.

Rear Gas Connection

Includes a 3/4-inch rear gas connection and pressure regulator.

Type Griddle
Style Counterline
Installation Type Countertop
Controls Thermostatic
Cooking Surface Width 48 Inches
Cooking Surface Depth 30 Inches
Plate Thickness 1 Inch
Griddle Plate Finish Smooth Steel
Temperature Range 200°F to 550°F
BTU 120,000 BTU
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 7 Inches W.C. Natural Gas; 11 Inches W.C. Propane
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 48 inches wide by 30 inches deep and uses a 1-inch thick polished steel plate.
It delivers 120,000 BTU total, with 30,000 BTU per 12-inch burner section.
The thermostatic controls provide a temperature range of 200°F to 550°F.
It uses a 3/4-inch rear gas connection and requires a regulated gas supply. Minimum supply pressure is 7 inches W.C. for natural gas or 11 inches W.C. for propane.
Yes. It includes battery spark ignition and a flame failure safety device.
It is designed for countertop installation and should be installed under a vented hood.
