Southbend (Middleby)  |  SKU: HDG-24V

Southbend (Middleby) HDG-24V Gas Griddles

$7,646.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

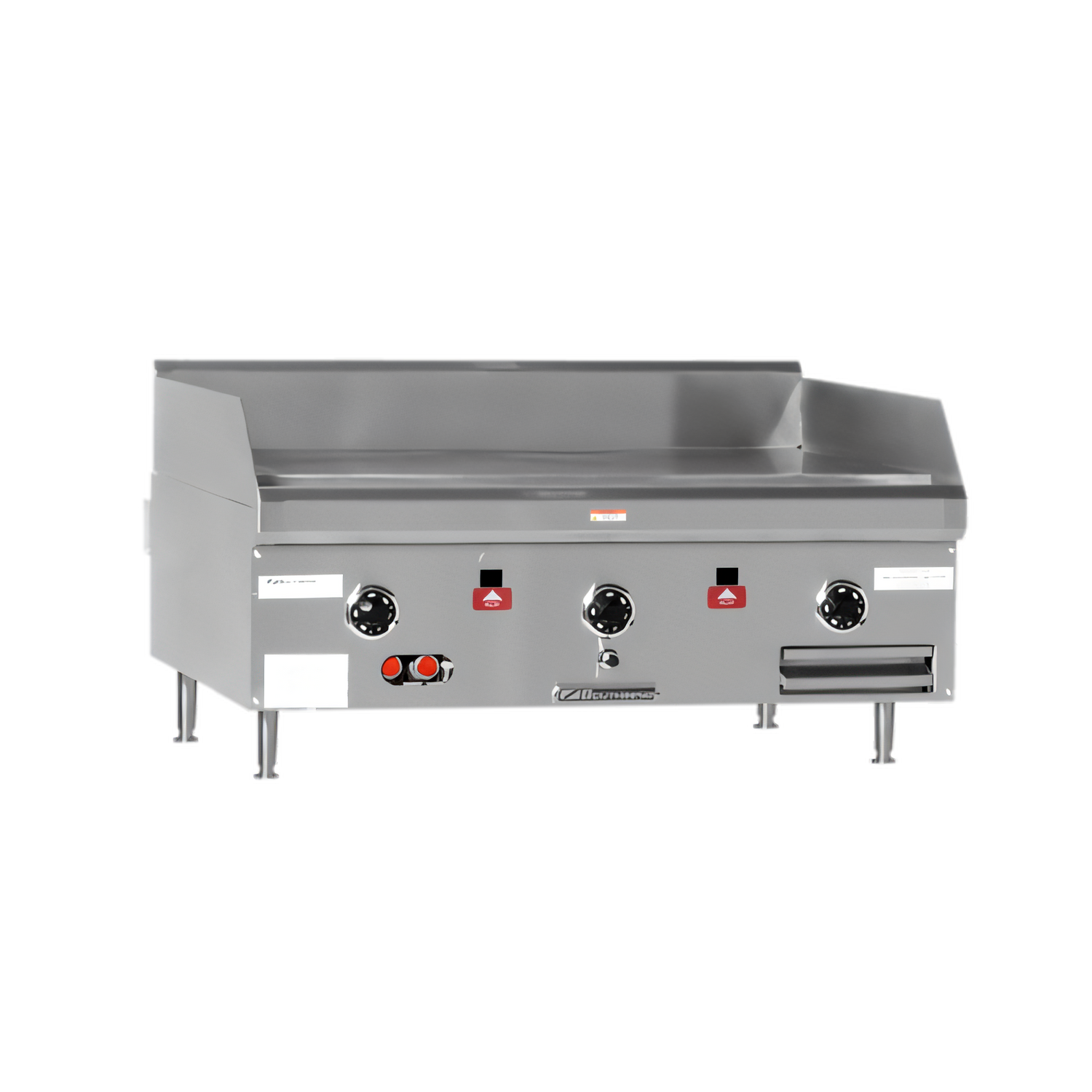

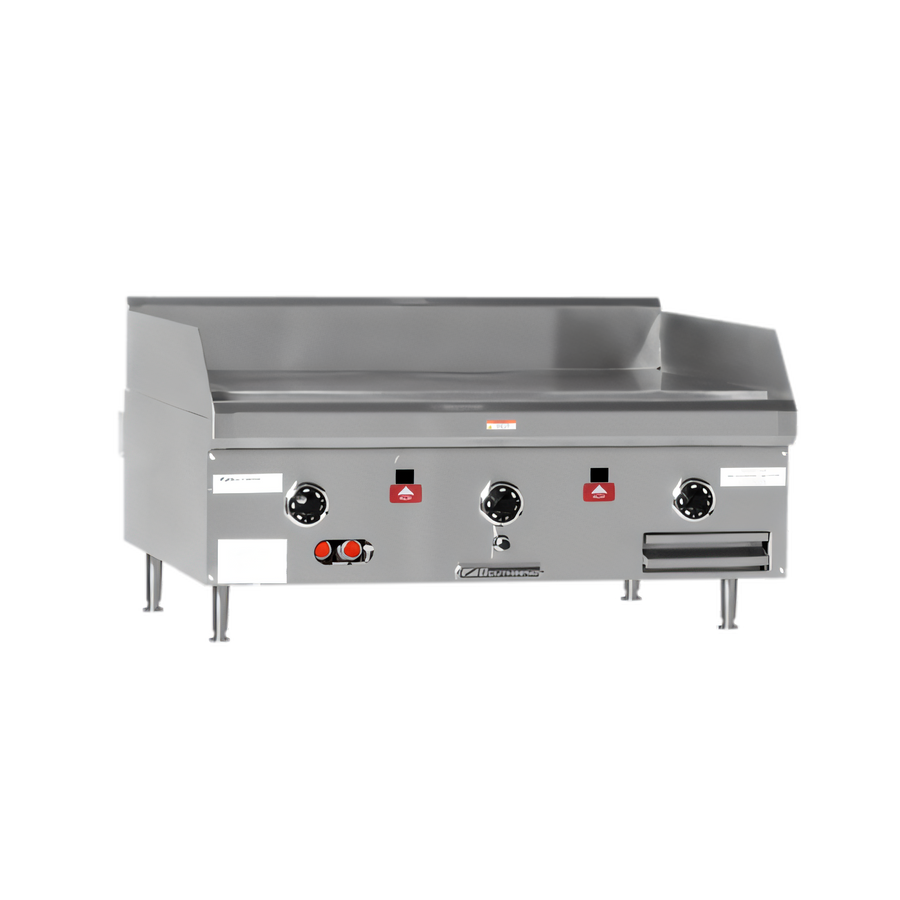

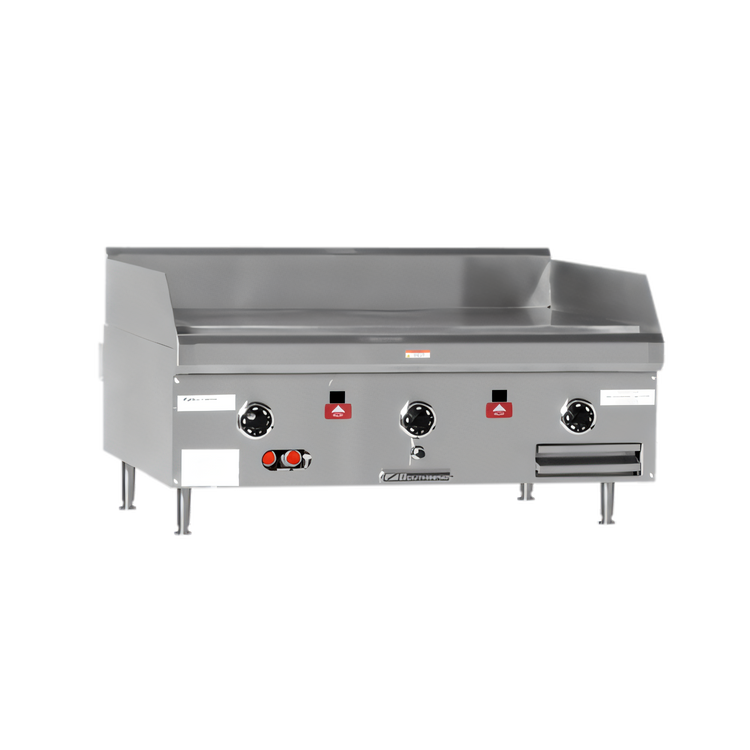

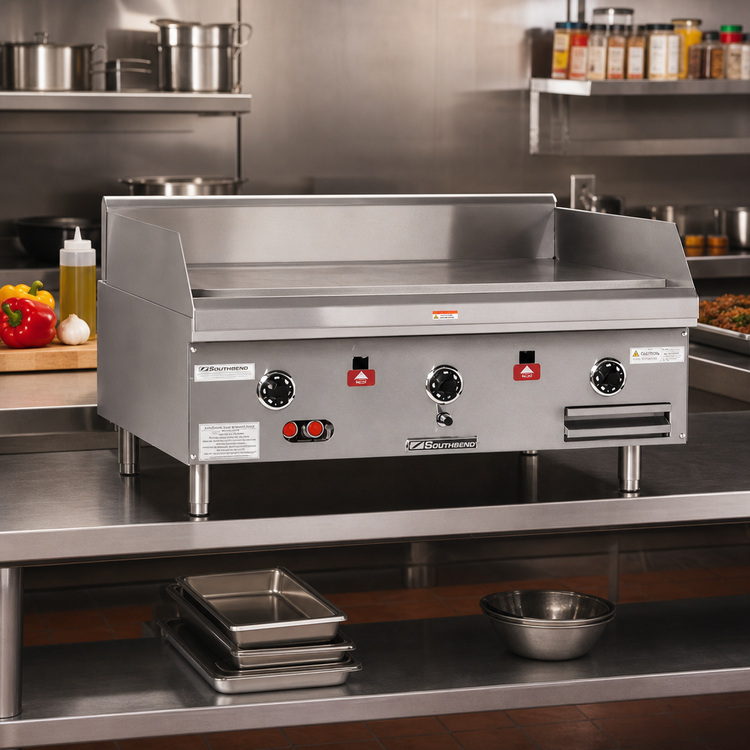

Southbend HDG-24V Counterline 24" High-Volume Gas Griddle

Thermostatic • 1" Polished Steel Plate • 60,000 BTU

Engineered for demanding commercial kitchens, the Southbend HDG-24V packs heavy-duty performance into a slim 24-inch footprint. Its 1-inch thick polished steel plate delivers fast, even heat, while independent thermostatic controls let you cook multiple menu items at exact temperatures—from a gentle 200°F hold to a blazing 550°F sear.

Key features
  • Two “U” burners rated at 30,000 BTU each (60,000 BTU total)
  • Embedded load-sensing thermostat for instant recovery
  • Battery-powered electronic spark ignition—no electrical hookup needed
  • Exclusive “NO COLD” zone ensures uniform heat across the entire plate

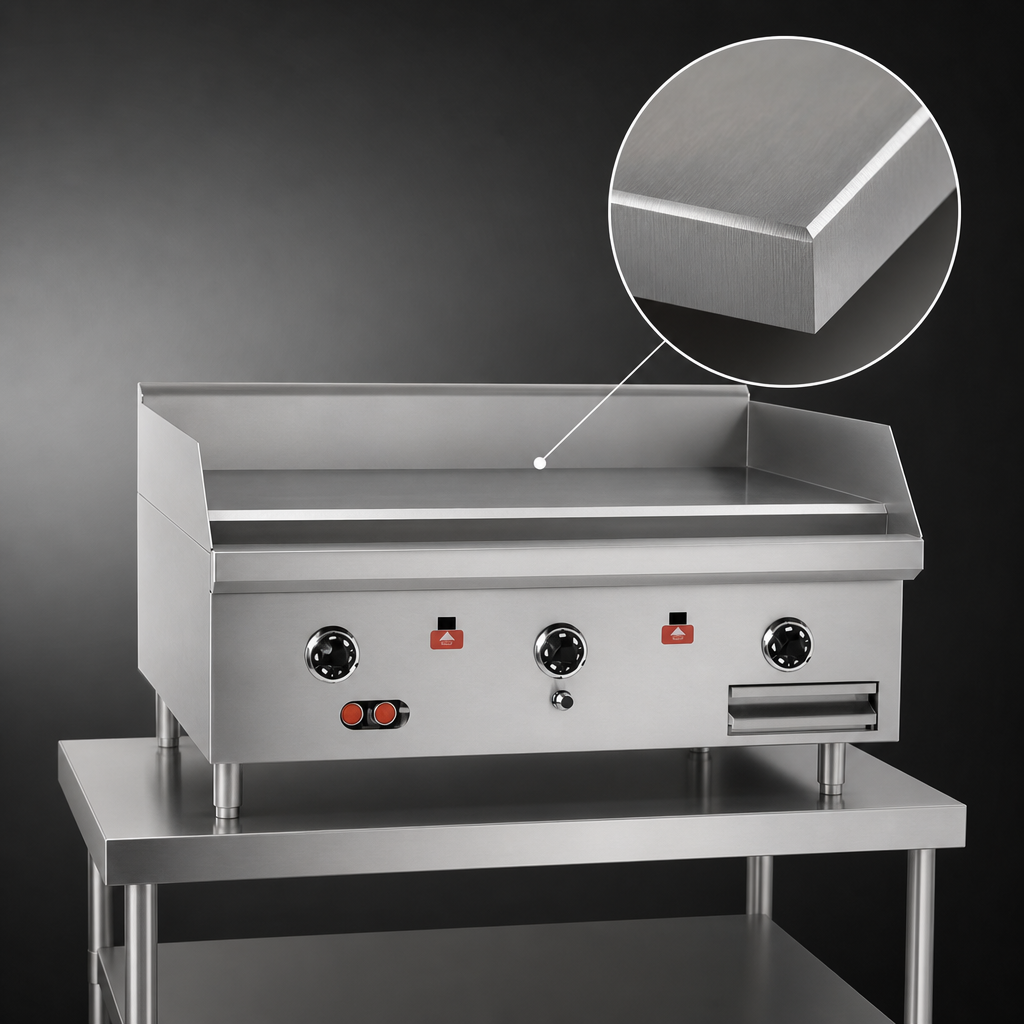

  • 1" thick polished rolled-steel plate resists warping and maximizes heat retention
  • Flame-failure safety device on every pilot for worry-free operation
  • Stainless-steel front, sides, vent, towel bar & integrated stand with 4" casters
  • 5" rear and 4" side splash guards contain grease and food debris
  • Dual 16-quart grease drawers for high-volume production
  • 3⁄4" rear gas connection with regulator included
  • CSA & NSF certified for safety and sanitation
Specifications
Model HDG-24V
Cooking surface (W × D) 24" × 24" (610 × 610 mm)
Overall dimensions (W × D × H) 24" × 33.5" × 40.6" (610 × 851 × 1031 mm) with stand
Plate thickness 1" (25 mm) polished steel
Burners / BTU 2 × 30,000 BTU (60,000 BTU total)
Temperature range 200 °F – 550 °F (93 °C – 288 °C)

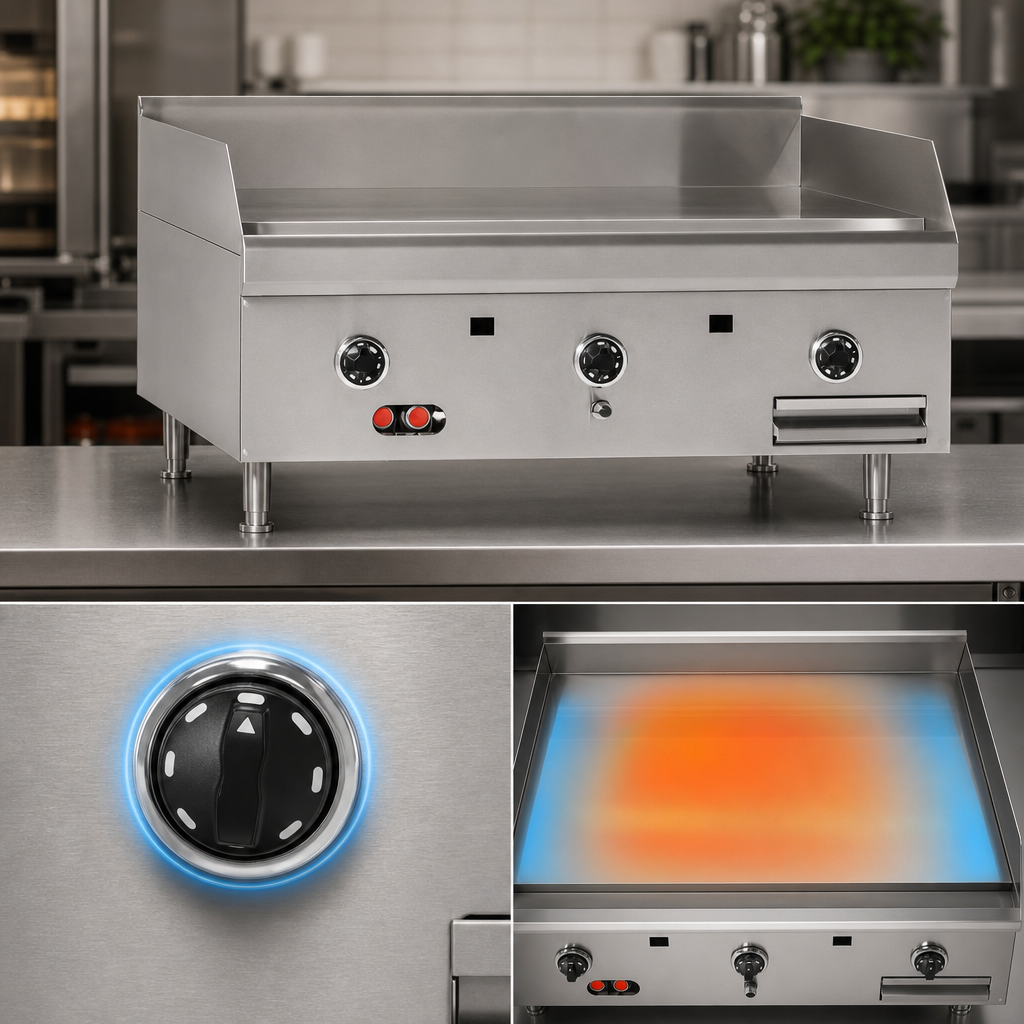

Controls Independent thermostatic dials, battery spark ignition
Gas connection 3⁄4" NPT rear; 7" W.C. NG / 11" W.C. LP minimum
Grease capacity 2 × 16 qt removable drawers
Construction Stainless-steel front, sides & vent; aluminized rear & bottom
Certifications CSA, NSF
Warranty 1 year parts & labor (commercial use)
Shipping weight 335 lb (152 kg)
Installation note: Provide 12" side and 8" rear clearance from combustible surfaces and install under a properly vented hood. If using a flex gas hose, a restraining device must be fitted to prevent strain on the connection.

Looking for more capacity? The Southbend Counterline HDG series is also available in 36", 48" and 60" widths.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

40.6in

Width

24.0in

Depth

33.5in

Shipping Weight

335.0lbs

Cooking Surface Width (side - side)

19" - 24"

Cooking Surface Depth (front - back)

24" - 29"

Controls

thermostat / solid state controls

Exterior Finish

stainless steel front & sides

Griddle Plate Finish

smooth steel

Plate Thickness

1"

Specifications

High Volume Griddle, countertop, gas, 24", 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides, towel bar & integrated stand, 60,000 BTU, CSA, NSF
