Southbend (Middleby) | SKU:
HDG-24-M
Southbend (Middleby) HDG-24-M Gas Griddles
$4,090.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) HDG-24-M Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) HDG-24-M Gas Griddles
$4,090.00
Unit price
/
Unavailable
Description

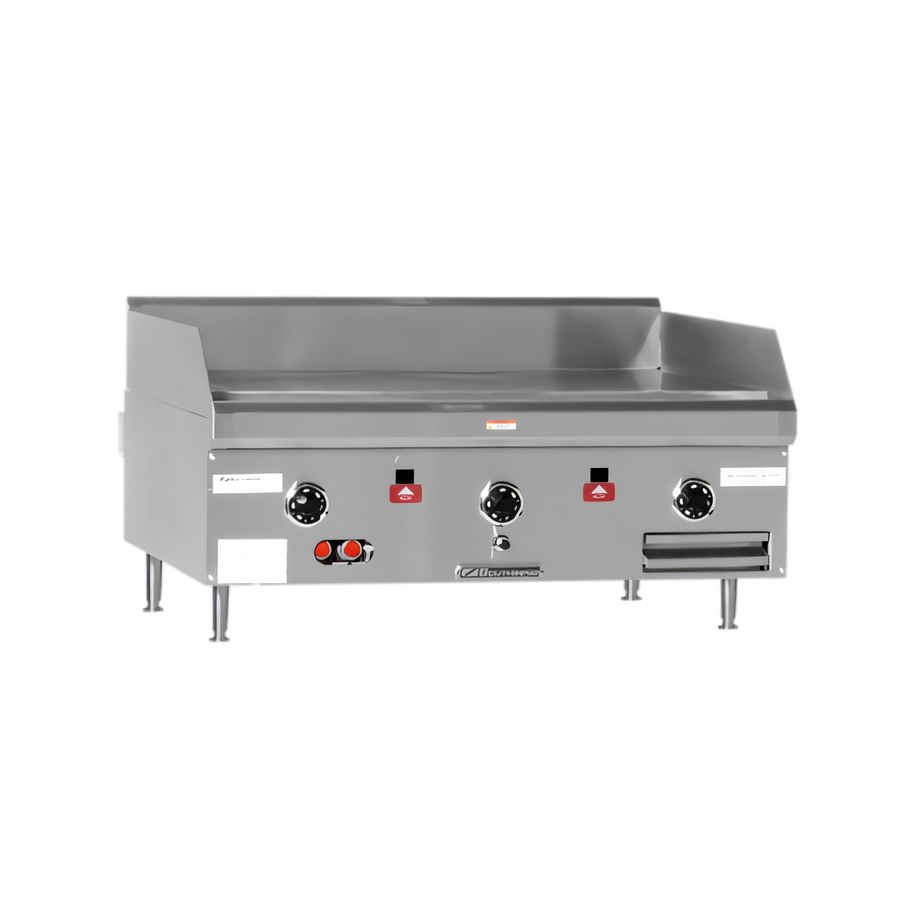

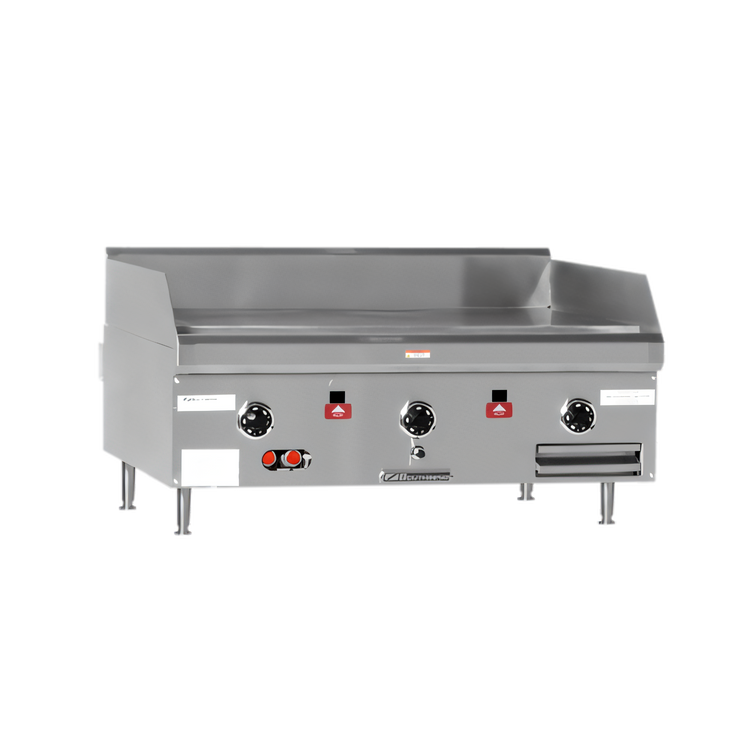

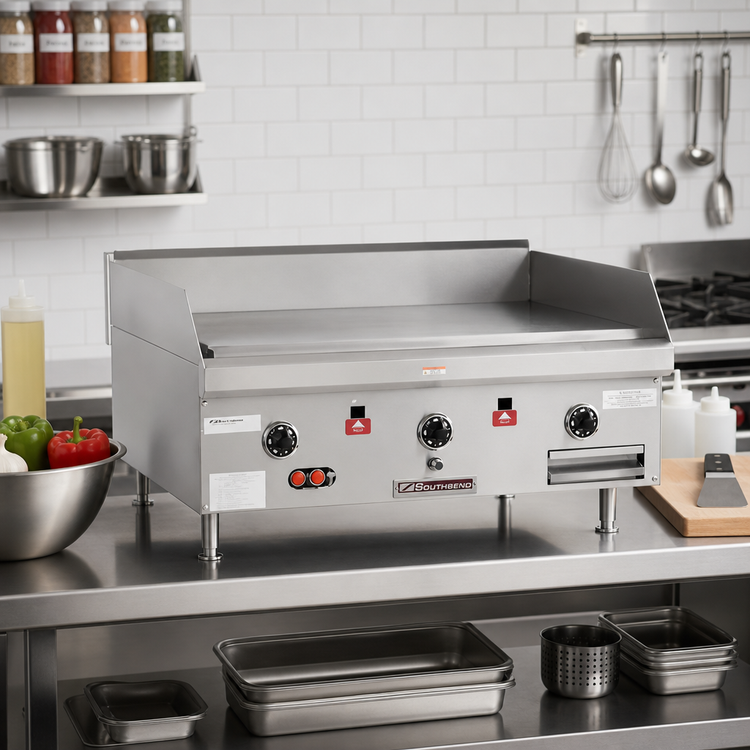

Southbend HDG-24-M Heavy-Duty Manual Gas Countertop Griddle – 24"
40,000 BTU | 1" Polished Steel Plate | CSA & NSF ListedEngineered for the rigors of high-volume kitchens, the Southbend HDG-24-M delivers uniform heat, rugged construction and simple manual control in a compact 24-inch footprint.
Key Performance Features

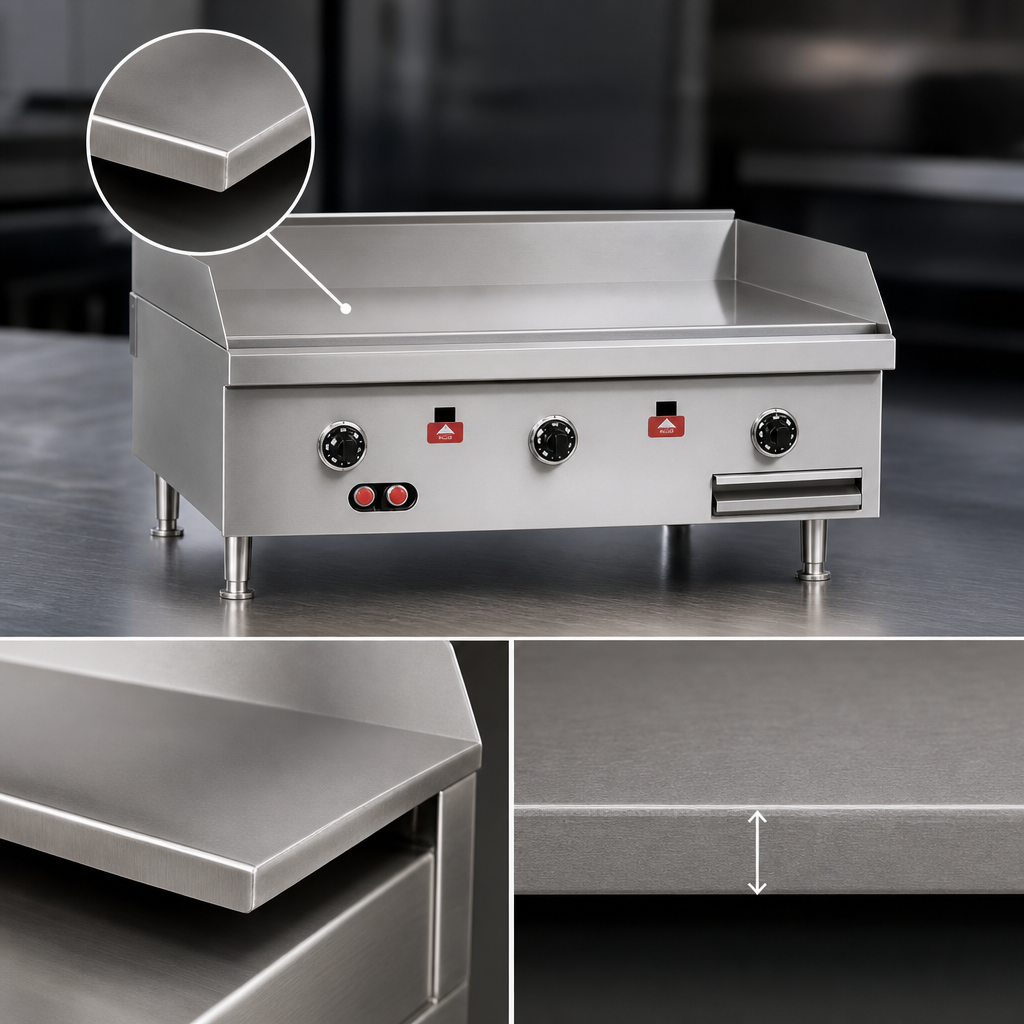

- Heavy-duty 1" thick polished steel plate stores heat for rapid recovery and perfect sear marks.
- Two 20,000 BTU “U”-shaped burners create Southbend’s exclusive “NO COLD Zone” for edge-to-edge temperature consistency.
- Manual gas valves give chefs instant, intuitive flame control from low to high.
- Battery-powered electronic spark ignition—no standing pilot, faster start-ups.
- Stainless steel front, sides, vent and 4" adjustable legs resist corrosion and daily wear.
- 5" rear and 4" side splash guards keep adjacent surfaces clean.
- Full-width, high-capacity grease drawer for quick, safe clean-up.
- Compact countertop design—mount on an optional stainless stand or refrigerated base.
At-a-Glance Specifications
| Model | HDG-24-M |
|---|---|

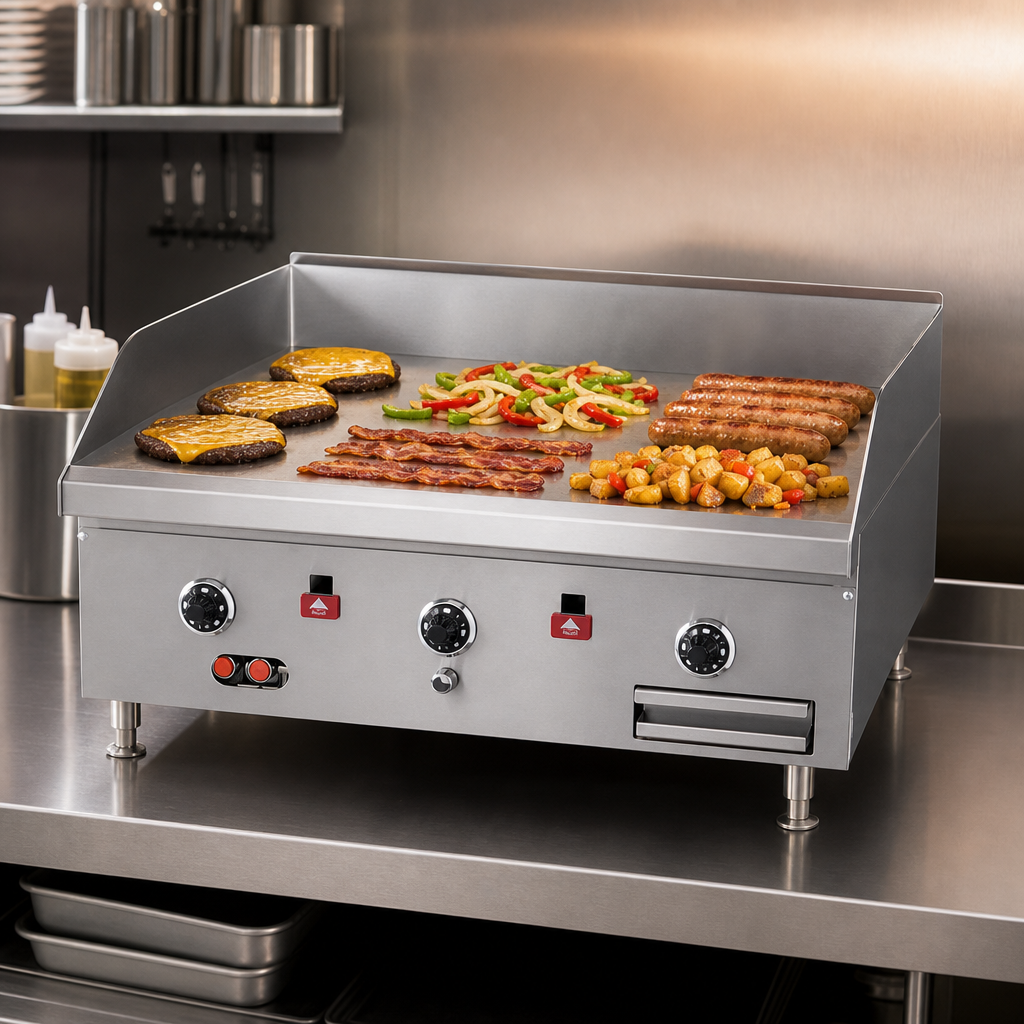

| Cooking surface | 24" W × 24" D (610 mm × 610 mm) |
| Controls | Manual gas valves (1 per burner) |
| Total BTU | 40,000 BTU/hr (Natural or Propane) |
| Burners | 2 × 20,000 BTU “U”-shaped burners |
| Ignition | Battery-powered electronic spark |
| Plate thickness | 1" (25 mm) polished rolled steel |
| Gas connection | 3/4" NPT rear male; pressure regulator included |
| Overall dimensions* | ≈24" W × 31" D × 16" H (with legs & splashes) |
| Clearances | 0" sides/rear (non-combustible); 12" sides & 8" rear (combustible) |
| Certifications | CSA | NSF |
| Warranty | 1-year parts & labor (commercial use) |
Installation Notes
- Ships for Natural gas; field convertible to LP.
- Minimum supply pressure: 7" W.C. (Natural) or 11" W.C. (LP).
- Install beneath a properly sized ventilation hood per local code.
- If using a flexible hose, diameter must match 3/4" connection and include a restraining device.
*Dimensions are nominal. Need a stand, grooved or chrome plate, or casters? Contact us for factory-approved accessories.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Certifications
NSF, CSA
Height
16.13in
Width
24.0in
Depth
33.75in
Shipping Weight
305.0lbs
Cooking Surface Width (side - side)
19" - 24"
Exterior Finish
stainless steel front & sides
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
24" - 29"
Controls
manual controls
Plate Thickness
1"
Specifications
Griddle, countertop, gas, 24" W x 24" D cooking surface, 1" thick polished steel plate, manual controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 40,000 BTU, CSA, NSF
