Southbend (Middleby)  |  SKU: HDG-24

Southbend (Middleby) HDG-24 Gas Griddles

$4,938.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Hdg parts manual (post 7/6/2010) Owner's manual Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend HDG-24 Counterline™ 24" Heavy-Duty Thermostatic Gas Griddle – Quick Ship

60,000 BTU | 24" x 24" Cooking Surface | CSA & NSF Listed

Crush the rush with Southbend’s HDG-24. Two high-output burners and a full-inch thick steel plate give you sizzling sear power and rapid recovery, while precise thermostatic controls hold your set temp from the first order to the last.

Key Features
  • 1" thick polished rolled-steel plate for exceptional heat retention and even cooking.
  • Total 60,000 BTU from two 30,000 BTU U-shaped burners—Southbend’s exclusive “NO COLD Zone” design.

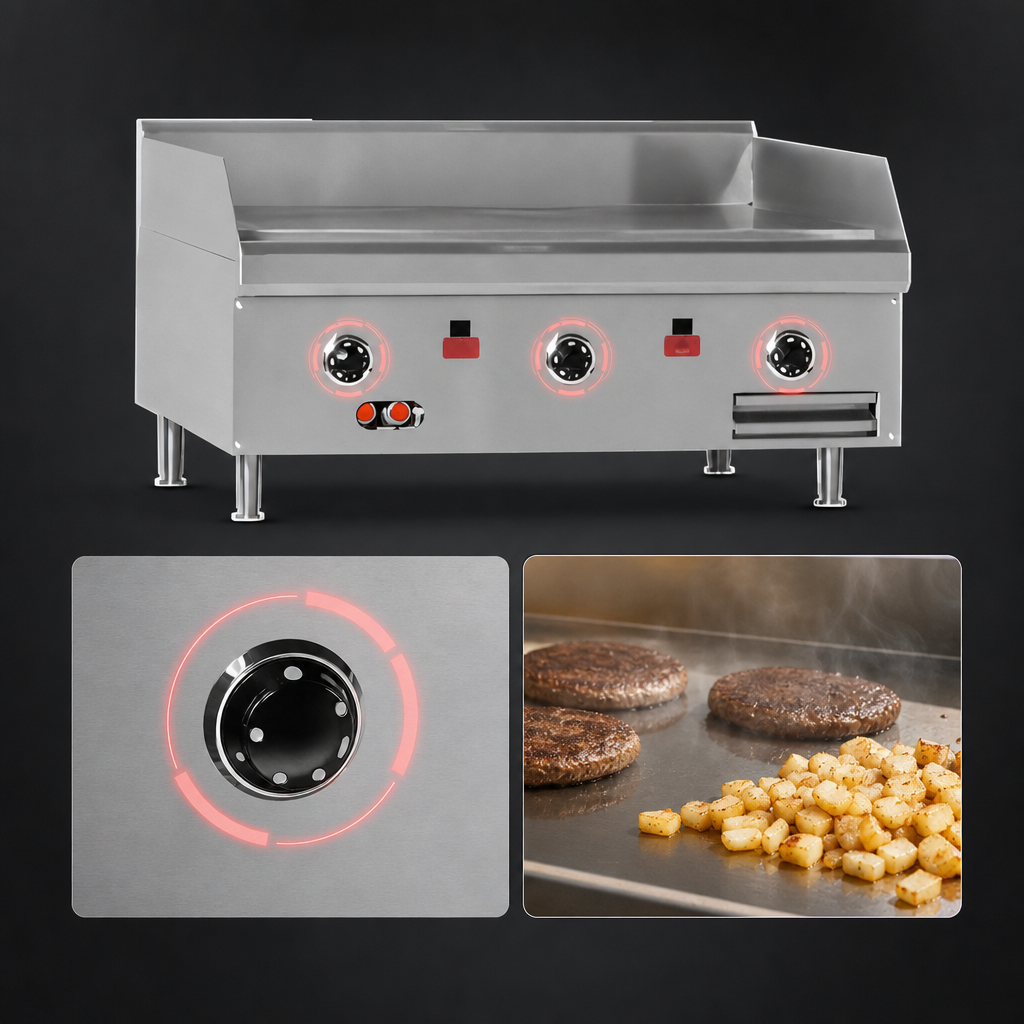

  • “Insta-on” thermostatic controls deliver a 200 °F – 550 °F range for perfect pancakes, burgers or fajitas.
  • Battery-powered electronic spark ignition—no electrical hook-up required.
  • Integrated flame-failure safety device on every burner.
  • Stainless steel front, sides, 5" rear and 4" side splashes for rugged, easy-clean durability.
  • Extra-large removable grease drawer keeps workstations tidy and safe.
  • 4" adjustable stainless steel legs for simple leveling on any countertop.
  • 3/4" rear gas connection and pressure regulator included for quick, code-compliant install.
Why Choose Southbend Counterline?
  • Quick-Ship availability—get it on the line in days, not weeks.
  • Reinforced, insulated double-wall sides hold heat in and keep kitchen temps down.
  • Fully welded plate with protected flue for long service life.
  • Backed by a 1-year parts & labor warranty and USA-built quality.
Specifications
Model HDG-24 (Thermostatic)

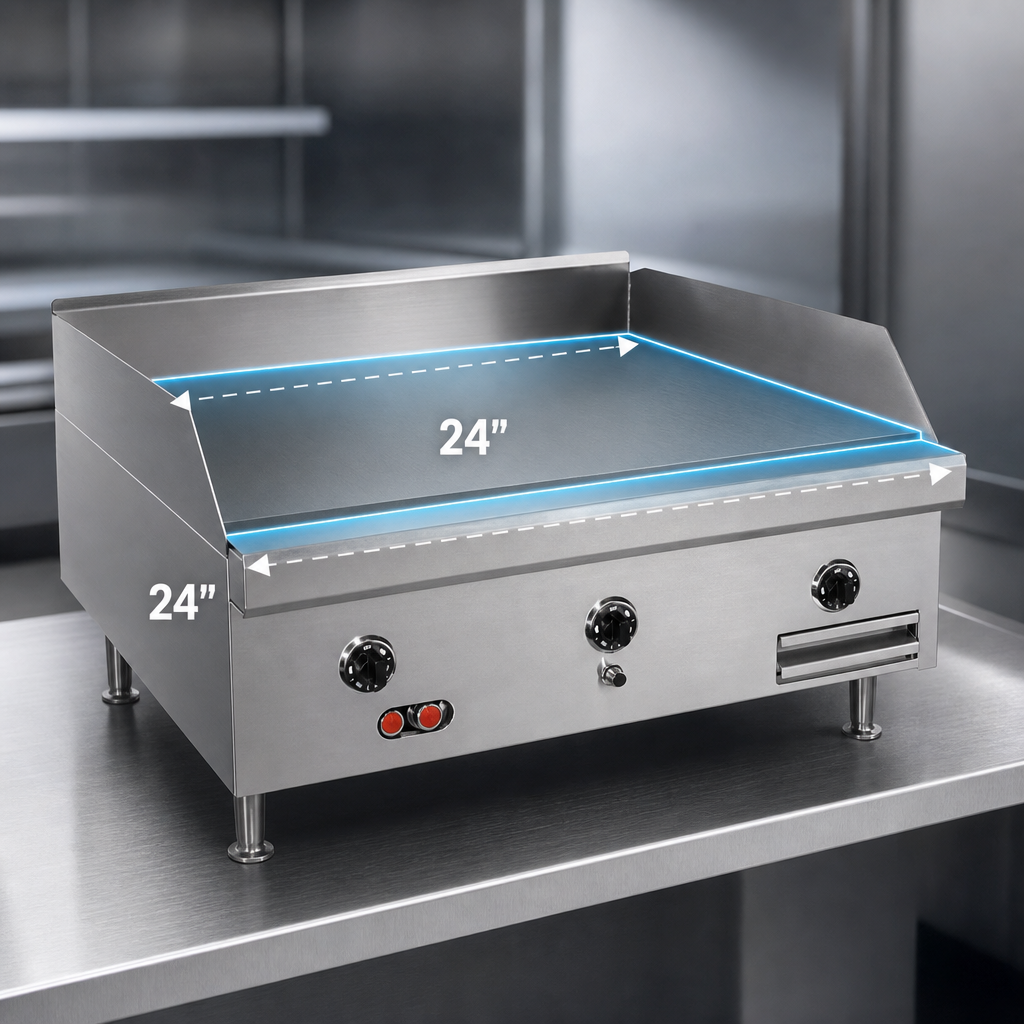

Cooking surface 24" W × 24" D (610 × 610 mm)
Plate thickness 1" (25 mm) polished steel
Total BTU 60,000 BTU/hr (Natural or Propane)
Temperature range 200 – 550 °F
Controls Independent thermostats, battery spark ignition
Gas connection 3/4" NPT rear (regulator included)
Overall dimensions* Approx. 24" W × 31.75" D × 16" H
Shipping dimensions 31" W × 39" D
Shipping weight 305 lb (138 kg)
Certifications CSA, NSF

*Manufacturer-published overall size. Verify all clearances and utilities with your installer.

What’s in the Box
  • Southbend HDG-24 countertop griddle
  • Pressure regulator
  • 4 stainless steel adjustable legs
  • Owner’s/installation manual
  • 1-Year parts & labor warranty
Important: For commercial use only. Install under a properly sized vent hood and maintain minimum clearances of 12" on the sides and 8" at the rear from combustible surfaces.

Want to keep capital free for the rest of your kitchen? Ask about Middleby Equipment Financing for low, fixed monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

16.13in

Width

24.0in

Depth

33.75in

Shipping Weight

305.0lbs

Cooking Surface Width (side - side)

19" - 24"

Controls

thermostat / solid state controls

Exterior Finish

stainless steel front & sides

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Plate Thickness

1"

Specifications

(QUICK SHIP) Griddle, countertop, gas, 24" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides & 4" adjustable legs, 60,000 BTU, CSA, NSF
