Southbend (Middleby) HDG-24-316L Gas Griddles
Description

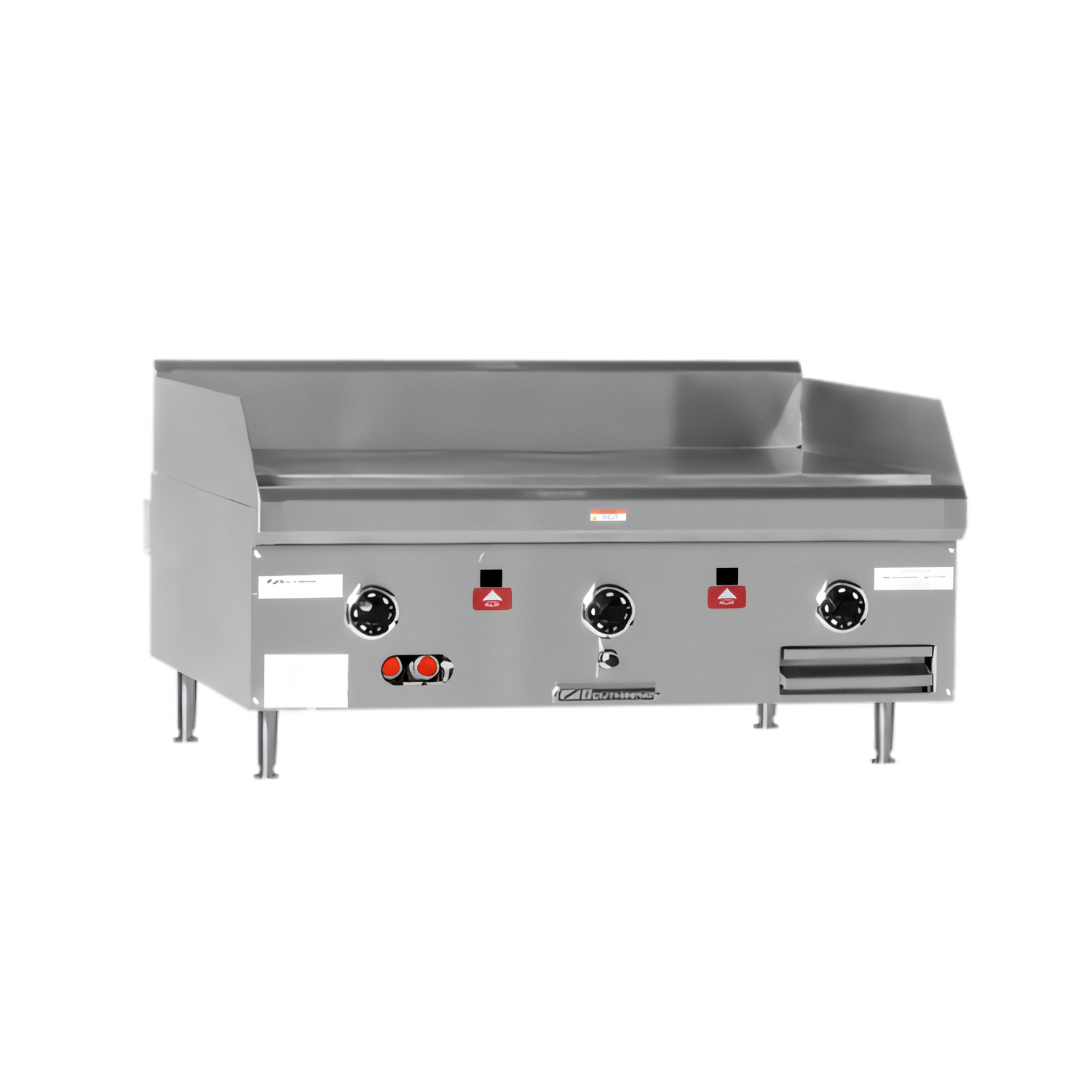

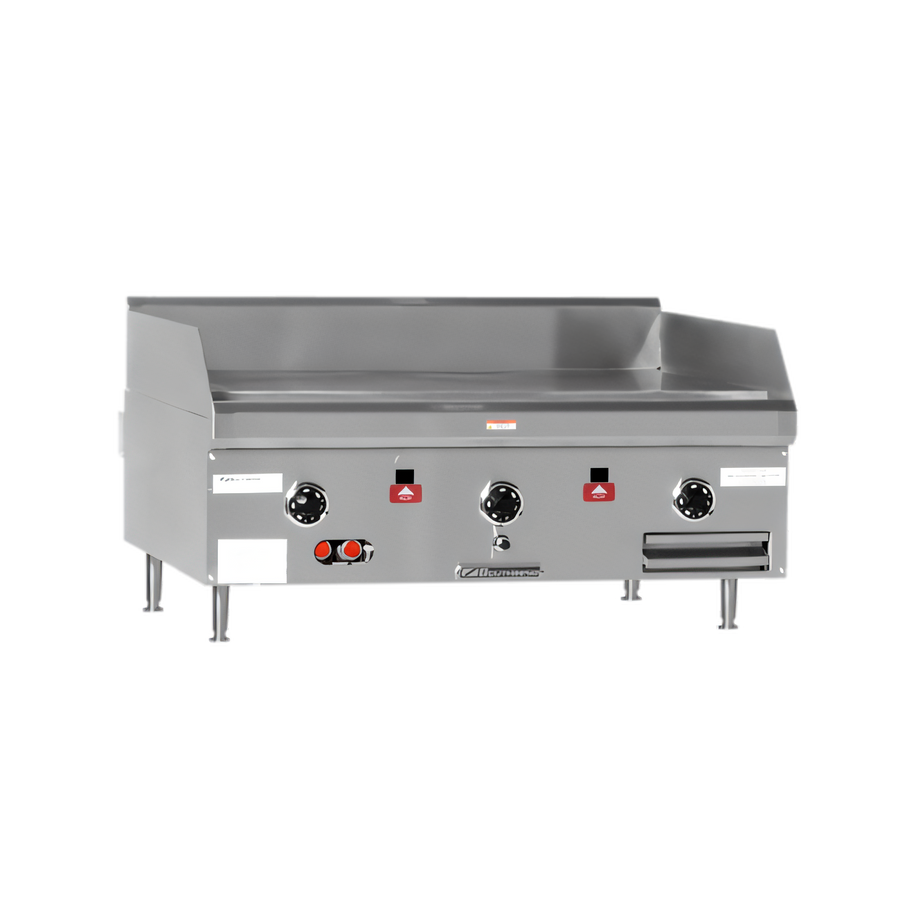

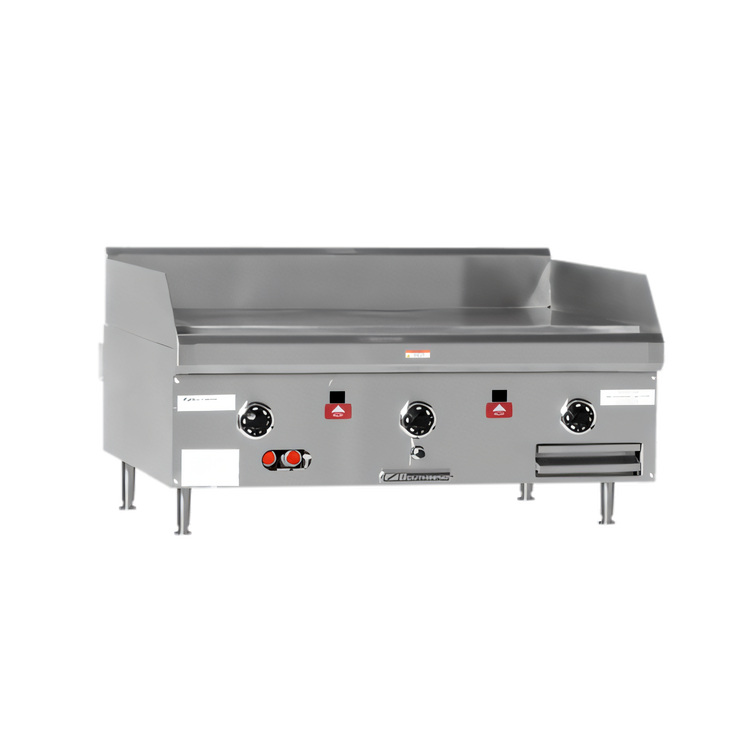

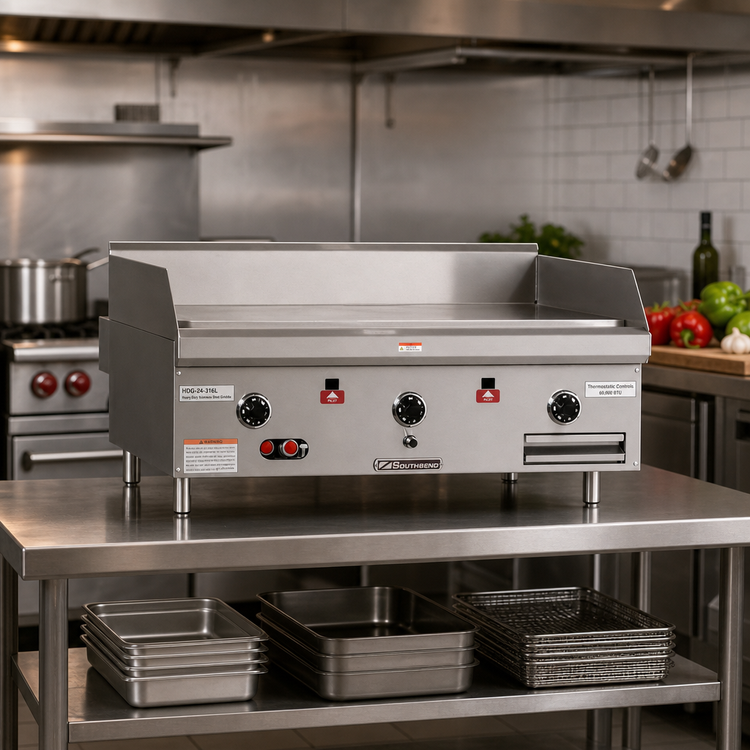

HDG-24-316L Outdoor Gas Griddle – 24"
Heavy-duty 316L stainless steel • Thermostatic • 60,000 BTUTurn any patio, festival, or catering site into a high-output cooking station with Southbend’s 24" Counterline griddle. Marine-grade 316L stainless steel, a massive 1" thick plate and dual 30,000 BTU “U” burners give you the muscle and precision you need for everything from delicate pancakes to sizzling street tacos.
Why chefs choose it

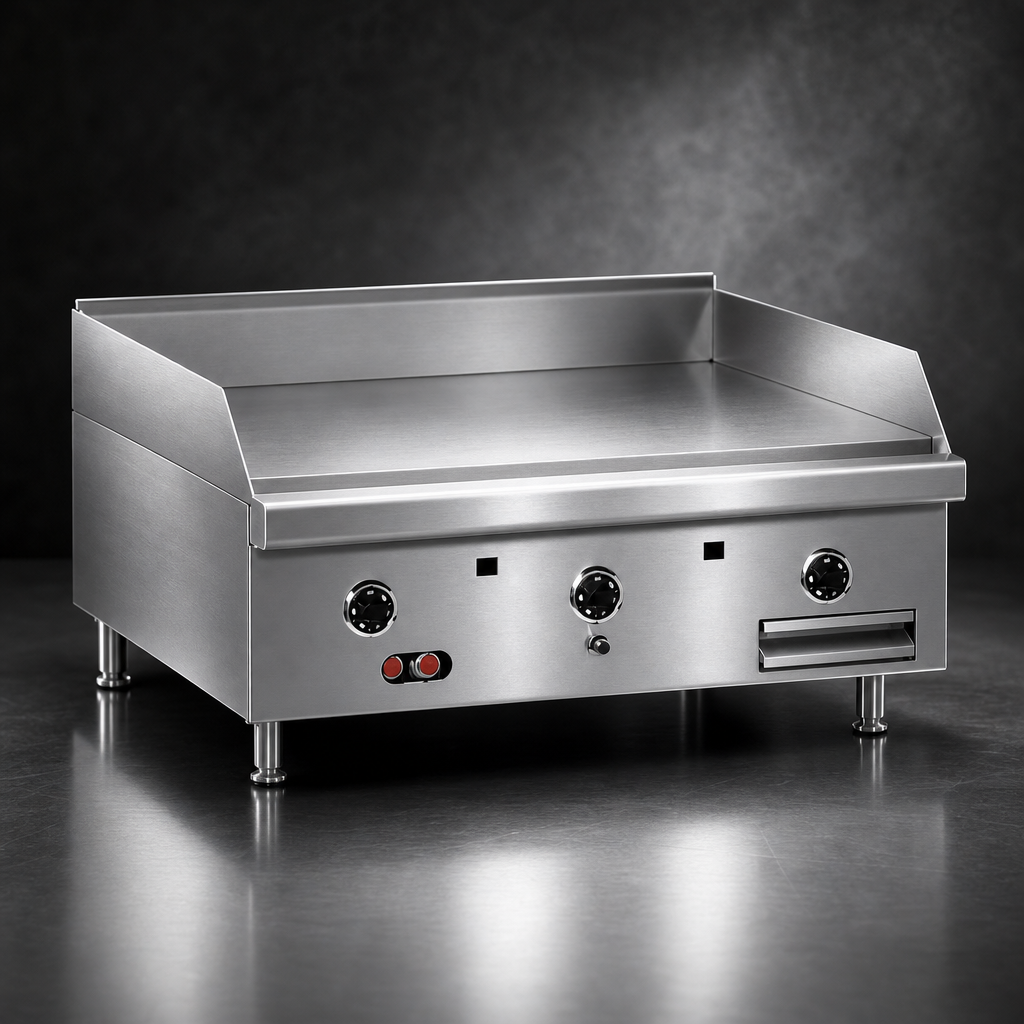

- All-weather 316L stainless body resists corrosion in coastal or outdoor environments.
- Edge-to-edge “NO COLD” Zone delivers uniform heat for consistent results.
- Two × 30,000 BTU burners with battery spark ignition—no electrical hook-up required.

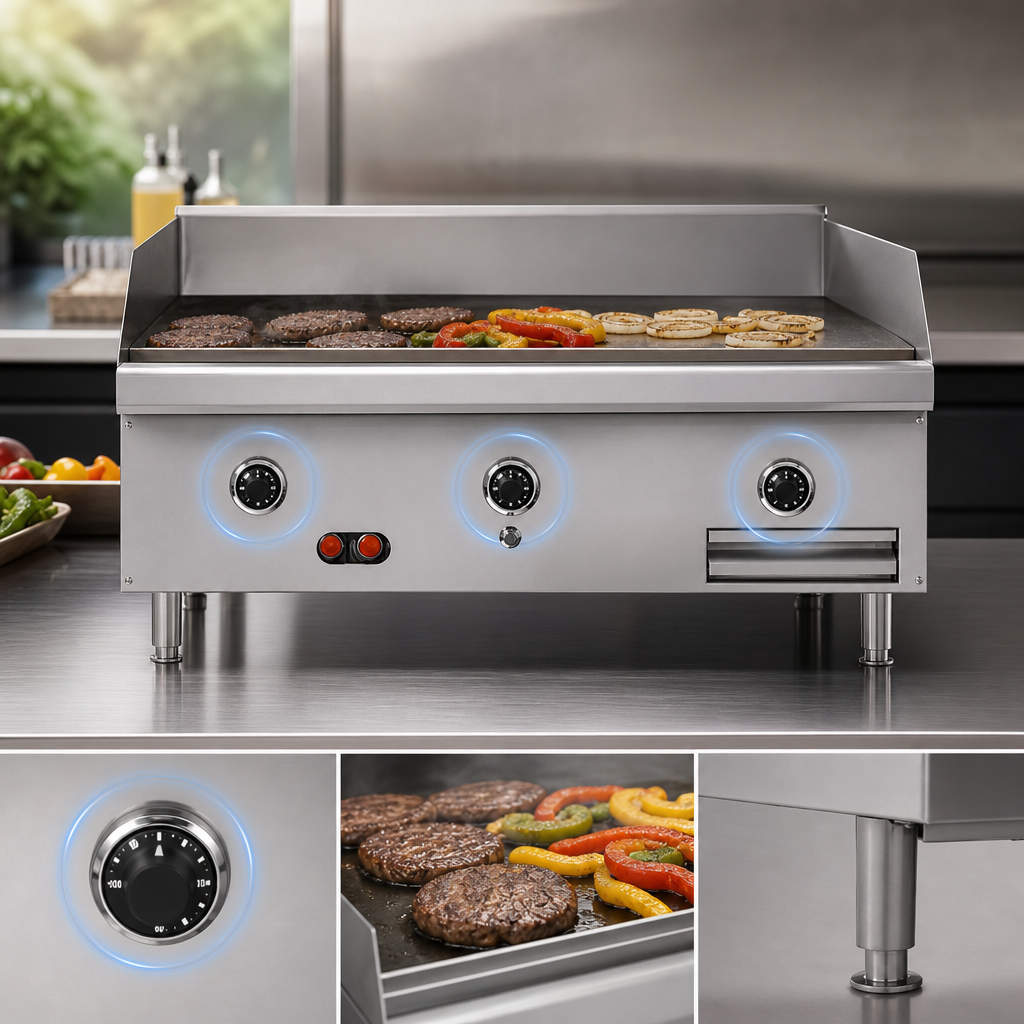

- Independent “Insta-on” thermostats hold 200 °F–550 °F with load-sensing accuracy.
- Flame-failure safety on every pilot for peace of mind during busy service.
- 1" thick polished steel plate stores heat for rapid recovery and superior sear marks.
- 5" rear & side splash guards keep grease contained; large removable drawer speeds clean-up.
- Four 4" adjustable legs level the unit on counters, carts or mobile stands.
Technical specifications
| Model | HDG-24-316L |
|---|---|
| Cooking surface | 24" W × 23" D × 1" thick polished steel |
| Total heat input | 60,000 BTU/hr (2 × 30,000 BTU “U” burners) |
| Temperature range | 200 °F – 550 °F (thermostatic) |
| Ignition | Battery-powered electronic spark |
| Gas inlet | 3/4" rear NPT, regulator included 7" W.C. Natural / 11" W.C. Propane |
| Overall dimensions | 24" W × 31.8" D × 16" H (with splash guards) |
| Shipping weight | 305 lb / 138 kg |
| Construction | Fully welded 316L stainless cabinet, insulated double-wall sides |
| Certifications | cETLus, ETL Sanitation, NSF |
Perfect for
- Catering & outdoor event kitchens
- Food trucks and mobile concessions
- Resort, hotel & patio grilling stations
- Seasonal or back-up production lines
Installation: 12" side and 8" rear clearance from combustibles; must be placed under a vented hood.
Covered by Southbend’s 1-year parts & labor warranty. Financing options available through Middleby Equipment Financing.
