Southbend (Middleby)

Southbend Heavy Duty Floor Model Gas Griddle with Thermostatic Controls, 24 x 30-Inch Cooking Surface

SKU: HDG-24-30
$5,637.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Southbend (Middleby)

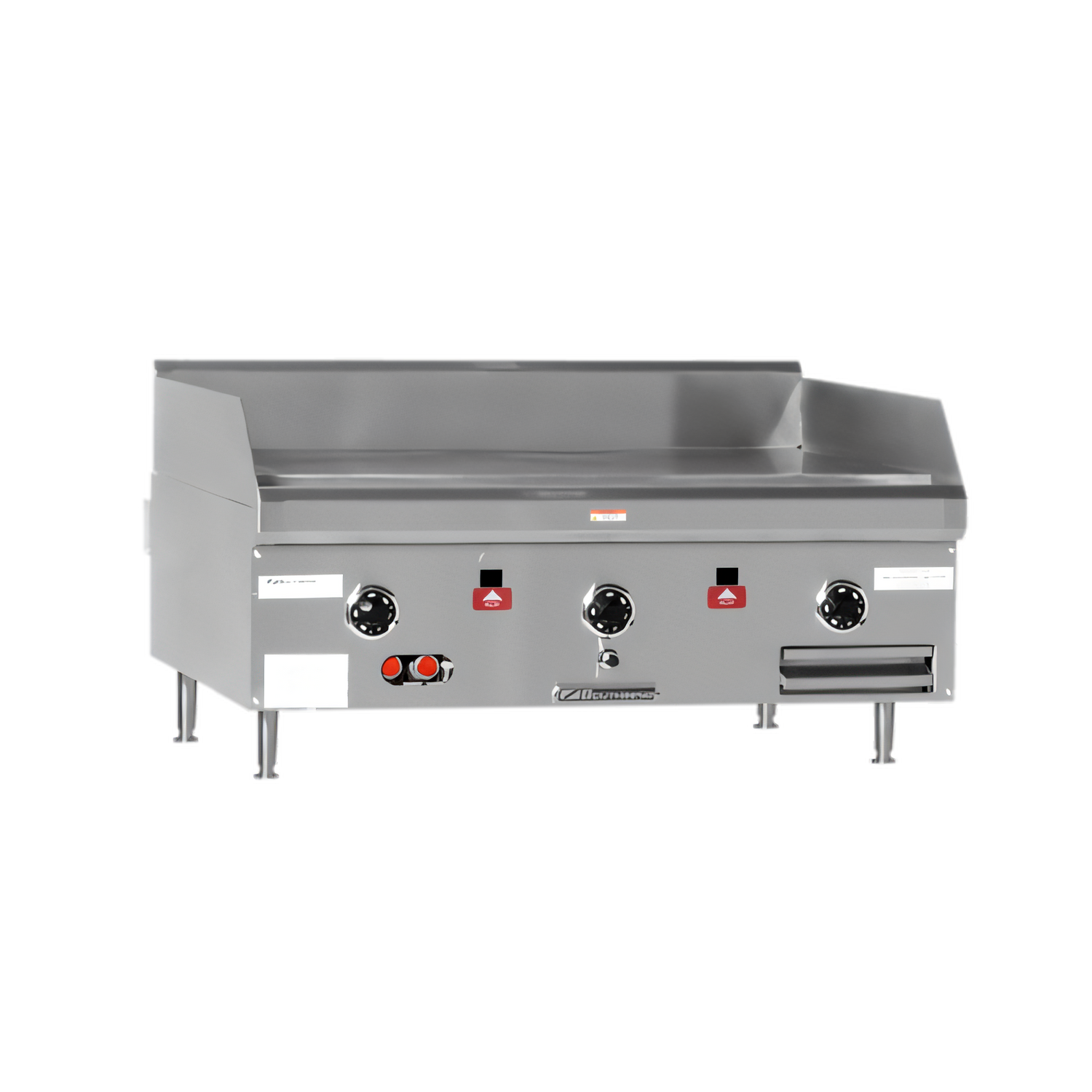

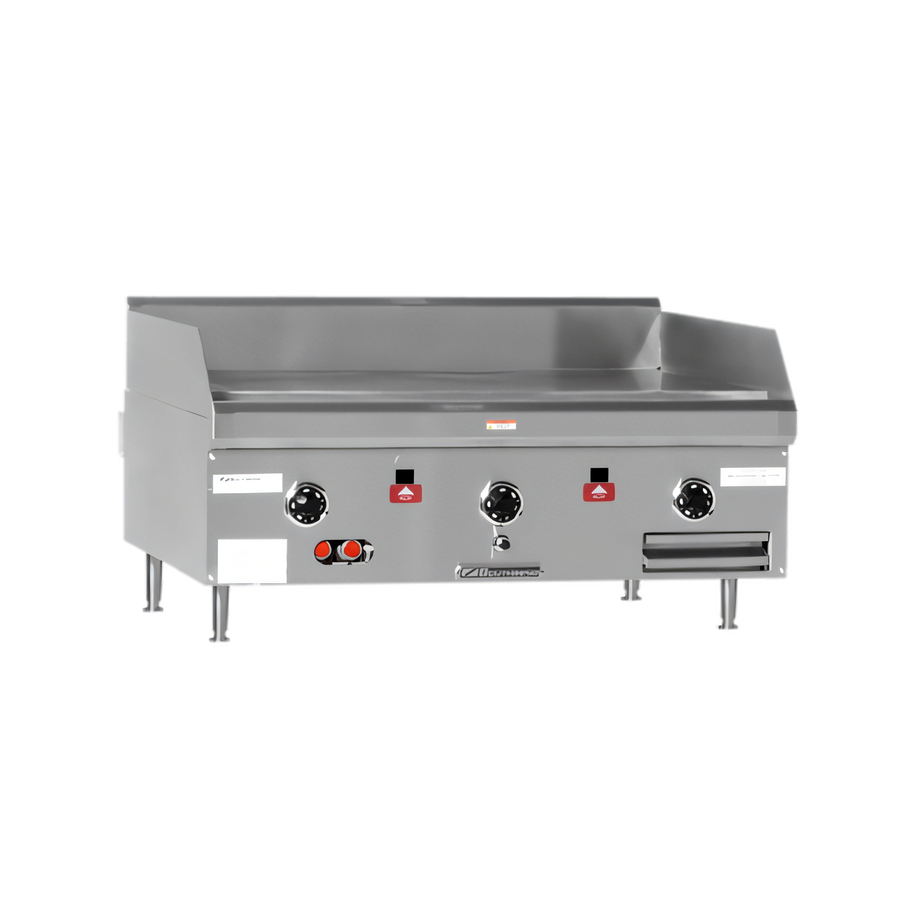

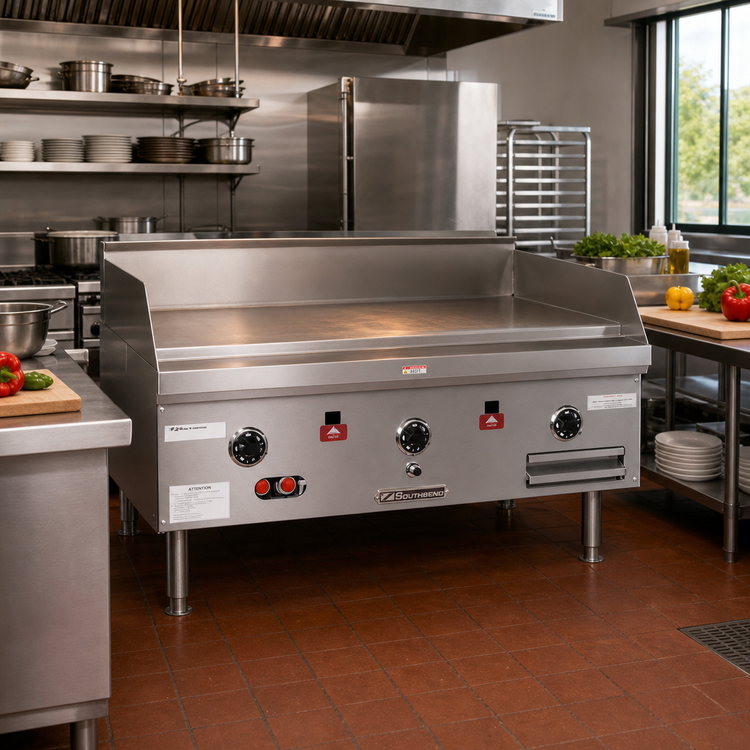

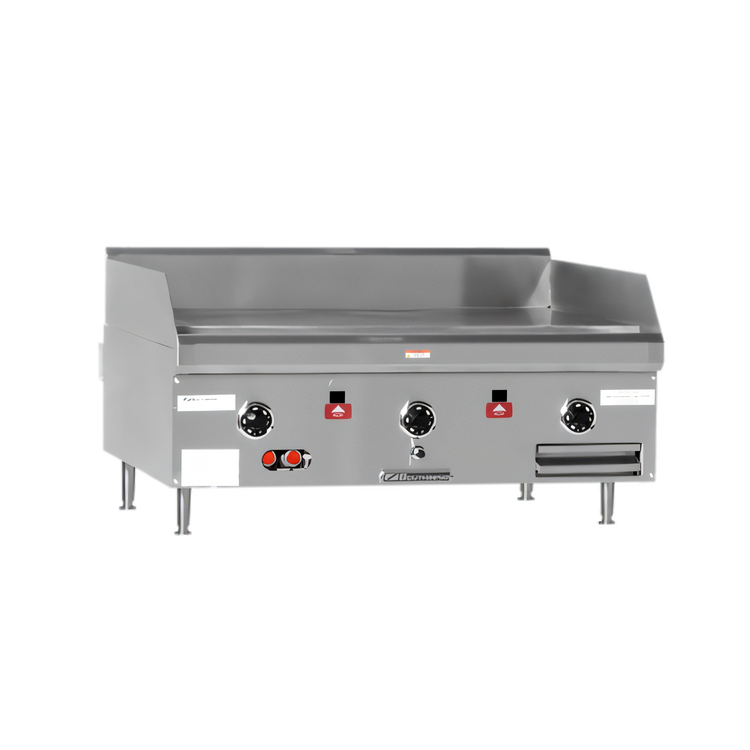

Southbend Heavy Duty Floor Model Gas Griddle with Thermostatic Controls, 24 x 30-Inch Cooking Surface

1-Inch Polished Steel Plate, 60,000 BTU, Stainless Steel Front and Sides

Built for high-volume kitchens, this heavy-duty griddle combines precise thermostatic control, rugged stainless steel construction, and even heat across a 24 x 30-inch surface.

  • 24 x 30-inch cooking surface with a 1-inch polished steel plate for durable, even heating.
  • Two burners deliver 60,000 BTU for fast recovery and consistent output.
  • Thermostatic controls maintain temperatures from 200°F to 550°F.
  • Battery spark ignition and a flame failure safety device support safe operation.
  • Stainless steel front, vent, and sides are built for commercial durability.
  • 4-inch adjustable legs, splash guards, and a rear gas connection simplify setup.

Overall Dimensions:

24.0"W x 37.8"D x 16.13"H

Product Weight:

405.0 lb

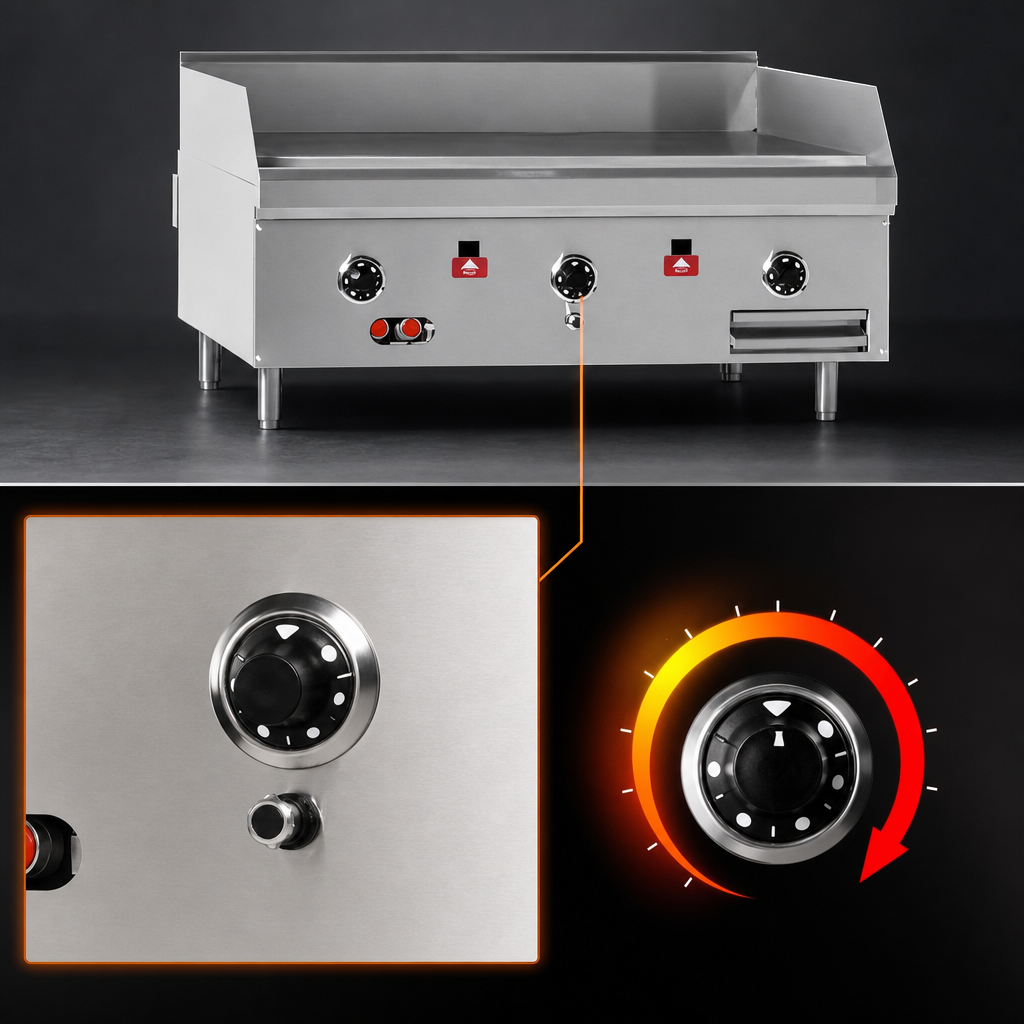

Thermostatic Controls

Independent Insta-on thermostatic controls provide precise settings from 200°F to 550°F.

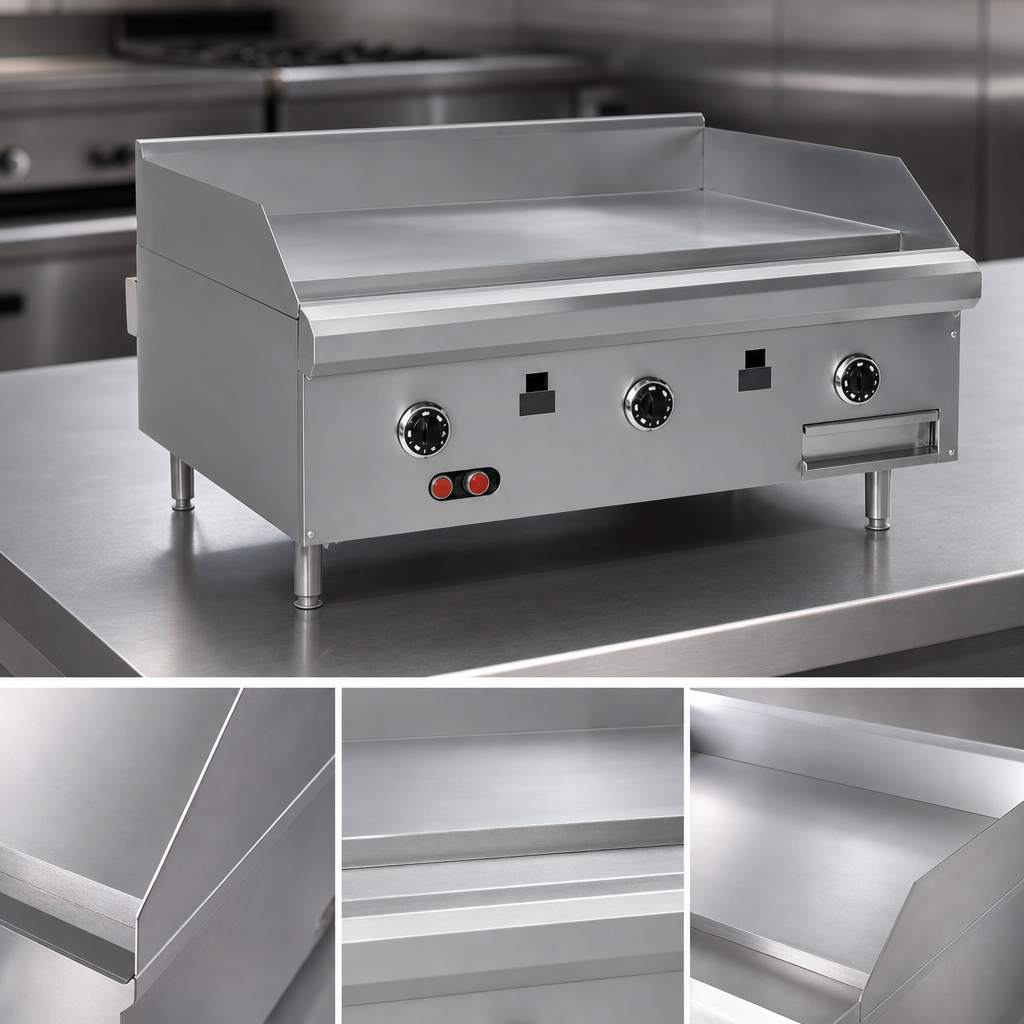

Heavy-Duty Griddle Plate

1-inch thick polished rolled steel plate with a 30-inch deep cooking surface for even heat and durability.

High-Output Burners

Two burners deliver 30,000 BTU each for 60,000 BTU total.

Battery Spark Ignition

Electronic spark ignition powered by battery helps start the unit reliably.

Flame Failure Safety Device

Helps shut off gas flow if the flame goes out.

Stainless Steel Construction

Stainless steel front, vent, and sides with reinforced, insulated double-wall sides and aluminized steel rear and bottom panels.

Heat Distribution and Cleanup

The NO COLD Zone heating design, large-capacity grease drawers, and a protected exhaust vent support consistent cooking and easier cleaning.

Installation-Ready Design

4-inch adjustable stainless steel legs, 5-inch rear and 4-inch side splash guards, a 3/4-inch rear gas connection, and a pressure regulator simplify installation.

Type Griddle
Style Heavy Duty
Installation Type Floor Model
Controls Thermostatic
Temperature Range 200°F to 550°F
Cooking Surface Width 24 Inches
Cooking Surface Depth 30 Inches
Plate Thickness 1 Inch
Burners 2
BTU 60,000 BTU
Gas Connection Size 3/4 Inch Rear NPT
Material Stainless Steel
Finish Polished Steel
Country of Origin USA
Shipping Weight 405 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The griddle has a 24-inch wide by 30-inch deep cooking surface.
The thermostatic controls adjust from 200°F to 550°F.
The unit delivers 60,000 BTU total.
It uses a 3/4-inch rear gas connection and a regulated gas supply; the pressure regulator is included.
Yes. The document states that the unit should be installed under a vented hood.
Optional accessories include a stainless steel plate shelf, casters, a 2-inch insulator base, and a stainless steel stand.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
