Southbend (Middleby) | SKU:
HDG-18-M
Southbend (Middleby) HDG-18-M Gas Griddles
$3,681.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) HDG-18-M Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) HDG-18-M Gas Griddles
$3,681.00
Unit price
/
Unavailable
Description

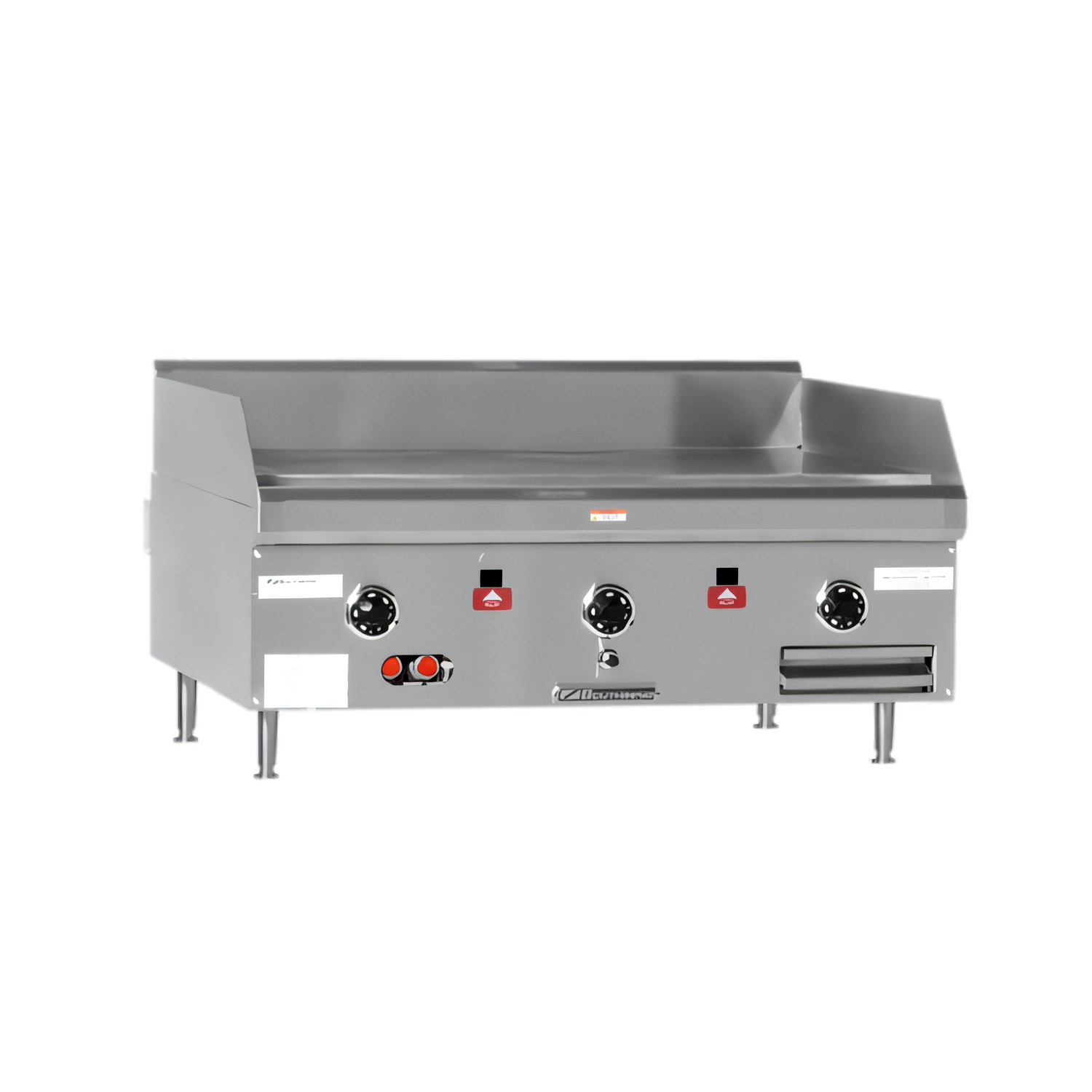

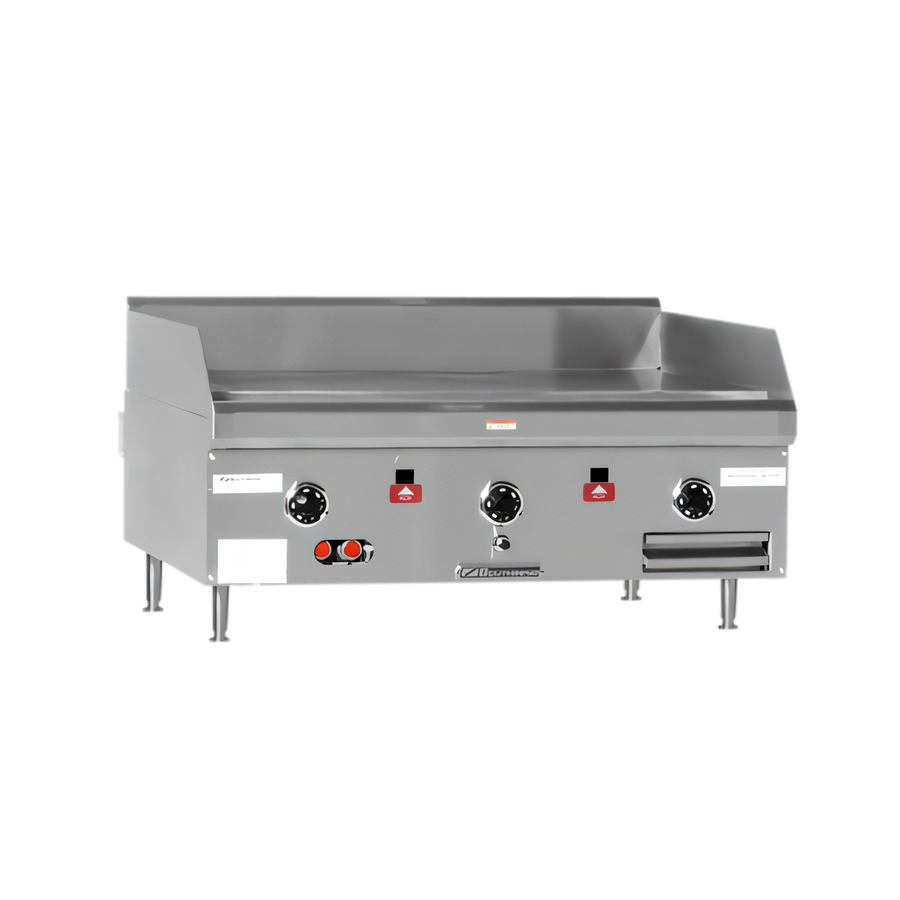

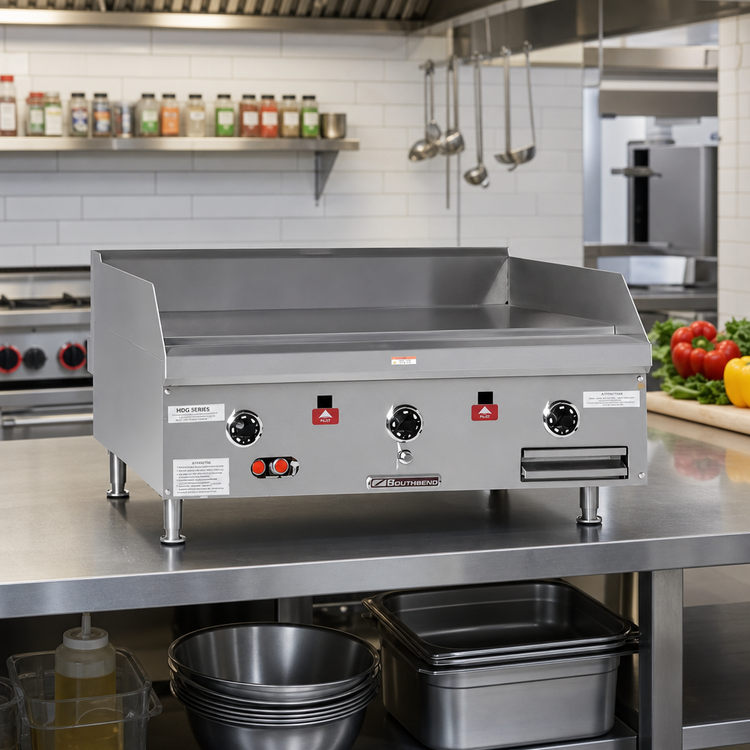

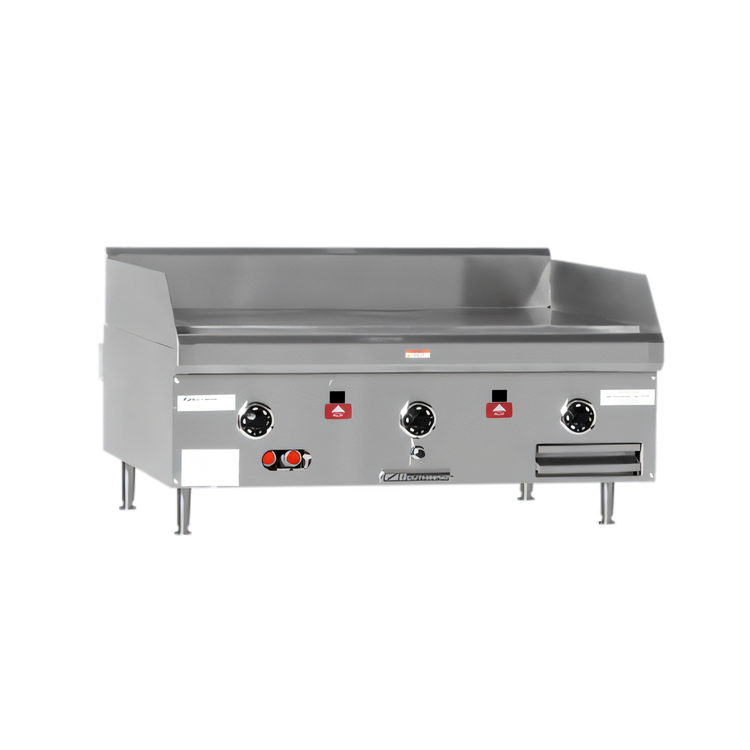

Southbend HDG-18-M Heavy-Duty Manual Gas Countertop Griddle – 18"

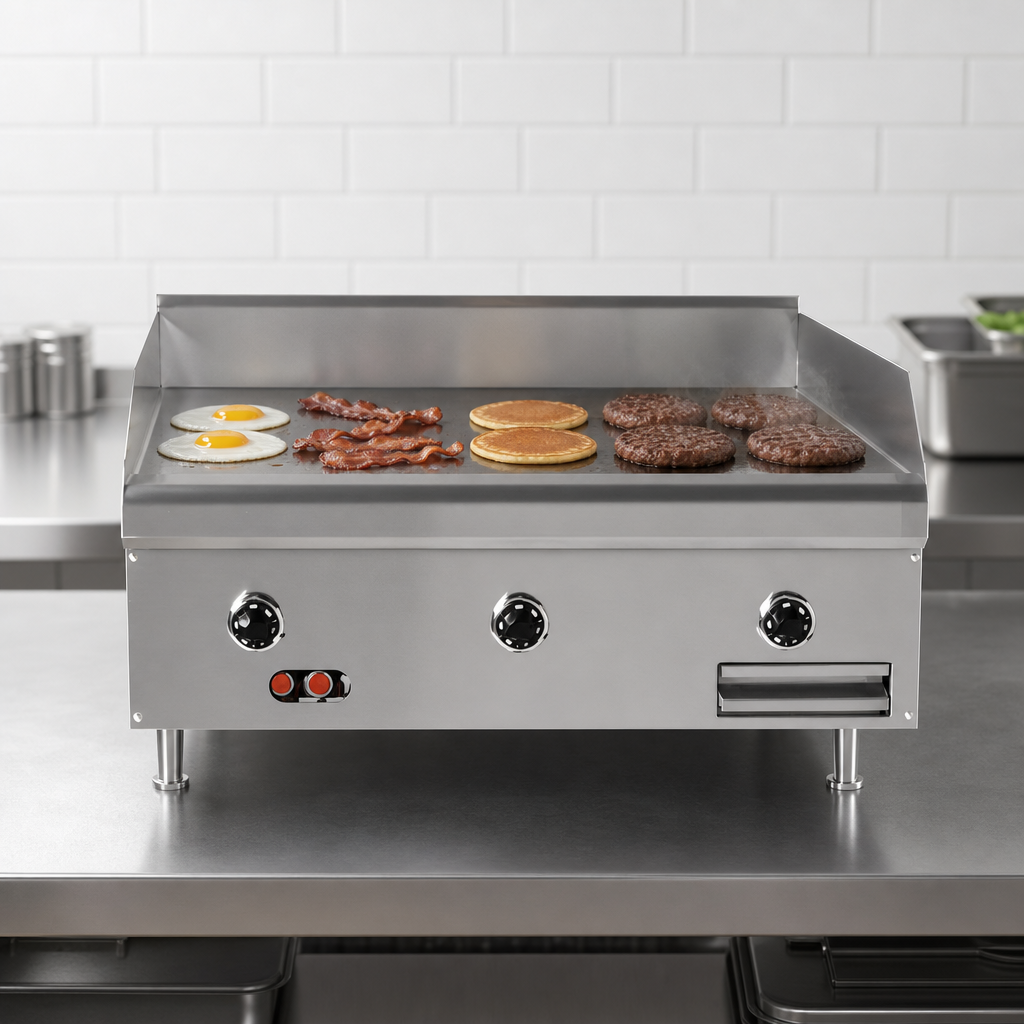

20,000 BTU | 18" × 24" cooking surface | 1" polished steel plateEngineered for demanding food-service operations, the Southbend HDG-18-M delivers powerful, even heat in a compact 18" footprint. The fully welded 1" thick plate, stainless-steel body and exclusive “NO COLD” zone give you the confidence to sear, sauté or scramble from open to close.
Why You’ll Love It

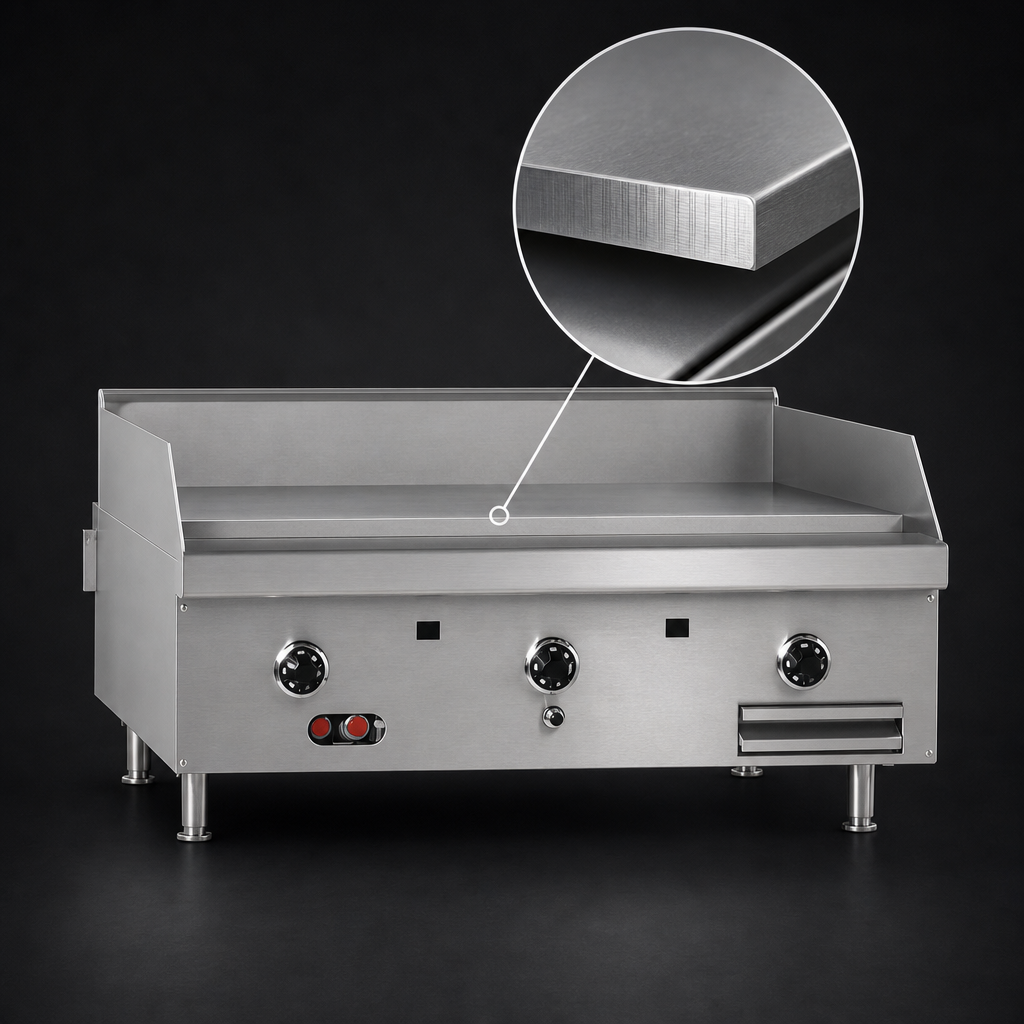

- Heavy-duty 1" rolled steel plate – provides rapid recovery and unbeatable durability.
- 20,000 BTU U-shaped burner under every 12" of plate for consistent edge-to-edge temperatures.
- Manual infinite-control valve lets cooks fine-tune the flame for any menu item.
- Battery spark ignition – reliable lighting with no electrical hookup required.
- Exclusive “NO COLD” zone ensures uniform heat distribution across the entire cooking surface.
- Stainless-steel front, sides & vent plus reinforced, insulated double-wall sides for long service life.
- 5" rear and 4" side splash guards keep grease where it belongs.
- Large-capacity, easy-pull grease drawer streamlines cleanup.
- 4" stainless-steel adjustable legs make leveling on any countertop simple.
- Field convertible from natural gas to LP (regulator included).
- Certified CSA & NSF for gas safety and sanitation.
Specs at a Glance
| Model | HDG-18-M |
|---|---|
| Cooking Surface | 18" W × 24" D (457 mm × 610 mm) |
| Plate Thickness | 1" (25 mm) polished rolled steel |
| Heat Output | 20,000 BTU/hr (Natural or LP) |
| Controls | Manual knob with battery spark ignition |
| Overall Dimensions* | 18" W × 29.44" D × 16" H |
| Gas Connection | 3/4" rear NPT (regulator supplied) |
| Construction | Stainless front, sides & vent; aluminized rear & bottom |
| Legs | 4" stainless adjustable |
| Approvals | CSA, NSF |
| Warranty | 1-year parts & labor |
*Dimensions are nominal; allow for installation clearances per local code.
Optional Accessories (Sold Separately)
- Stainless-steel equipment stand (with or without cutting board)
- Grooved or chrome-plated cooking surface
- 2" high insulator base for refrigerated base mounting
- Casters for stand
Gas installation required: A licensed technician must connect the unit to a regulated 3/4" gas line and verify proper ventilation.
This griddle is intended for commercial use only.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Certifications
NSF, CSA
Height
16.13in
Width
18.0in
Depth
33.75in
Shipping Weight
270.0lbs
Griddle Plate Finish
smooth steel
Exterior Finish
stainless steel front & sides
Controls
manual controls
Cooking Surface Depth (front - back)
24" - 29"
Cooking Surface Width (side - side)
13" - 18"
Plate Thickness
1"
Specifications
Griddle, countertop, gas, 18" W x 24" D cooking surface, 1" thick polished steel plate, manual controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 20,000 BTU, CSA, NSF
