Southbend (Middleby)

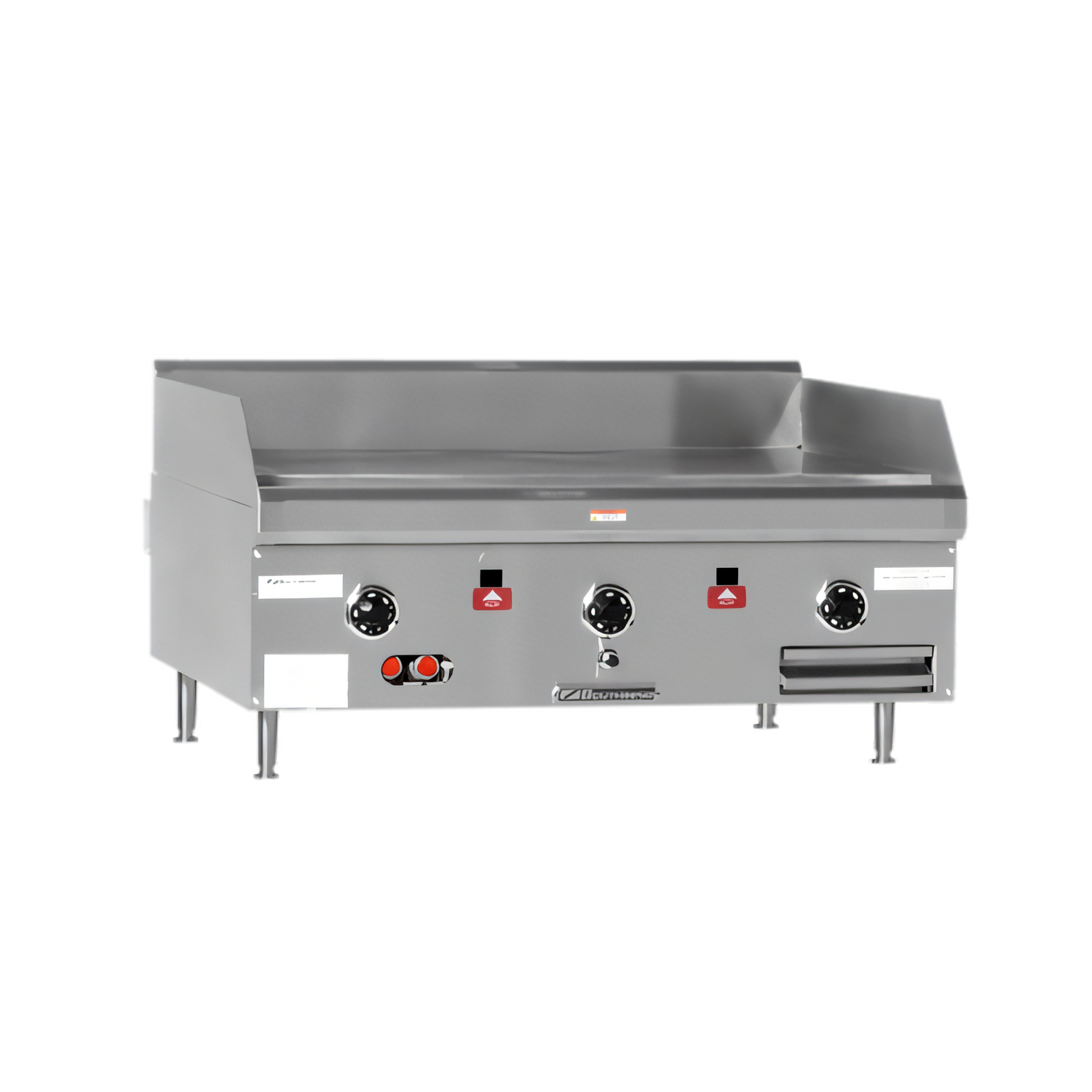

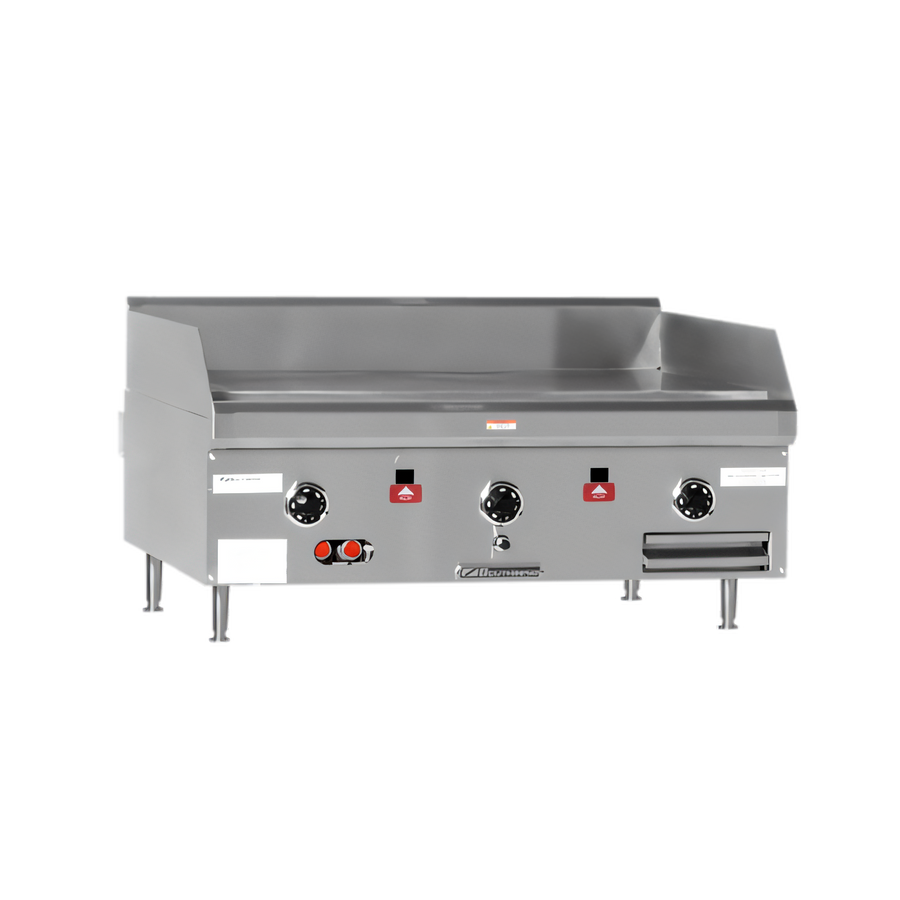

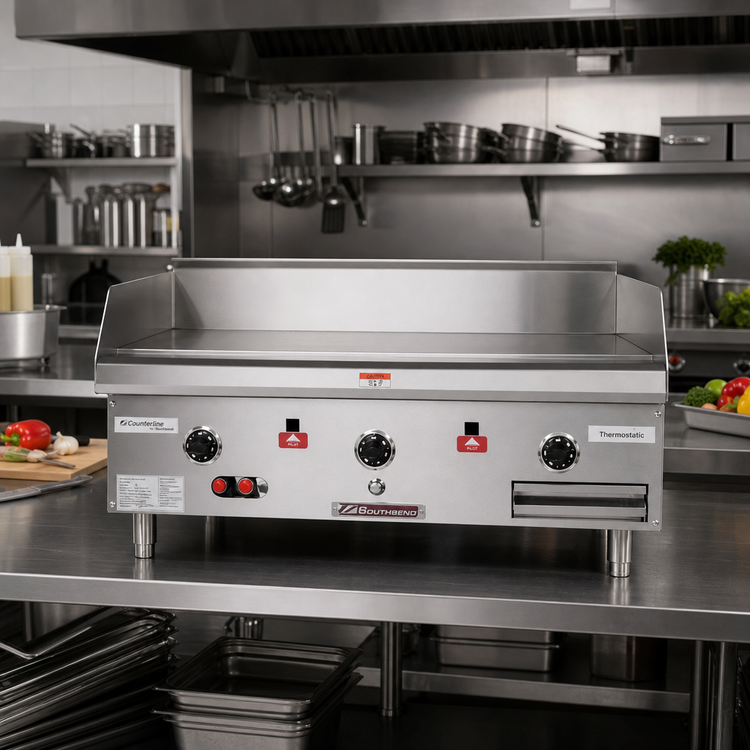

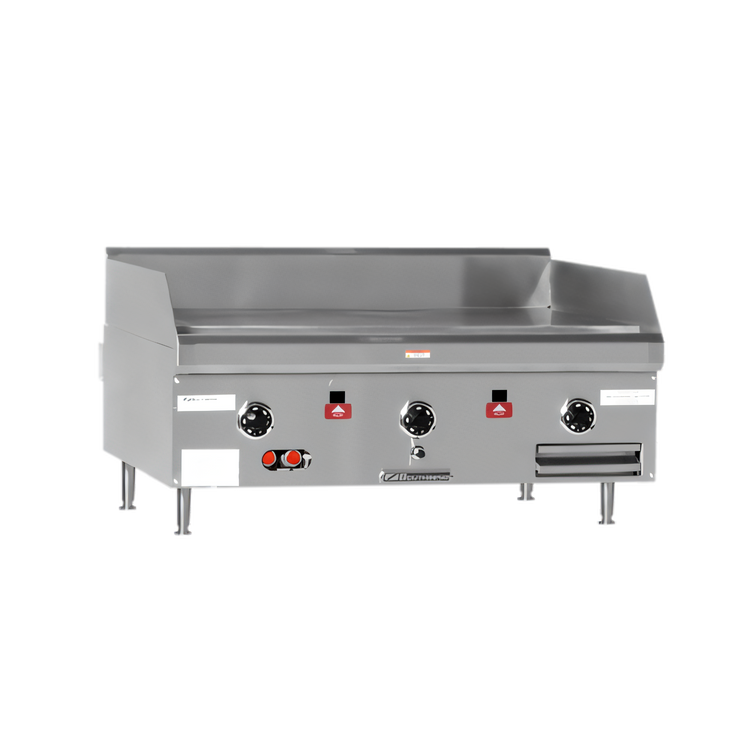

Southbend Counterline Catering/Outdoor 18-Inch Countertop Gas Griddle with Thermostatic Controls

SKU: HDG-18-316L
$4,821.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Southbend Counterline Catering/Outdoor 18-Inch Countertop Gas Griddle with Thermostatic Controls

316L stainless steel, 1-inch polished steel plate, 30,000 BTU

Built for outdoor and catering service, this compact 18-inch griddle pairs precise thermostatic heat control with rugged 316L stainless steel construction.

  • 18-inch countertop gas griddle designed for catering and outdoor applications.
  • 30,000 BTU burner with thermostatic control from 200°F to 550°F.
  • 316L stainless steel body with a 1-inch polished steel griddle plate.
  • Flame failure safety device and battery-powered electronic spark ignition.
  • 5-inch rear and side splash guards plus a large-capacity grease drawer.
  • 3/4-inch rear gas connection with pressure regulator included; install under a vented hood.

Overall Dimensions:

18.0"W x 33.75"D x 16.13"H

Product Weight:

270.0 lb

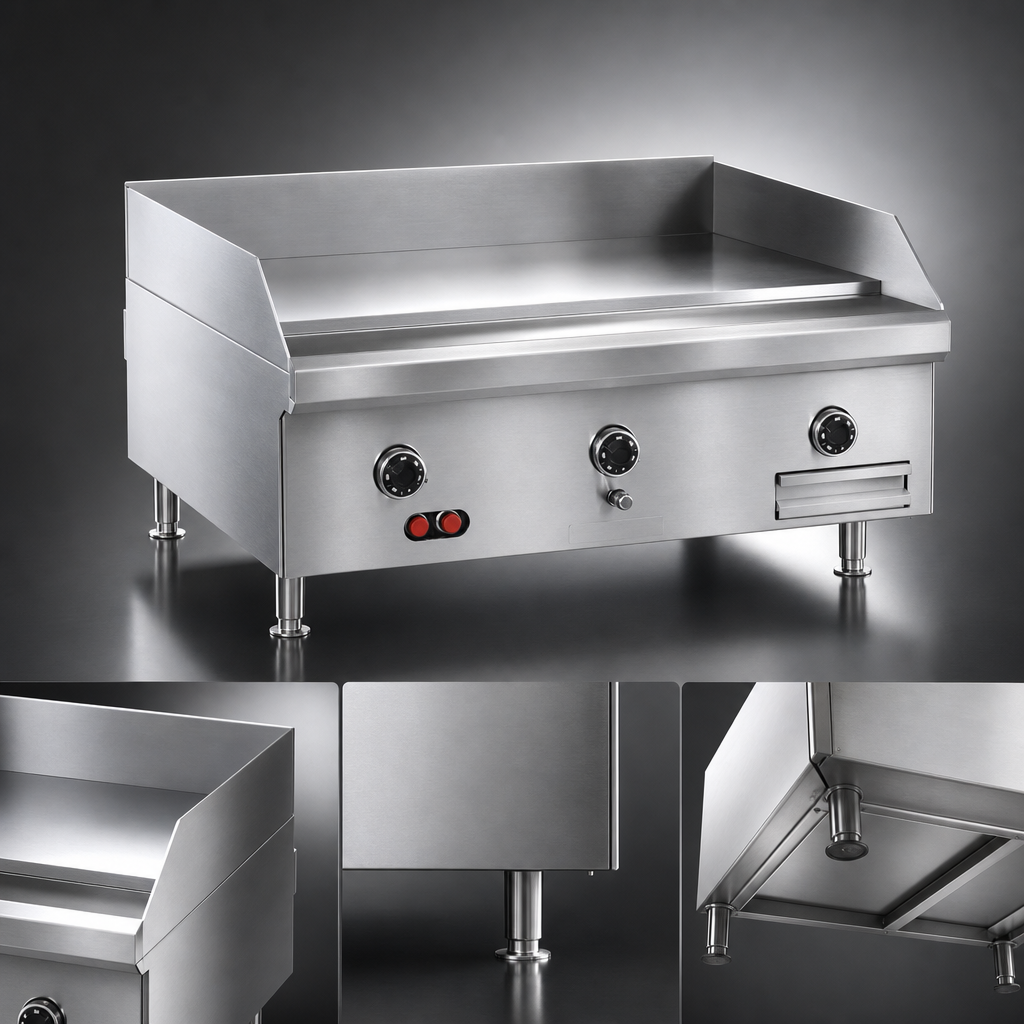

316L Stainless Steel Construction

Front, rear, sides, and bottom panels are built from 316L stainless steel, with reinforced, insulated double-wall sides for added durability.

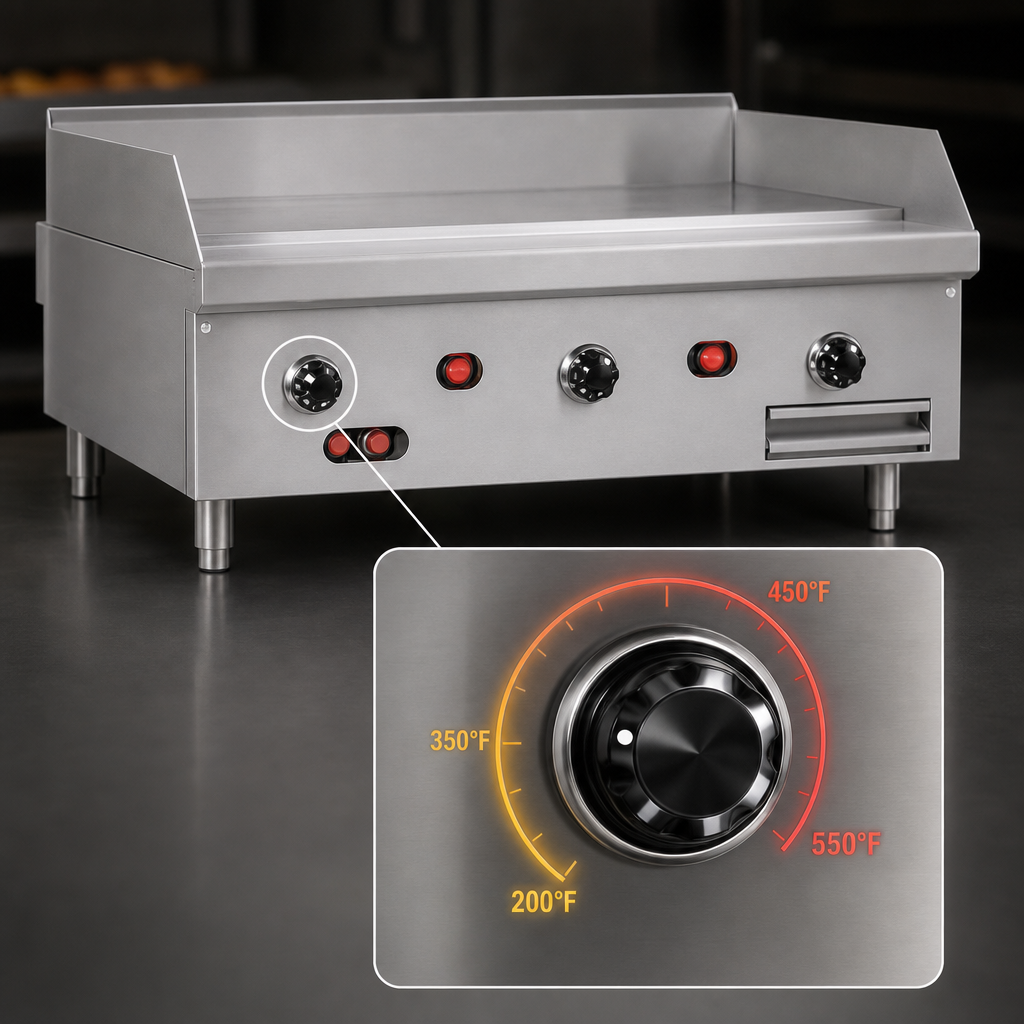

Thermostatic Temperature Control

Insta-on thermostatic controls with an embedded load-sensing thermostat provide precise temperature control from 200°F to 550°F.

1-Inch Polished Rolled Steel Plate

The fully welded griddle plate is designed for even heat and dependable heavy-duty cooking performance.

Flame Failure Safety Device

Built-in flame failure protection helps shut down gas flow if the flame is lost.

Electronic Spark Ignition

Battery-powered electronic spark ignition supports quick startup without requiring a hardwired electrical connection.

Uniform Heat Distribution

The exclusive no-cold-zone design helps distribute heat evenly across the cooking surface.

Splash Guards and Grease Management

Five-inch rear and side splash guards help contain splatter, and the large-capacity grease drawer simplifies cleanup.

Gas Connection and Installation

A 3/4-inch rear gas connection and pressure regulator are standard, and the unit is intended for installation under a vented hood.

Type Griddle
Style Outdoor
Installation Type Countertop
Controls Thermostatic
Temperature Range 200°F to 550°F
BTU 30,000 BTU
Material 316L Stainless Steel
Finish Smooth Steel
Cooking Surface Width 18 Inches
Plate Thickness 1 Inch
Burners 1
Gas Connection Size 3/4 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

The thermostatic controls provide a temperature range of 200°F to 550°F.
The documentation shows the model is available for either natural gas or propane.
Yes. It includes a flame failure safety device.
The body is constructed from 316L stainless steel, and the griddle plate is a 1-inch polished rolled steel plate.
Yes. The documentation says to install the griddle under a vented hood.
