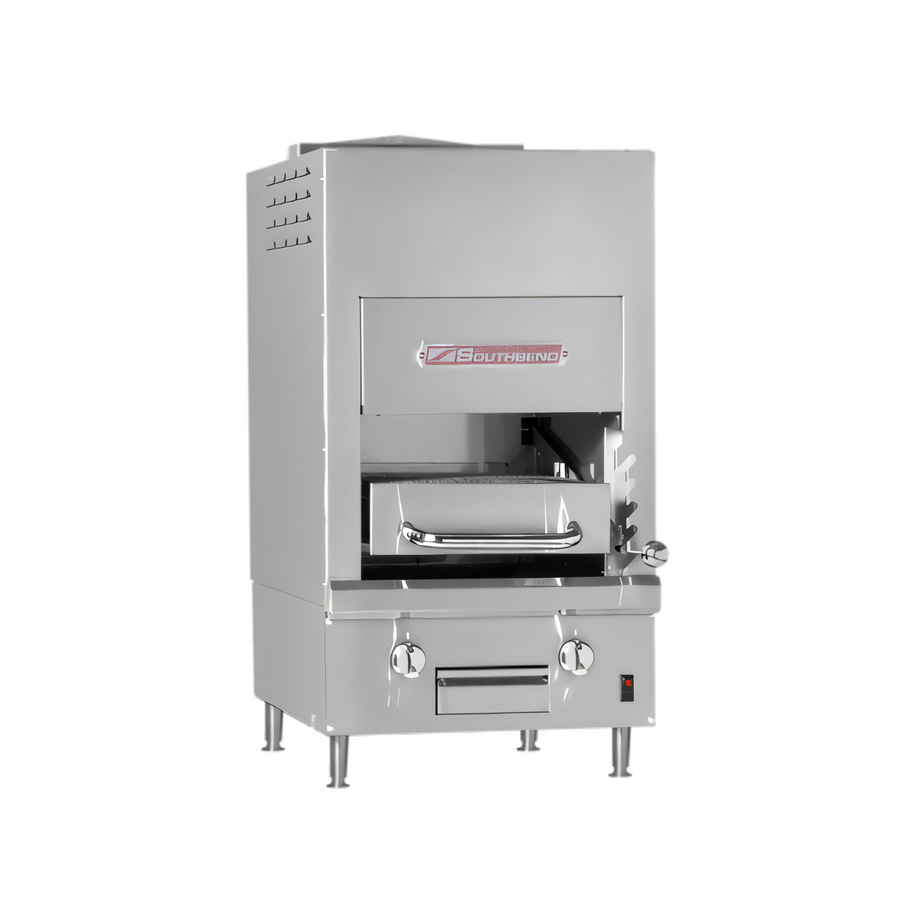

Southbend HDEB-24 | 24" Upright Electric Broiler – Countertop

Big-league infrared broiling power in a space-saving 24" footprint

Engineered for kitchens where every inch counts, the HDEB-24 delivers the intense, even heat of Southbend’s legendary free-standing broilers in a compact, counter-mounted design. Ceramic infrared technology locks in flavor, while a roll-out grid and five position settings give chefs total control from sear to hold.

Availability notice: This model is currently pending CSA, NSF & UL approvals and is not available for purchase. Contact us for the latest release timeline.
Why the HDEB-24?
  • 6 kW ceramic infrared burner reaches broiling temp in about 30 minutes and maintains heat between loads.
  • Roll-out broiling grid (16" W × 26-1/2" D) extends to 17-1/4" for fast, safe loading.
  • Five grid heights—move from aggressive sear to gentle finishing in seconds.
  • Front 3" of grid receives reduced heat, doubling as a built-in holding zone.
  • All-316L stainless steel interior & exterior with fully insulated sidewalls for cooler work areas and long service life.
  • Counter base with 4" adjustable legs ships standard; add an optional stand or 4" locking casters for mobile setups.
  • Zero clearance to non-combustibles on the sides; 10" side / 6" rear clearance to combustibles.
  • Backed by a one-year parts & labor warranty and Southbend’s nationwide service network.
Technical Specifications
Model HDEB-24 (single deck, countertop)
Overall width 24.6" / 624 mm
Overall depth 31.8" / 807 mm
Overall height 45.3" / 1 150 mm (incl. 4" legs)
Broiling area 16" W × 26-1/2" D (rolls out to 17-1/4")
Grid positions 5 adjustable heights
Heat source 6 kW ceramic infrared burner
Electrical 208/240 V, 60 Hz, single- or three-phase field convertible
Current draw @ 208 V 1 Ø – 29 A  |  3 Ø – 17/17/17 A
Current draw @ 240 V 1 Ø – 25 A  |  3 Ø – 14/14/14 A
Shipping weight 432 lb / 196 kg
Certifications CSA, NSF & UL (pending)
Warranty 1 year parts & labor

Install under a properly sized exhaust hood. Intended for commercial use only—NOT for household installation.

Factory Options & Accessories
  • Stainless steel equipment stand
  • 4" swivel casters (front pair locking)
Flexible Financing

Preserve capital and enjoy predictable monthly payments with Middleby Equipment Financing—many customers qualify in minutes. Ask your sales representative for details.

Overall Dimensions:

37.5"W x 60.0"D x 55.0"H

Product Weight:

432.0 lb
Manufacturer Southbend (Middleby)
Certifications ["NSF", "UL", "cCSAus"]
Height 55.0in
Width 37.5in
Depth 60.0in
Shipping Weight 432.0lbs
Decks single
Exterior Finish stainless steel front & sides
Warming Oven without
Design free standing
Specifications Electric Broiler, 24", upright, single deck, removable grids, adjustable height to 5 positions, stainless steel construction, 208v/240v/60/1/3-ph, 6.0kW, CSA, NSF, UL (NOT AVAILABLE - Pending agency approvals)

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download
