Southbend (Middleby) HDCL-12 Gas Charbroilers
Description
Southbend HDCL-12 Counterline Gas Charbroiler
12" lava-rock, countertop model | 40,000 BTUBring steak-house flavor to any line-up with the Southbend HDCL-12. This compact, heavy-duty charbroiler harnesses two powerful 20,000 BTU stainless-steel burners and a bed of lava rock briquettes to deliver authentic flame-kissed results in the smallest of footprints. Built for the rigors of high-volume commercial kitchens, the HDCL-12 features fully welded stainless construction, cast-iron reversible grates, and tool-free components that make daily cleaning fast and easy.
Highlights at a Glance
- 12 inch countertop footprint – perfect for line, concession, or à-la-carte stations

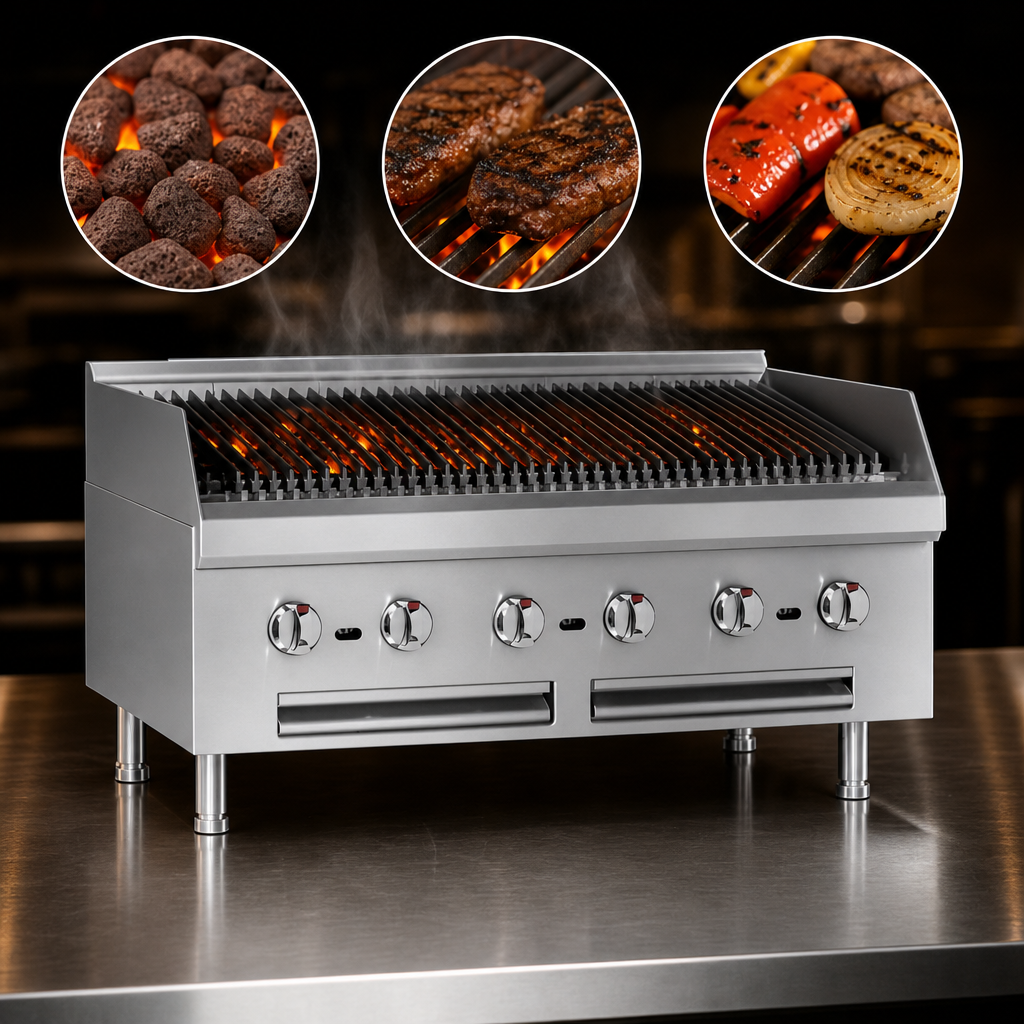

- Lava rock briquettes evenly distribute heat and impart classic charbroiled flavor

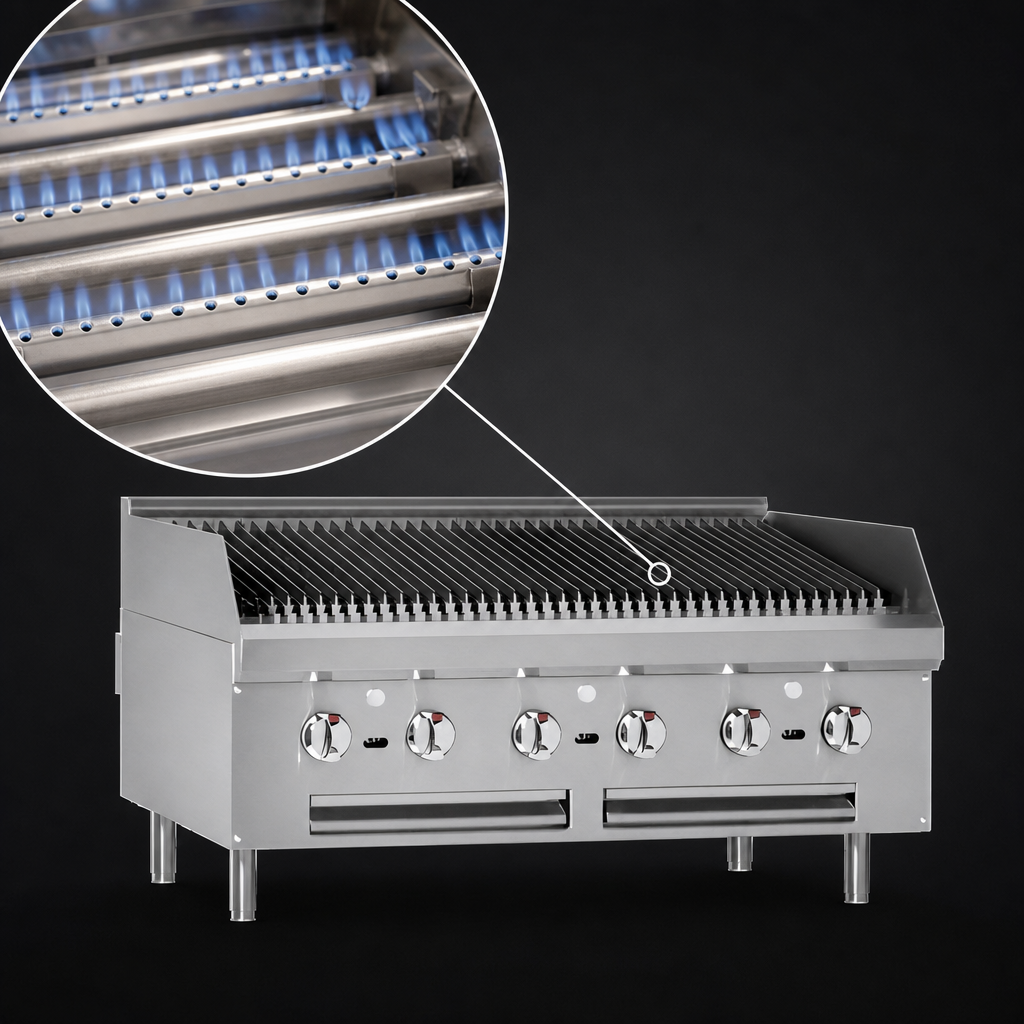

- (2) 20,000 BTU stainless-steel straight burners, each with independent manual valve (40,000 BTU total)
- Two-position, two-sided cast-iron cooking grids – choose wide or narrow branding marks
- 5" rear & side splash guards contain flare-ups and keep adjacent equipment clean
- 4" spatula-width front grease trough plus full-width removable crumb tray
- Stainless-steel front, sides, and 4" adjustable legs; aluminized rear & bottom for corrosion resistance
- Field convertible* between radiant and briquette cooking with optional kits
Technical Specifications
| Model | HDCL-12 (Southbend Counterline) |
|---|---|
| Total BTU | 40,000 BTU/hr (Natural or Propane) |
| Burners | (2) stainless-steel burners @ 20,000 BTU each | standing pilot ignition |
| Cooking Surface | 12 in. W two-position reversible cast-iron grates |
| Gas Connection | 3/4" rear male NPT (pressure regulator included) |
| Overall Dimensions (w × d × h) | 12 " × 32 " × 15 " (nominal – verify prior to cut-out) |
| Construction | 430 & 304 stainless front/sides, aluminized rear/bottom, insulated double-wall sides |
| Certifications | CSA Star, CSA Flame, cCSAus, NSF |
| Warranty | 1-year limited parts & labor |
Popular Options & Accessories
- Stainless-steel equipment stand (with or without cutting board shelf)
- Casters for stand mobility
- Battery spark ignition upgrade
- Briquette or radiant conversion kits
- Plated fish grates
- 2" high insulator base for mounting on refrigerated bases
