Description

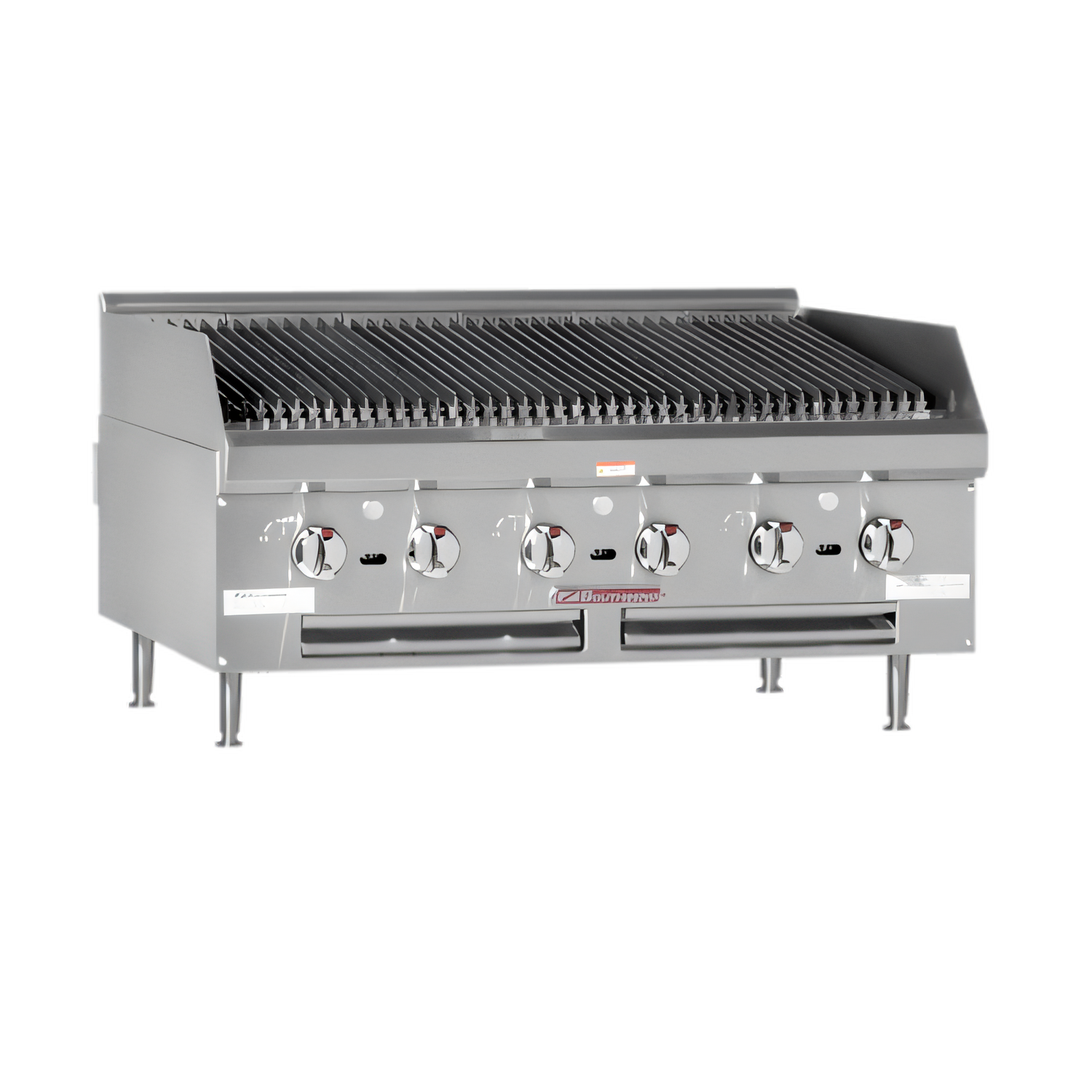

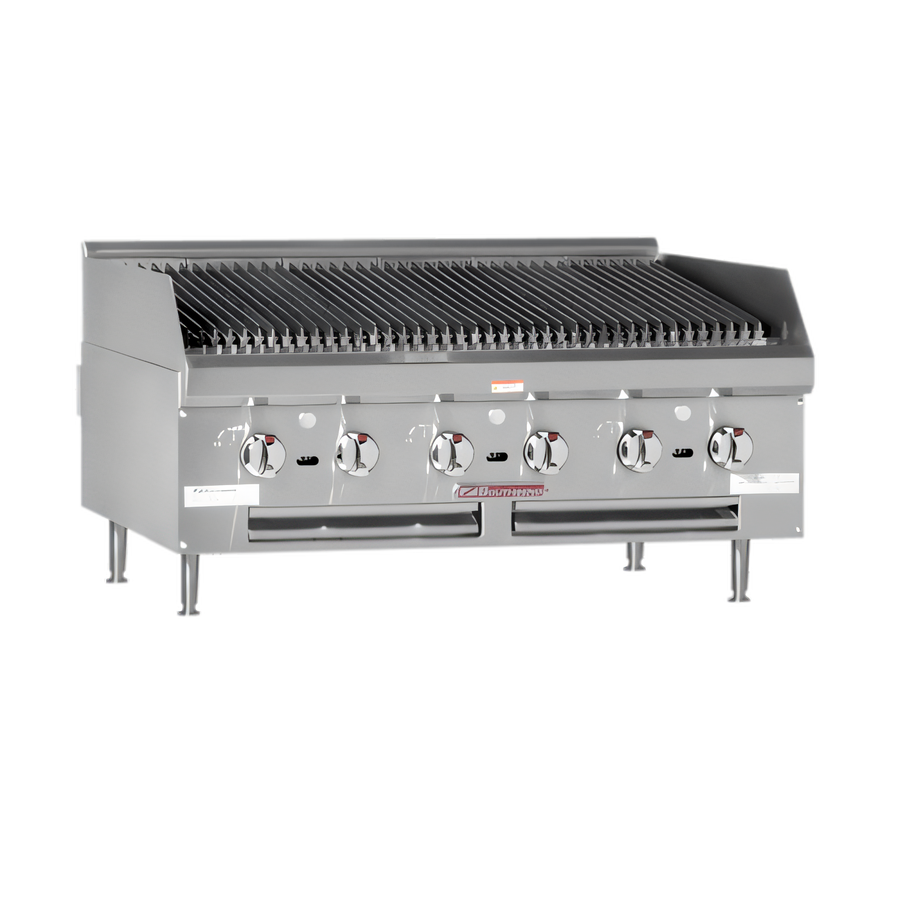

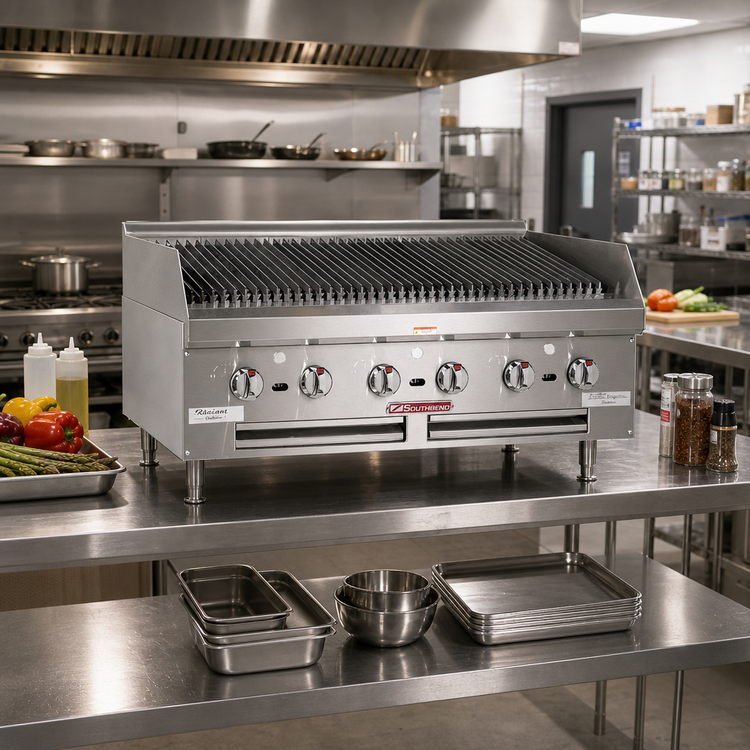

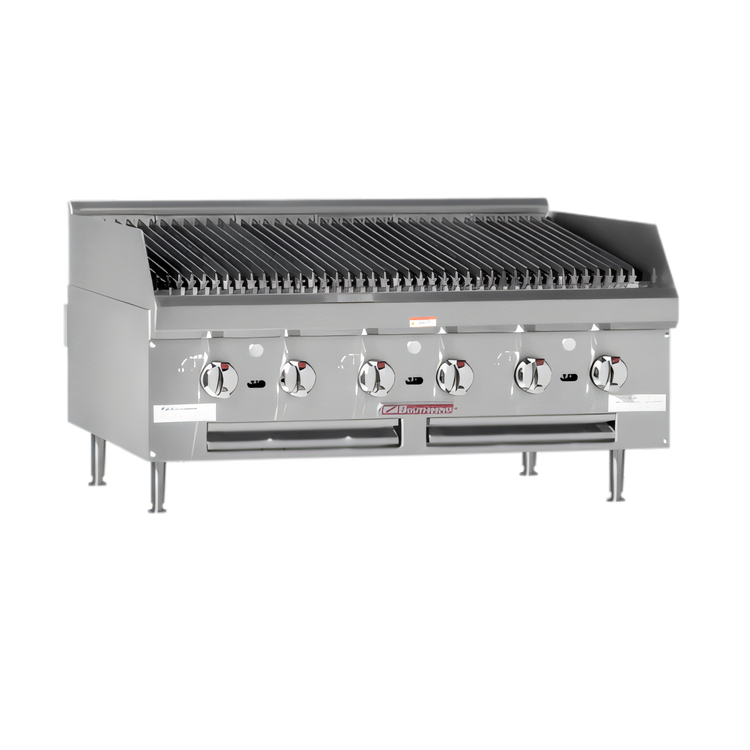

Southbend HDC-60 Counterline Gas Radiant Charbroiler – 60"

200,000 BTU • Cast-Iron Radiants • Countertop Heavy-Duty Series

Engineered for relentless daily production, the Southbend HDC-60 brings steak-house power and precision to any commercial kitchen. Ten independently-controlled stainless steel burners sit beneath rugged cast-iron radiants, delivering an even 200,000 BTU of searing heat across a full 60 inches of cooking surface. From delicate seafood to high-volume burgers, this countertop charbroiler delivers unbeatable grill marks, flavor, and throughput day after day.

Performance & Convenience

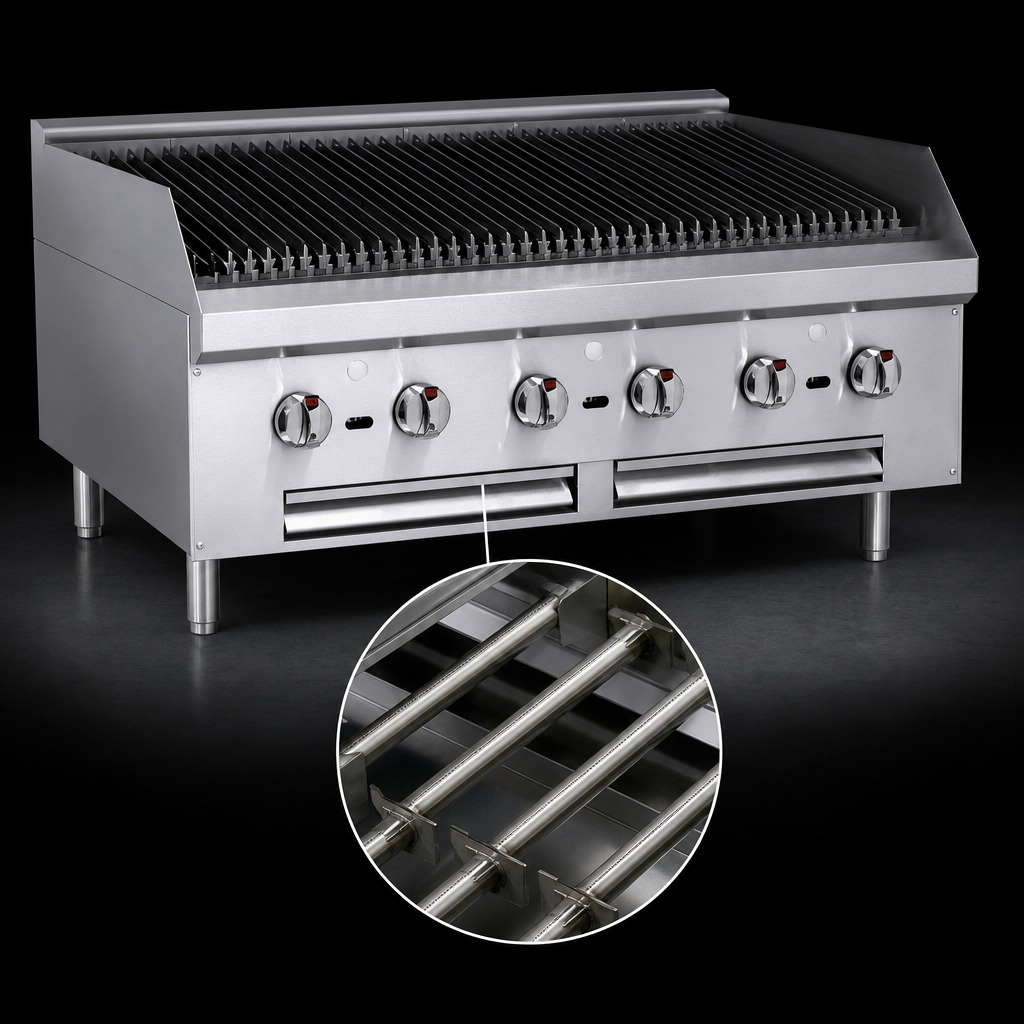

  • Ten 20,000 BTU stainless steel burners (one every 6") for precise zone control

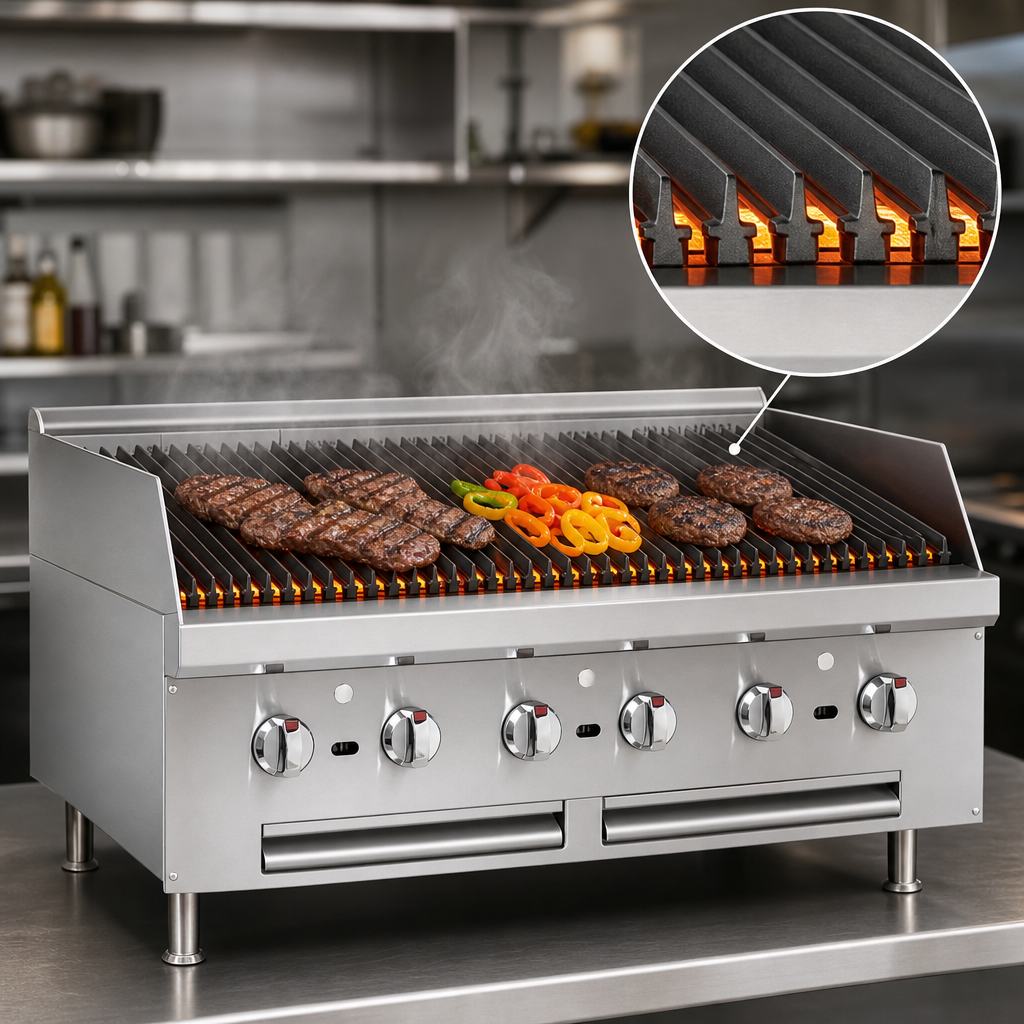

  • Heavy cast-iron radiants distribute heat evenly & minimize flare-ups
  • Reversible, two-position cooking grids (wide or narrow branding surface)
  • 4" spatula-width front grease trough plus full-width removable crumb tray
  • 5" rear & side splash guards keep surrounding surfaces clean
  • Field-convertible to lava briquette operation with optional kit
Built to Last
  • #3-polished 430 & 304 stainless steel front and sides; aluminized rear & bottom
  • Reinforced, fully insulated double-wall side panels retain heat and reduce kitchen load
  • (4) 4" stainless steel adjustable legs for quick leveling on any countertop
  • 3/4" rear gas connection with factory-supplied pressure regulator
  • CSA Star, CSA Flame, cCSAus & NSF certified for gas safety and sanitation
  • Backed by a 1-year limited parts & labor warranty
Technical Specifications
Model HDC-60 (Radiant)
Overall Width 60" (1524 mm)
Burners / Output 10 × 20,000 BTU = 200,000 BTU/h (Natural or LP)
Cooking Surface 60" W × 24" D reversible cast-iron grates
Gas Connection 3/4" NPT (rear) – min. 7" WC NAT / 11" WC LP
Splash Guards 5" rear & side, integrated
Crated Weight ≈ 500 lb (227 kg)
Approvals CSA Star & Flame, cCSAus, NSF
Popular Options (Sold Separately)
  • Stainless steel equipment stand (with or without casters)
  • Lava briquette conversion kit
  • Fish-plated grids or battery spark ignition
  • Stainless plate shelf and cutting board
Important Care Tip: Do not block the cooking surface with sheet pans while the burners are on—reflected heat can damage components and void warranty.

Southbend continually improves products and reserves the right to change specifications without notice. Intended for commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

16.13in

Width

60.0in

Depth

33.25in

Shipping Weight

500.0lbs

Width (side - side) OA

55 - 60"

Heating Source

radiant

Specifications

Charbroiler, gas, countertop, 60", cast iron radiants, stainless steel burners, two-position, two sided cooking grid, removable crumb tray, stainless steel front, sides & 4" adjustable legs, 200,000 BTU, CSA Star, CSA Flame, cCSAus, NSF
