Southbend (Middleby)  |  SKU: HDC-48

Southbend (Middleby) HDC-48 Gas Charbroilers

$7,645.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Hdc parts manual (post 7/6/2010) Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

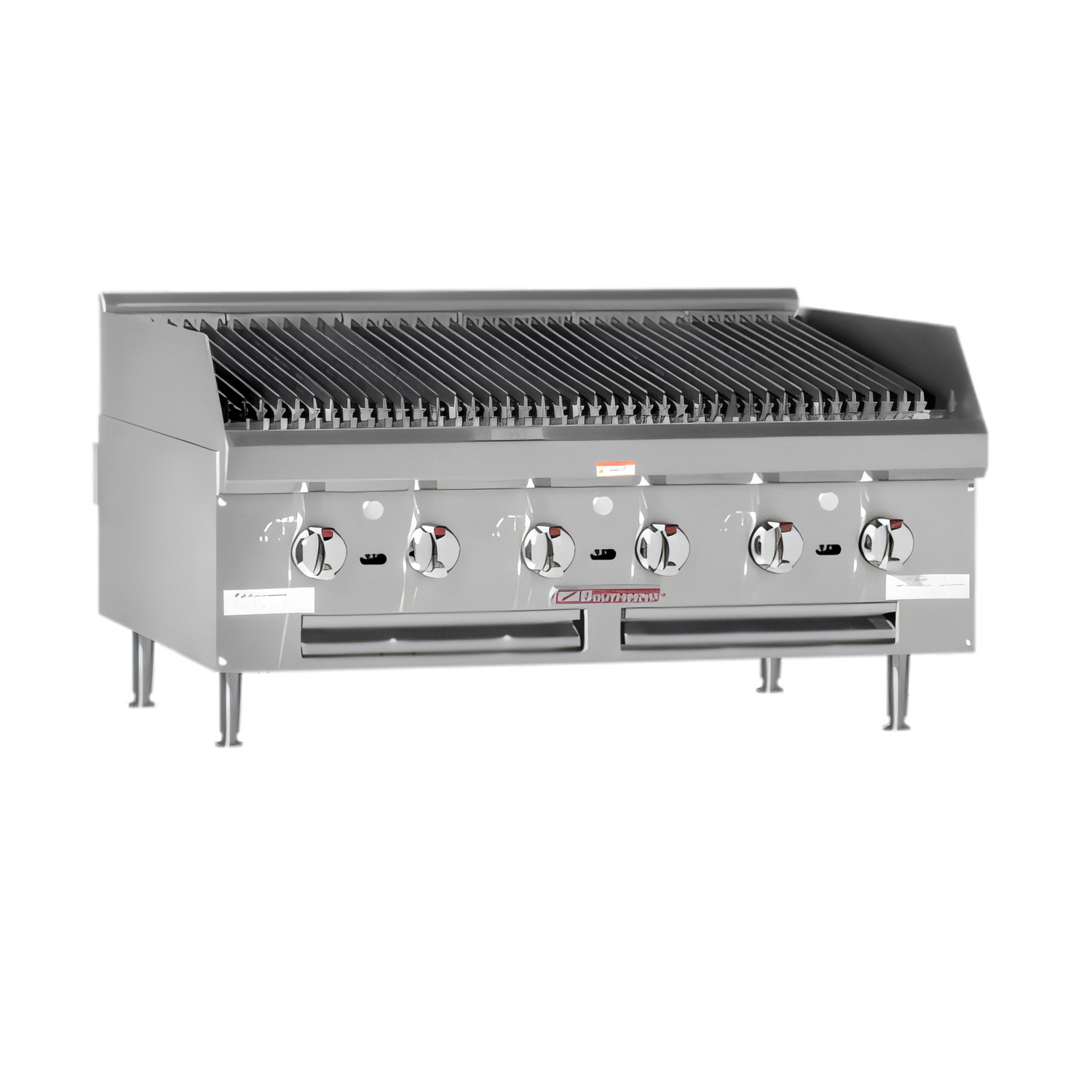

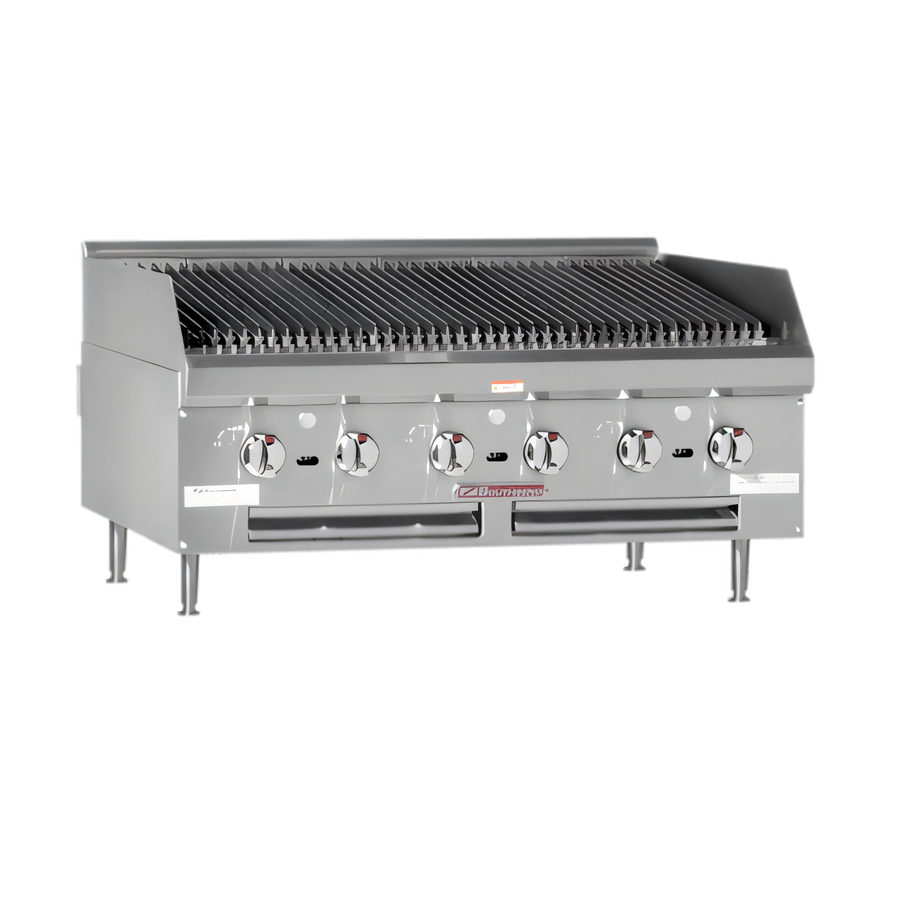

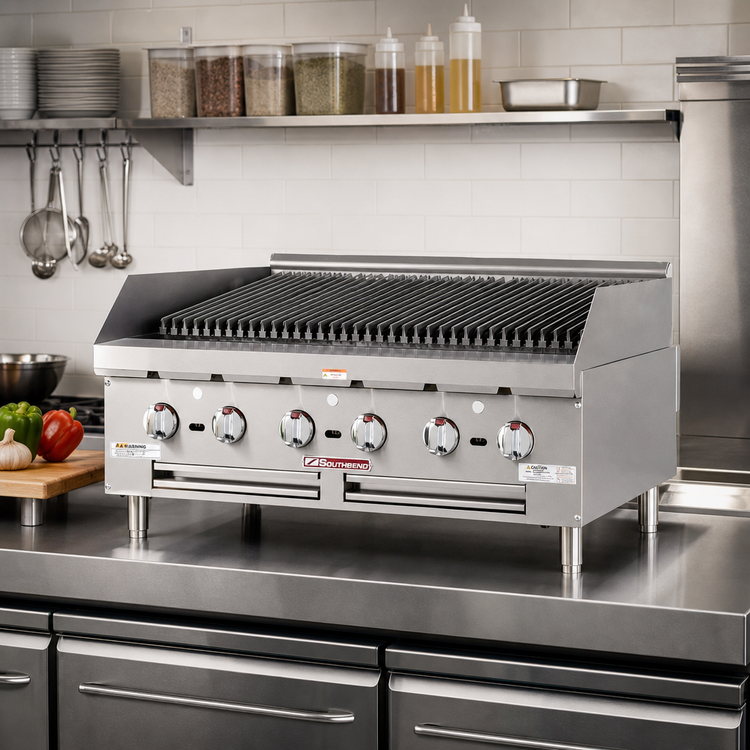

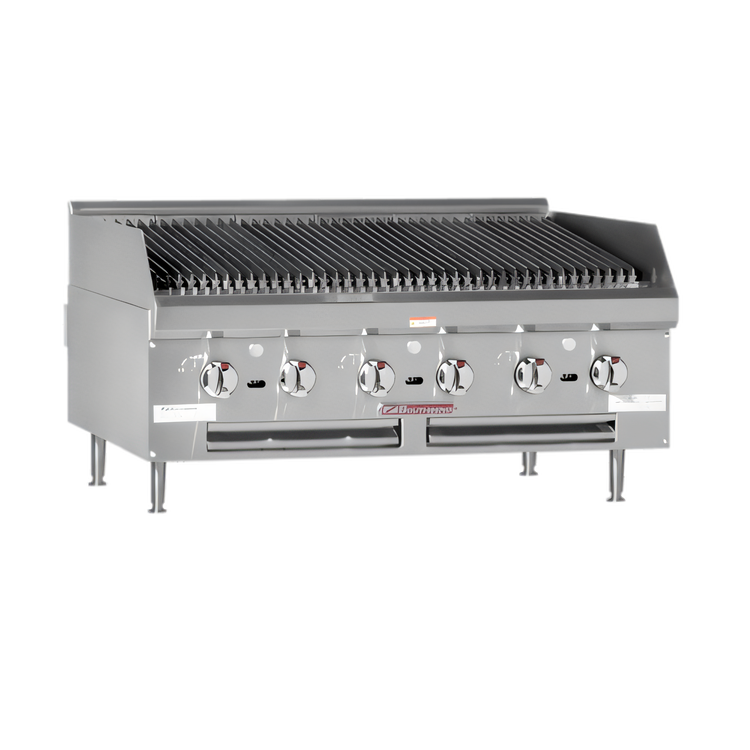

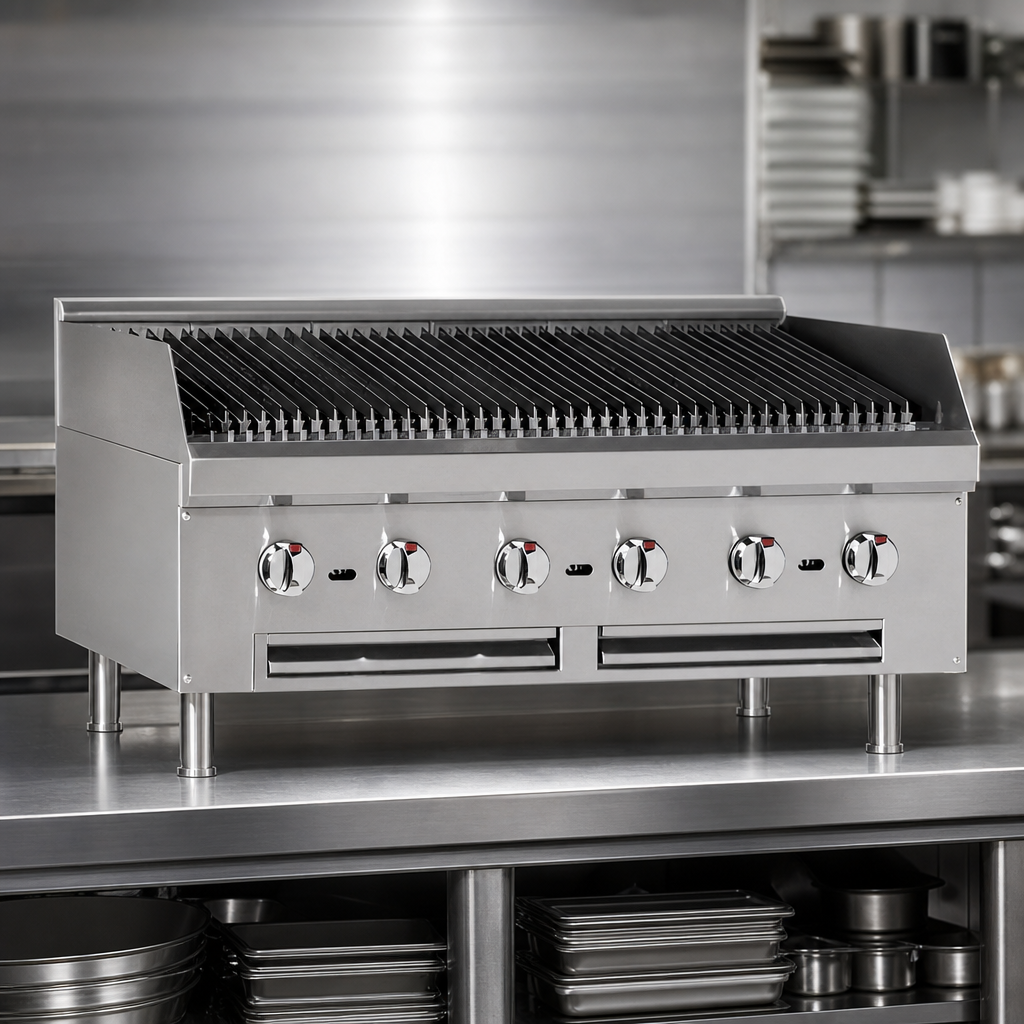

Southbend HDC-48 Counterline 48" Gas Radiant Charbroiler – QUICK SHIP

Heavy-duty countertop grill with 160,000 BTU of searing power

Give your guests the unmistakable flavor and presentation of live-fire cooking—right from the line. The Southbend HDC-48 Radiant Charbroiler delivers steakhouse-quality branding on steaks, burgers, seafood, and vegetables while fitting neatly on a 48" counter. Cast-iron radiants focus intense heat where you need it, stainless steel construction stands up to the busiest rush, and a quick-ship program keeps your project on schedule.

Key Features

  • 160,000 BTU total output (8 × 20,000 BTU stainless steel burners)

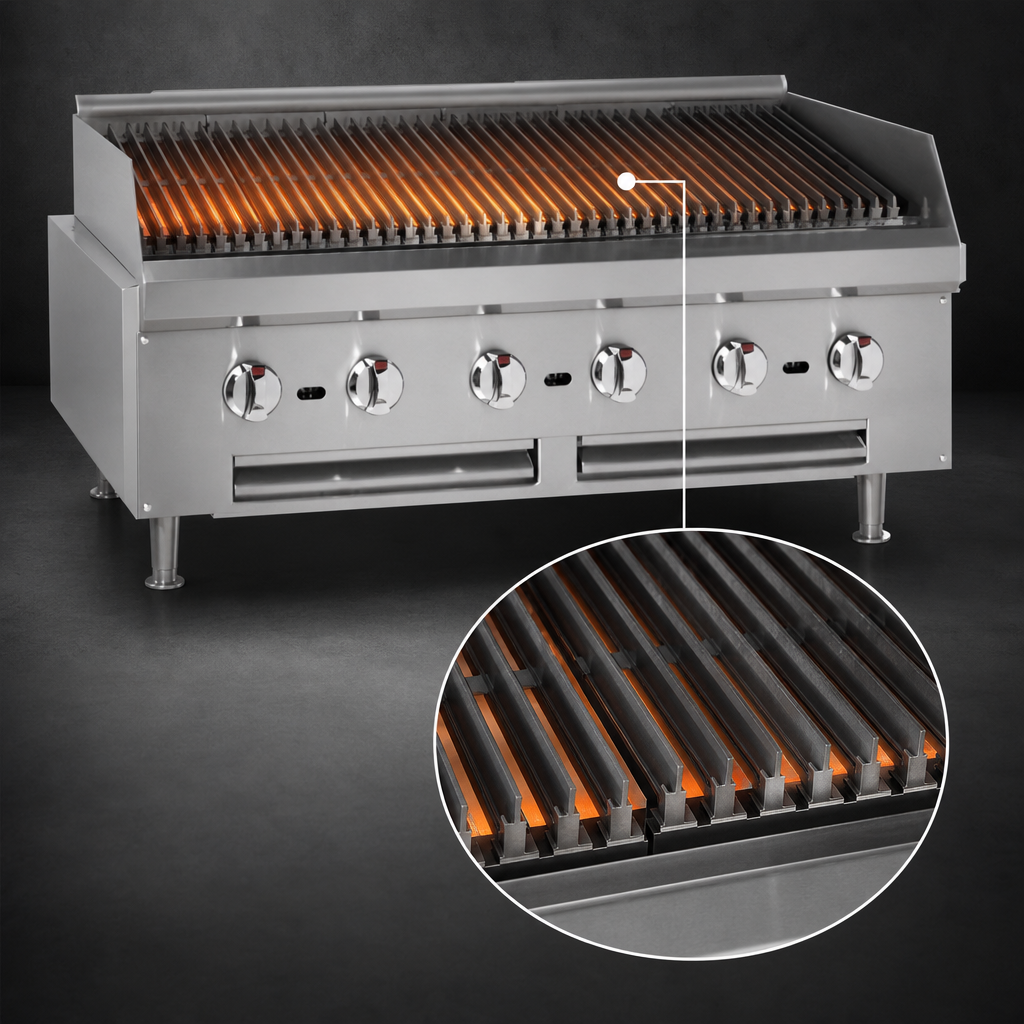

  • Cast-iron radiants for superior heat retention & authentic grill marks
  • Two-position, double-sided cooking grids (wide or narrow branding)
  • 5" rear & side splash guards keep grease where it belongs
  • 4" spatula-width grease trough plus full-width removable crumb tray
  • Fully welded stainless steel front & sides; reinforced, insulated double-wall construction
  • Field convertible to lava briquette style with optional kit
  • 3/4" rear gas connection with pressure regulator included
  • 4" stainless steel adjustable legs for perfect leveling on any counter
  • CSA Star, CSA Flame, cCSAus & NSF listed for gas safety and sanitation
  • One-year limited parts & labor warranty, backed by Southbend’s nationwide service network

Specifications

Model HDC-48 (Radiant)
Type Gas countertop charbroiler, cast-iron radiants
Overall Width 48" (1219 mm)
Overall Depth 31" (788 mm)
Overall Height 15 ¹⁄₂" (394 mm) to top of splash guards
Total BTU 160,000 BTU/hr (natural or propane)
Number of Burners 8 × 20,000 BTU straight tube burners
Gas Connection 3/4" NPT (rear), min. 7" W.C. natural / 11" W.C. LP
Grease Management 4" trough & removable stainless crumb tray
Construction 430/304 stainless steel front & sides, aluminized rear & bottom
Certifications CSA Star, CSA Flame, cCSAus, NSF
Warranty 1-year parts & labor (commercial use)

Optional Accessories

  • Stainless steel equipment stand (with or without casters)
  • Briquette conversion kit (radiant → briquette)
  • Battery spark ignition
  • Fish-plated grids
  • 2" insulator base for mounting on refrigerated base
Cleaning Warning: Do not place sheet pans over the grates while burners are on. Reflected heat can cause irreparable damage and is not covered under warranty.

Need flexible financing? Ask us about Middleby Equipment Financing for fast credit decisions and low monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

16.13in

Width

48.0in

Depth

33.25in

Shipping Weight

425.0lbs

Width (side - side) OA

43 - 48"

Heating Source

radiant

Specifications

(QUICK SHIP) Charbroiler, gas, countertop, 48", cast iron radiants, stainless steel burners, two-position, two sided cooking grid, removable crumb tray, stainless steel front, sides & 4" adjustable legs, 160,000 BTU, CSA Star, CSA Flame, cCSAus, NSF
