Southbend (Middleby)  |  SKU: HDC-36

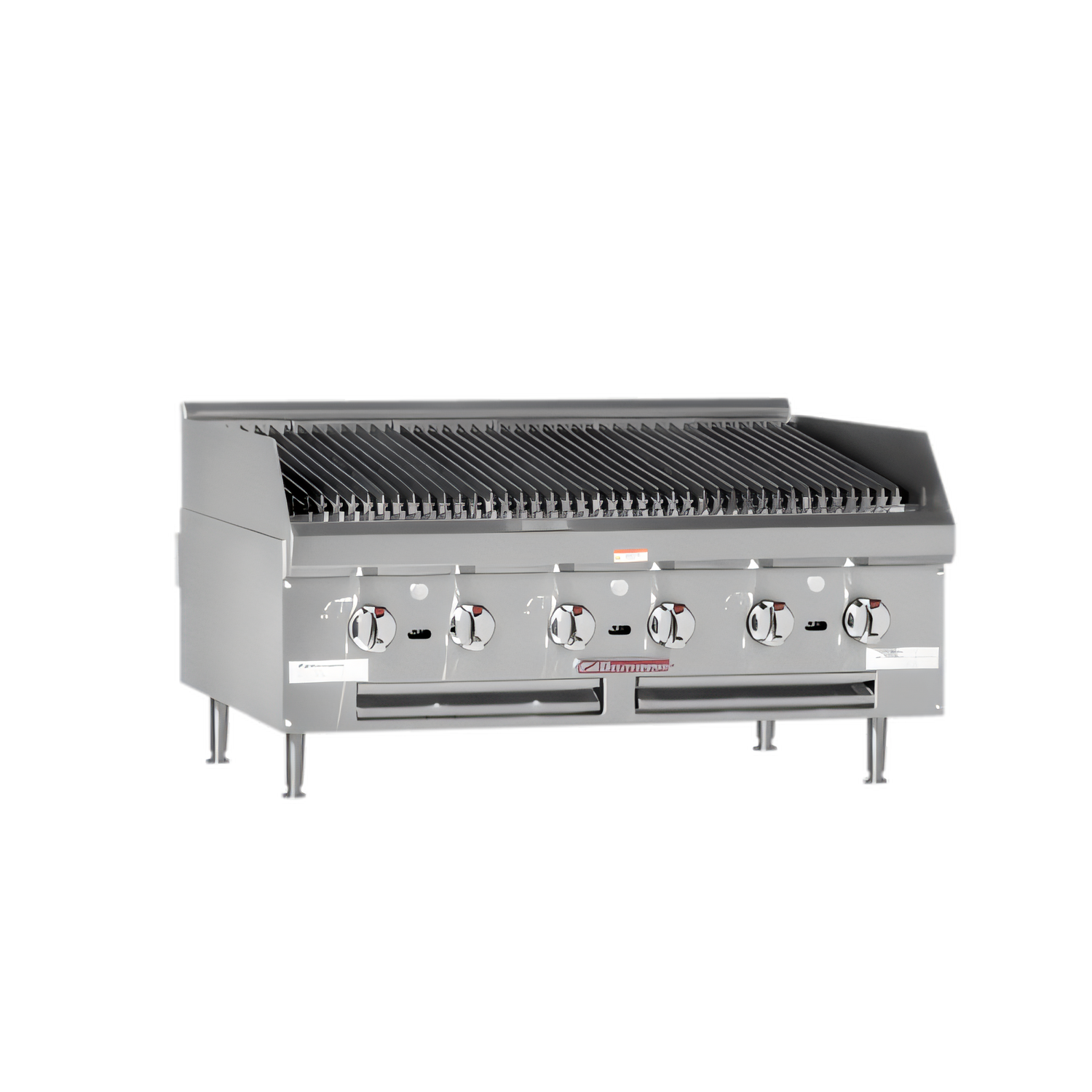

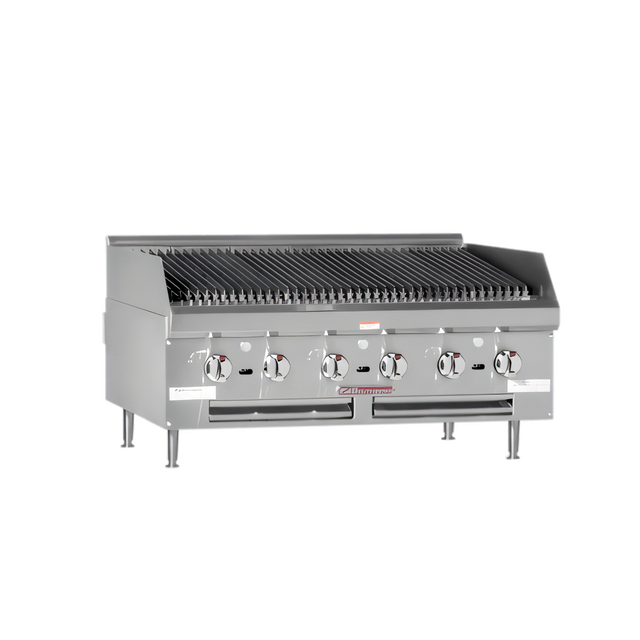

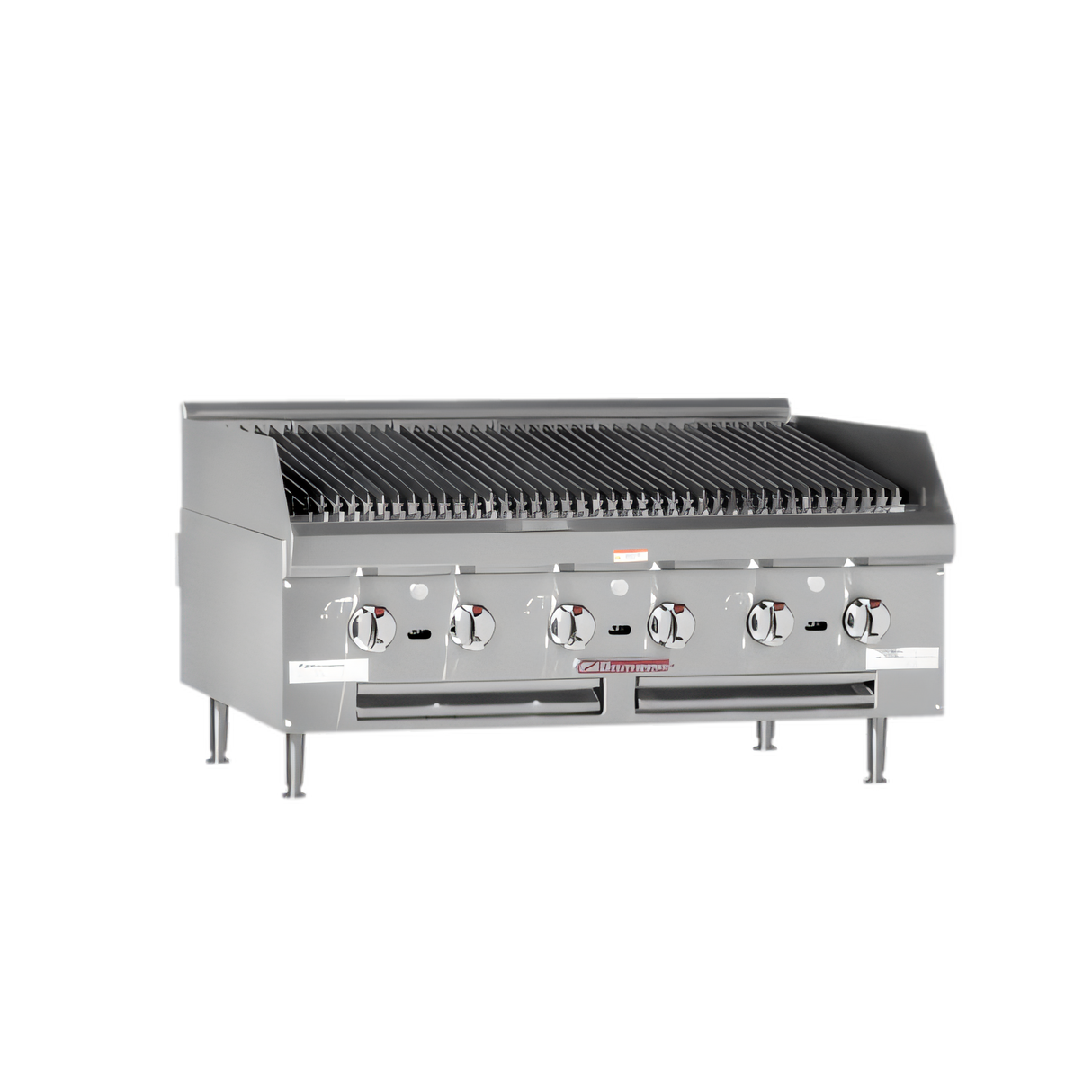

Southbend (Middleby) HDC-36 Gas Charbroilers

$6,030.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Hdc parts manual (post 7/6/2010) Warranty sheet
Related Searches
Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Restaurant Equipment Southbend (Middleby)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend HDC-36 Heavy-Duty Counterline Gas Radiant Charbroiler – 36"

Quick-Ship • 120,000 BTU / hr • Ships in 2 business days • Max 2 per order

Bring real steak-house flavor to your line in record time. The Southbend HDC-36 countertop charbroiler combines a compact 36 inch footprint with six high-output burners, cast-iron radiants and the rugged construction that has made Southbend the trusted choice for demanding commercial kitchens since 1898.

Why You’ll Love It

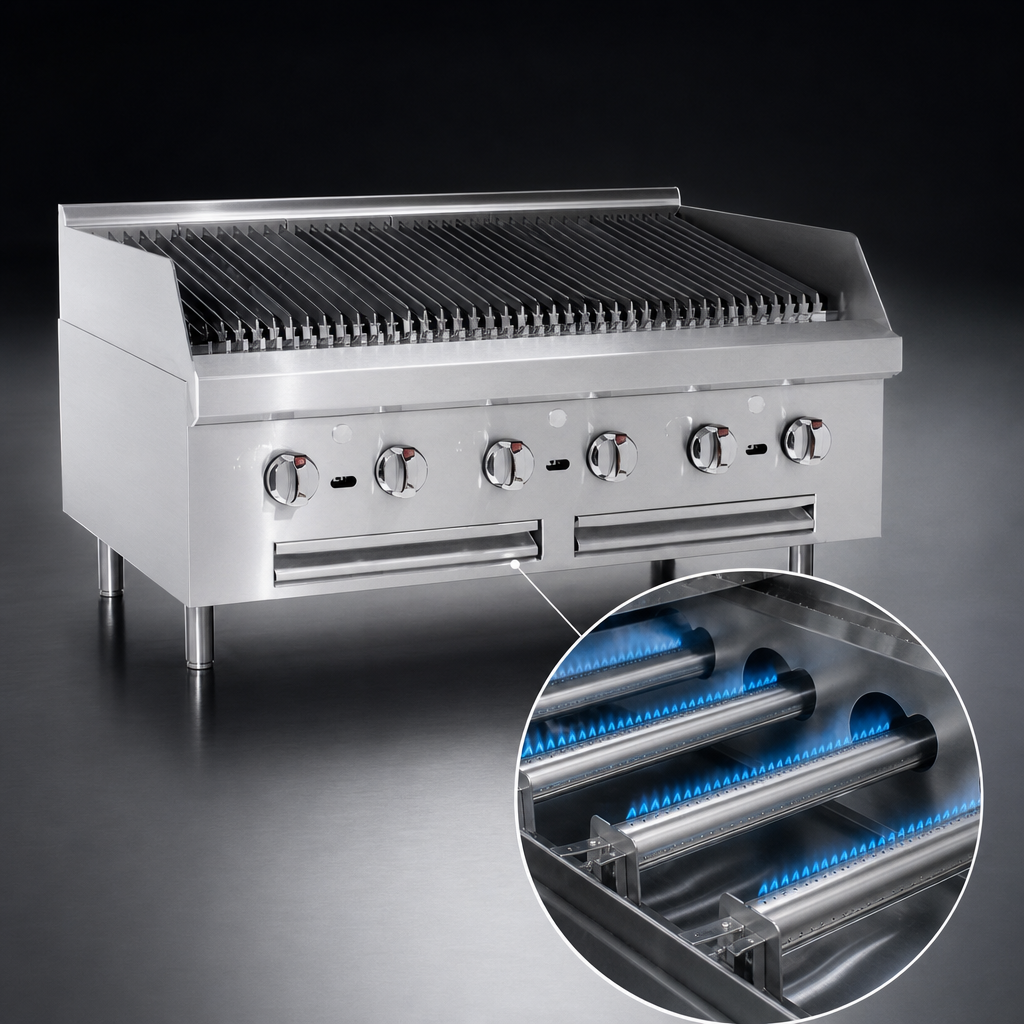

  • Instant grilling capacity: Six 20,000 BTU stainless-steel burners (one every 6") supply an impressive 120,000 BTU/hr of searing power.

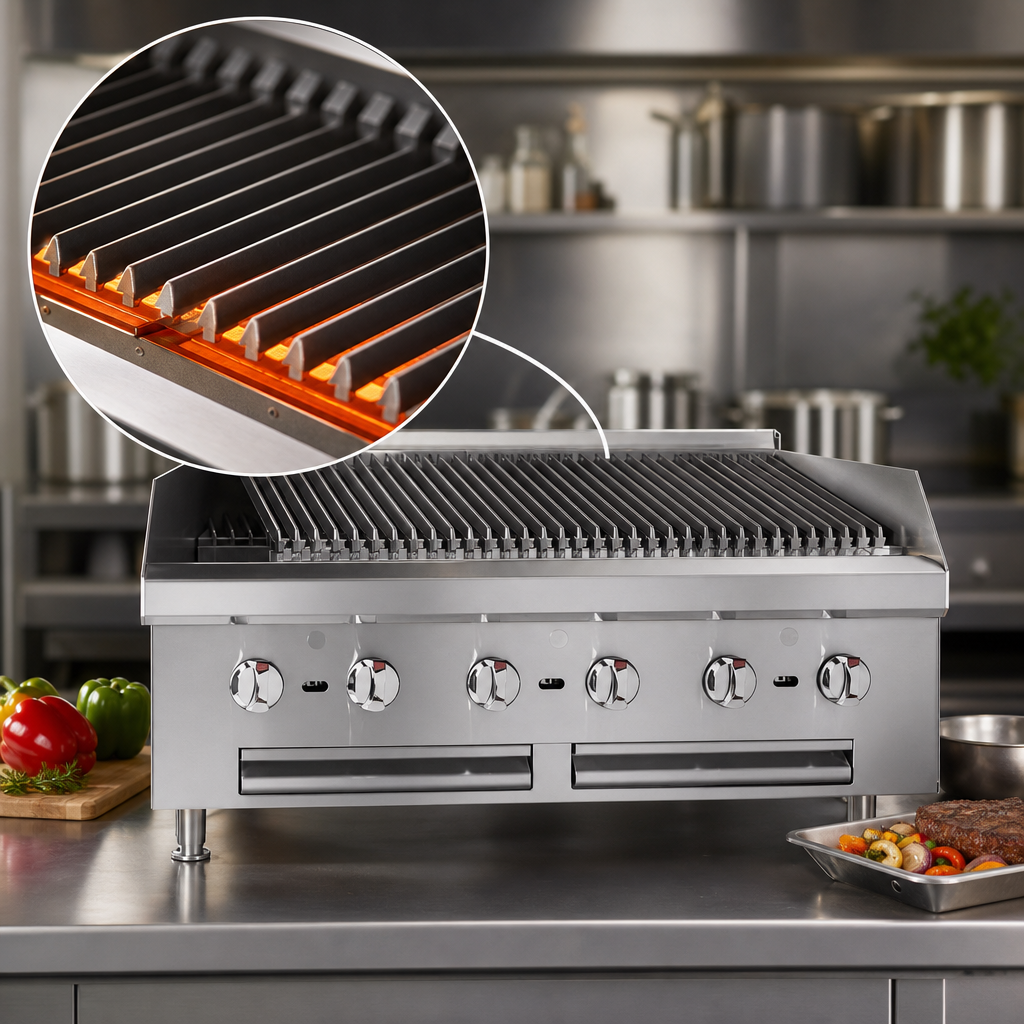

  • True radiant performance: Durable cast-iron radiants deliver even heat distribution and authentic char marks without the mess of briquettes.
  • Reversible two-position grates: Swap between wide or narrow branding on the fly; flip the heavy-duty cast-iron grids for a second cooking surface.
  • Built for the long haul: Reinforced double-wall sides are fully insulated; front & sides are #3-finish stainless steel with an aluminized steel rear and bottom panel.
  • Cleaner, safer station: 5" rear/side splash guards, a 4" spatula-width grease trough and a full-width removable stainless crumb tray keep grease exactly where it belongs.
  • Field convertible: Add an optional briquette kit at any time to switch from radiant to lava rock cooking.
  • Countertop convenience: Supplied with 4" adjustable stainless-steel legs for easy leveling on any work surface.
  • Certified & compliant: CSA Star, CSA Flame, cCSAus and NSF listed for commercial use.
Technical Specs
Model HDC-36 (Radiant)
Overall width 36" (914 mm)
Number of burners 6 × 20,000 BTU stainless-steel tube burners
Total input 120,000 BTU/hr – Natural or Propane
Gas connection ¾" NPT (rear), pressure regulator included
Min. 7" WC Natural / 11" WC LP
Cooking grids Two-sided cast-iron, two-position (wide or narrow branding)
Splash guards 5" high, rear & sides
Legs 4" adjustable stainless steel
Shipping weight 350 lb (159 kg) – ships crated
Warranty 1 year parts & labor (commercial use)
Quick-Ship Program: This unit leaves the Southbend warehouse within 2 business days. To ensure fair allocation, orders are limited to two (2) units per customer, per order.
Popular Accessories (sold separately)
  • Stainless-steel equipment stand (with or without casters)
  • Briquette conversion kit
  • Fish-plate grids
  • Battery spark ignition upgrade
  • 2" insulator base for mounting on a refrigerated base
Important Cleaning Notice: Never place a sheet pan over the cooking surface while the burners are on. Reflected heat can cause irreparable damage and is not covered under warranty.

Need easy monthly payments? Ask us about flexible equipment financing through Middleby approved partners.

Intended for commercial use only – not for household installation.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

16.13in

Width

36.0in

Depth

33.25in

Shipping Weight

350.0lbs

Heating Source

radiant

Width (side - side) OA

31 - 36"

Specifications

(QUICK SHIP) Charbroiler, gas, countertop, 36", cast iron radiants, stainless steel burners, two-position, two sided cooking grid, removable crumb tray, stainless steel front, sides & 4" adjustable legs, 120,000 BTU, CSA Star, CSA Flame, cCSAus, NSF (Ships within 2 days, maximum quantity = 2 per order)
