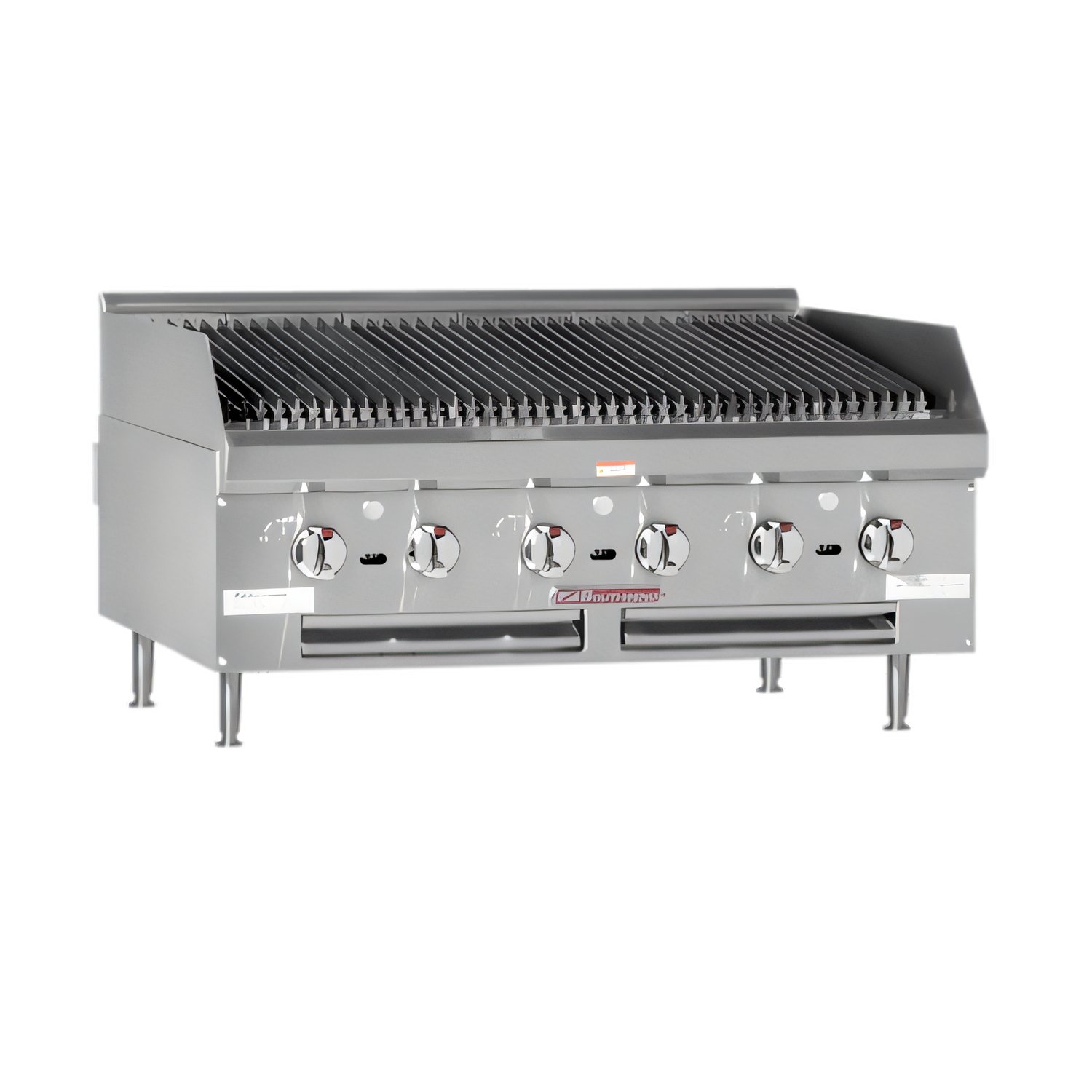

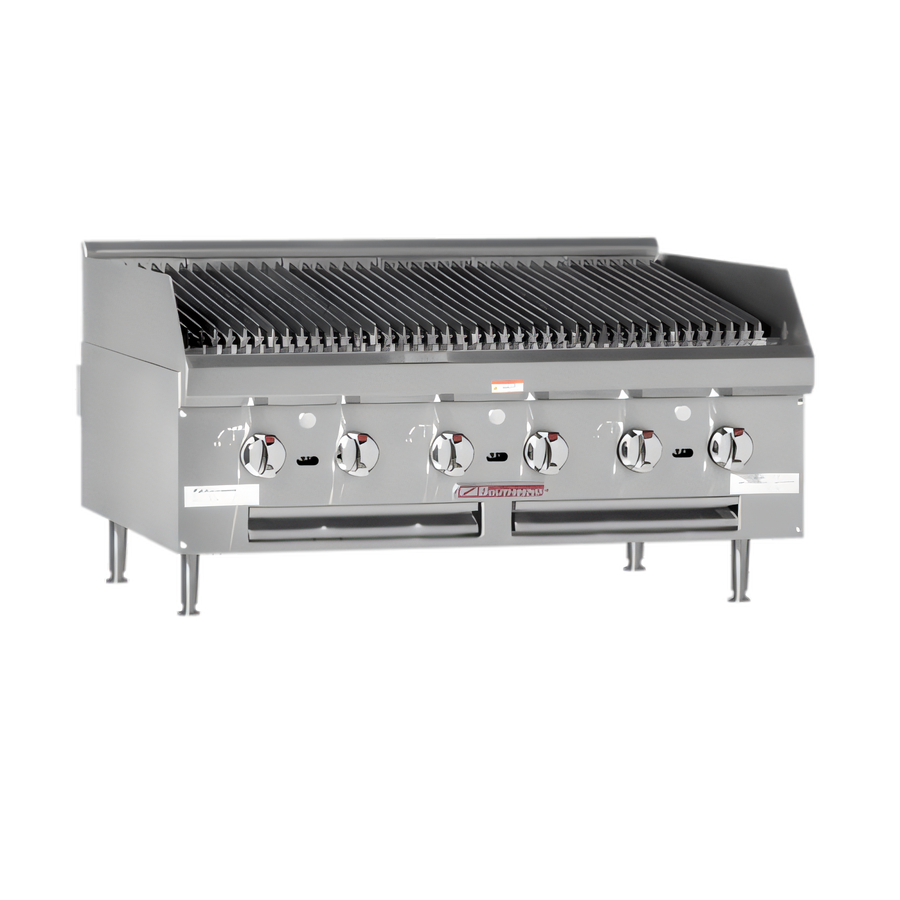

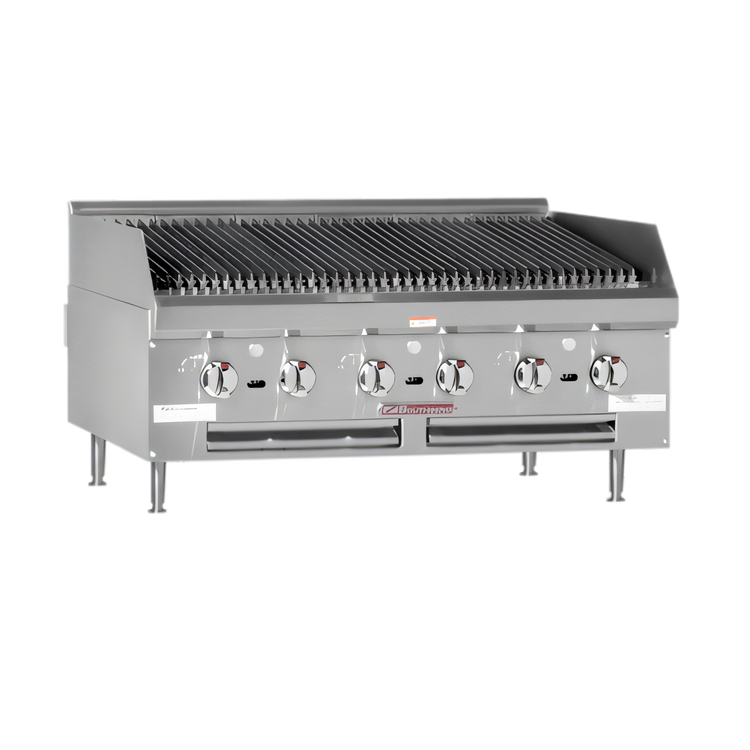

Southbend HDC-36-316L Outdoor Gas Countertop Charbroiler, 36-Inch, 6-Burner, 316L Stainless Steel

SKU: HDC-36-316L
$6,923.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills New Arrivals Outdoor Commercial Grills Restaurant Equipment Southbend (Middleby)

Southbend HDC-36-316L Outdoor Gas Countertop Charbroiler, 36-Inch, 6-Burner, 316L Stainless Steel

Radiant Design, Rod Grates, 120,000 BTU, Natural Gas or Propane

Built for outdoor commercial grilling, this 36-inch countertop charbroiler pairs six high-output burners with corrosion-resistant 316L stainless steel construction.

  • 36-inch countertop outdoor charbroiler with 6 burners and 120,000 BTU total output.
  • 316L stainless steel construction, radiants, and crumb tray are built for harsh outdoor environments.
  • Stainless steel round rod grates and two-sided cooking grids support versatile searing and finishing.
  • 5-inch high rear and side splash guards plus a 4-inch grease trough help contain grease and flare-ups.
  • Independent burner valves and standing pilots provide zone-by-zone heat control.
  • Made in USA; designed for non-combustible locations and installation under a vented hood.

Overall Dimensions:

36.0"W x 33.25"D x 16.13"H

Product Weight:

350.0 lb

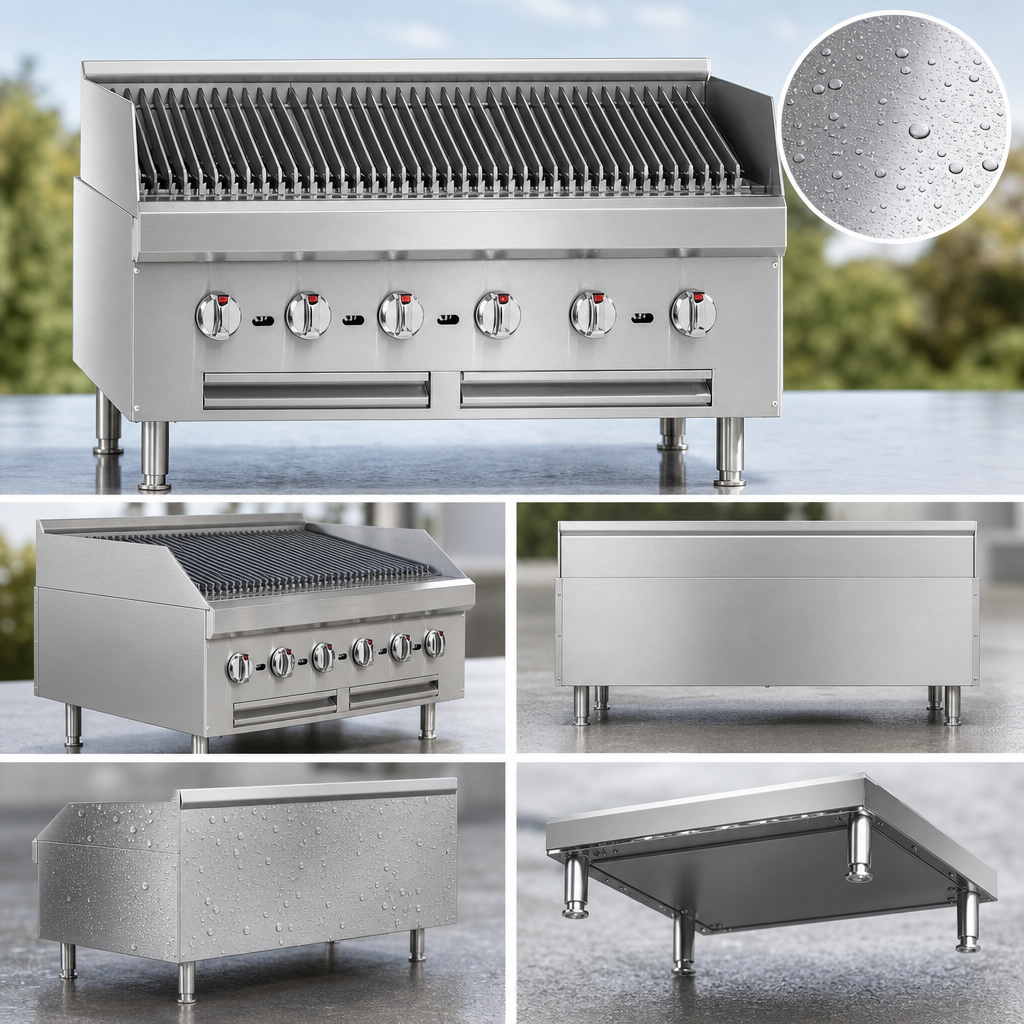

316L Stainless Steel Construction

Front, rear, sides, and bottom panels are made of 316L stainless steel for outdoor durability.

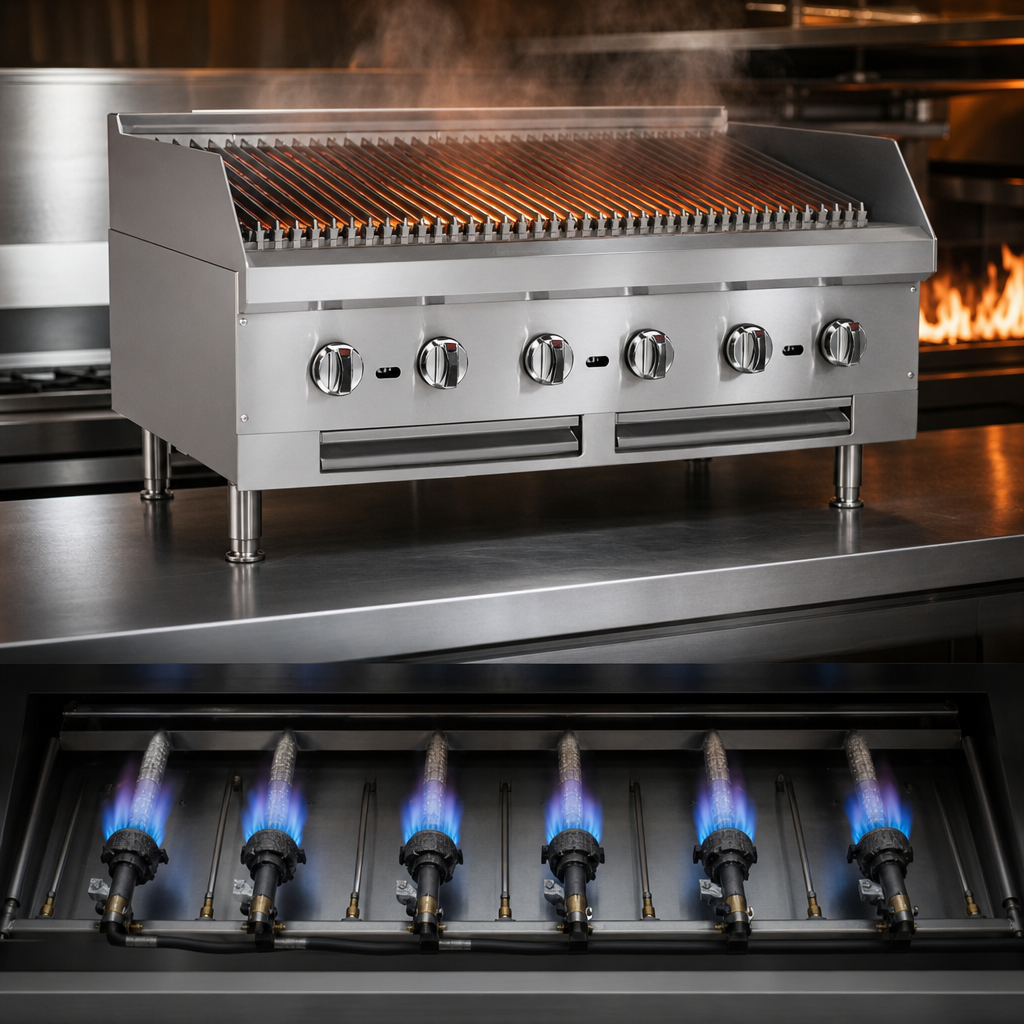

High-Output Burner System

Six burners at 20,000 BTU each deliver 120,000 BTU total.

Stainless Steel Radiants and Rod Grates

Stainless steel radiants and 6-inch-wide 3/8-inch round rod grates promote even heat transfer and strong searing performance.

Independent Burner Control

Each burner is controlled by its own gas valve, with a standing pilot servicing each burner.

Splash Guards and Grease Management

5-inch rear and side splash guards, a 4-inch grease trough, and a full-width crumb tray help contain messes.

Outdoor Installation Requirements

Intended for non-combustible locations only and should be installed under a vented hood.

Commercial Certifications

NSF, CSA, CSA Flame, and CSA Star listed.

Type Charbroiler
Style Outdoor
Installation Type Countertop
Material 316L Stainless Steel
Finish Stainless Steel
Burner Quantity 6 Burners
Controls Independent Gas Valves
Grate Construction Stainless Steel Round Rod Grates
Splash Guard Height 5 Inches
BTU 120,000 BTU
Gas Type Natural Gas / Propane
Gas Connection Size 3/4 Inch Rear NPT
Gas Inlet Pressure 7 Inches W.C. Natural Gas / 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is available for natural gas or propane and requires a regulated gas supply.
The unit has six 20,000 BTU burners for a total output of 120,000 BTU.
It uses a 3/4-inch rear gas connection with a male NPT connector; a pressure regulator is included.
No, but a 316L stainless steel stand, all-terrain 10-inch casters, and other options are available at additional cost.
It is for non-combustible locations only and should be installed under a vented hood.
