Southbend (Middleby)

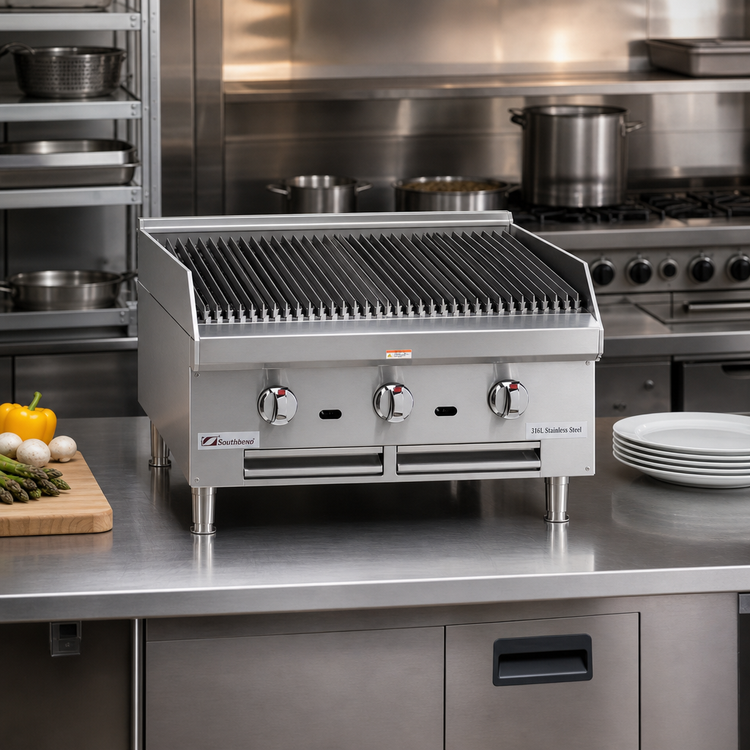

Southbend Outdoor Gas Countertop Charbroiler, 18-Inch, 316L Stainless Steel, 3 Burners, 60,000 BTU

SKU: HDC-18-316L
$4,297.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills New Arrivals Outdoor Commercial Grills Restaurant Equipment Southbend (Middleby)

Southbend Outdoor Gas Countertop Charbroiler, 18-Inch, 316L Stainless Steel, 3 Burners, 60,000 BTU

Stainless Steel Radiants, Rod Grates, and 5-Inch Splash Guards

Built for outdoor commercial grilling, this compact 18-inch charbroiler combines durable 316L stainless steel construction with 60,000 BTU of heat and easy-clean grease management.

  • 18-inch countertop outdoor charbroiler with 3 burners and 60,000 BTU output.
  • 316L stainless steel construction is designed for demanding outdoor use.
  • Stainless steel radiants and round rod grates support even grilling performance.
  • 5-inch rear and side splash guards and a 4-inch grease trough help contain drips and flare-ups.
  • Independent burner valves and standing pilots provide flexible heat control.
  • 3/4-inch rear gas connection with included pressure regulator supports installation.

Overall Dimensions:

18.0"W x 33.25"D x 16.13"H

Product Weight:

120.0 lb

316L Stainless Steel Construction

Front, rear, sides, and bottom panels are built from 316L stainless steel for durability in outdoor applications.

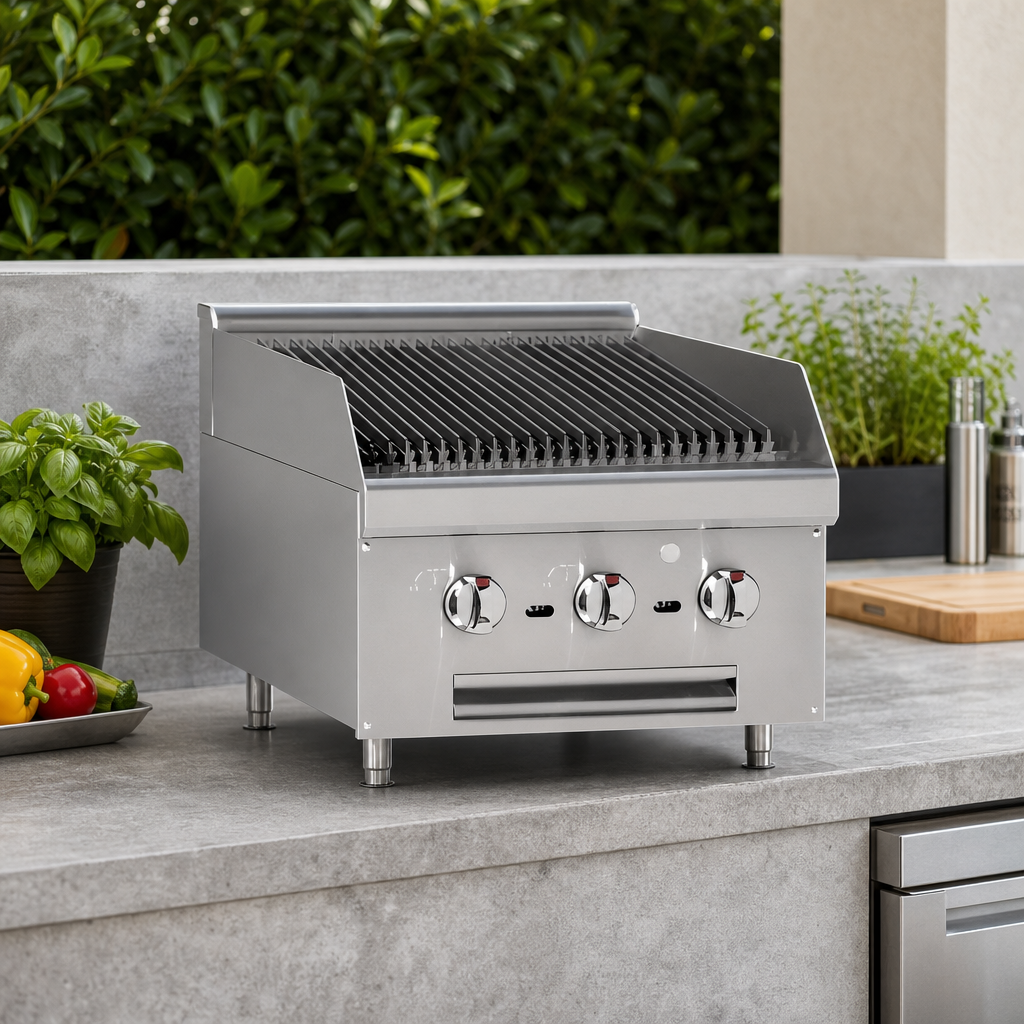

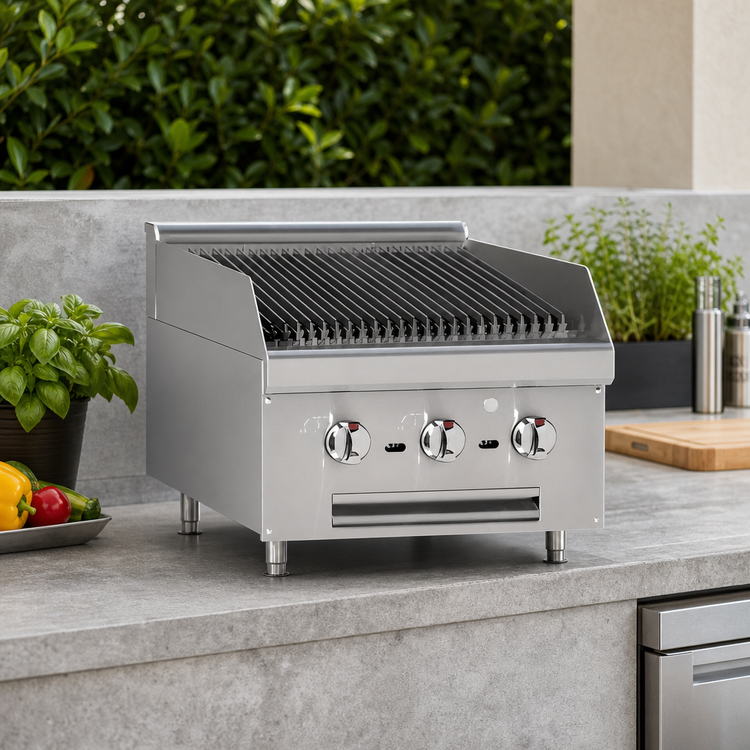

Outdoor Countertop Design

Compact 18-inch footprint is made for countertop installation in non-combustible locations.

Three Independent Burners

Three burners deliver a total of 60,000 BTU and can be controlled independently for zone cooking.

Stainless Steel Radiants

316L stainless steel radiants help distribute heat across the cooking surface.

Round Rod Grates

6-inch wide, 3/8-inch stainless steel round rod grates are built for charbroiling performance.

Splash Guards and Grease Management

5-inch rear and side splash guards, a 4-inch grease trough, and a full-width crumb tray help manage grease and cleanup.

Gas Connection and Regulator

Includes a 3/4-inch rear gas connection with male NPT connector and pressure regulator.

Reinforced, Insulated Sides

Double-wall sides are reinforced and insulated to improve cabinet durability.

Standing Pilot Ignition

Each burner is served by a standing pilot for reliable ignition.

Type Charbroiler
Style Outdoor
Installation Type Countertop
Material 316L Stainless Steel
Finish Stainless Steel
Controls Independent Valves
Burner Qty 3
BTU 60,000 BTU
Gas Connection Size 3/4 Inch Rear Male NPT
Gas Inlet Pressure 7 Inches W.C. (Natural Gas), 11 Inches W.C. (Propane)
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 34 Inches
Shipping Height 17 Inches
Shipping Weight 120 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is available for natural gas or propane.
The HDC-18-316L is rated at 60,000 BTU.
It has a 3/4-inch rear gas connection with a male NPT connector, and a pressure regulator is included.
The unit uses 316L stainless steel construction, stainless steel radiants, and stainless steel round rod grates.
Yes. It is an outdoor charbroiler intended for non-combustible locations and should be installed under a vented hood.
