Southbend (Middleby) HDB-24-316L Deck Ovens
Description

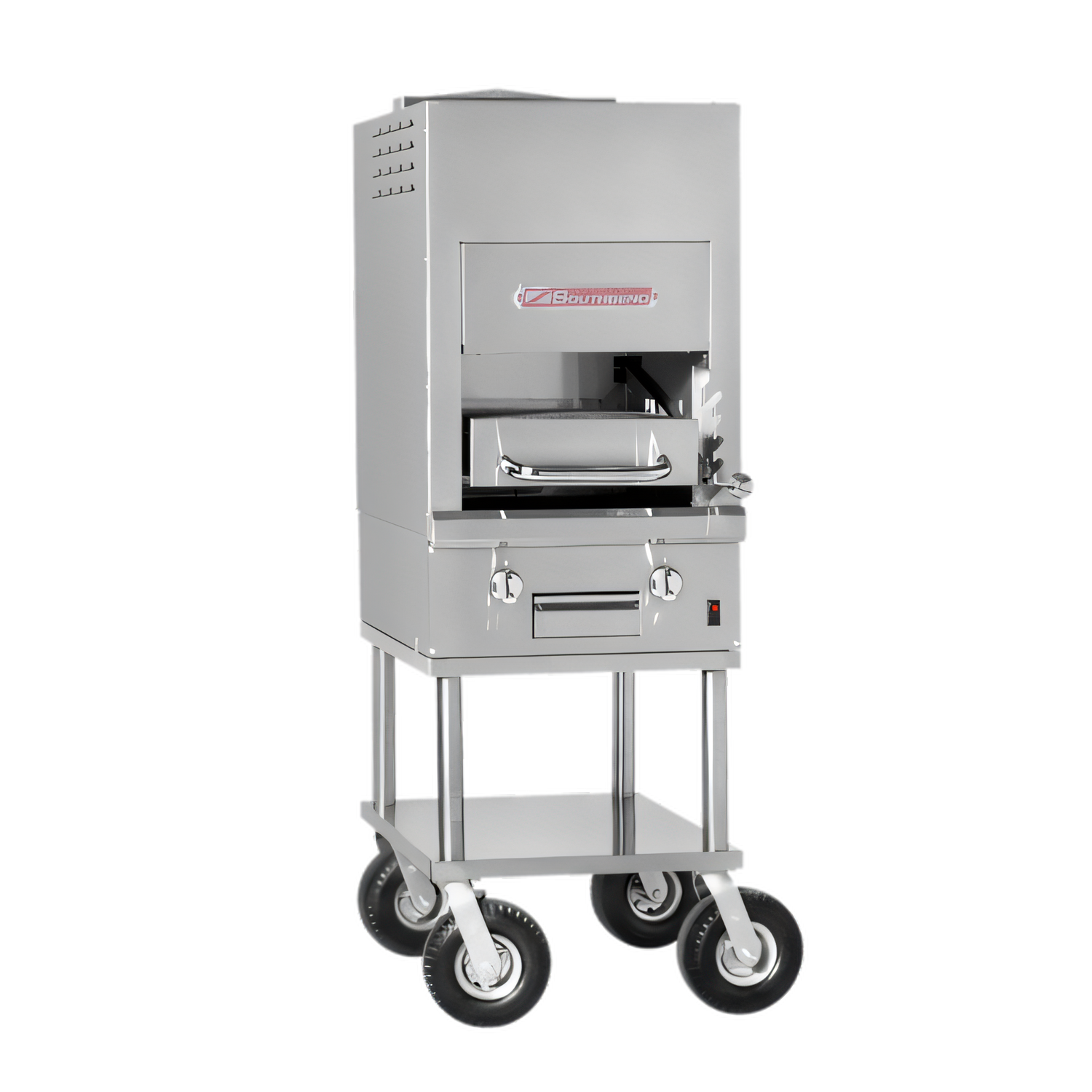

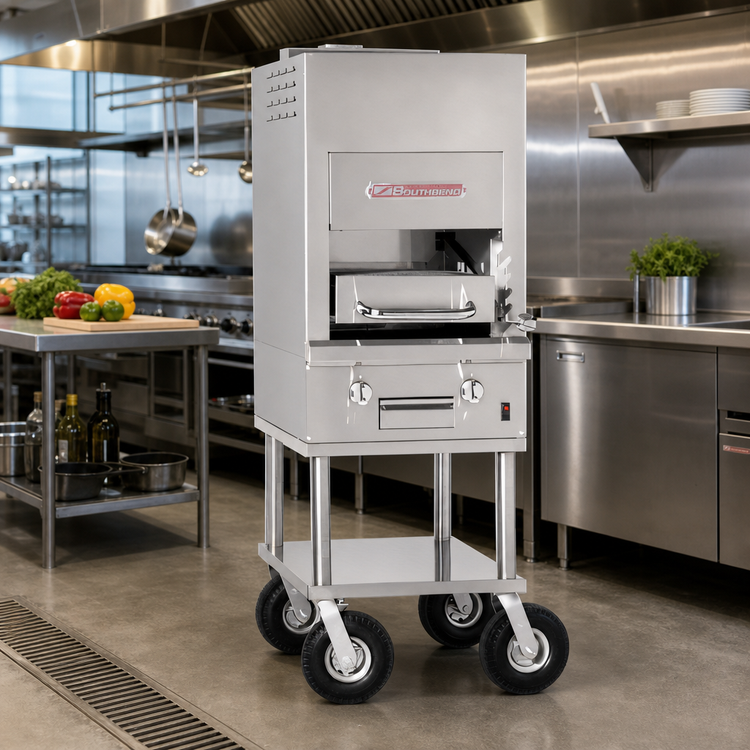

Southbend HDB-24-316L Outdoor Infrared Broiler – 24"

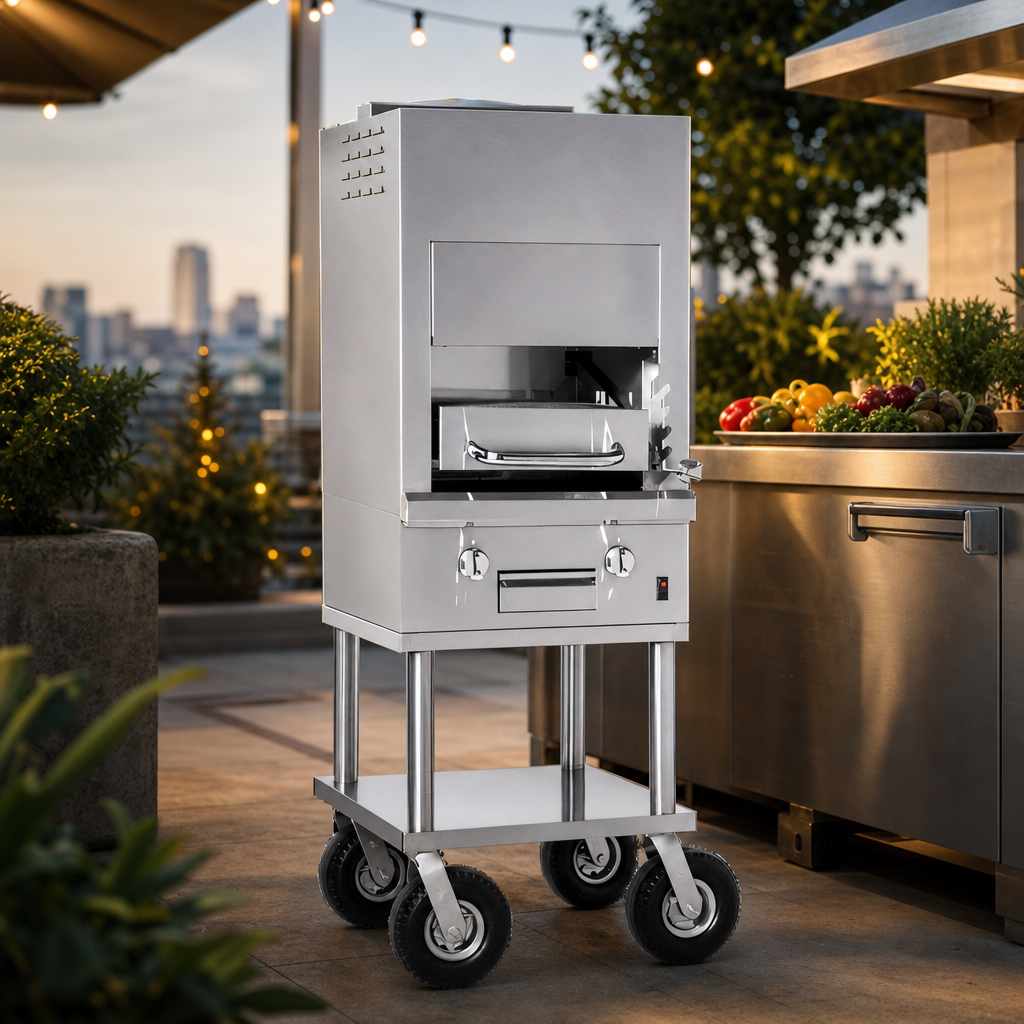

52,000 BTU | 1,600 °F Ceramic Tiles | 316L Stainless SteelTake steak-house firepower anywhere you cater. The Southbend HDB-24-316L is a compact, 24-inch upright broiler that delivers blistering 1,600 °F tile temperatures, a 90-second pre-heat and continuous infrared heat so you never wait between loads. Built from marine-grade 316L stainless steel and certified for outdoor commercial use, it’s the portable, powerhouse solution for chefs who demand uncompromising sear quality in tight footprints.
Why You’ll Love It
- 100 % 316L stainless steel inside and out – maximises corrosion resistance outdoors.

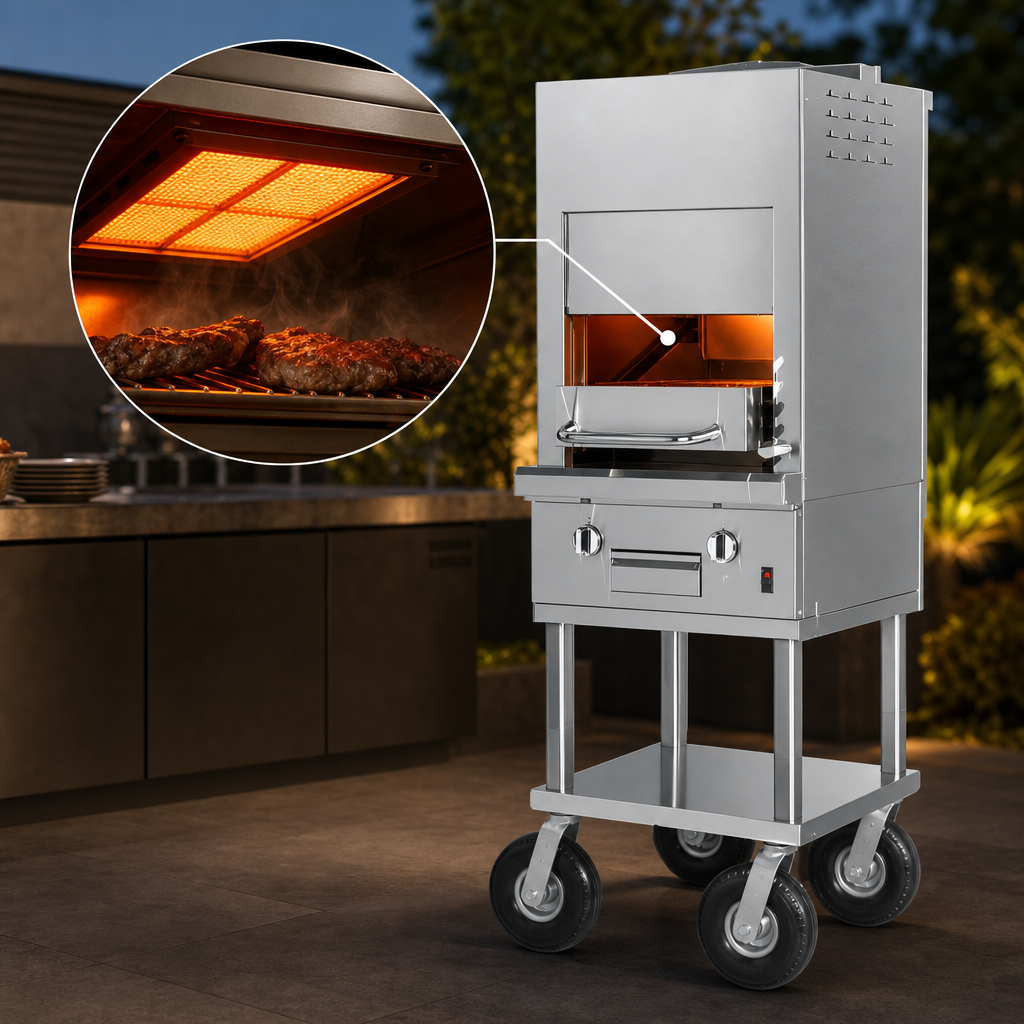

- 52,000 BTU infrared burner hits 1,600 °F for true steak-house charring.
- Lightning-fast 90 second pre-heat with no recovery time between loads.
- Roll-out broiling grid (16" W × 26 - 1/2" D) with a cool 3" holding zone up front.
- Five grid-height positions and round-pattern bars for bold grill marks.
- Integral blower delivers fresh pressurised air, reducing smoke & vapours.
- Fully insulated liner and burner box keep exterior surfaces cooler.
- Counter-mount base ships with adjustable 4" legs – add an optional stand or locking casters for mobility.
- Simple 120 V plug-and-play connection (1.0 A) powers the blower.
Technical Specifications
| Model | HDB-24-316L |
|---|---|
| Heat Source | Gas, infrared ceramic tile burner |
| Total BTU/hr | 52,000 BTU (Natural or Propane) |
| Cooking Surface | 16" W × 26 - 1/2" D roll-out grid (five height positions) |
| Pre-heat Time | ≈ 90 seconds to full temperature |
| Exterior Dimensions* | 24" W × 31.8" D × 43.5" H (48.3" H with optional stand) |
| Gas Connection | 3/4" NPT (rear) |
| Manifold Pressure | 7" W.C. Natural | 11" W.C. Propane |
| Electrical | 120 V, 60 Hz, 1-phase, 1.0 A, 7-ft cord & grounded plug |
| Shipping Weight | ≈ 432 lb (196 kg) |
| Certifications | NSF, cCSAus, CSA Star & CSA Flame |
*Dimensions are nominal. Allow clearances per installation manual.
Popular Accessories (sold separately)
- 316L stainless steel equipment stand
- 4" heavy-duty casters (front pair locking)
Warranty
Backed by Southbend’s one-year limited parts & labour warranty. See service terms for full details.
Install under a properly vented hood. Maintain minimum clearances of 10" to combustible sides and 6" to the rear (0" to non-combustible surfaces). Always reference local codes and the installation manual before setting up the unit.
