Southbend (Middleby)

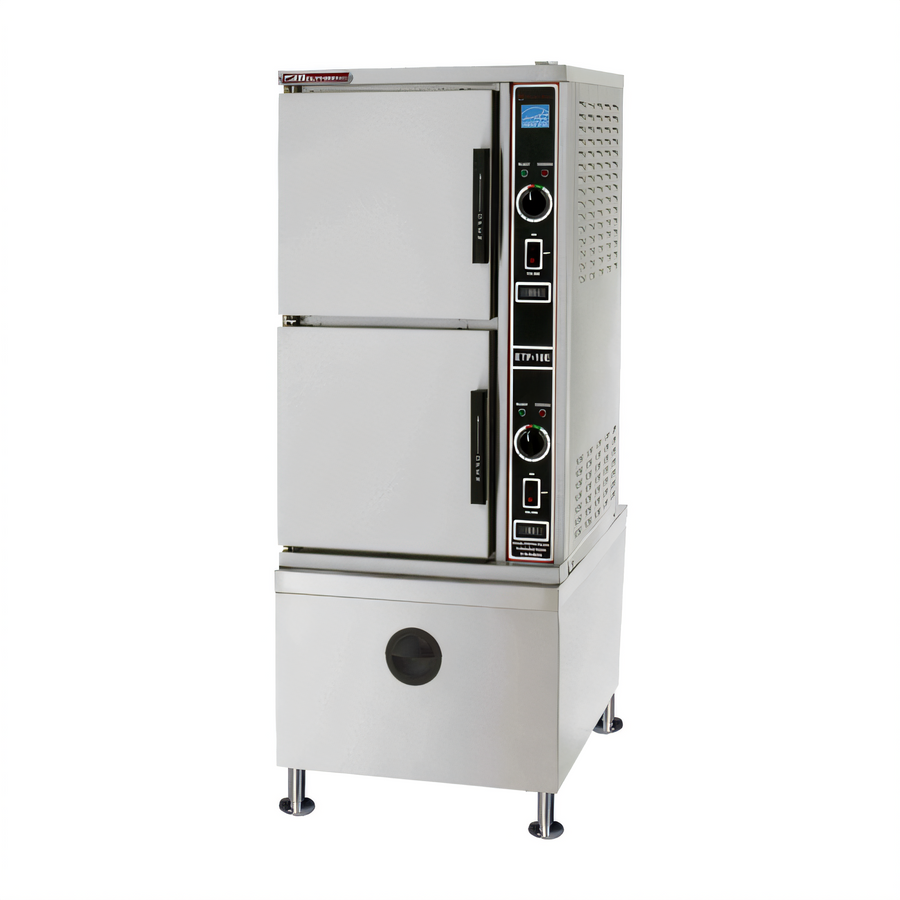

Southbend ECO-TECH Plus ETP-10E-SB Electric Atmospheric Steamer, 2-Compartment Floor Model, 5-Pan Capacity Per Compartment

SKU: ETP-10E-SB
$27,999.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Southbend ECO-TECH Plus ETP-10E-SB Electric Atmospheric Steamer, 2-Compartment Floor Model, 5-Pan Capacity Per Compartment

Self-Contained Water Filter, Automatic Water Fill, Stainless Steel, ENERGY STAR

Built for high-volume kitchens, this twin-generator electric steamer combines independent compartment control, fast 10 kW-per-compartment recovery, and a self-contained water filter to streamline service.

  • Two independently controlled cooking compartments for flexible batch steaming.
  • Each compartment has a close-coupled 10 kW atmospheric steam generator for quick recovery.
  • Holds five 12" x 20" x 2-1/2" pans per compartment.
  • Built-in self-contained water filter and automatic water fill simplify setup and daily operation.
  • Stainless steel cabinet with Type 316 stainless steel liners is built for heavy-duty use.
  • Fully insulated slam-action doors with interlock switches help retain heat and improve safety.
  • ENERGY STAR qualified with a water management system that helps reduce operating costs.

Overall Dimensions:

24.0"W x 33.0"D x 63.25"H

Product Weight:

425.0 lb

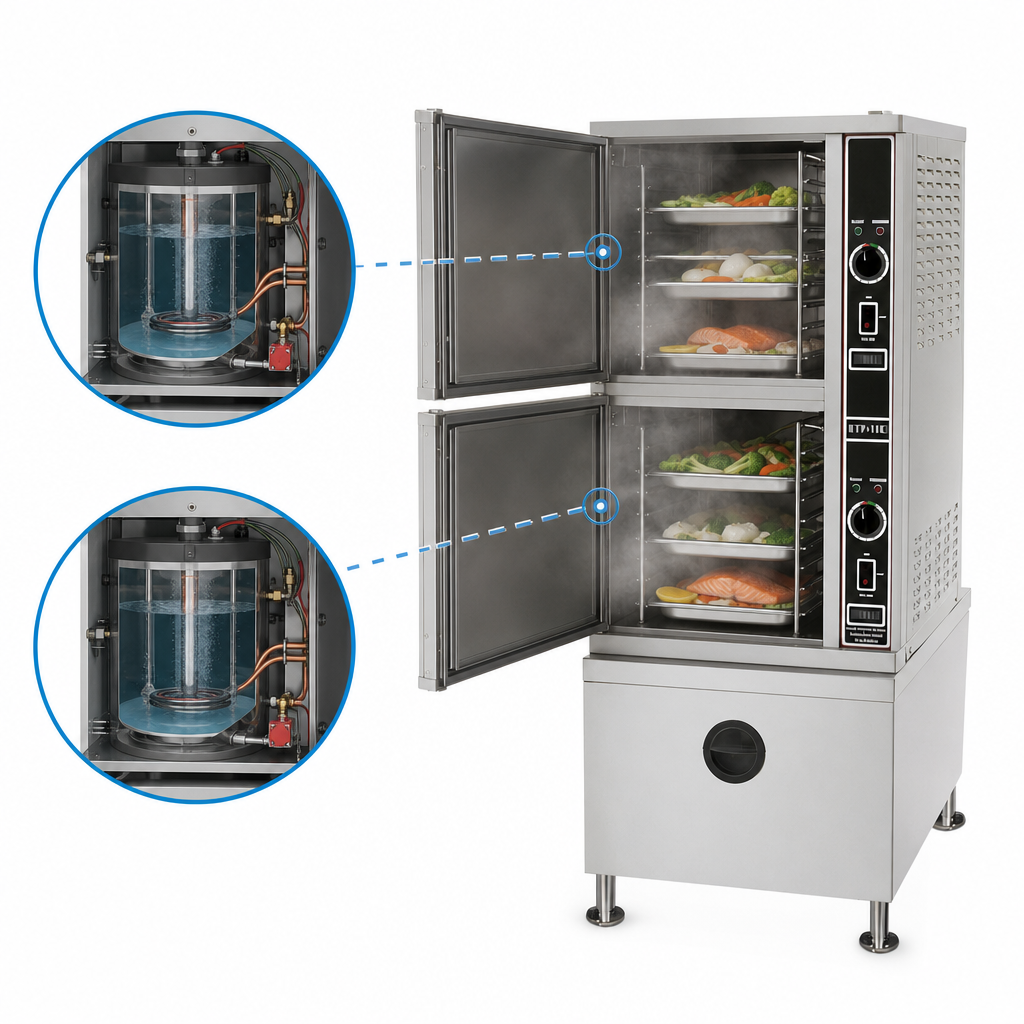

Independent 10 kW Steam Generators

Each compartment has its own close-coupled atmospheric steam generator for fast response and separate operation.

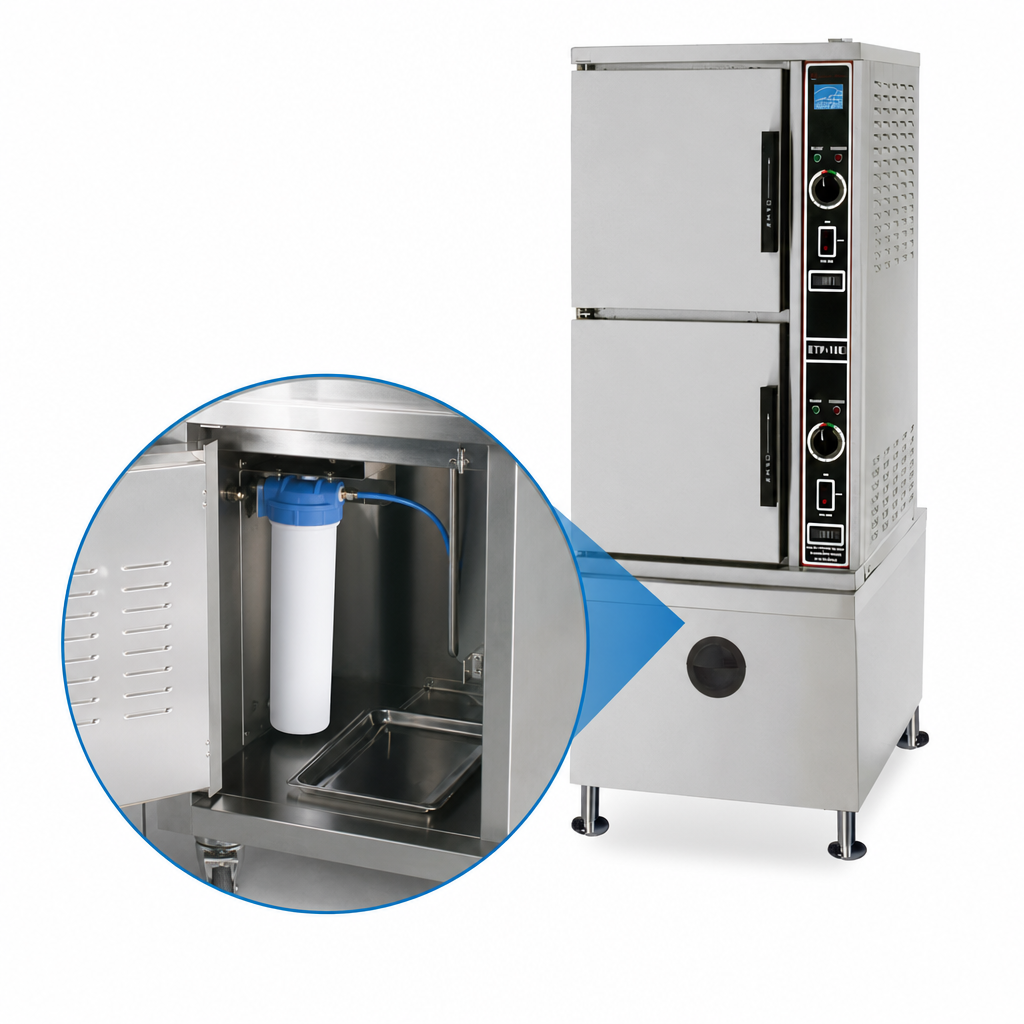

Self-Contained Water Filter System

Built-in filtration keeps the system self-contained and eliminates the need to place an external filter elsewhere.

Automatic Water Fill and Level Control

Automatic fill and low-water control help maintain steady steaming with less operator intervention.

Separate Compartment Controls

Separate controls and on/off power switching let operators manage each compartment independently.

60-Minute Electromechanical Timer

A 60-minute electromechanical timer supports consistent steaming cycles.

Stainless Steel Construction

Stainless steel cabinet and cooking compartments with a Type 316 stainless steel liner provide durability and easy cleaning.

Insulated Slam-Action Doors

Fully insulated doors with door interlocks and silicone gaskets help retain heat and improve safety.

Drain Tempering and Water Management System

Helps reduce water use and temper discharge for better drain protection.

Adjustable Flanged Feet

Four 6-inch adjustable stainless steel flanged feet provide stable floor installation.

ENERGY STAR Efficiency

ENERGY STAR qualification supports energy-conscious operation and potential utility rebate opportunities.

Type Atmospheric Steamer
Style Twin Generator
Installation Type Floor Model
Compartments 2
Controls Electromechanical Timer
Pan Capacity 5 12-Inch x 20-Inch x 2-1/2-Inch Pans Per Compartment
Voltage 208/220/240/380/416/480/600 Volts
Watts 20 kW
Phase 3-Phase
Material Stainless Steel
Interior Finish Type 316 Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch NPT
Drain Connection Size 1-1/2 Inch NPT Male
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 64 Inches
Shipping Weight 425 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified

Warranty & Protection

1 year parts and labor

Frequently Asked Questions

It has 2 cooking compartments, each with separate controls.
It holds 5 12" x 20" x 2-1/2" pans per compartment. The document also lists capacities for 1-inch and 4-inch deep pans.
Yes. It includes a self-contained water filter system and automatic water fill.
The unit is 3-phase and is available in 208, 220, 240, 380, 416, 480, or 600 volt configurations; total connected load is 20 kW.
Allow 3 inches on the left side, 6 inches on the right side, and 6 inches at the rear.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
