Key specifications
- Dimensions
- 29.25"W × 29.0"D × 59.25"H
- Type
- Tilting Skillet
- Installation Type
- Countertop
- Material
- Stainless Steel
- Capacity
- 16 Gallons
- Shape
- Round
Spec sheet

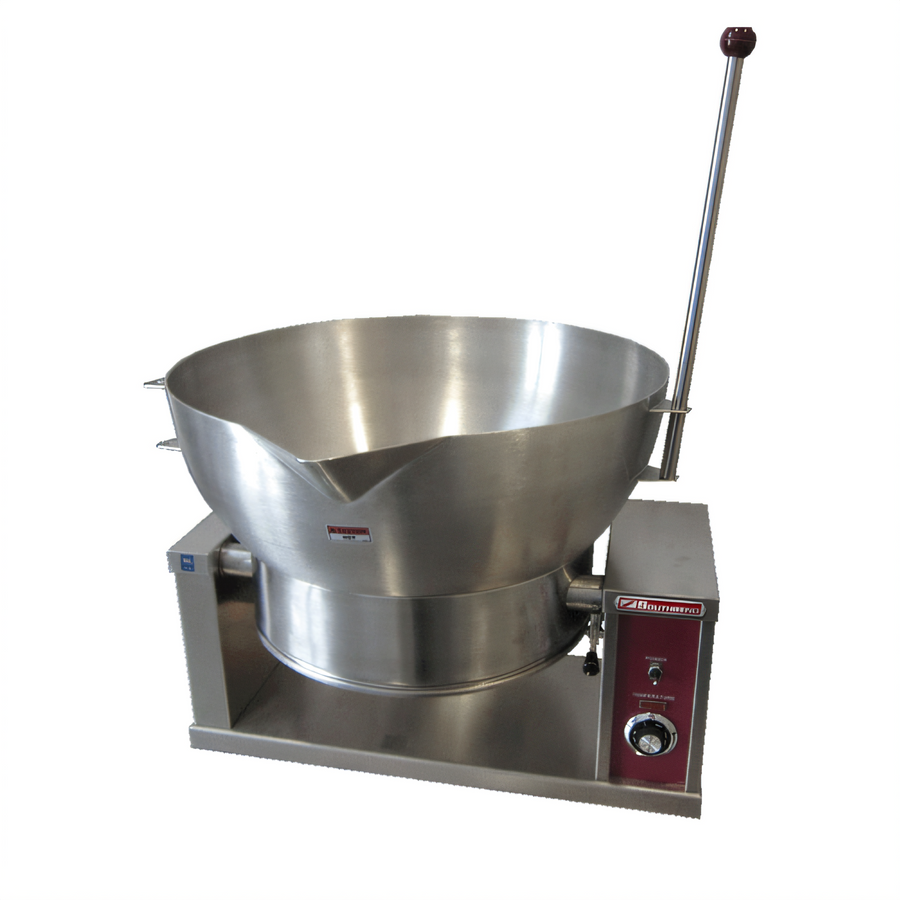

Southbend Steam ECTRS-16S 16-Gallon Round Electric Countertop Tilting Skillet, Manual Tilt, 7.5 kW
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The ECTRS-16S is a 16-gallon round electric countertop tilting skillet with manual tilt, side mount pivots, and a 7.5 kW electric heating system.
- One-piece coved-corner stainless steel construction with a #4 exterior finish and polished interior.
- The 3/8-inch stainless steel cooking plate uses clamped-on electric heating elements.
- Controls include a power switch, pilot light, thermostat, safety thermostat, and high-temperature cutoff.
- The skillet operates from 160°F to 450°F and includes etched gallon markings.
- Intended for commercial use only.
Overall Dimensions:
29.25"W x 29.0"D x 59.25"HProduct Weight:
220.0 lbManual Tilt
A manual tilt handle and side mount pivots allow the pan to tilt forward.
Electric Heating
Clamped-on electric heating elements are rated at 7.5 kW and transfer heat through the cooking plate.
Stainless Steel Construction
The skillet has one-piece coved-corner stainless steel construction, a #4 exterior finish, a polished interior, and a 304 stainless steel base.
Safety Controls
A tilt interlock, safety thermostat, and high-temperature cutoff are included with the power switch, pilot light, and thermostat.
Temperature Range
The operating temperature range is 160°F to 450°F.
Etched Gallon Markings
The polished interior includes etched gallon markings.
