Southbend (Middleby) E-270 Deck Ovens
Description

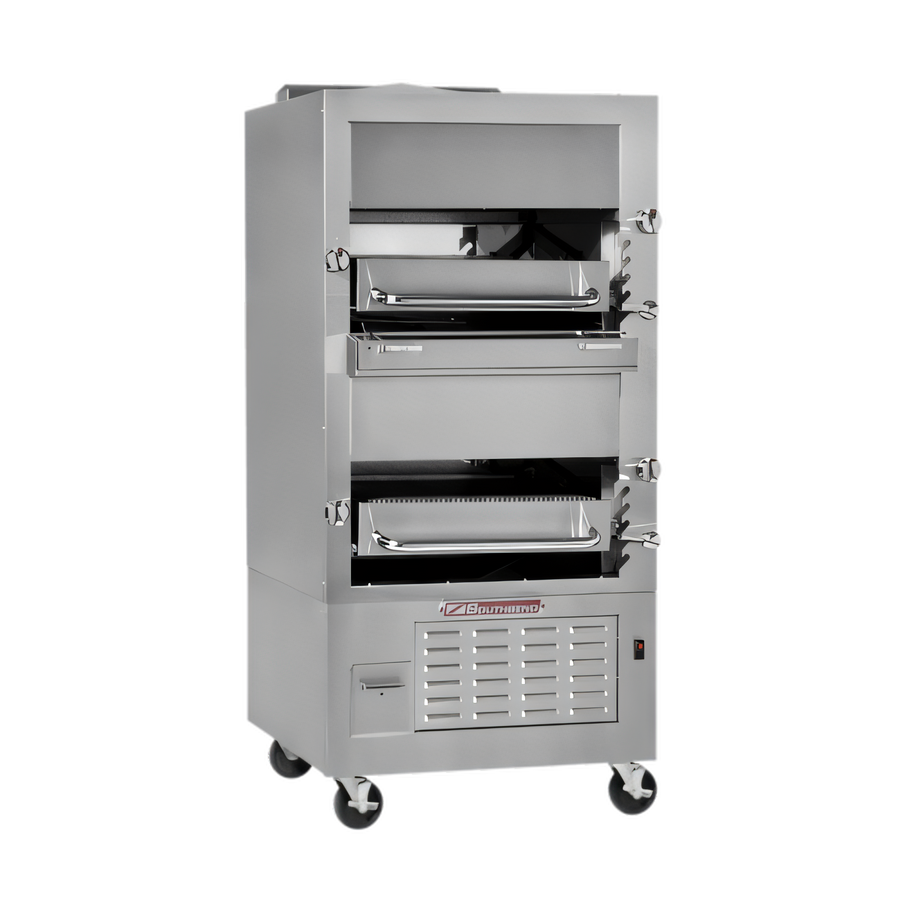

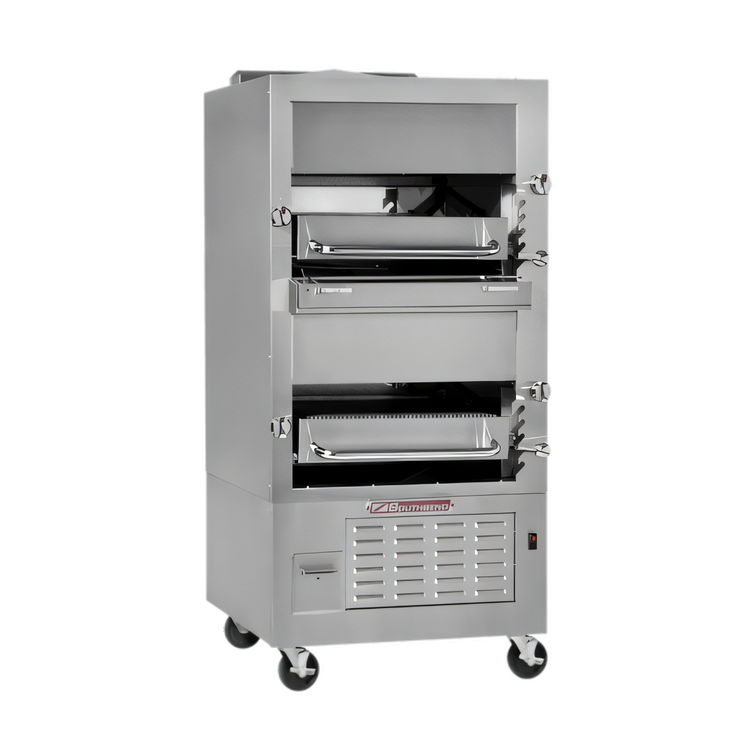

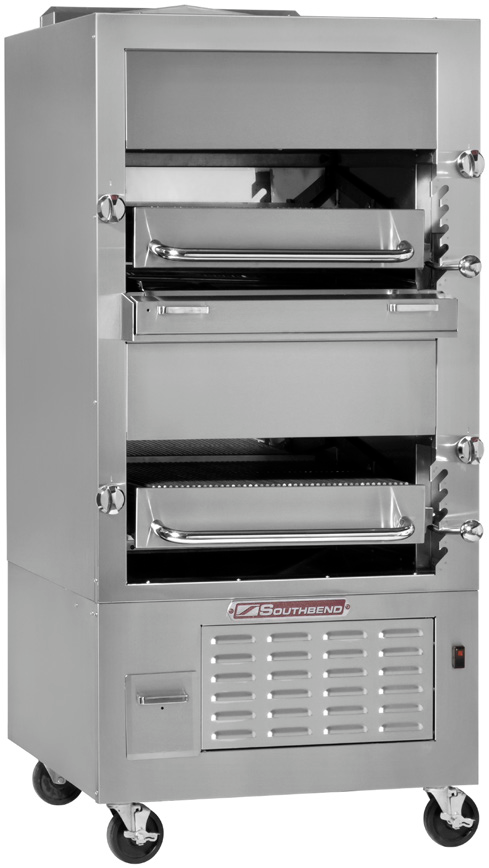

Southbend E-270 Double-Deck Electric Infrared Broiler – 34" Upright
High-volume, high-heat performance in a compact 34-inch footprintEngineered for steak houses, casual dining chains and busy production kitchens, the Southbend E-270 delivers blazing infrared heat on two independent decks so you can sear, finish and hold without slowing down service. Stainless-steel durability, five-position grid control and roll-out racks turn this broiler into a productivity powerhouse that keeps up with the rush all day long.
Why You’ll Love It

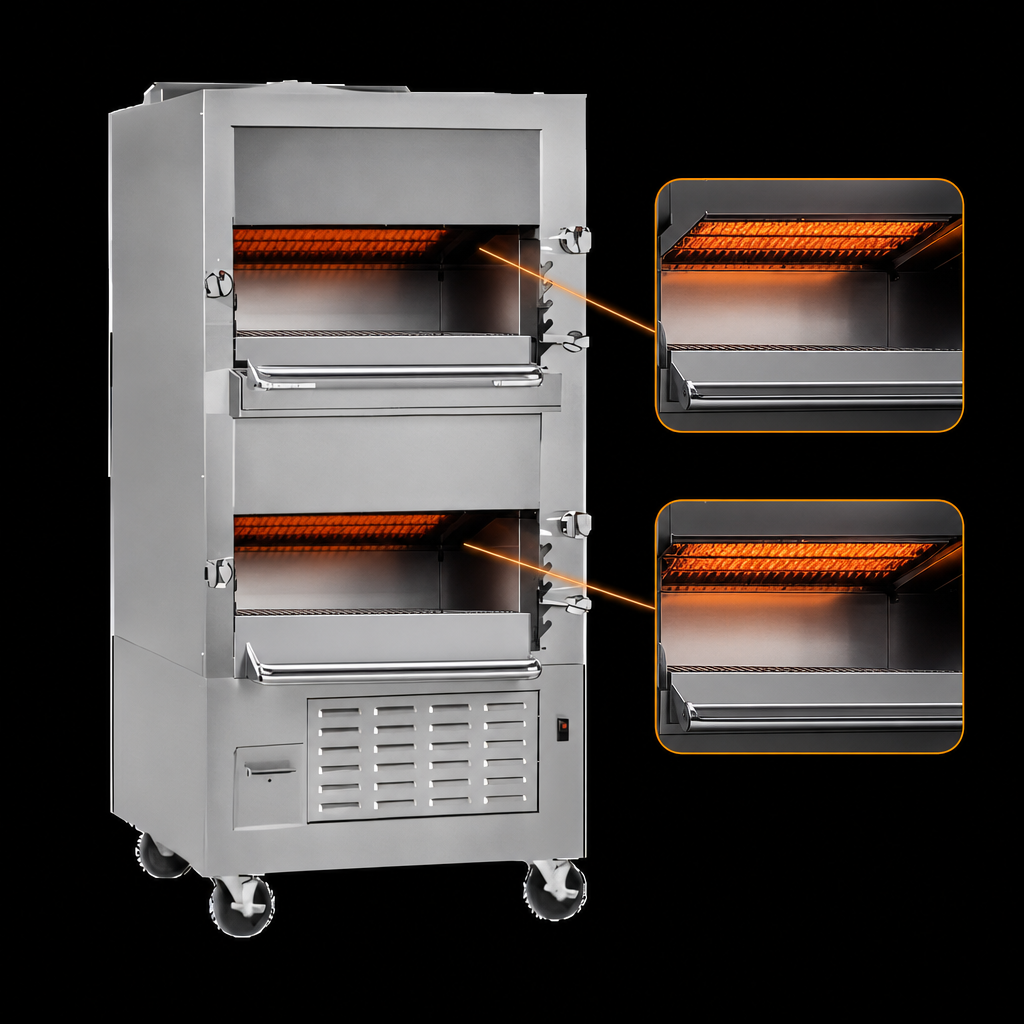

- Dual 12 kW ceramic infrared decks (24 kW total) reach service temperature in just 30 minutes and recover instantly between loads.
- Five grid positions let you dial in perfect caramelization or gentle finishing for every menu item.
- Roll-out broiling surface (24.5" W × 27.5" D) extends 17.25" for safe, easy loading and plating.
- Front 3" cool zone acts as a built-in holding area to stage orders without over-cooking.
- Removable round-pattern grids create signature branding marks and simplify cleaning.
- All-stainless construction (front, sides, back and interior) stands up to daily commercial abuse.
- Fully insulated lining and burner boxes maximize energy efficiency and keep the kitchen cooler.
- 6" adjustable legs standard; locking casters and cable restraint kit available.
- Certified commercial – UL, CSA & NSF listed; backed by a 1-year parts & labor warranty.
Technical Specs
| Model | E-270 (double deck) |
|---|---|
| Footprint (W × D × H) | 34" × 35.25" × 75.25" (864 × 898 × 1914 mm) |
| Broiler Grid (per deck) | 24.5" W × 28" D | 5 height positions |
| Heating Elements | 12 kW ceramic infrared per deck (24 kW total) |
| Electrical | 208/240 V, 60 Hz, 1- or 3-phase • field-wired (no cord) |
| Amperage @ 208 V | 94.4 A (1-phase) | 54.5 A/leg (3-phase) |
| Amperage @ 240 V | 108.9 A (1-phase) | 62.9 A/leg (3-phase) |
| Shipping Weight | 932 lb (423 kg) |
| Clearances | 0" sides & rear (non-combustible) | 6" combustibles |
| Certifications | UL, CSA, NSF |
| Warranty | 1-year limited parts & labor |
What’s Included
- (2) 12 kW infrared burner assemblies with independent controls
- (2) roll-out broiler grids with branding pattern
- 6" stainless steel adjustable legs
- Operator’s manual & warranty registration
Popular Add-Ons (sold separately)
- Heavy-duty casters (front two locking)
- Cable restraint kit (required when unit is on casters)
