Key specifications
- Dimensions
- 36.0"W × 33.0"D × 62.13"H
- Type
- Steam Kettle Assembly
- Style
- Direct Steam
- Installation Type
- Floor Model
- Material
- Stainless Steel
- Finish
- No. 4
Spec sheet

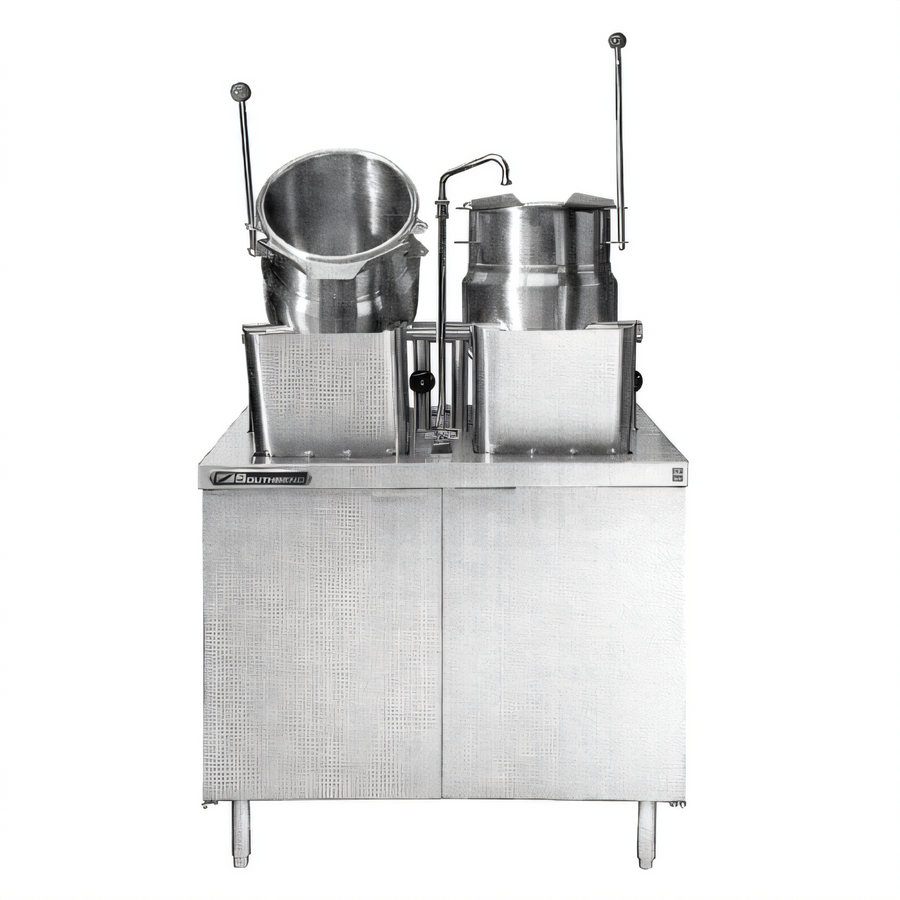

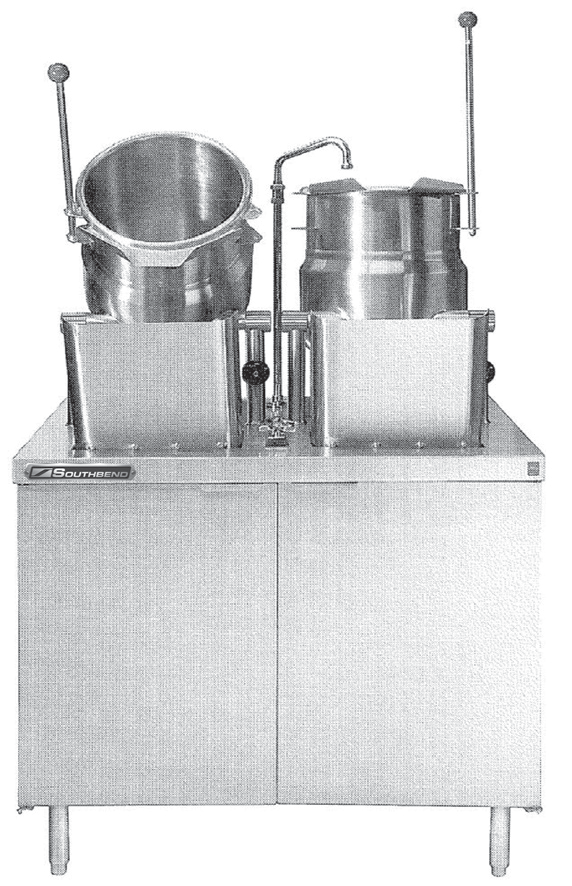

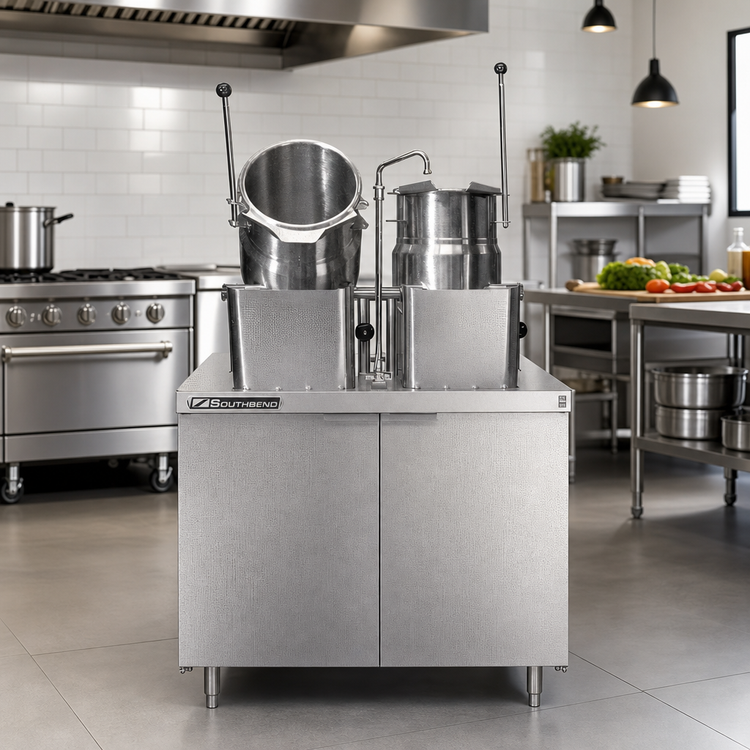

Southbend Steam DMT-6S-6 Direct Steam Kettle/Cabinet Assembly with (2) 6-Gallon Tilting Kettles, 36-Inch Base and Sink
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Southbend DMT-6S-6 is a direct steam kettle/cabinet assembly with two 6-gallon tilting kettles mounted on a 36-inch cabinet base.
- Includes 316 stainless steel kettle liners, a steam control valve, a deck-mount hot and cold water faucet, and a 3-inch-deep sink with drain and splash guard.
- The stainless steel cabinet has 6-inch stainless steel legs with adjustable flanged feet.
- Direct steam operation is specified for a supply pressure of 5–45 PSI.
Overall Dimensions:
36.0"W x 33.0"D x 62.13"HProduct Weight:

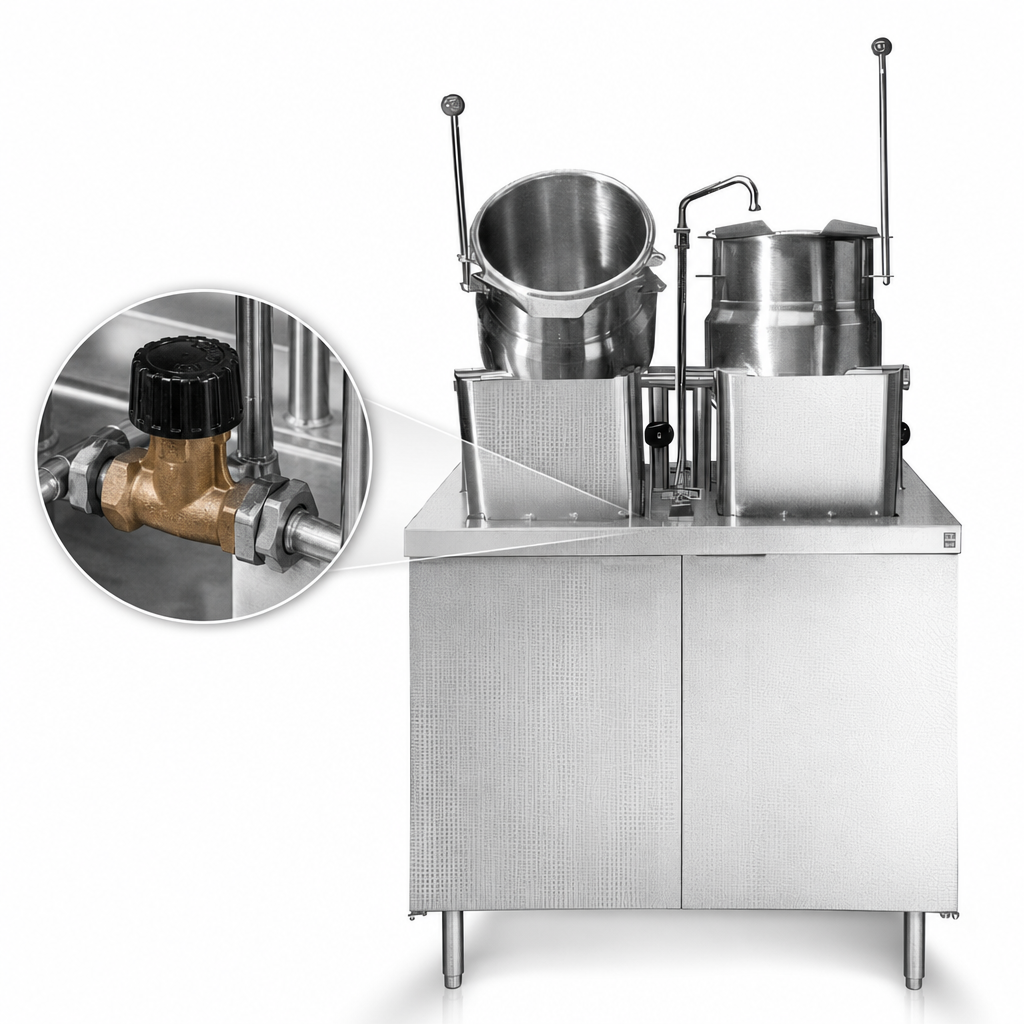

350.0 lbDirect Steam Operation
The kettles operate with direct steam at a specified supply pressure of 5–45 PSI, with 1/4 BHP required per kettle.
Tilting Kettles
The two kettles are tilting models; the mounting legs allow the kettle to tilt forward past 90° for emptying.
316 Stainless Steel Liners
Each kettle has a 316 stainless steel liner.
Integrated Water Fixtures
The cabinet includes a deck-mount hot and cold water faucet with control valves and a 3-inch-deep sink with drain and splash guard.
Cabinet Base
The assembly has a 36-inch stainless steel cabinet base with 6-inch stainless steel legs and adjustable flanged feet.
Code-Stamped Kettles
Each kettle is specified as ASME code stamped and National Board registered.
