Key specifications

Amps
2 Amps per compartment
Phase
1-Phase
Dimensions
36.0"W × 33.13"D × 69.5"H
Type
Convection Steamer
Style
Direct Steam
Installation Type
Floor Model
Spec sheet
Southbend SKU: DCX-24-SB

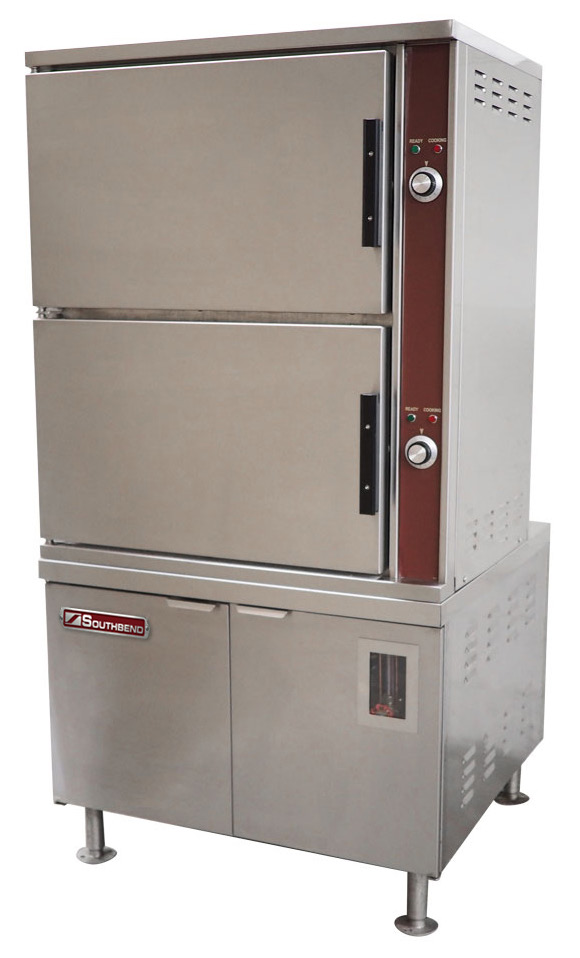

Southbend Steam DCX-24-SB Two-Compartment Direct Steam Convection Steamer, 24-Pan, 36-Inch Cabinet Base

$48,670.00
/each
Estimated to ship in 16–19 business days Free Shipping
Capacity
Factory Add-Ons
Included: Southbend warranty One year parts and labor from the date of original purchase, subject to published Southbend warranty terms

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $4,502/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Convection Steamer
Style Direct Steam
Installation Type Floor Model
Material Stainless Steel
Exterior Material 304 Stainless Steel
Cooking Chamber Material Stainless Steel
Finish Satin
Interior Finish Stainless Steel
Compartments 2
Pan Size 12 in x 20 in
Pan Capacity 12 pans per compartment
Pan Depth 2.5 in
Base Type Cabinet Base
Controls Independent 60-minute timers
Voltage 115 Volts
Amps 2 Amps per compartment
Hertz 60 Hz
Phase 1-Phase
Electrical Connection 1/2 in conduit
Leg Height 6 in
Door Opening 17.625 in x 26.75 in
Steam Connection 3/4 in IPS
Drain Connection 2 in IPS
Minimum Steam Pressure 15 psi

Description

The Southbend DCX-24-SB is a two-compartment direct-steam convection steamer mounted on a 36-inch cabinet base. Each compartment is specified for 12 pans measuring 12 in x 20 in x 2.5 in deep and has its own 60-minute timer.

The unit includes stainless steel interior and exterior construction, removable pan supports, drip troughs, pressure regulation, condensate drainage controls, a reinforced counter, and adjustable feet.

  • Direct steam operation
  • Two independently timed cooking compartments
  • 6-inch legs with adjustable feet
  • Intended for commercial use only

Overall Dimensions:

36.0"W x 33.13"D x 69.5"H

Product Weight:

800.0 lb

Direct Steam Operation

Operates with incoming direct steam and includes a pressure regulator and condensate drain assembly with controls.

Two Cooking Compartments

Provides two separate cooking compartments.

Independent Timing

Each compartment has an independent 60-minute timer, ready and cook pilot lights, and an audible end-of-cycle signal.

Pan Capacity

Each compartment is specified for 12 pans measuring 12 in x 20 in x 2.5 in deep.

Stainless Steel Construction

The unit has stainless steel interior and exterior construction; the cutsheet specifies a type 304 stainless steel exterior and a stainless steel cooking chamber.

Removable Pan Supports and Drip Trough

Removable pan supports and a drip trough collect condensate when the door is opened.

Cabinet Base

Mounted on a 36-inch cabinet base with a reinforced counter, hinged doors, and a full perimeter angle frame.

Door Steam Interruption

Steam flow is interrupted when a compartment door is opened during cooking and reactivates when the door is closed.

Frequently Asked Questions

The DCX-24-SB has two cooking compartments.
Each compartment is specified for 12 pans measuring 12 in x 20 in x 2.5 in deep.
Yes. Each compartment has an independent 60-minute timer.
The cutsheet specifies 115 VAC, 1 phase, 60 Hz controls and 2 amps per compartment.
Incoming direct steam is specified at a minimum of 15 psi.
The product measures 36 in wide, 33.13 in deep, and 69.5 in high, with a listed weight of 800 lb.
Yes. It is mounted on a cabinet base with 6-inch legs and adjustable feet.
