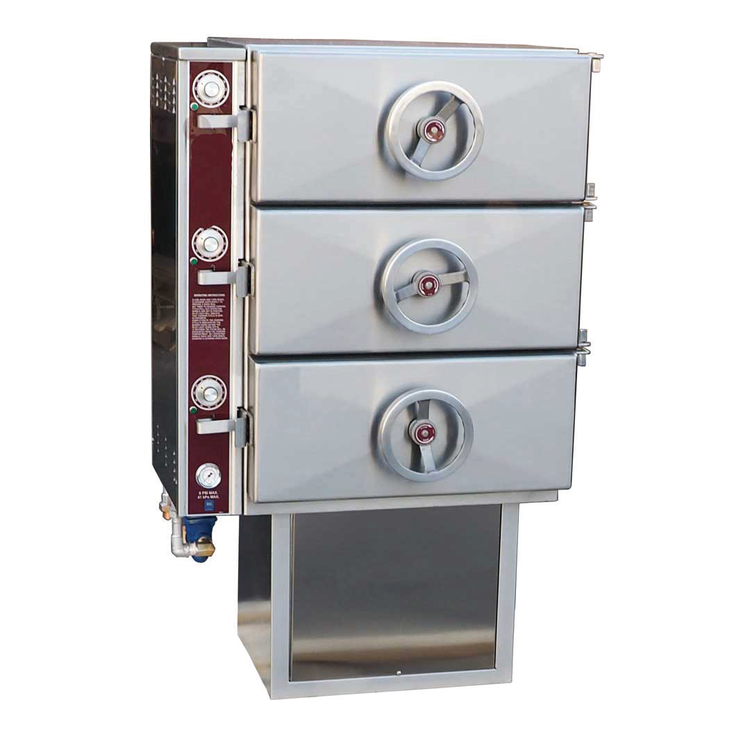

Southbend Steam DCP-3S Direct Steam Pressure Steamer, 3-Compartment Pedestal Mount

Automatic Timer, Manual Compartment Controls, 115V

A high-capacity pedestal-mounted steamer with independent control of three compartments for fast, consistent batch cooking.

  • Direct non-toxic steam operation supports fast, high-volume steaming.
  • Three independently timed compartments help you cook multiple batches at once.
  • Automatic shut-down exhausts steam and drains condensate at the end of each cycle.
  • Pedestal-mounted stainless steel construction is built for commercial durability.
  • Standard 115V, 1-phase operation with 220V or 240V options available.
  • Universal pan supports and gasketed doors help maintain a reliable seal.

Overall Dimensions:

36.0"W x 28.5"D x 58.5"H

Direct Steam Operation

Uses incoming non-toxic steam at a minimum of 15 psi with a flow rate of 150 lb. per hour.

Independent Compartment Timing

Each compartment is timed separately with automatic timer controls and visible and audible signals.

Automatic Shut-Down Cycle

At the end of the cooking cycle, the unit shuts off, exhausts steam, drains condensate, and sounds a continuous signal until manually turned off.

304 Stainless Steel Construction

All-welded 304 stainless steel construction with a #4 finished stainless steel control housing.

Pedestal Mount Base

Supplied with a stainless steel pedestal base and bolt-down plate for secure floor mounting.

Gasketed Door Assembly

Doors feature a removable inner aluminum liner, full perimeter gasket seal, welded stainless outer liner, and wheel-and-screw closing mechanism.

Universal Pan Supports

Each cooking compartment includes standard universal pan supports.

CSD-1 Code Package

Includes the CSD-1 code package noted in the product description.

Type Pressure Steamer
Style Direct Steam
Installation Type Floor Model (With Pedestal)
Compartments 3
Pan Capacity 12 to 24 Pans
Controls Automatic Timer
Voltage 115 Volts
Amps 6 Amps
Phase 1-Phase
Hertz 60 Hz
Material Stainless Steel
Interior Finish 304 Stainless Steel
Water Connection Not Required
Drain Connection Required
Drain Connection Size 2 Inches
Steam Supply Size 3/4 Inch
Steam Supply Pressure 15 to 45 PSI
Steam Flow Rate 150 lb. Per Hour
Shipping Width 36 Inches
Shipping Depth 29 Inches
Shipping Height 59 Inches
Shipping Weight 555 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and 1 year labor.

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses direct non-toxic steam with a minimum incoming pressure of 15 psi and a flow of 150 lb. per hour.
It has 3 independently controlled compartments.
Standard operation is 115 VAC, 1 phase, 60 Hz, with 2 amps per compartment.
Yes. The controls automatically shut off, exhaust steam, drain condensate, and continue a signal until manually turned off.
Yes. 220 VAC or 240 VAC operation is available at additional cost.
Optional accessories include a wire shelf rack, ball float trap, spray and rinse assembly, and sheet pan supports.
