Southbend (Middleby)

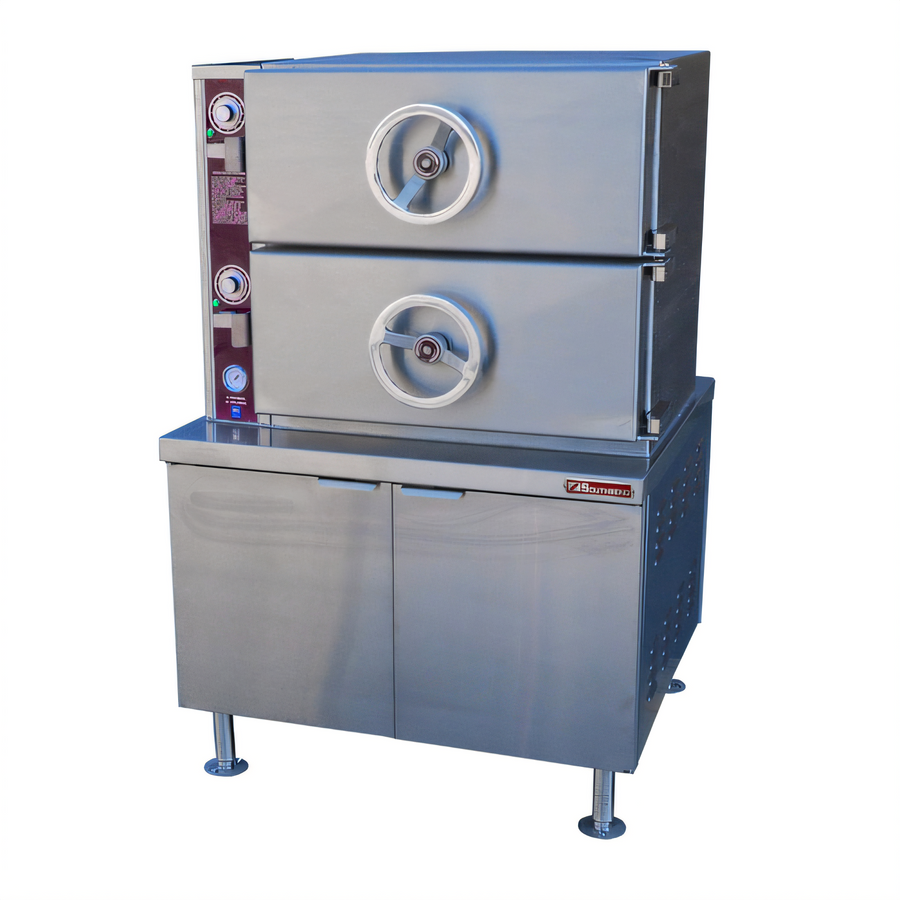

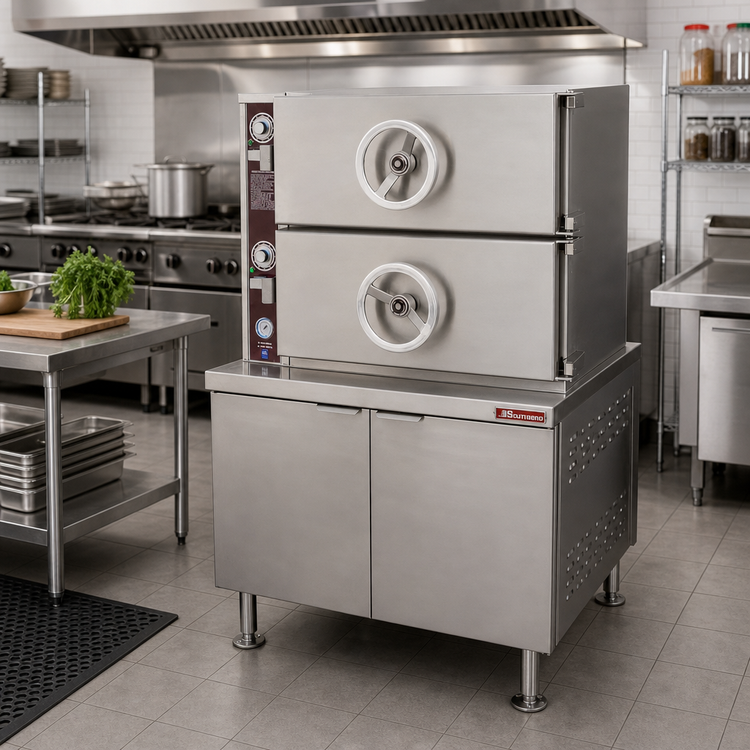

Southbend Steam DC-2S Direct Steam Pressure Steamer with Cabinet Base, 2 Compartments, 36-Inch Wide

SKU: DC-2S
$22,557.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment New Arrivals Pressure Steamer Pressure Steamers Restaurant Equipment Southbend (Middleby) Steam Cooking Equipment Steam Cooking Equipment

Southbend Steam DC-2S Direct Steam Pressure Steamer with Cabinet Base, 2 Compartments, 36-Inch Wide

Independent automatic timer controls, 304 stainless steel construction

Built for high-volume kitchens, this direct steam pressure steamer gives you independent control of two compartments with automatic shut-off and durable stainless steel construction.

  • Direct steam pressure steamer designed for fast, high-volume batch cooking.
  • Two independently controlled compartments let you run separate cooking cycles.
  • Automatic timer controls provide visible and audible cycle signals.
  • End-of-cycle shut-off exhausts steam and drains condensate automatically.
  • All-welded 304 stainless steel construction with a cabinet base and adjustable flanged feet.
  • Designed for 8-16 pans with universal pan supports in each compartment.

Overall Dimensions:

36.0"W x 33.88"D x 55.13"H

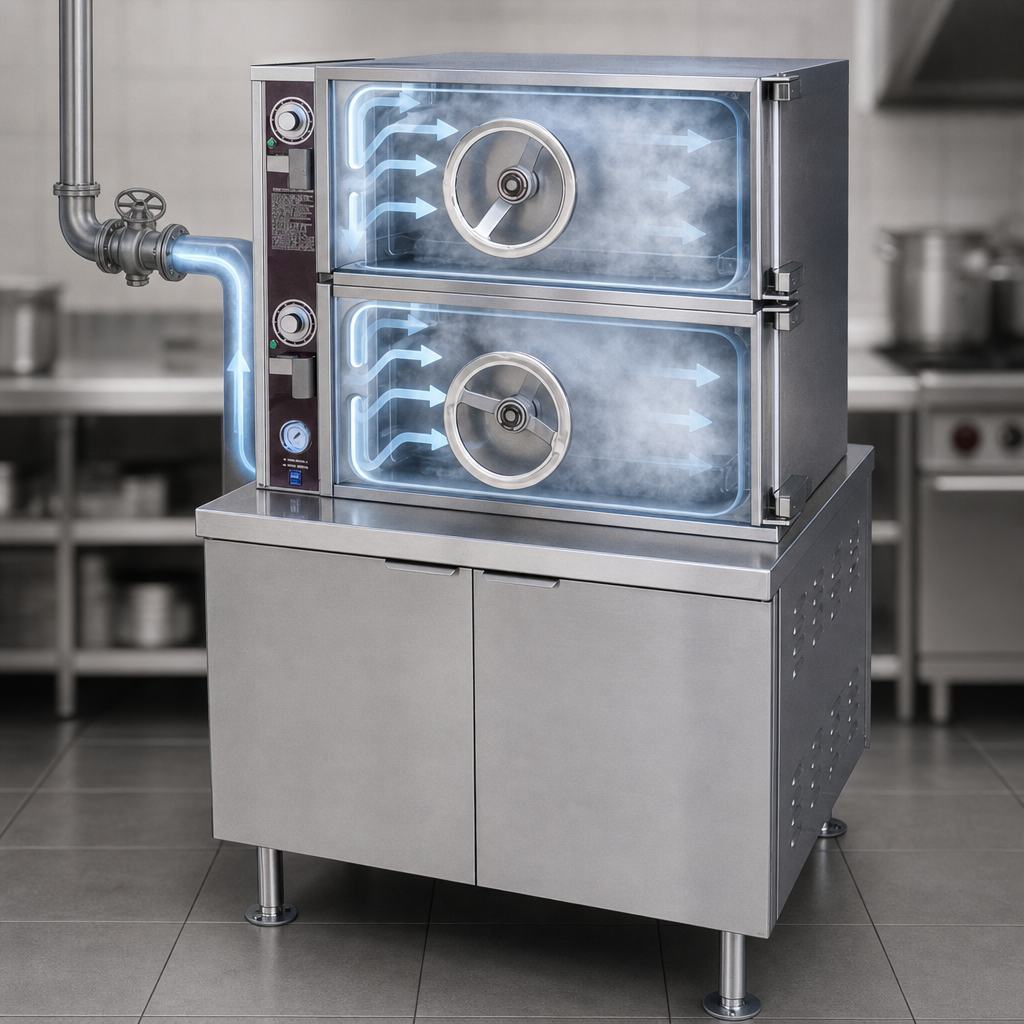

Direct Steam Operation

Uses incoming direct non-toxic steam for pressure cooking performance.

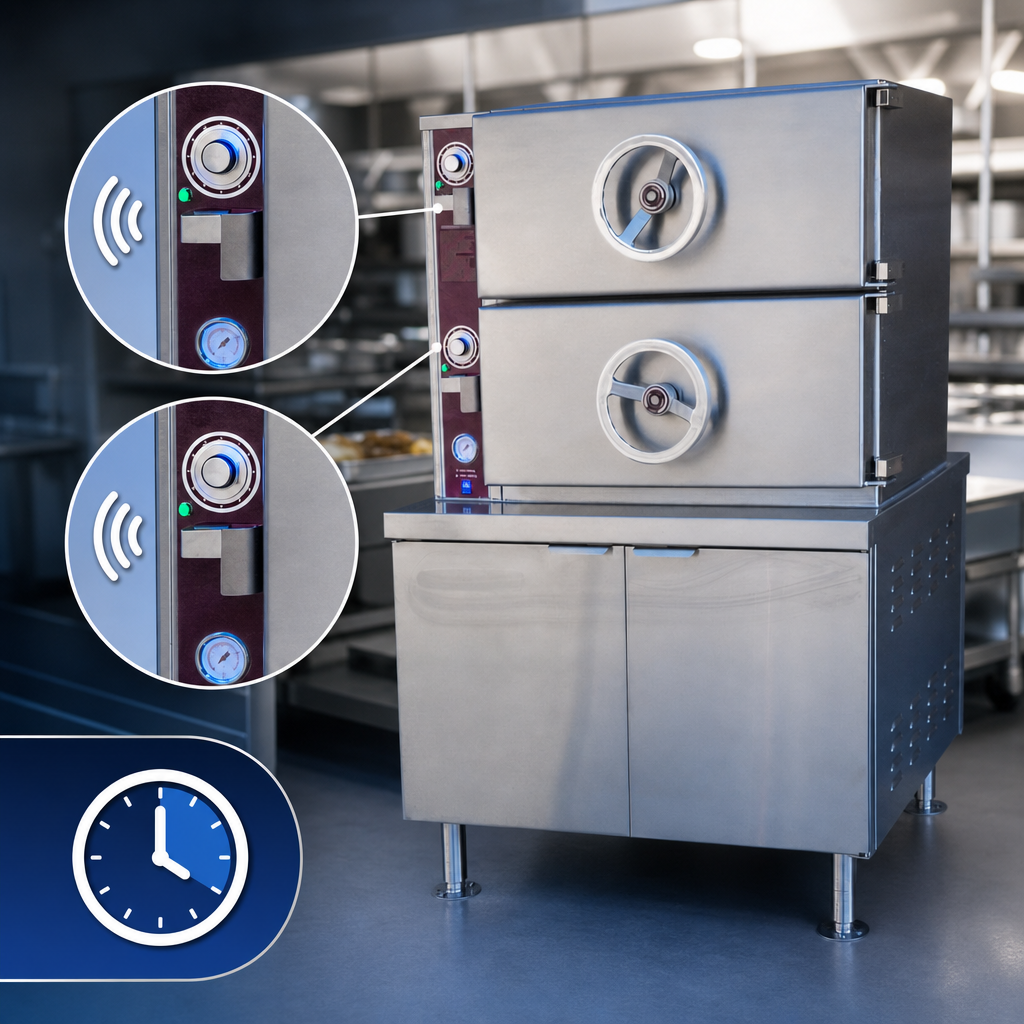

Independent Automatic Timer Controls

Each compartment has its own automatic timer control with visible and audible signals.

Automatic Shut-Off Cycle

At the end of the cooking cycle, the unit shuts off, exhausts steam, drains condensate, and sounds an audible signal until manually turned off.

304 Stainless Steel Construction

All-welded type 304 stainless steel construction with a #4 finish for durability and easy cleaning.

Cabinet Base With Adjustable Feet

Mounted on a stainless steel cabinet base with 6-inch legs and adjustable flanged feet for floor mounting.

Heavy-Duty Door Assembly

Doors feature a removable inner aluminum liner, full perimeter gasket seal, and wheel-and-screw closing mechanism with 180-degree opening.

Universal Pan Supports

Each compartment includes universal pan supports, and optional sliding shelves can support two full-size pans.

Thermostatic Condensate Cooling

Thermostatically controlled cold water cools exhausted steam before it is released to the drain.

Type Pressure Steamer
Style Direct Steam
Installation Type Floor Model (With Cabinet Base)
Controls Automatic Timer
Compartments 2
Pan Capacity 8-16 Pans
Material 304 Stainless Steel
Finish #4 Finish
Voltage 115 Volts
Phase 1-Phase
Hertz 60 Hz
Operating Pressure 6 PSI
Steam Supply Pressure Range 15-50 PSI
Steam Connection Size 3/4 Inch Female Pipe
Drain Connection Required
Drain Connection Size 2 Inches IPS
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 56 Inches
Shipping Weight 555 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 2 compartments, each with independent automatic timer controls.
It uses direct non-toxic steam with a steam supply pressure range of 15-50 PSI.
Standard electrical service is 115 VAC, 1 phase, 60 Hz. A 220 VAC, 1 phase, 60 Hz option is also available.
The DC-2S is designed for 8-16 pans.
It is built from all-welded type 304 stainless steel with a #4 finish.
Yes. The controls automatically shut off, exhaust steam, and drain condensate at the end of the cooking cycle.
