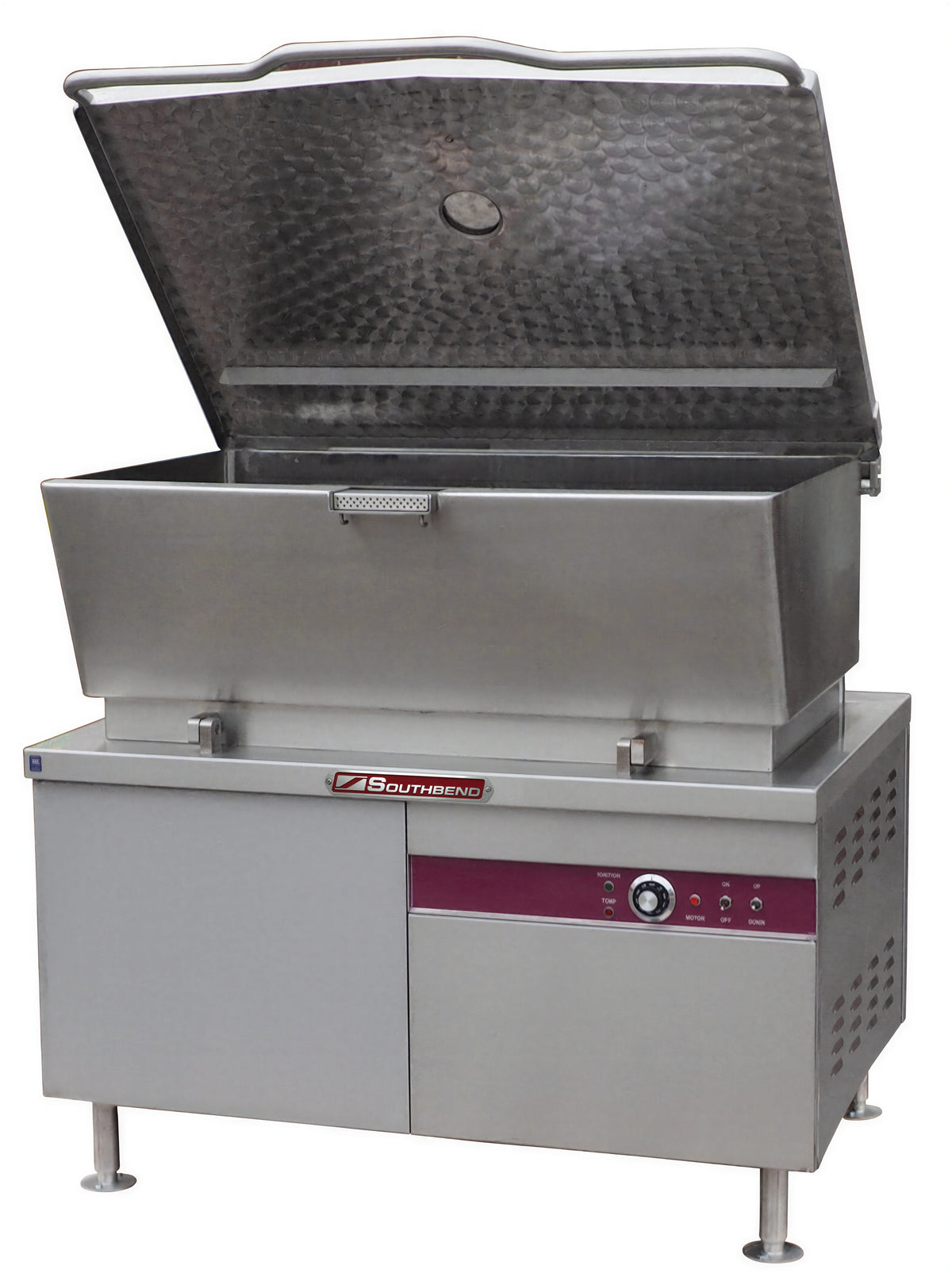

Southbend Steam BGMTS-60 60-Gallon Gas Hydraulic Tilting Skillet with Cabinet Base

Power Tilt, 304 Stainless Steel, 100,000 BTU

Built for high-volume commercial kitchens, this 60-gallon gas skillet combines hydraulic power tilt, solid-state controls, and durable 304 stainless steel construction for efficient batch cooking.

  • 60-gallon capacity is ideal for large-batch sautéing, braising, simmering, and finishing.
  • 1/2 HP hydraulic tilting system delivers smooth, precise pouring and dumping.
  • 10-gauge 304 stainless steel pan and stainless exterior are built for demanding commercial use.
  • Solid-state thermostat, temperature light, tilt switch, and tilt safety switch support controlled operation.
  • Spring-assisted stainless steel cover and removable pour lip strainer help simplify handling and cleanup.
  • Cabinet base, 6-inch legs, and adjustable flanged feet provide a stable floor-mounted installation.

Overall Dimensions:

48.0"W x 46.5"D x 44.5"H

Product Weight:

925.0 lb

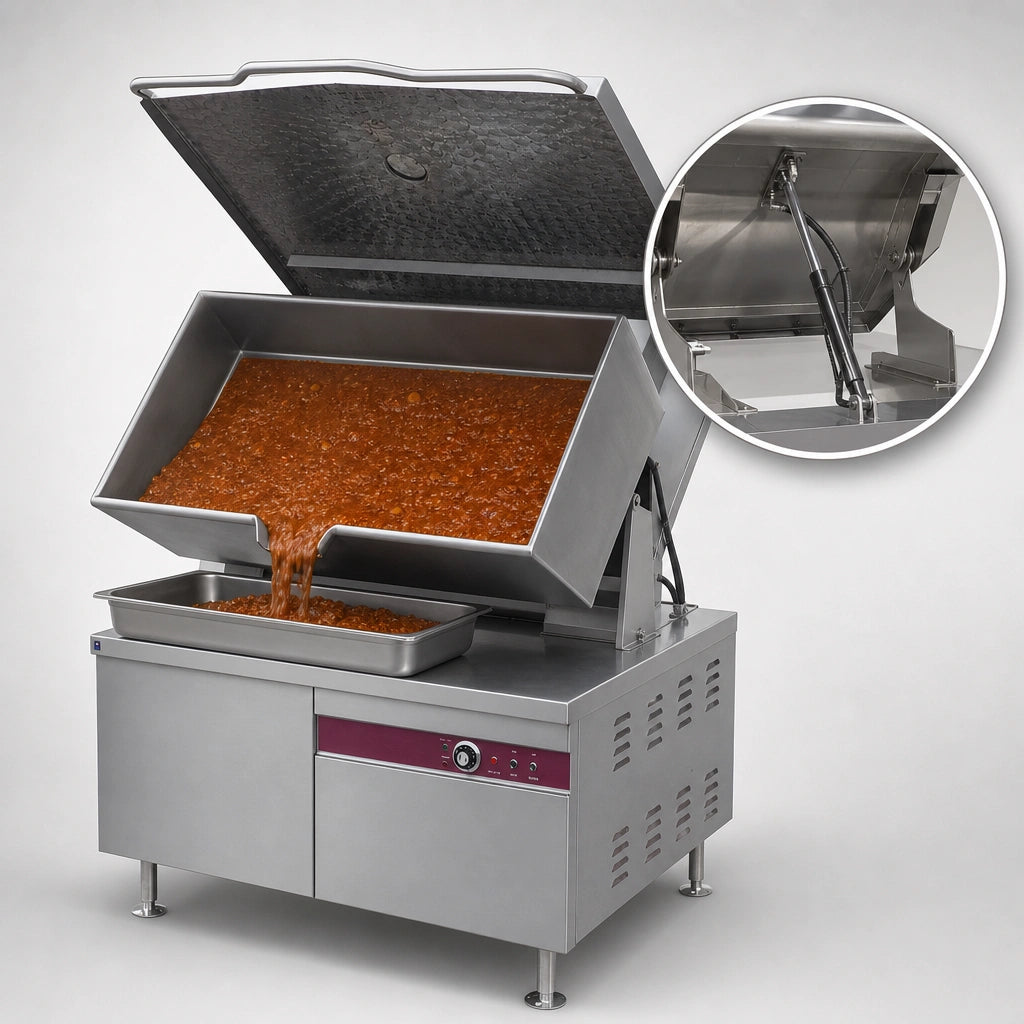

Hydraulic Power Tilt

A 1/2 HP hydraulic tilting system provides smooth, precise tilting for controlled pouring and product transfer.

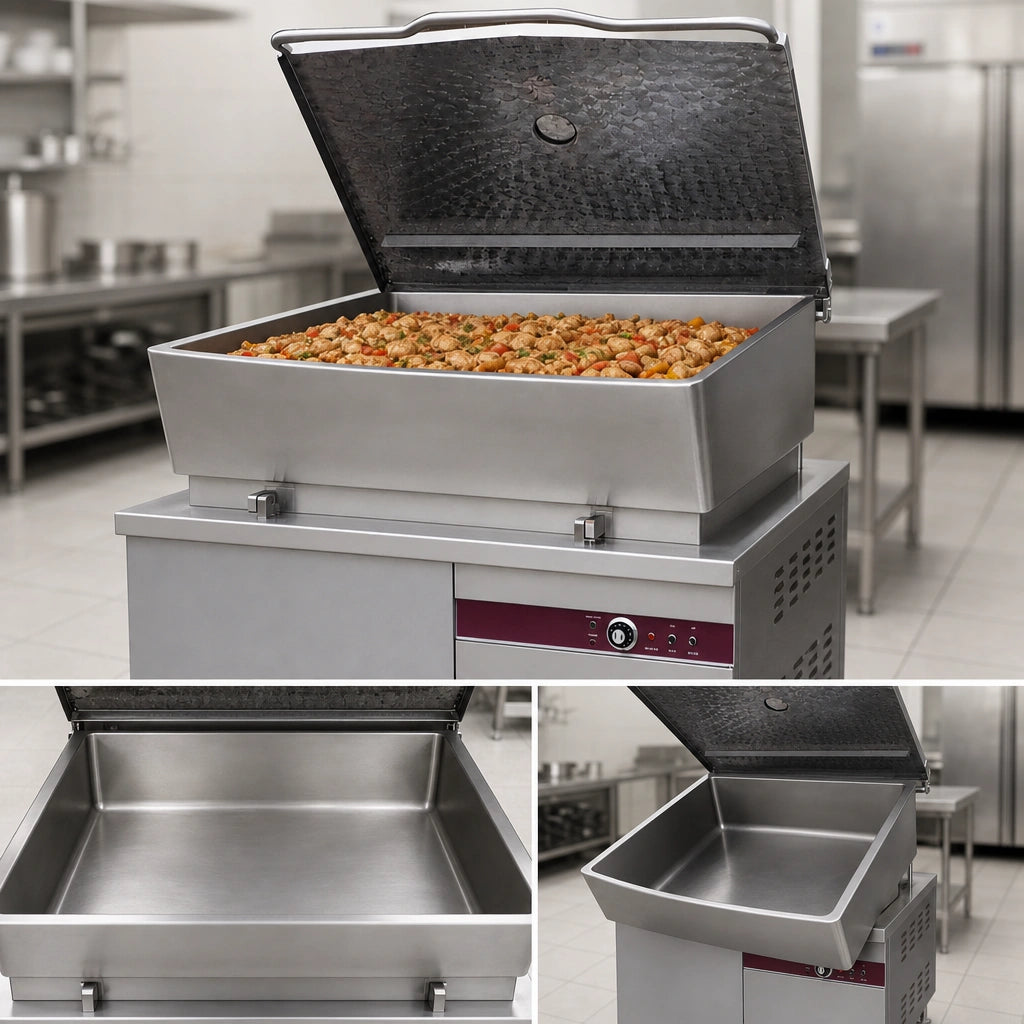

High-Capacity 60-Gallon Pan

The skillet is designed for 60-gallon batch cooking, making it suitable for high-volume kitchen production.

304 Stainless Steel Cooking Pan

The 10-gauge type 304 stainless steel pan is built for durability and consistent commercial performance.

Triple-Ply Cooking Surface

A 3/4-inch triple-ply aluminum-core cooking surface helps distribute heat evenly across the pan.

Spring-Assisted Cover

The stainless steel cover includes spring assist hinges, a full-width handle, a no-drip condensate guide, and a vent port with swing cover.

Solid-State Controls And Safety Features

Includes a solid state thermostat, temperature light, tilt switch, tilt safety switch, electronic ignition, and high-limit thermostat.

Cabinet Base Construction

Heavy-duty welded frame with enclosed stainless steel cabinet base, removable side panels, two front cabinet doors, 6-inch legs, and adjustable flanged feet.

Safe Pour Design

The front-hinged pan includes a removable pour lip strainer, and gas supply shuts off automatically when the pan is tilted.

Type Tilting Skillet
Style Cabinet Base
Installation Type Floor Model
Capacity 60 Gallons
Material 304 Stainless Steel
Interior Finish Polished Stainless Steel
Finish #4 Finish
Controls Solid State
Temperature Range 100°F to 450°F
BTU 100,000 BTU
Voltage 115 Volts
Amps 10 Amps
Hertz 60 Hz
Phase 1-Phase
Gas Connection Size 3/4 Inch IPS
Shipping Width 48 Inches
Shipping Depth 47 Inches
Shipping Height 45 Inches
Shipping Weight 925 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit is available for natural gas or propane gas.
It requires 115 VAC, 1 phase, 60 Hz, with a 10 amp minimum supply.
The operating temperature range is 100°F to 450°F (38°C to 232°C).
The skillet is intended for use on non-combustible floors only, with 3 inches of side clearance and 6 inches of back clearance.
Standard features include a removable pour lip strainer, tilt switch, tilt safety switch, and automatic gas shutoff when the pan is tilted.
Optional accessories include draw-off valves, a pan carrier, a steam pan insert, faucet packages, plumbing enclosure, etched liter markings, and an optional 220 VAC electrical package.
