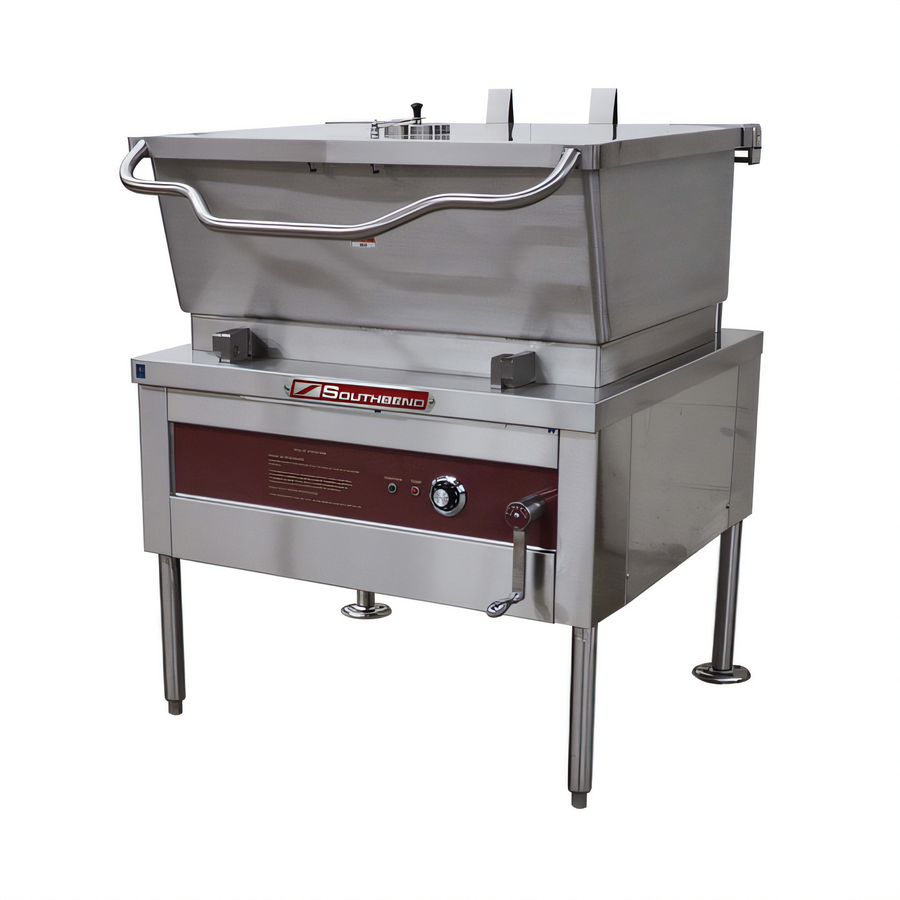

Southbend Steam BGLM-40N Narrow 40-Gallon Gas Tilting Skillet with Manual Tilt

SKU: BGLM-40N
$27,010.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Southbend (Middleby) Specialty Cooking Equipment Steam Cooking Equipment

Southbend Steam BGLM-40N Narrow 40-Gallon Gas Tilting Skillet with Manual Tilt

304 Stainless Steel Pan, Spring-Assisted Cover, 100,000 BTU

A durable 40-gallon gas tilting skillet built for high-volume braising, sautéing, and pan finishing with smooth manual tilt control and precise thermostatic heat.

  • 40-gallon narrow skillet is built for high-volume batch cooking and braising.
  • Manual tilt mechanism supports controlled pouring and complete emptying.
  • 304 stainless steel pan with polished interior, coved corners, and a #4 finish exterior.
  • Spring-assisted stainless cover and removable pour strainer improve daily operation.
  • 100,000 BTU gas heating with thermostatic controls, indicator lights, and high-temp safety shut-off.
  • Open frame stainless base with tubular legs and adjustable feet for stable floor installation.

Overall Dimensions:

36.0"W x 48.13"D x 75.5"H

Product Weight:

565.0 lb

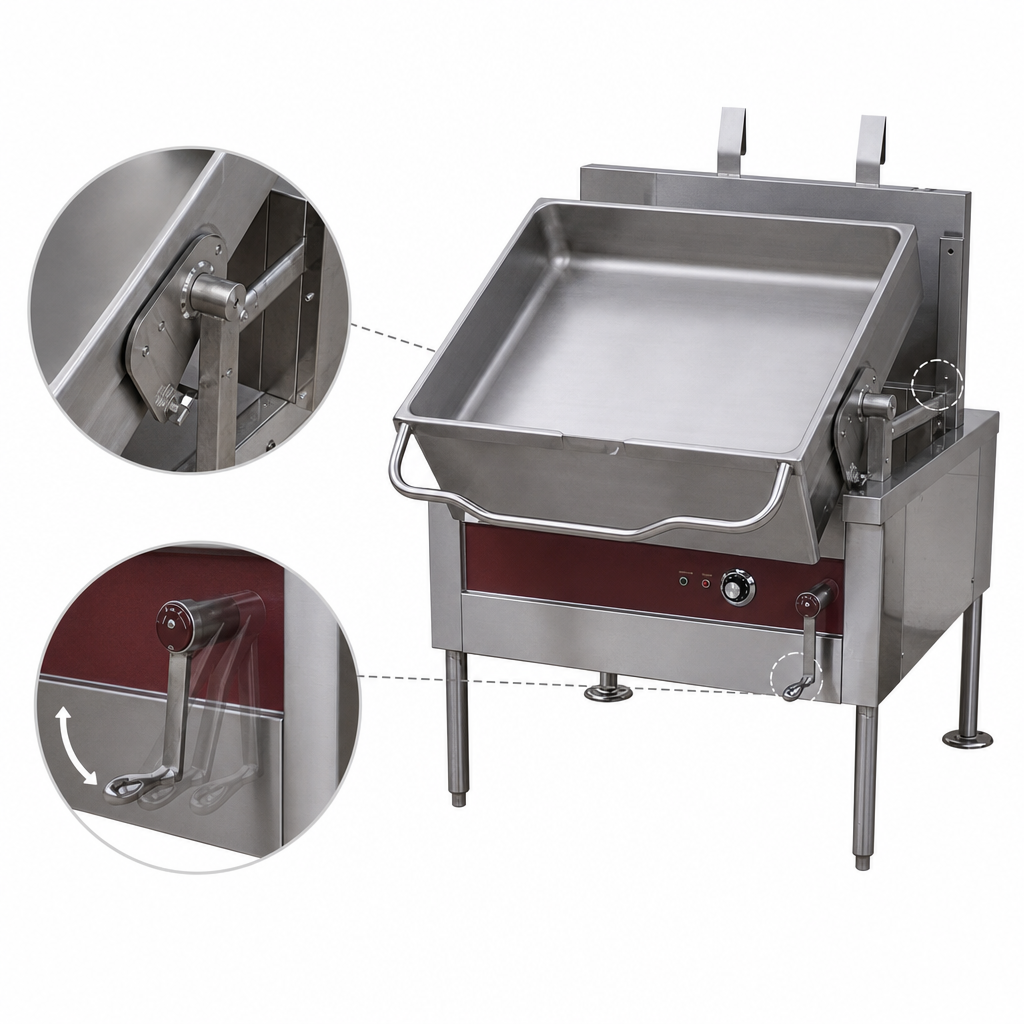

Manual Tilt Mechanism

Self-contained gear box lets the skillet tilt forward for controlled pouring and complete emptying.

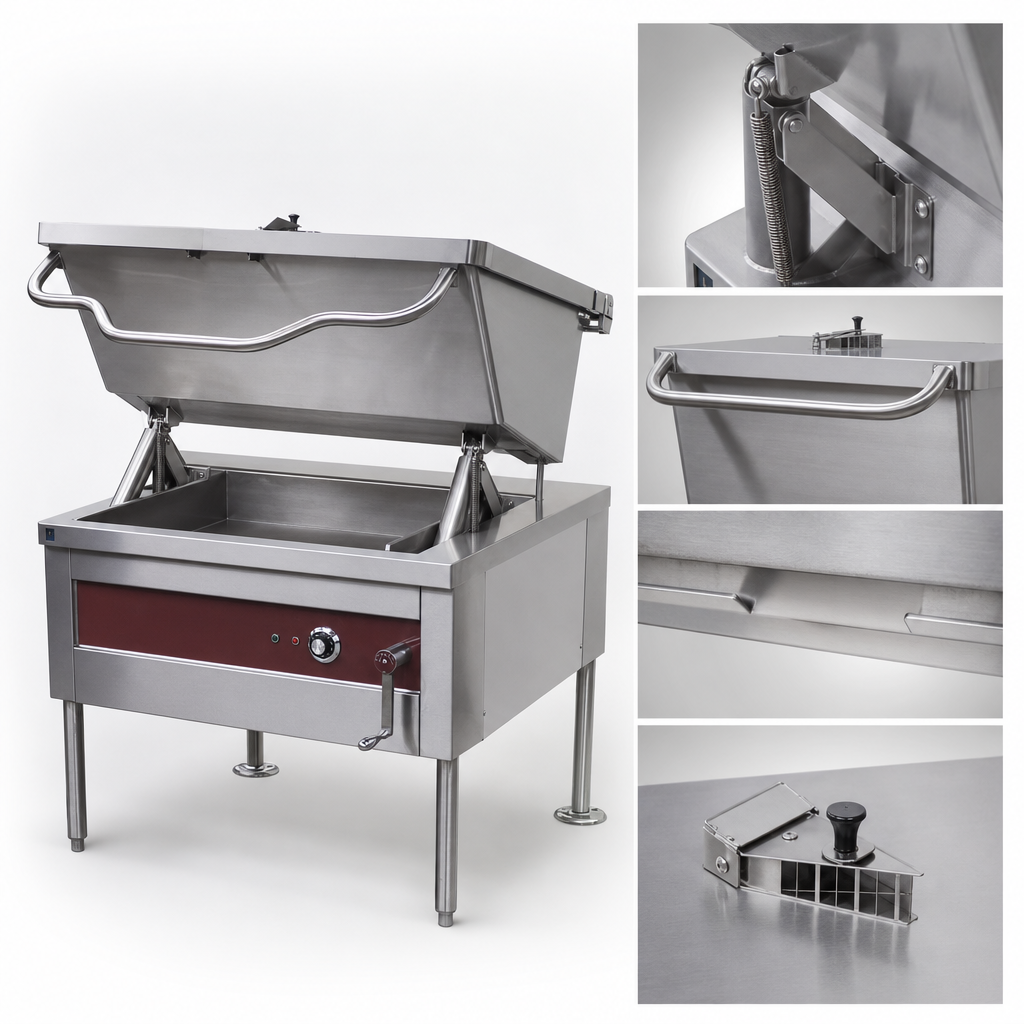

Spring-Assisted Stainless Steel Cover

Cover includes spring assist hinges, a full-width handle, a no-drip condensate guide, and a vent port with swing cover.

304 Stainless Steel Pan

The pan is formed from 10-gauge type 304 stainless steel with coved corners for easier cleaning.

Polished Interior and #4 Exterior Finish

The cooking pan features a polished interior and a #4 finish exterior for a professional stainless steel appearance.

Triple-Ply Cooking Surface

A 3/4 inch triple-ply cooking surface with a 3/8 inch aluminum core helps distribute heat evenly.

Gas-Fired Heating System

Stainless steel atmospheric burners provide 100,000 BTU of output for rapid, even heating.

Thermostatic Safety Controls

Controls include a solid-state thermostat with an OFF position, a 100°F to 450°F range, indicator lights, a tilt safety switch, and a high-temperature cut-off.

Open Frame Stainless Base

Heavy-duty welded frame with tubular stainless steel legs, adjustable bullet feet at the front, and flanged adjustable feet at the rear.

Removable Pour Strainer

Helps manage draining and pouring while supporting cleaner, safer emptying of the pan.

115 VAC Control Requirements

Standard electrical requirements are 115 VAC, single phase, 50/60 Hz, 2 amps with a 6 foot cord and 3-prong plug.

Type Gas Tilting Skillet
Style Narrow
Installation Type Floor Model
Capacity 40 Gallons
Material 304 Stainless Steel
Interior Finish Polished Stainless Steel
Finish #4 Finish
BTU 100,000 BTU
Voltage 115 Volts
Amps 2 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type 3-Prong Plug
Gas Connection Size 3/4 Inch IPS
Controls Thermostatic
Temperature Range 100°F to 450°F
Shipping Width 36 Inches
Shipping Depth 49 Inches
Shipping Height 76 Inches
Shipping Weight 565 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and 1-year labor.

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a 40-gallon capacity.
Yes. The unit is designed with manual tilt and a self-contained gear box for controlled emptying.
The standard electrical requirements are 115 VAC, single phase, 50/60 Hz, 2 amps, with a 6 foot cord and 3-prong plug.
The document lists a 3/4 inch IPS gas connection.
The controls include a thermostat indicator light, ignition indicator light, a tilt switch that shuts burners off if the pan is tilted more than 5 degrees, and a high-temperature cut-off set at 500°F.
Optional accessories include draw-off valves, sliding drain pans, pan carriers, steam pan inserts, and multiple faucet and plumbing packages.
