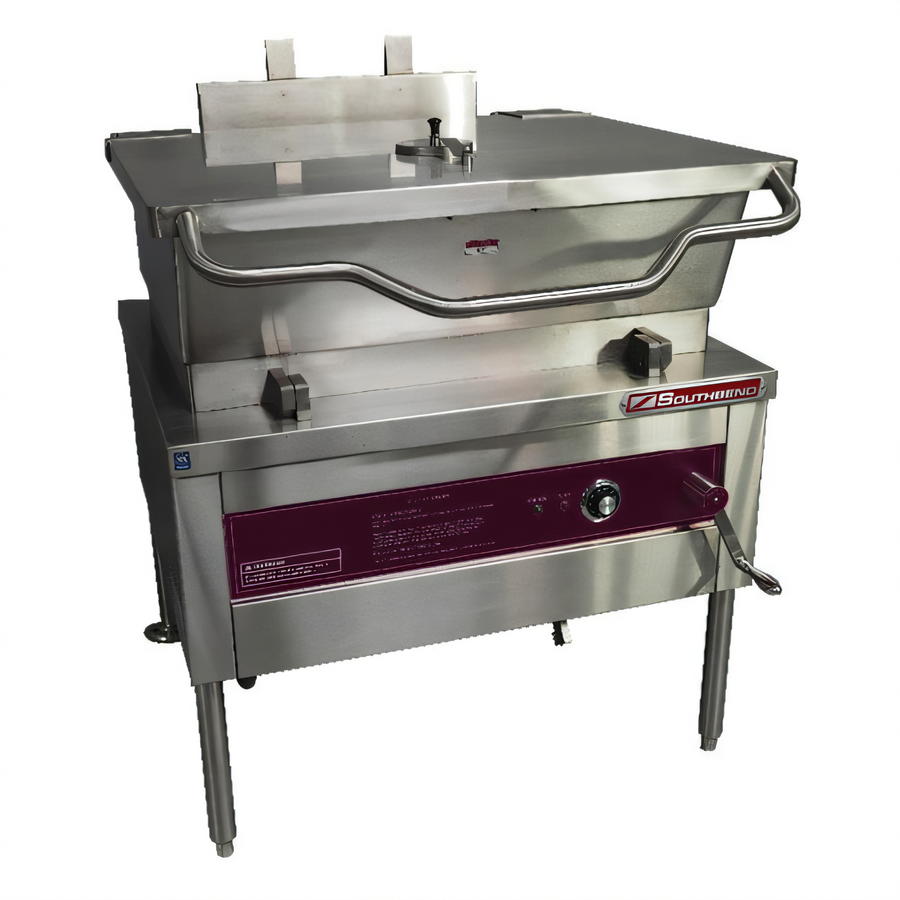

Southbend Steam 40 Gallon Gas Tilting Skillet with Manual Tilt, Open Frame Base
Southbend Steam 40 Gallon Gas Tilting Skillet with Manual Tilt, Open Frame Base
Natural Gas or Propane, 125,000 BTU
Built for high-volume kitchens, this 40-gallon gas tilting skillet combines powerful 125,000 BTU heat with manual tilt control and rugged stainless steel construction.
- 40-gallon capacity is ideal for braising, simmering, and large-batch production.
- Manual tilt design helps the operator pour out product and fully empty the pan.
- 125,000 BTU gas heat and solid state controls support consistent cooking performance.
- 304 stainless steel construction is built for demanding commercial use and easier cleaning.
- Spring-assisted cover, removable pour strainer, and indicator lights improve day-to-day operation.
- Open frame base with adjustable feet provides a stable floor installation.
Overall Dimensions:
48.0"W x 46.13"D x 71.88"HProduct Weight:

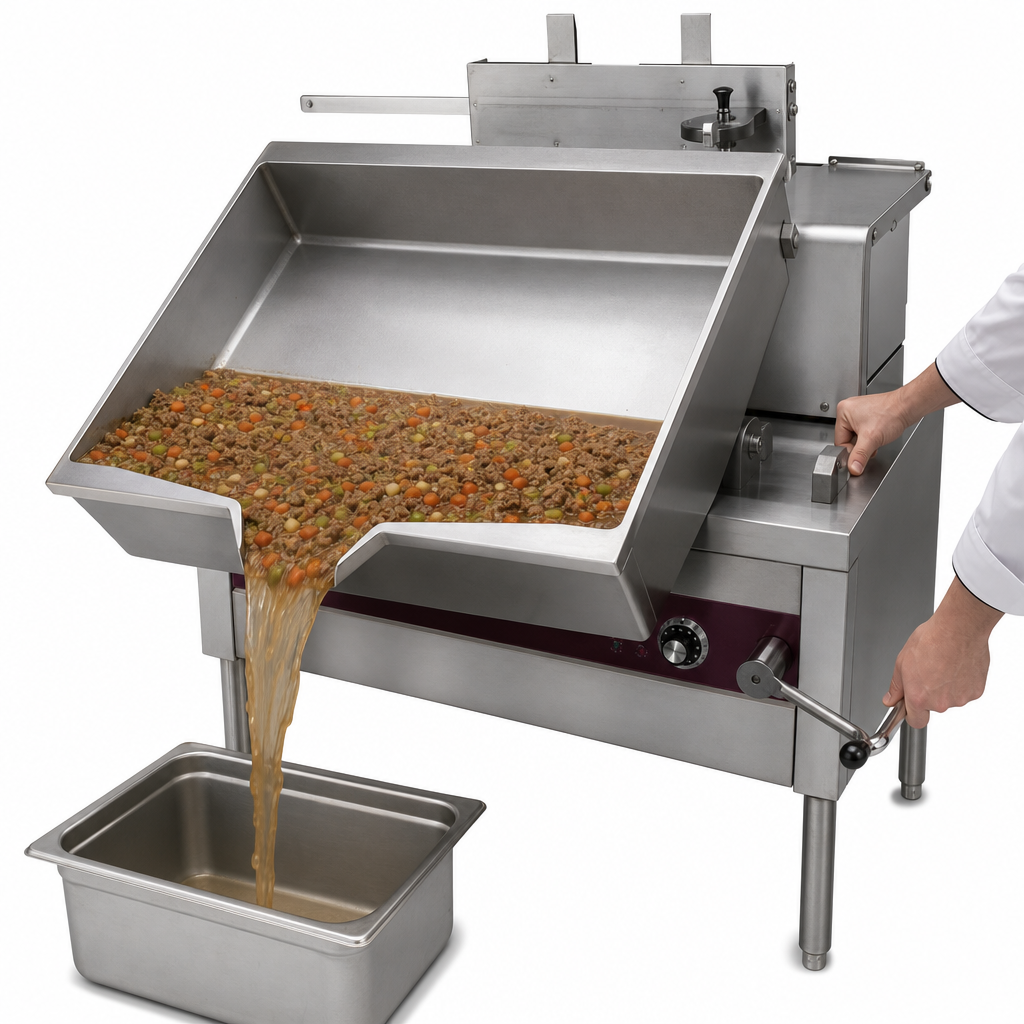

720.0 lbManual Tilt Mechanism
Self-contained gear box allows the pan to tilt forward for controlled pouring and complete emptying.

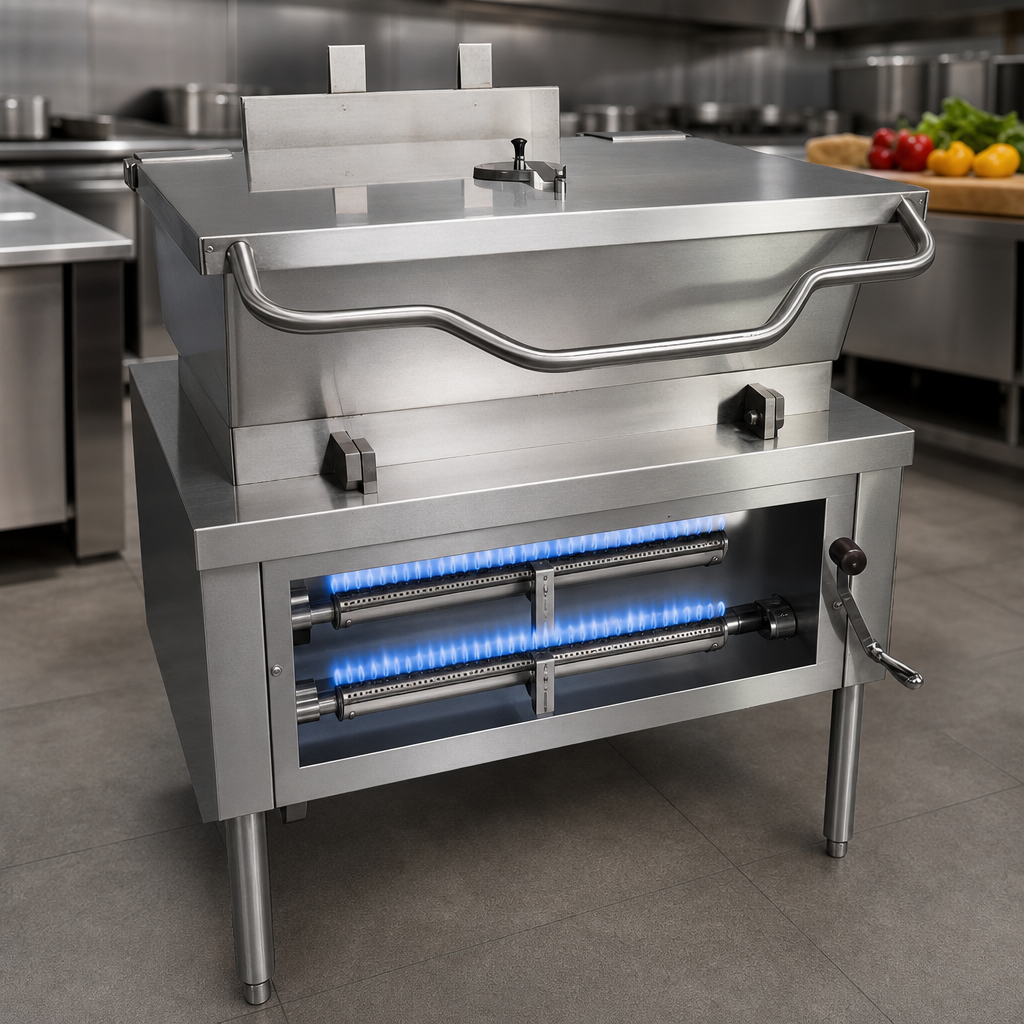

High-Output Gas Heating
Atmospheric burners deliver 125,000 BTU/hr for strong, even heat in high-volume cooking.
Solid State Controls and Safety Shutoff
Thermostat provides an OFF position and a 100-450°F range, with thermostat and ignition indicator lights, a pan tilt switch that shuts burners off if tilted more than 5°, and a high-temperature cut-off at 500°F.
304 Stainless Steel Pan Construction
10-gauge type 304 stainless steel pan with a 3/4-inch triple-ply cooking surface and 3/8-inch aluminum core for even heat distribution.
Spring-Assisted Cover
Stainless steel cover includes spring-assist hinges, a full-width handle, a no-drip condensate guide, and a vent port with swing cover.
Removable Pour Strainer and Markings
Includes a removable pour strainer and etched gallon markings to help with cleaner draining and easier portion control.
Heavy-Duty Open Frame Base
Welded stainless steel frame with tubular legs, adjustable bullet feet in front, and flanged adjustable rear feet for floor stability.
Certifications & Compliance
Warranty & Protection
1 year parts and 1 year labor.
