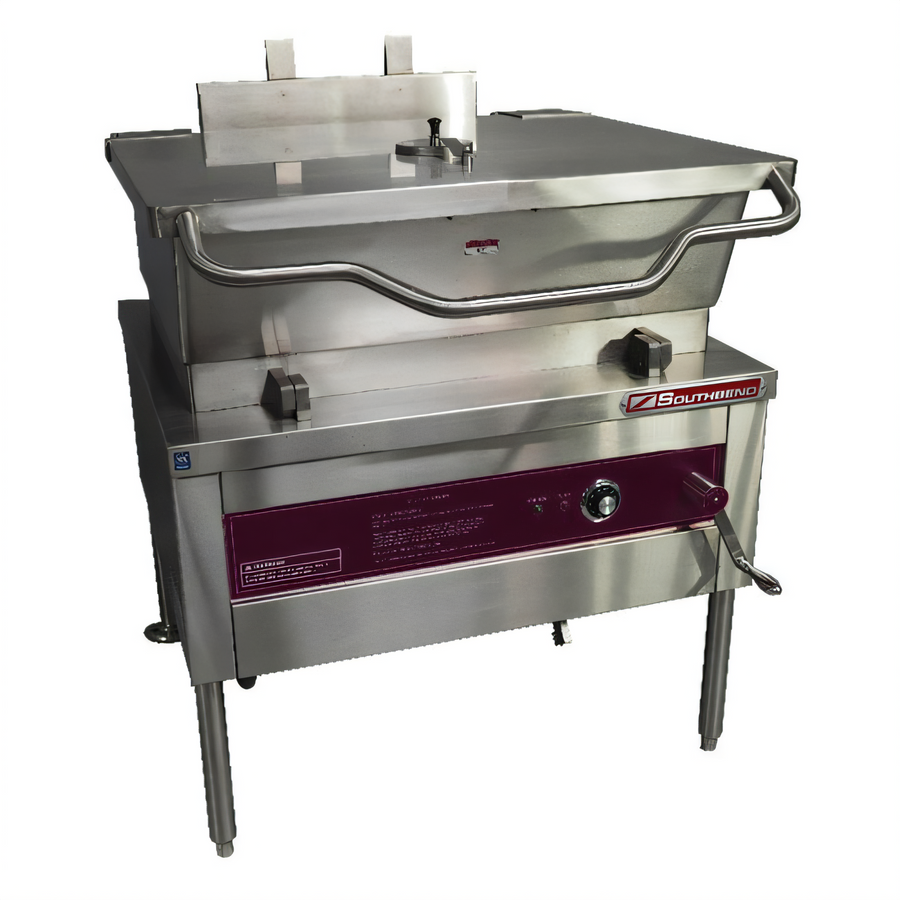

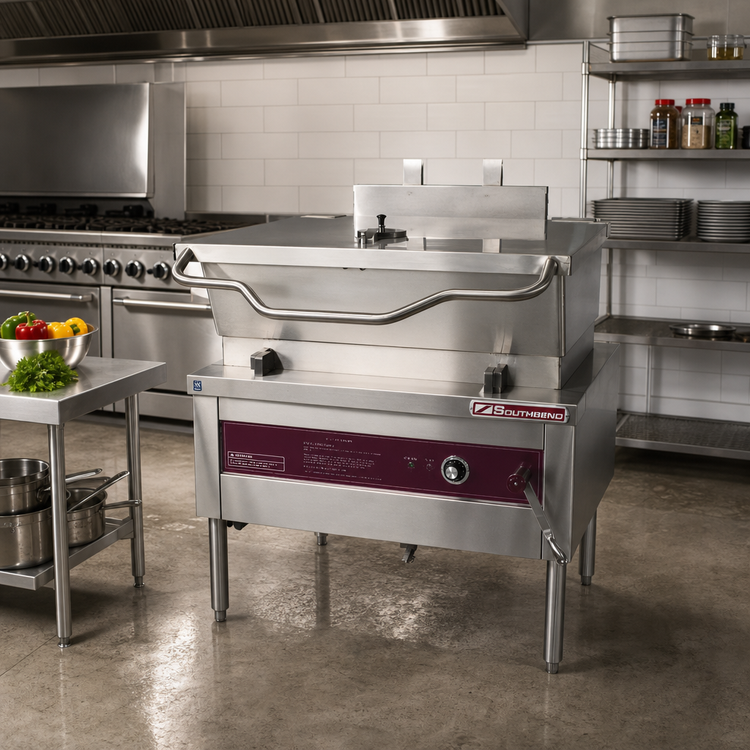

Southbend Steam BGLM-30 30-Gallon Gas Tilting Skillet with Manual Tilt
Southbend Steam BGLM-30 30-Gallon Gas Tilting Skillet with Manual Tilt
Natural Gas or Propane, 100,000 BTU
Built for high-volume prep, this 30-gallon manual-tilt skillet delivers 100,000 BTU of gas heat, precise solid-state control, and durable 304 stainless steel construction.
- 30-gallon gas tilting skillet designed for braising, sautéing, and batch cooking
- Manual tilt gear box helps empty contents cleanly and with control
- 100,000 BTU output and triple-ply cooking surface promote even heat distribution
- Solid state thermostat, indicator lights, and high-temperature safety cutoff support reliable operation
- 304 stainless steel pan, spring-assisted cover, and heavy-duty open frame base are built for daily commercial use
- Includes a removable pour strainer for easier product transfer and cleanup
Overall Dimensions:
36.0"W x 46.75"D x 72.38"HProduct Weight:

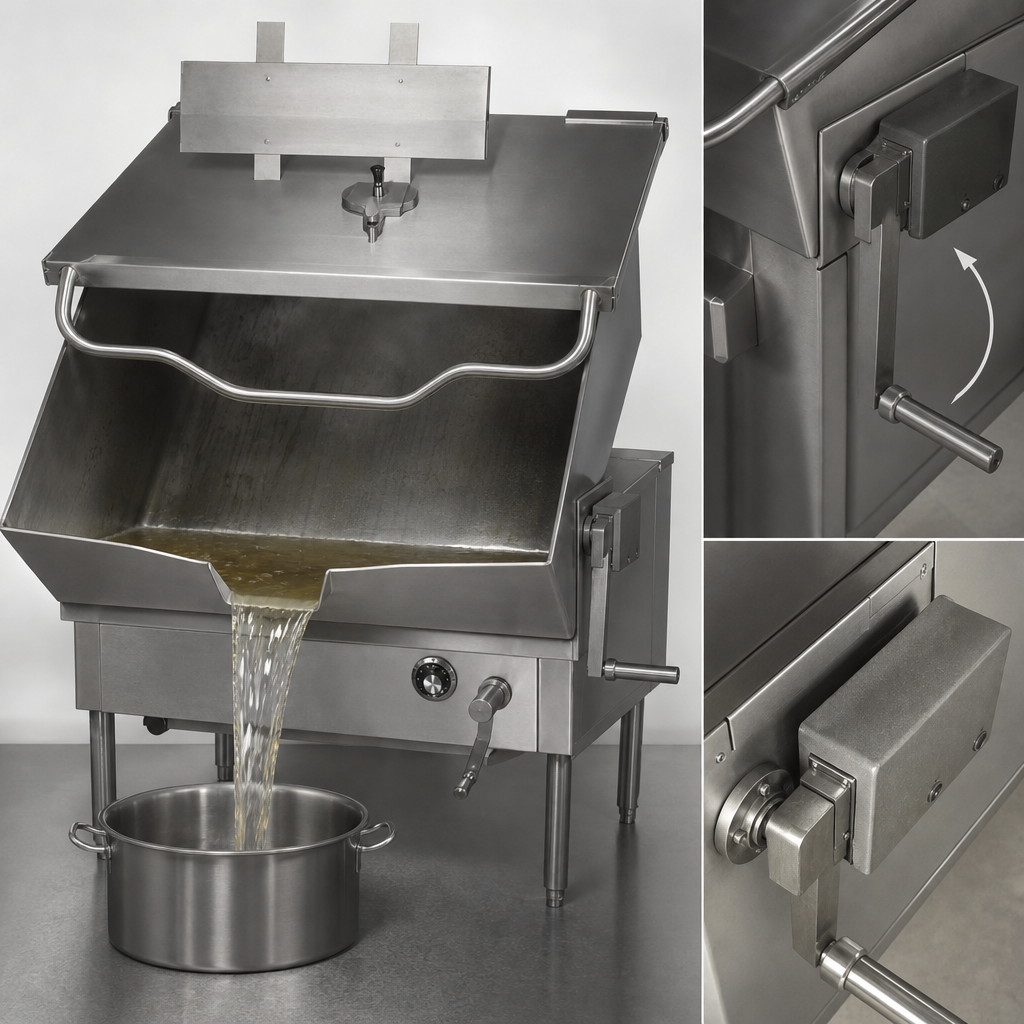

550.0 lbManual Tilt Gear Box
A self-contained gear box tilts the pan forward for controlled pouring and complete emptying.

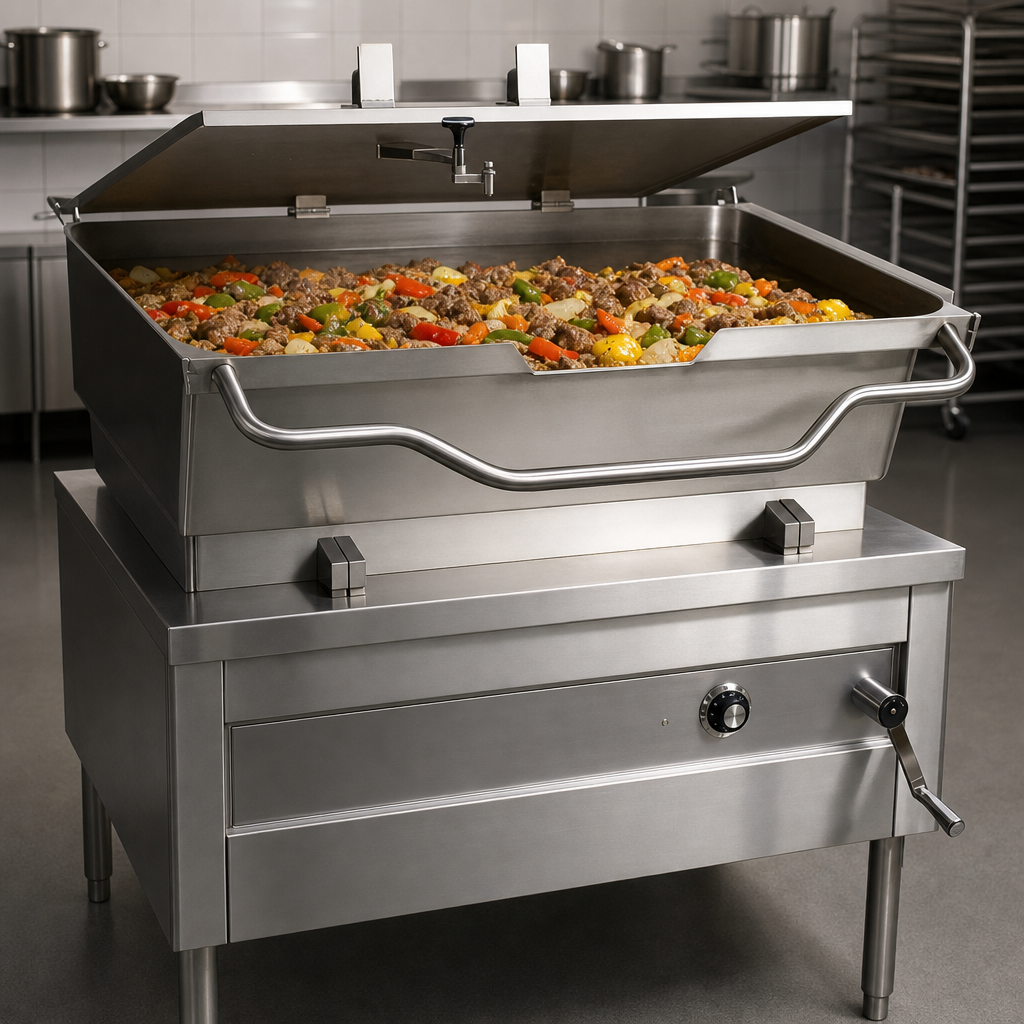

30-Gallon Capacity
Sized for high-volume kitchen production and large-batch cooking.
Solid State Temperature Control
Includes an OFF position and a 100°F to 450°F operating range with thermostat and ignition indicator lights.
Safety Interlocks
The pan tilt switch shuts burners off if the skillet is tilted more than 5°, and the high-temperature cutoff is set at 500°F.
304 Stainless Steel Pan
The pan is formed from 10-gauge type 304 stainless steel with a polished interior, #4 exterior finish, and coved corners for easier cleaning.
Spring-Assisted Stainless Cover
The cover includes spring-assist hinges, a full-width handle, a no-drip condensate guide, and a vent port with swing cover.
Triple-Ply Cooking Surface
A 3/4-inch triple-ply surface with a 3/8-inch aluminum core helps distribute heat evenly across the cooking area.
Heavy-Duty Open Frame Base
Welded stainless steel construction with tubular legs, adjustable bullet feet in front, and flanged adjustable rear feet for floor securing.
Service Connections
Uses a 3/4-inch IPS gas connection and includes a 6-foot cord with a 3-prong plug for the control system.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
