Southbend (Middleby)

Countertop Gas Tilting Skillet, 16-Gallon Capacity, Manual Tilt

SKU: BGCTS-16
$21,685.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Southbend (Middleby) Specialty Cooking Equipment Steam Cooking Equipment

Countertop Gas Tilting Skillet, 16-Gallon Capacity, Manual Tilt

Natural Gas or Propane, 63,000 BTU, Stainless Steel Construction

A heavy-duty 16-gallon countertop tilting skillet with manual tilt control, precise solid-state heat regulation, and stainless steel construction for efficient batch cooking.

  • 16-gallon gas-fired countertop skillet for braising, sautéing, simmering, and batch cooking.
  • Manual tilt with tilt interlock, side-mount pivots, and damper control for safe, controlled pouring.
  • Solid-state thermostat, electric ignition, safety thermostat, and high-limit cut-off for dependable operation.
  • Heavy-duty stainless steel body with a 316 stainless steel liner, polished interior, and coved corners for easier cleaning.
  • 3/4-inch triple-ply cooking surface with an aluminum core for more even heat distribution.
  • Operates at 63,000 BTU with a 100°F to 450°F temperature range.
  • Optional accessories include stands, faucets, spray heads, covers, inserts, and strainer components.

Overall Dimensions:

30.63"W x 30.75"D x 40.13"H

Product Weight:

290.0 lb

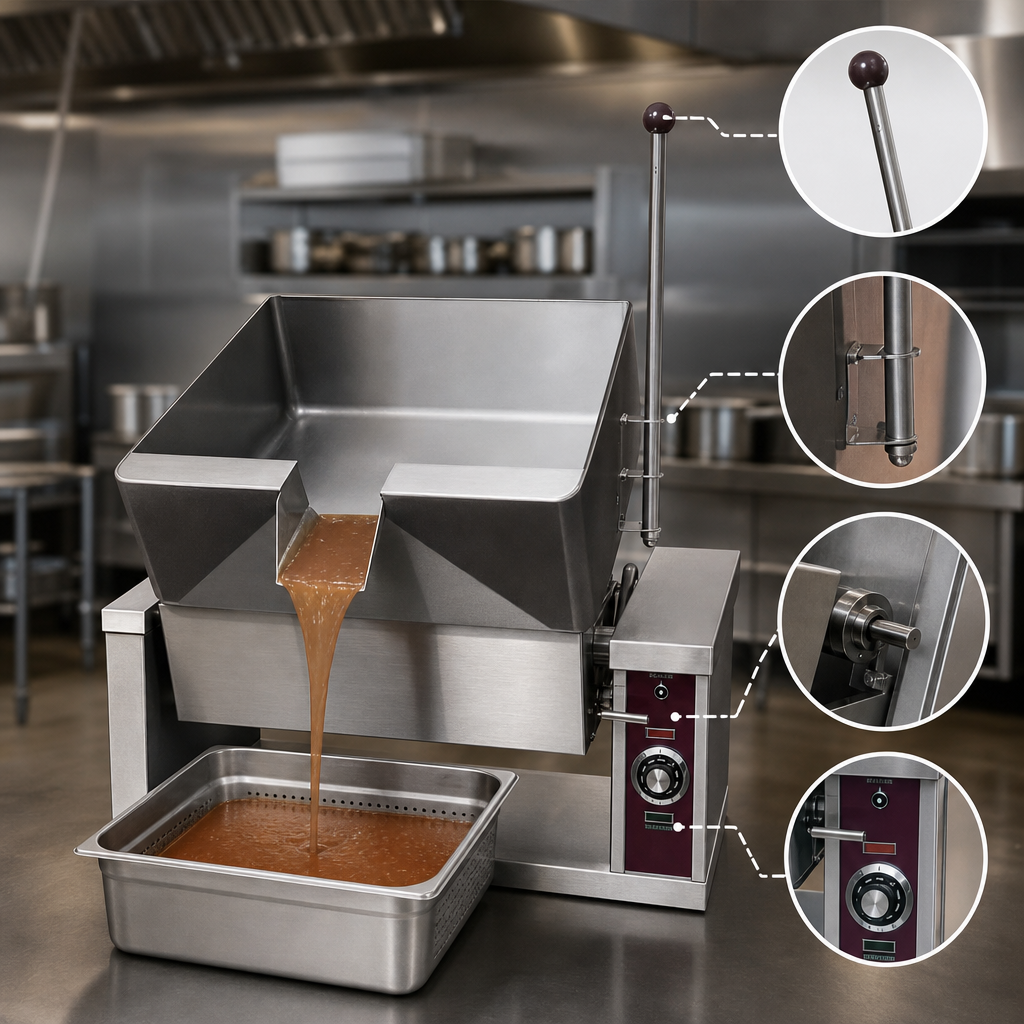

Manual Tilt With Safety Interlock

Manual tilt handle, tilt interlock, side-mount pivots, and damper control help provide smooth and controlled pouring.

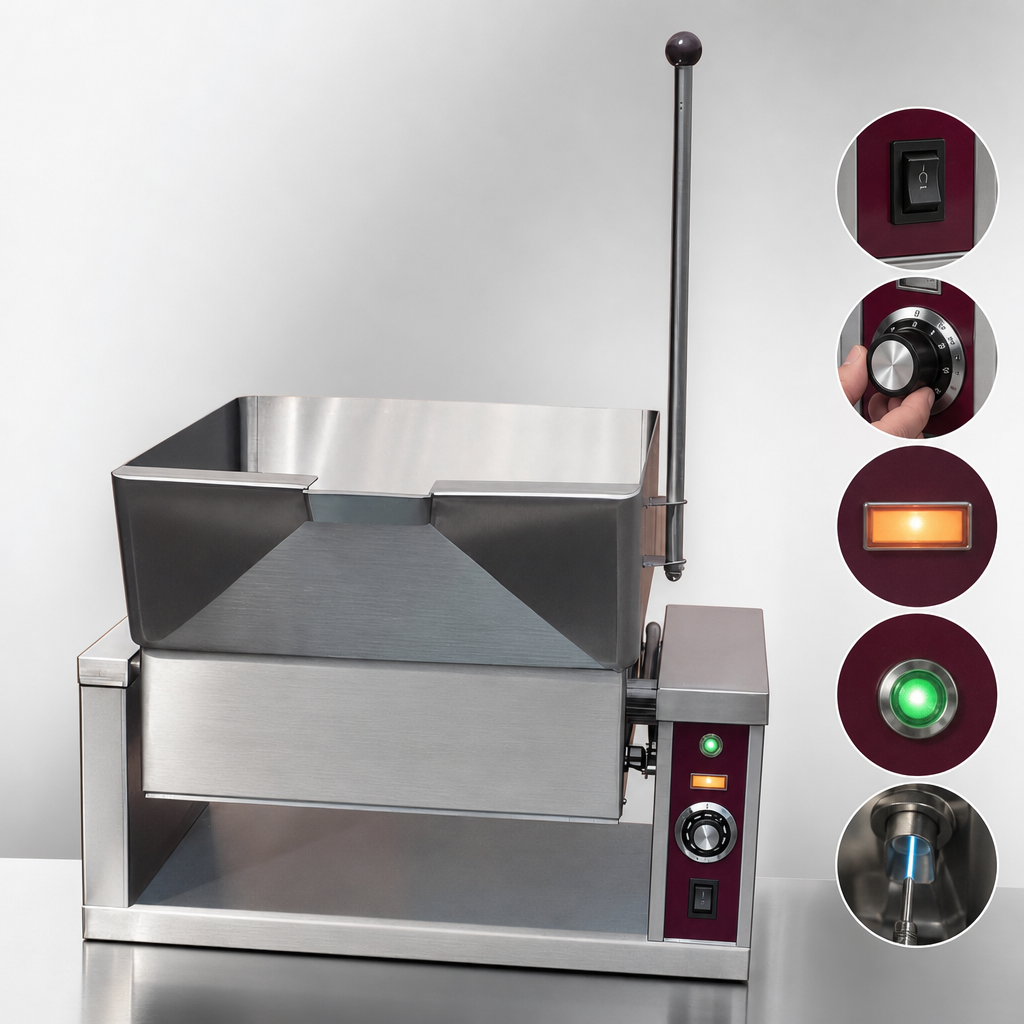

Solid-State Cooking Controls

Integrally mounted controls include a power switch, solid-state thermostat, temperature pilot light, electronic ignition, ignition light, and high-limit temperature cut-off.

316 Stainless Steel Cooking Well

One-piece coved-corner skillet with a 316 stainless steel liner, polished interior, etched gallon markings, and stainless steel construction.

Even Heat Triple-Ply Surface

The cooking surface uses 3/4-inch triple-ply construction with a 3/8-inch aluminum core for more uniform heat distribution.

Automatic Burner Shutoff

The burner turns off automatically when the pan is tilted for added safety.

High-Output Gas Heat

Gas-fired operation delivers 63,000 BTU for demanding commercial batch cooking.

Type Tilting Skillet
Style Manual Tilt
Installation Type Countertop
Capacity 16 Gallons
BTU 63,000 BTU
Voltage 115/120 Volts
Amps 2.0 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type 3-Prong Plug
Cord Length 8 Feet
Material Stainless Steel
Interior Finish Stainless Steel
Finish #4 Finish
Controls Solid State Thermostat
Temperature Range 100 to 450 °F
Gas Connection Size 3/4 Inch Pipe
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 41 Inches
Shipping Weight 290 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The documentation lists both Natural Gas and Propane operation.
It has a 16-gallon capacity, which is also listed as 61 liters.
The skillet operates from 100°F to 450°F.
The cutsheet lists 115 VAC, 1 phase, 50/60 Hz, with an 8-foot cord and 3-prong plug. The service note also references 120 Volts, 60 Hertz single phase with a grounding wire.
No. An 18-inch high floor stand with sliding drain pan and stationary drain is available as model SD-30-16S.
It includes a tilt interlock, safety thermostat, high-limit temperature cut-off, and automatic burner shutoff when the pan is tilted.
