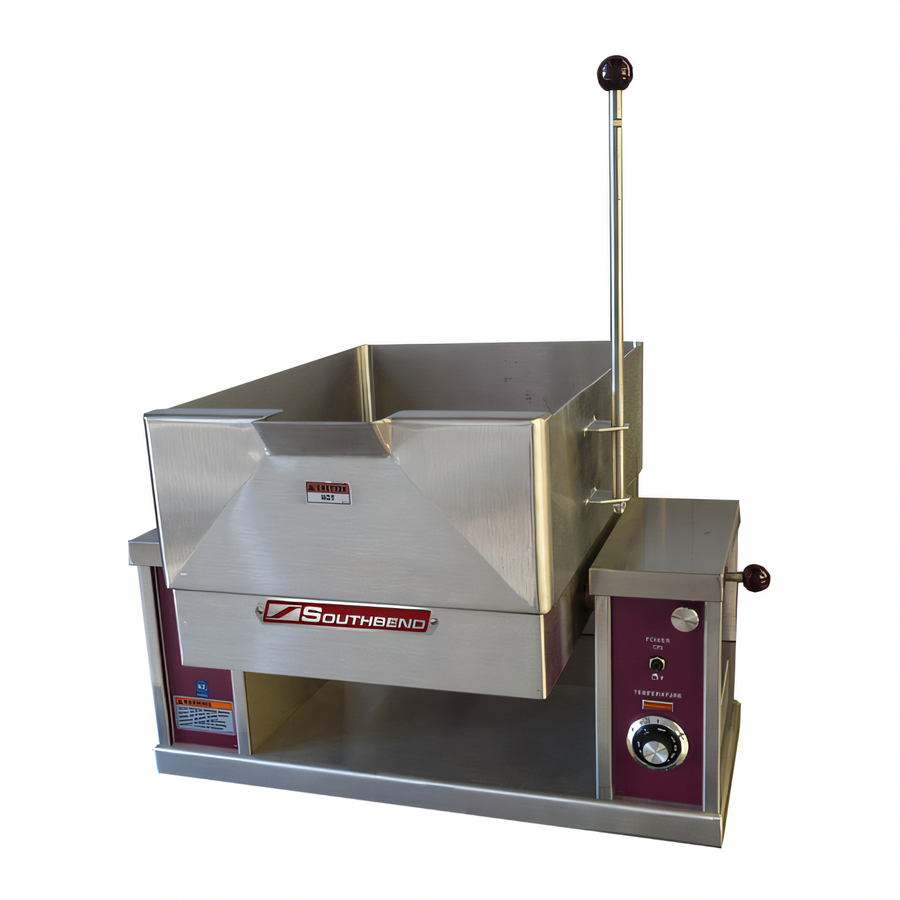

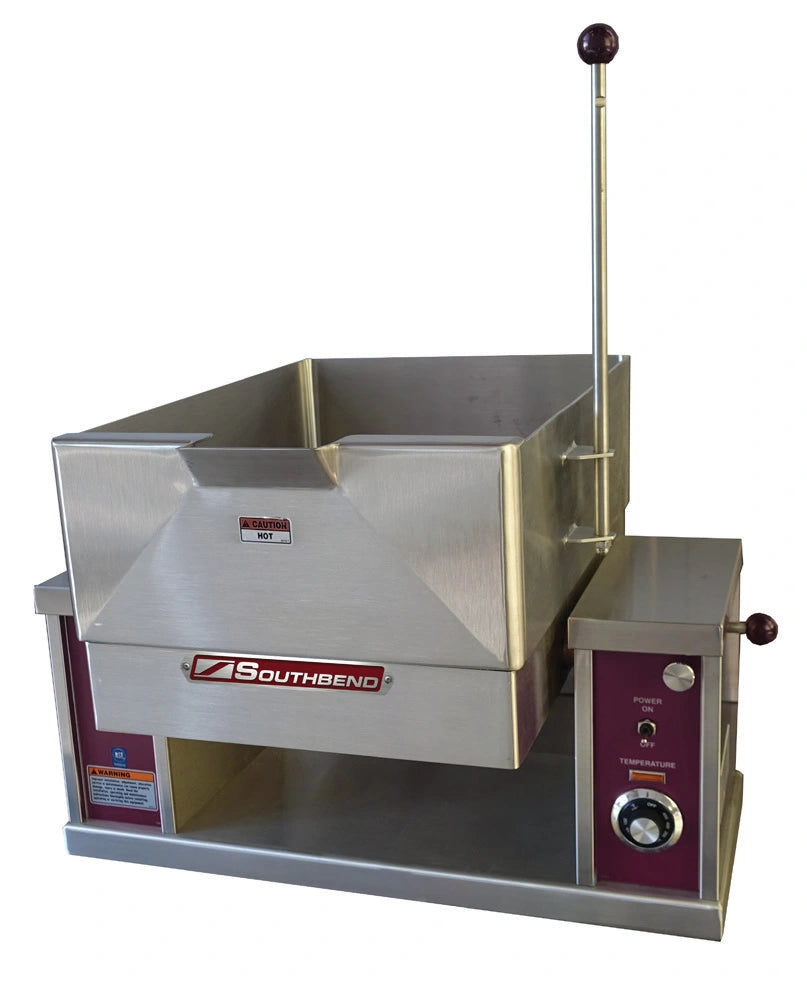

Southbend 12-Gallon Electric Countertop Tilting Skillet, Manual Tilt

304 Stainless Steel Pan, 9.0 kW, Multiple Voltage Configurations

Built for high-volume kitchens, this 12-gallon electric countertop tilting skillet delivers even heat, safe manual pouring, and durable stainless steel construction.

  • 12-gallon capacity is ideal for braising, sautéing, simmering, and batch cooking.
  • Manual tilt design with side pivots and a heat-proof knob helps operators empty contents safely and efficiently.
  • 10-gauge 304 stainless steel pan with a polished interior and satin exterior is built for demanding commercial use.
  • Electric elements are embedded in a thick aluminum casting for even heat distribution across the pan surface.
  • Integrated controls include a power switch, thermostat, pilot light, and high-temperature cut-off.
  • Tilt interlock and tilt position device add safety and control during cooking and pouring.

Overall Dimensions:

29.0"W x 25.75"D x 33.25"H

Product Weight:

191.0 lb

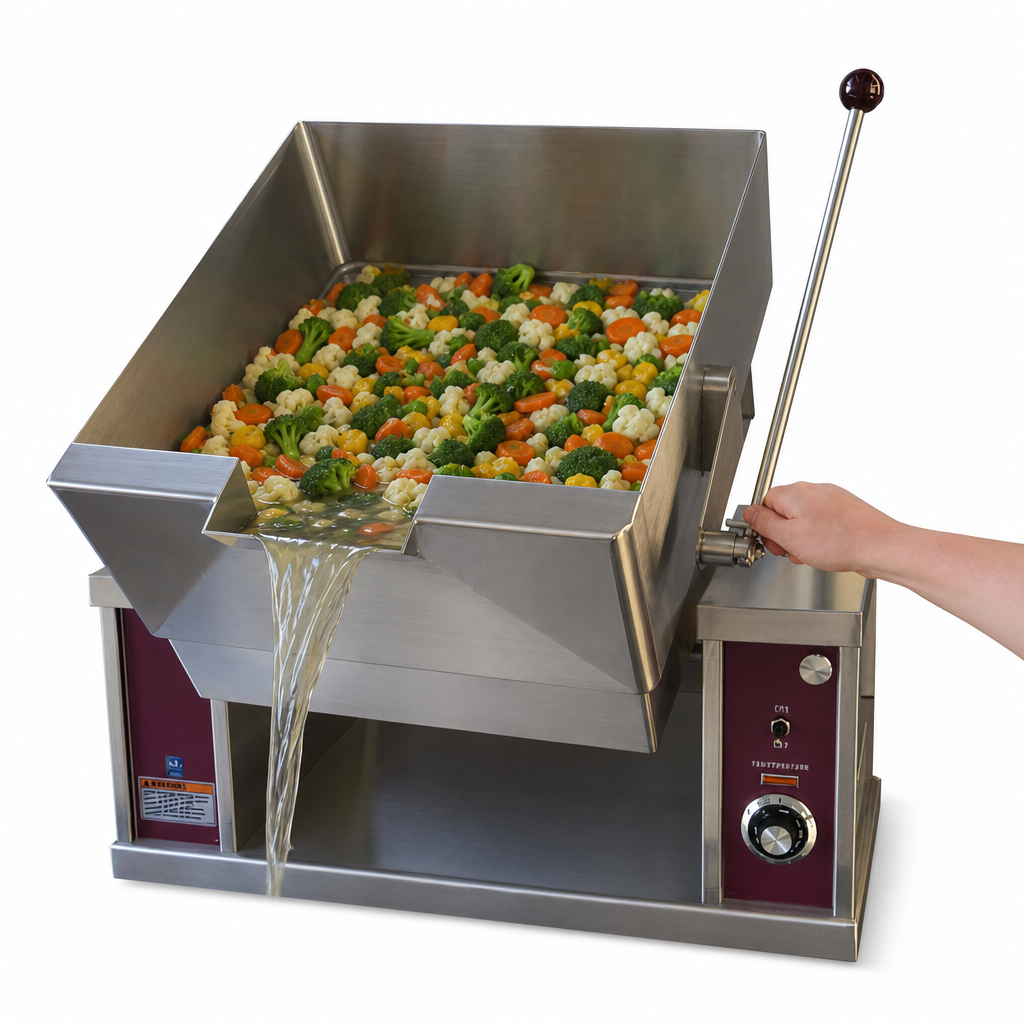

Manual Tilt Operation

Tilting handle with a heat-proof knob makes it easy to pour out contents by hand.

Manual Tilt Operation

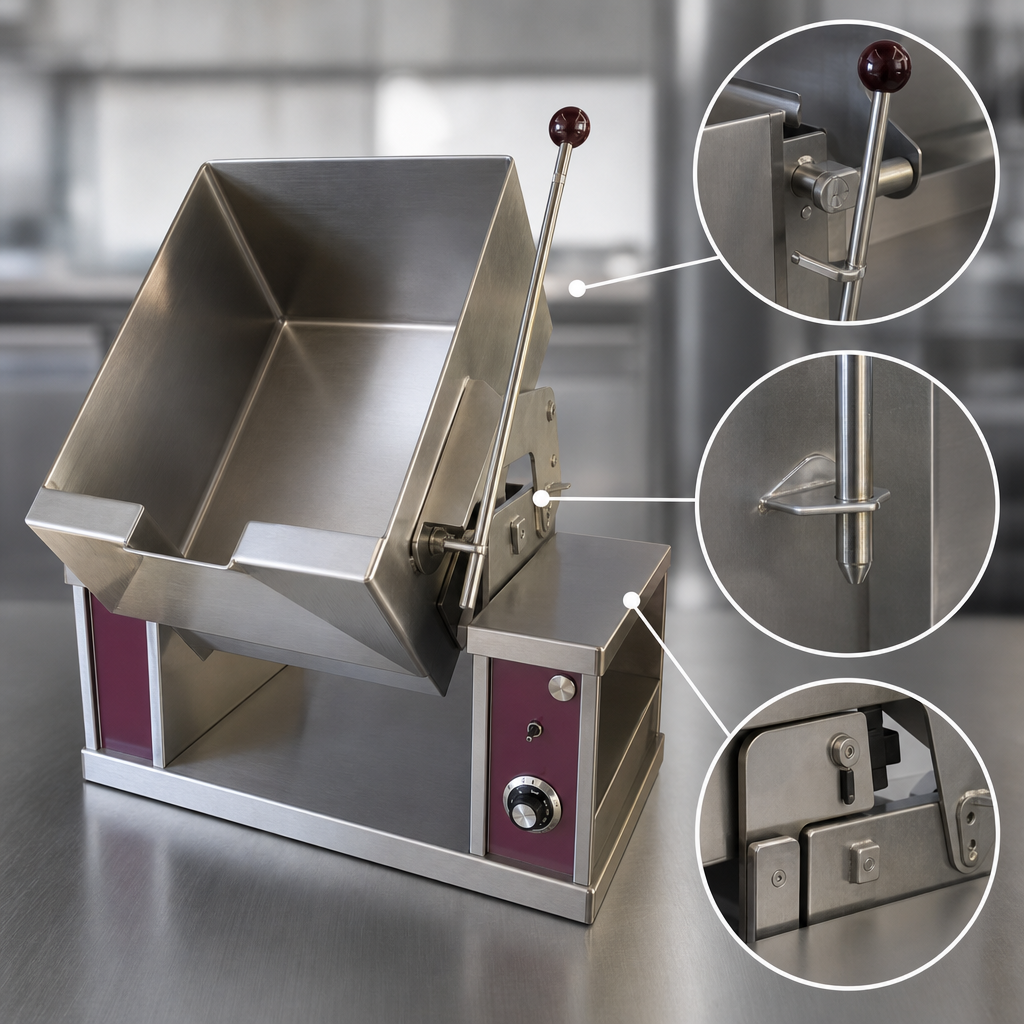

Safety Tilt System

Side pivots, a tilt position device, and a tilt interlock help control movement and prevent accidental tilting.

Safety Tilt System

10-Gauge 304 Stainless Steel Pan

One-piece rectangular pan with coved corners for durability, easy cleaning, and consistent cooking performance.

Even Heat Distribution

Electric heating elements are cast into a full 1-1/2-inch aluminum casting under the pan for uniform heat transfer.

Integrated Control Package

Stainless steel-clad housing includes a power switch, thermostat, pilot light, and high-temperature cut-off.

Countertop Mounting Base

Concealed mounting lugs allow the unit to be bolted to a countertop or installed on an optional stand.

Wide Operating Range

Operates from 160°F to 445°F for versatile cooking applications.

Type Electric Tilting Skillet
Style Manual Tilt
Installation Type Countertop
Capacity 12 Gallons
Material 304 Stainless Steel
Interior Finish Polished Stainless Steel
Finish Satin Finish
Controls Thermostatic
Temperature Range 160°F to 445°F
Watts 9 kW
Voltage 208/220/240 Volts
Phase 1-Phase / 3-Phase
Hertz 50/60 Hz
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 34 Inches
Shipping Weight 191 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The skillet has a 12-gallon capacity, or 45 liters.
Standard operation is listed for 208, 220, or 240 VAC in 1- or 3-phase, 50/60 Hz. Additional 380, 415, 480, or 600 VAC 3-phase options are also listed at additional cost.
It includes a tilt interlock, a tilt position device, and a high-temperature cut-off.
The operating temperature range is 160°F to 445°F (71°C to 230°C).
Yes. It includes concealed mounting lugs for bolting to a countertop or optional stand.
Optional accessories include a steam pan insert, etched liter markings, a lift-off stainless steel cover, pour strainer, stands, and faucet/rinse spray accessories.
