Southbend (Middleby) 4725DD Ultimate Gas Ranges
Description

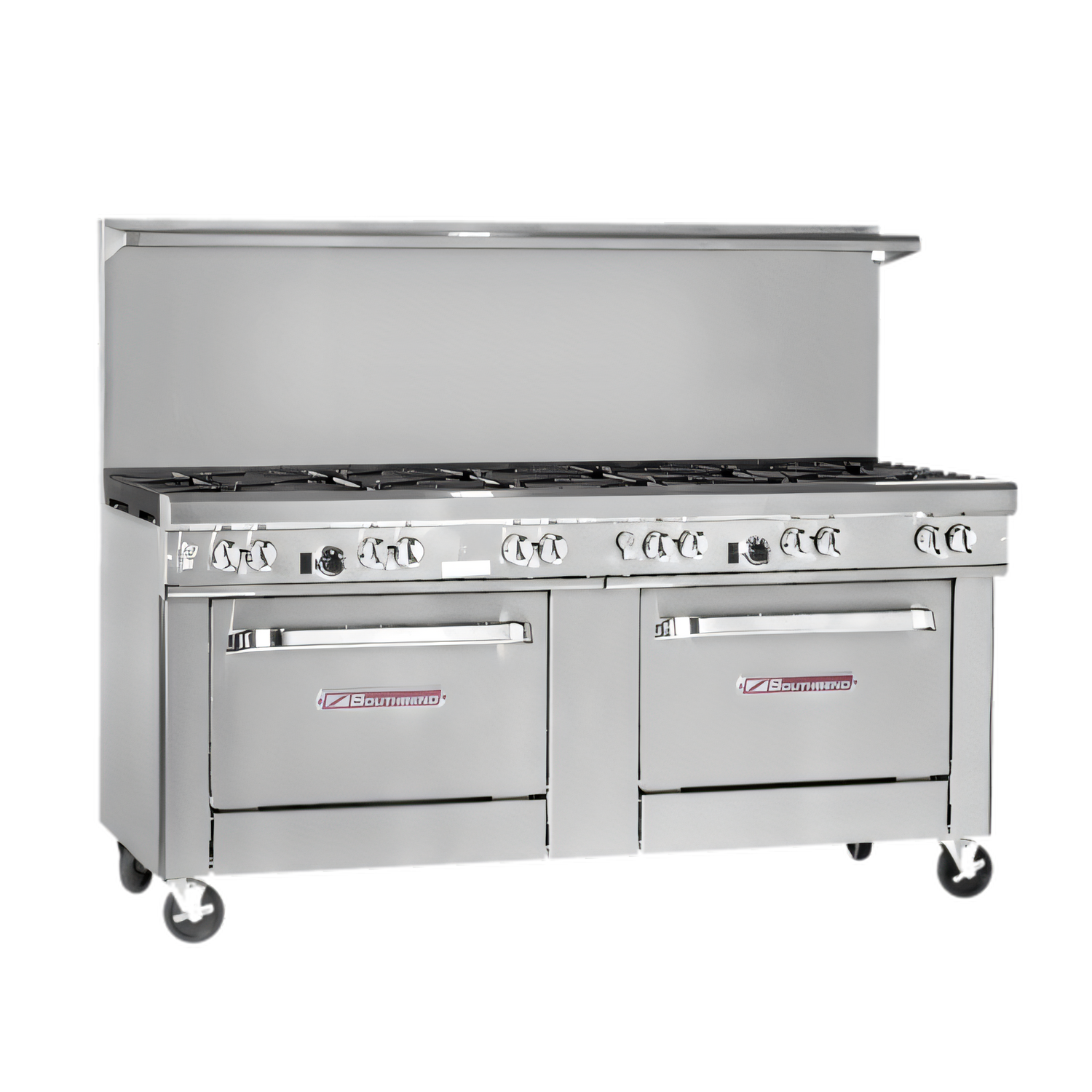

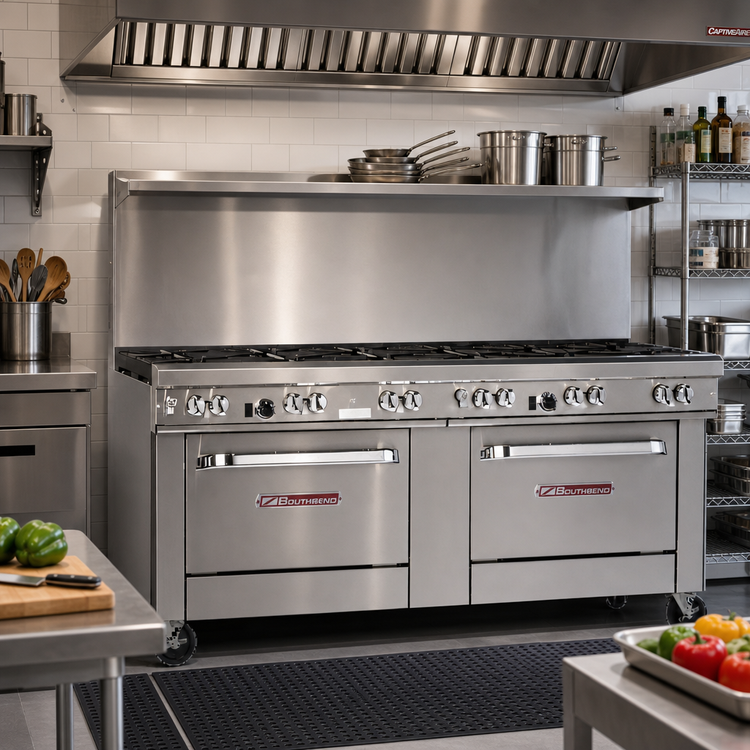

Southbend Ultimate 72" Gas Restaurant Range
6 Non-Clog + 4 Pyromax Burners | (2) Standard Ovens | 448,000 BTUBuilt for busy kitchens that refuse to compromise, the Southbend Ultimate 72" range delivers unmatched cooking power, rock-solid construction, and the flexibility you need for high-volume production—all in one space-saving footprint.
Why You’ll Love It
- 10-burner powerhouse: six 33,000 BTU lifetime non-clog burners in front, plus four 40,000 BTU Pyromax burners in back for rapid boil & wok work.
- Two 45,000 BTU standard ovens with battery-spark ignition— each holds full-size sheet pans both directions.
- 27" deep, cast-iron grate top handles stockpots up to 14" on the rear section.
- 22-1/2" stainless flue riser with integrated shelf keeps essentials within reach.

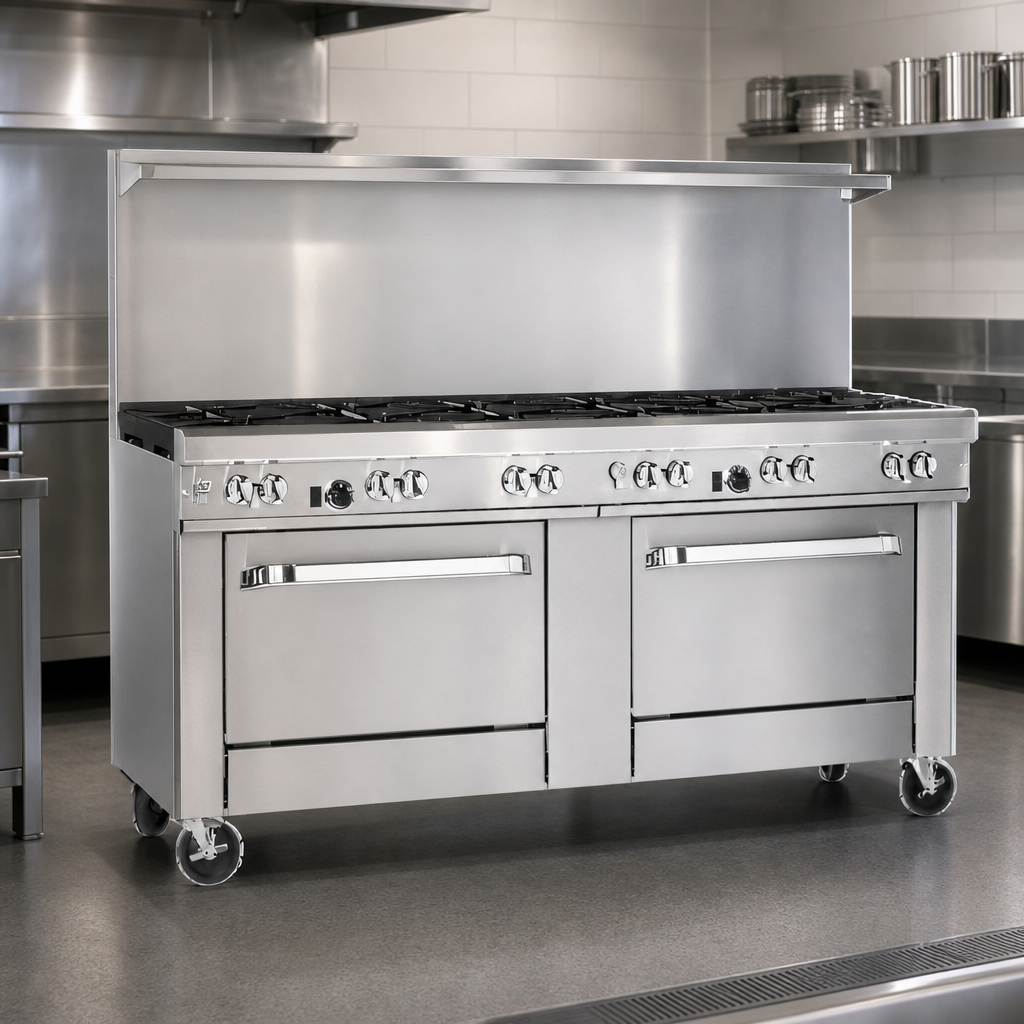

- Stainless steel front, sides, rail & shelf plus 6" adjustable legs for easy leveling.
- Front-mounted manual gas shut-off valves on both sides for fast service isolation.
- Factory-installed regulator, CSA & NSF listings, and a 1-year parts & labor warranty.
At-a-Glance Specifications
| Model | Ultimate 472_DD (Custom 10-Burner) |
|---|---|

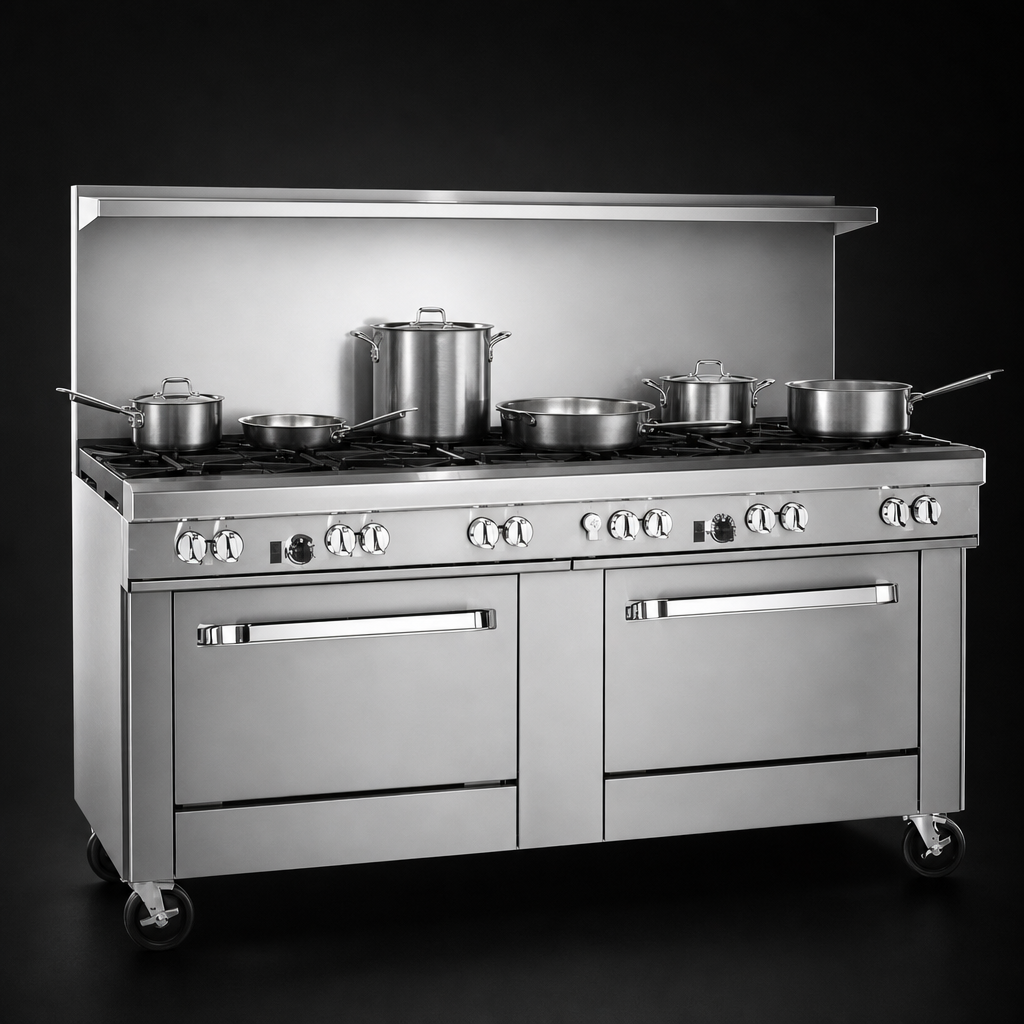

| Overall width | 73 in (1854 mm) |
| Overall depth | 34 in (864 mm) |
| Cook-top height | 37 in (940 mm) |
| Total BTU input | 448,000 BTU/hr (Natural Gas) |
| Open burners | 6 × 33 K BTU (front) & 4 × 40 K BTU (rear) |
| Ovens | (2) Standard, 45 K BTU each, 175–550 °F thermostat |
| Oven interior (each) | 26 W × 26.5 D × 14 H in (660 × 673 × 356 mm) |
| Gas connection | 3/4" NPT, min. inlet pressure 7" WC (NG) |
| Ignition | Standing pilot (burners) · Battery spark (ovens) |
| Construction | Stainless steel exterior, cast-iron grates & burners |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see warranty details) |
What’s in the Box
- (1) rack per oven (2 total)
- (2) removable, one-piece drip trays
- Factory pressure regulator
- 6" stainless steel adjustable legs
- Product manual & warranty card
Popular Add-Ons (Sold Separately)
- Quick-disconnect gas hose kits (3–5 ft)
- Extra oven racks
- Casters—front locking, all-swivel
- Shelf-mount salamanders & cheesemelters
- Flame-failure safety system
Ask our team to add accessories to your quote.
