Southbend (Middleby) 4725DD-3GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 72" Gas Restaurant Range
3 Sauté Burners • 2 Pyromax Burners • 36" Right-Side Griddle • Double Standard OvensCrush the rush with the range that was built for it. Southbend’s Ultimate Series packs 333,000 BTU of raw, even heat into a 72" footprint, giving chefs the freedom to sauté, sear, simmer, griddle and bake—all at the same time—without sacrificing valuable line space.
Why You’ll Love It

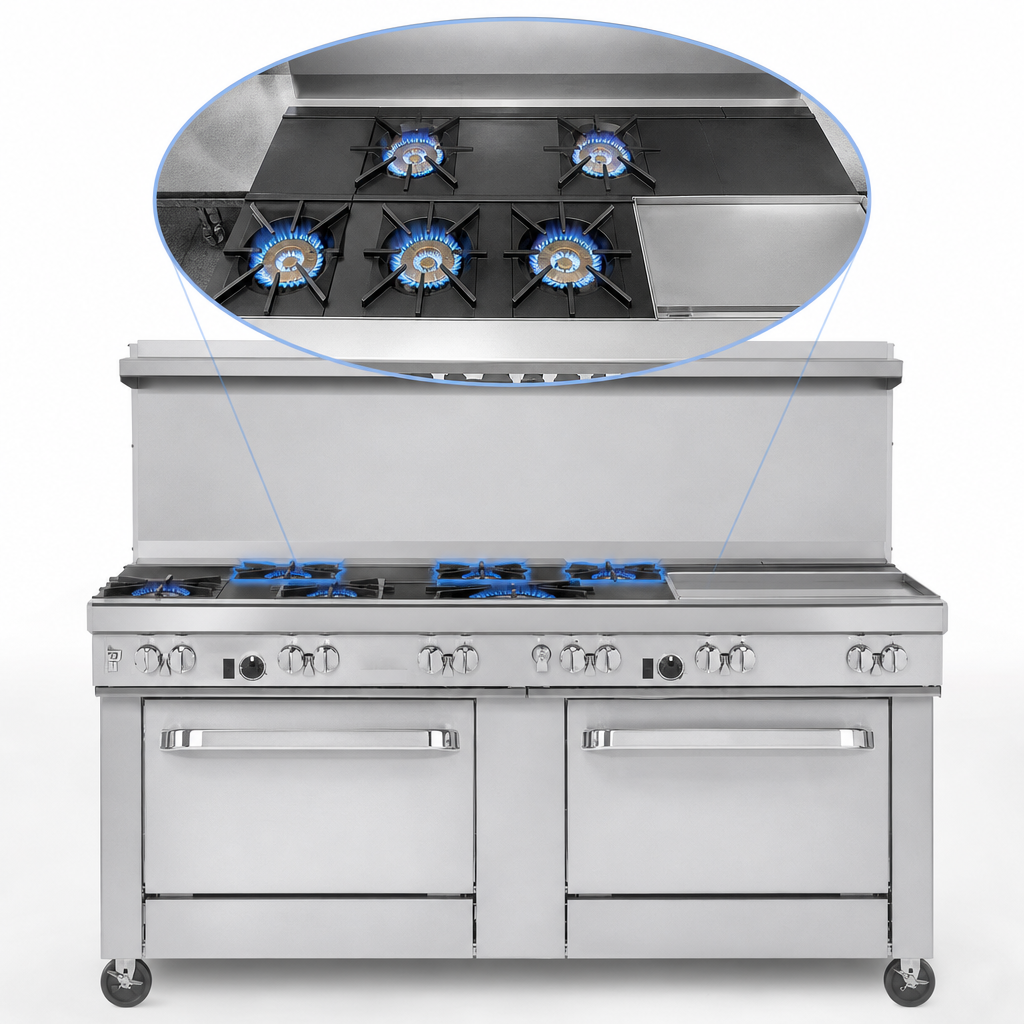

- 5-burner “power & precision” layout—(3) 33,000 BTU sauté burners in front, (2) 40,000 BTU Pyromax stock-pot burners in back.
- 36" right-side griddle with ½" cold-rolled steel plate (64,000 BTU) for all-day breakfast, smash burgers & more.
- (2) full-size standard ovens (45,000 BTU each) with battery-spark ignition—fits 18"×26" sheet pans either direction.
- Rugged all-stainless exterior and 4" front rail stand up to daily abuse and wipe down fast.
- Front-mounted manual gas shut-off valves—one per side—for instant service isolation.
- 22½" flue riser with heavy-duty shelf keeps plates, pans and seasoning within arm’s reach.
- Six 6" stainless steel adjustable legs provide rock-solid stability on uneven kitchen floors.
- cCSAus, CSA Flame, CSA Star & NSF listed for gas safety, sanitation and performance.
At-a-Glance Specs
| Overall Width | 73" (1854 mm) |
|---|---|
| Depth × Cooking Height | 34" D × 37" H |
| Burner Configuration | (3) 33 k BTU sauté + (2) 40 k BTU Pyromax |
| Griddle | 36" right, ½" plate, 64 k BTU |
| Ovens (Qty/Type) | 2 × Standard (battery-spark ignition, 175 – 550 °F) |
| Total Input | 333,000 BTU/hr |
| Gas Connection | ¾" NPT (Nat 7" WC / LP 11" WC) |
| Included Oven Racks | 1 rack per cavity (2 total) – 2-position rail |
| Construction | Stainless front, sides, shelf & flue riser; porcelain-enameled oven cavities |
| Warranty | 1-year parts & labor (factory authorized service) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
What’s In the Box
- Factory-installed gas pressure regulator
- (4) removable cast-iron grate tops
- (2) porcelain-lined drip trays
- (6) 6" stainless adjustable legs
- Owner’s manual & warranty registration card
Popular Add-Ons (Sold Separately)
- Casters—full swivel, front-locking
- Extra oven racks
- 10" or 5" low-profile flue risers
- Quick-disconnect gas hose kits (3', 4', 5')
- Shelf-mount salamander or cheesemelter
Intended for commercial use only. Oversized cookware (ø 12" +) should be kept to the rear burners to avoid excessive rail heat.
