Southbend (Middleby) 4725AA Ultimate Gas Ranges
Description

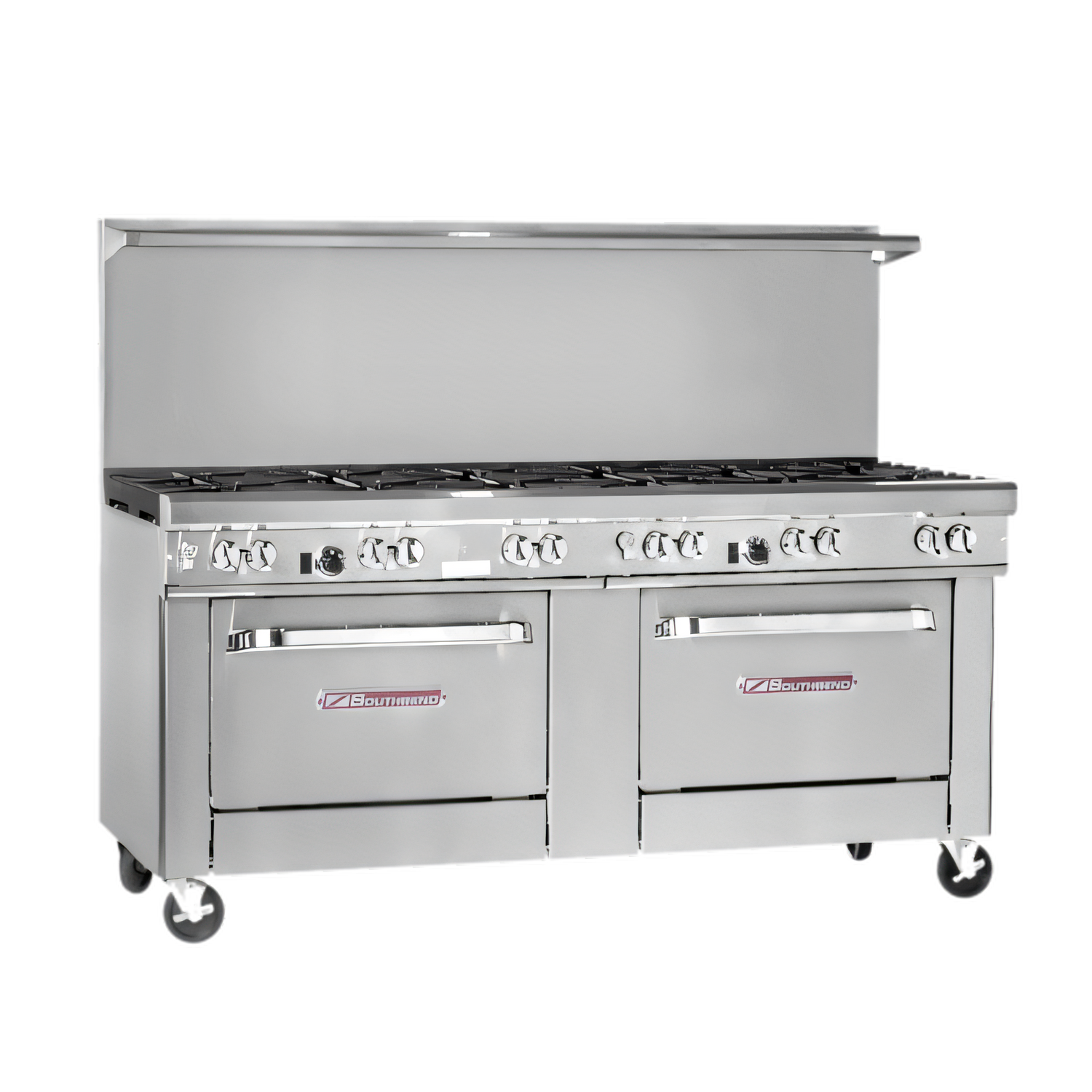

Southbend Ultimate 72″ Gas Restaurant Range – 6 Non-Clog & 4 Pyromax Burners with Double Convection Ovens
Model 472 Ultimate Series • 422,000 BTU • CSA & NSF ListedEngineered for kitchens that never slow down, the Southbend Ultimate 72″ range combines the industry’s most reliable open-top burners with two high-performance convection ovens—all wrapped in a fully welded stainless-steel cabinet. From rapid sautéing to high-volume baking, this one piece of equipment does it all while saving valuable line space.

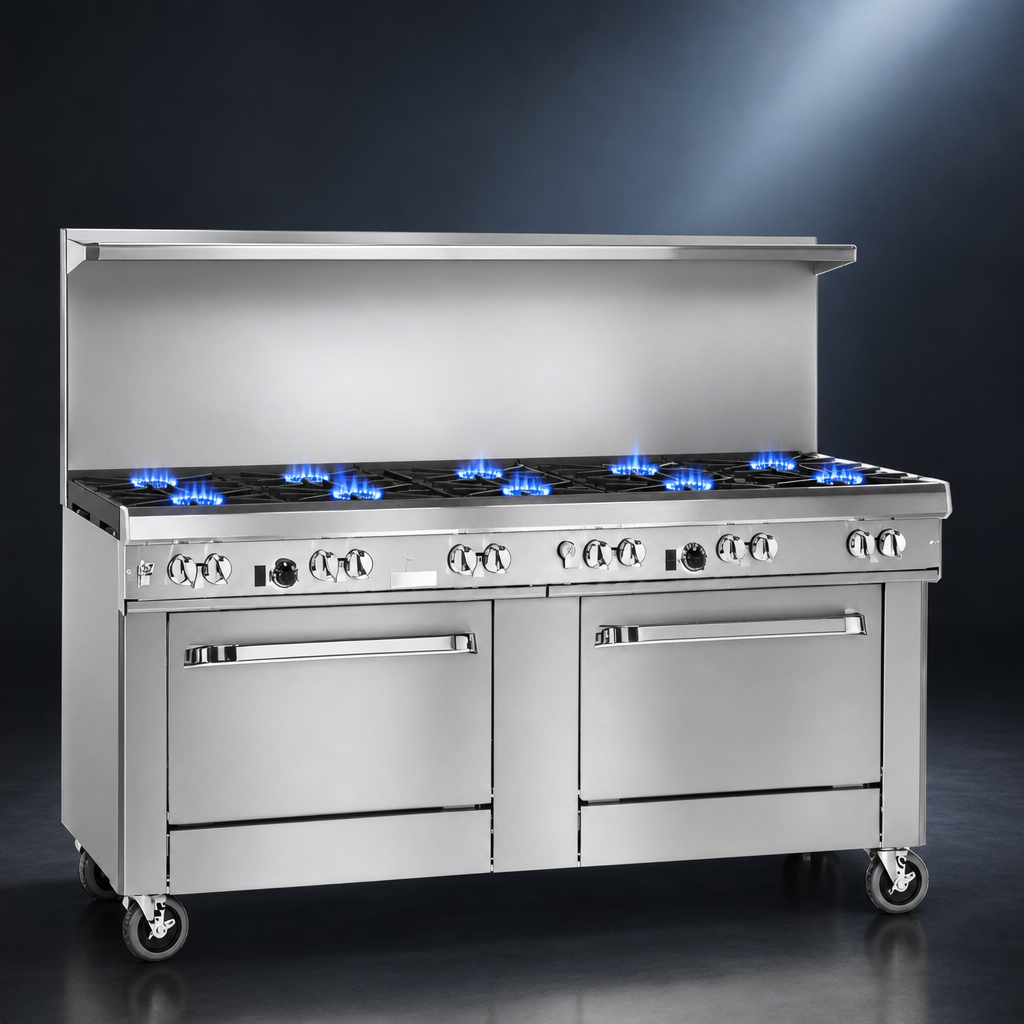

Unmatched Top-Of-Range Versatility
- Six 33,000 BTU lifetime non-clog burners (front row) – patented one-piece cast iron design resists grease build-up and never needs drilling out.
- Four 40,000 BTU Pyromax step-up burners (rear row) – ideal for stockpots and rapid heating without crowding the front rail.
- 27″-deep cooking surface with four removable cast-iron grates; rear grates accept up to 14″ diameter pots.
- Independent standing pilots for instant, match-free lighting.
- Two front-mounted manual gas shut-off valves let you isolate either side of the range for service or energy savings.

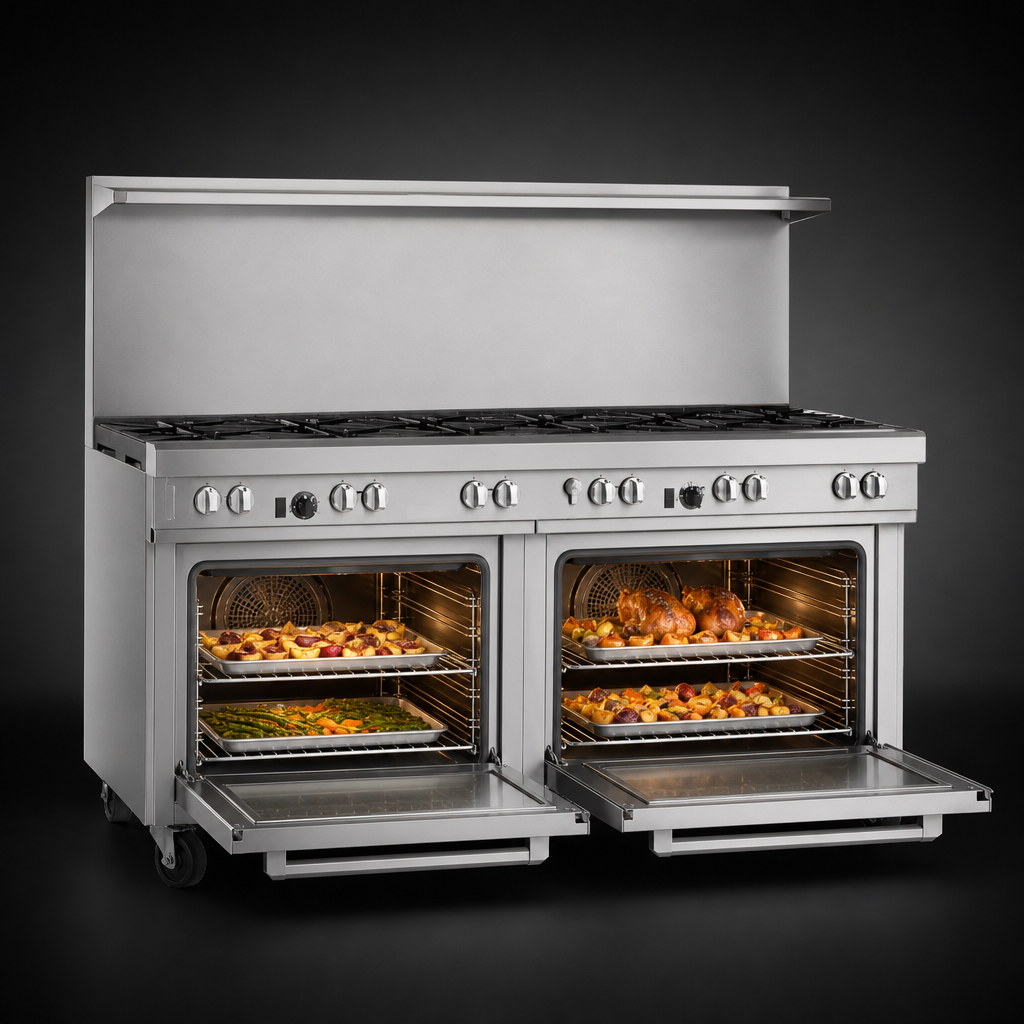

Double Convection Performance
- (2) 32,000 BTU convection ovens with battery-spark ignition—no external power needed for lighting.
- 14″H × 26″W × 24″D porcelain-enameled cavities fit full-size sheet pans—both directions.
- (3) heavy-duty nickel-plated racks per oven with 5-position side rails.
- ½ HP, 1-speed fan motor (115 V, 5.9 amps total) for fast, even heat circulation; on/off fan switch allows standard-oven mode.
- Thermostat range 175 °F – 550 °F.
Heavy-Duty Construction
- All stainless-steel front, sides, 4″ front rail, 22.5″ flue riser with integrated utensil shelf, and 6″ adjustable legs.
- (2) extra-wide one-piece drip trays speed daily cleanup.
- Spring-assisted oven doors stay cool and close smoothly—no slammed hinges.
- Factory-installed gas pressure regulator and ¾″ NPT rear connection for fast hook-up.
- Made in the USA and backed by a 1-year parts & labor warranty.
Specifications
| Overall width | 73″ (nominal 72″ series) |
|---|---|
| Overall depth | 42 ⅛″ |
| Work-surface height | 37″ |
| Flue riser height | 22 ½″ (to top of shelf: 59 ½″) |
| Total input | 422,000 BTU/hr (NG) |
| Open burners | 6 × 33 k BTU + 4 × 40 k BTU |
| Ovens | 2 × 32 k BTU convection; 175–550 °F |
| Oven interior (each) | 14″H × 26″W × 24″D • 3 racks included |
| Gas connection | ¾″ NPT • Min. inlet 7″ W.C. (NG) |
| Electrical | 115 V / 60 Hz / 1-ph • 5.9 A • 6′ cord & plug |
| Shipping weight | ≈ 1,075 lb |
| Certifications | CSA, NSF |
Popular Options (sold separately)
- Swivel caster set (front locking) for easy cleaning access.
- 5″ or 10″ flue riser.
- Flexible gas hose with quick-disconnect (3-, 4-, or 5-ft lengths).
- Salamander or cheesemelter mounting kits.
- Extra oven racks & battery-spark ignition for open tops.
Peace-of-Mind Warranty
Southbend covers this range with a 1-year limited parts & labor warranty when installed by an authorized service agency. Extended protection plans are available—ask your rep for details.
