Southbend (Middleby) 4725AA-3TR Ultimate Gas Ranges
Description

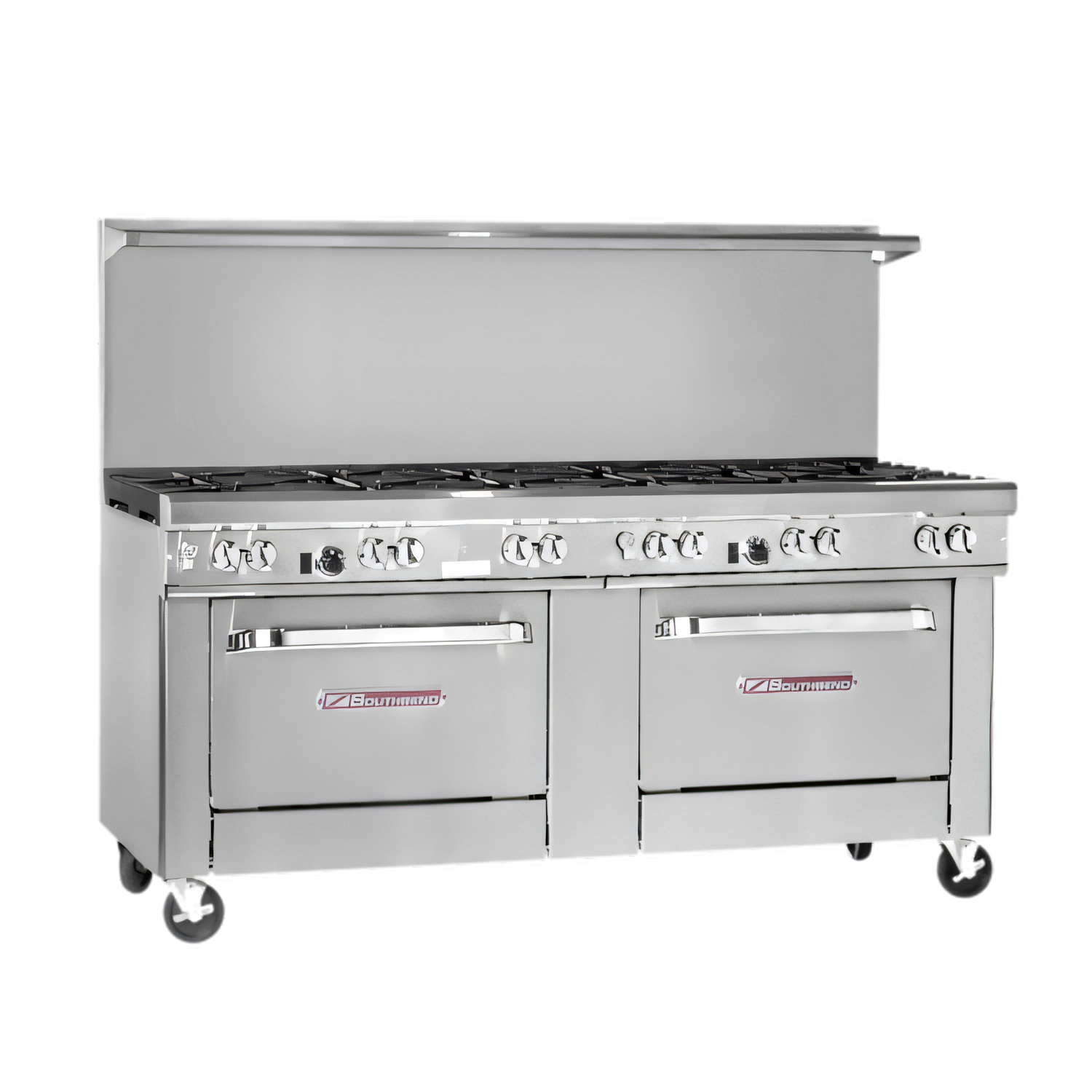

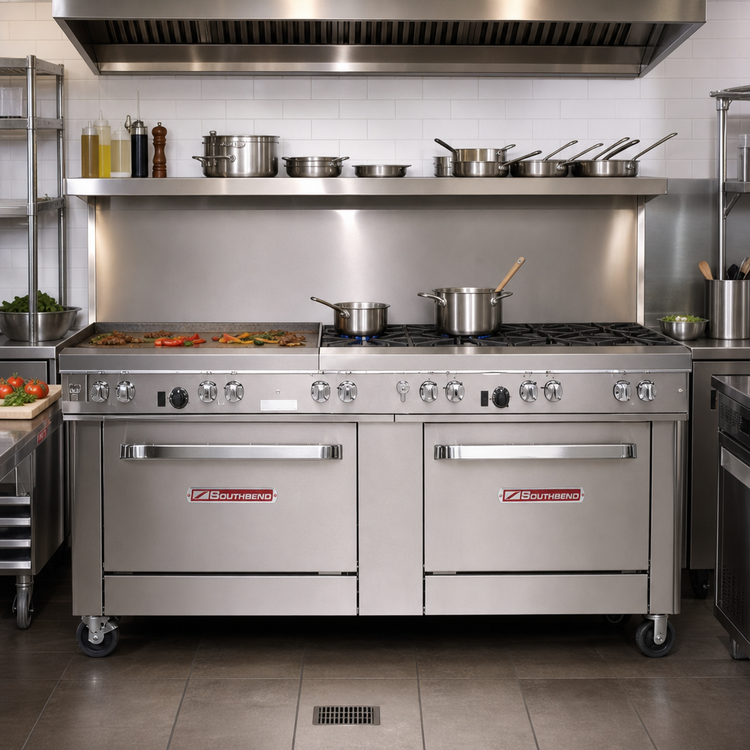

Southbend Ultimate 72" Gas Restaurant Range
3-Sauté | 2-Pyromax | 36" Thermostatic Griddle | Twin Convection OvensBuilt for busy commercial kitchens that refuse to compromise, the Southbend Ultimate 72" Range packs 307,000 BTU of searing power, precise griddle control, and high-performance convection baking into one stainless-steel workhorse. From rapid sauté service to perfectly even sheet-pan loads, this range does it all while saving valuable line space.
Key Features

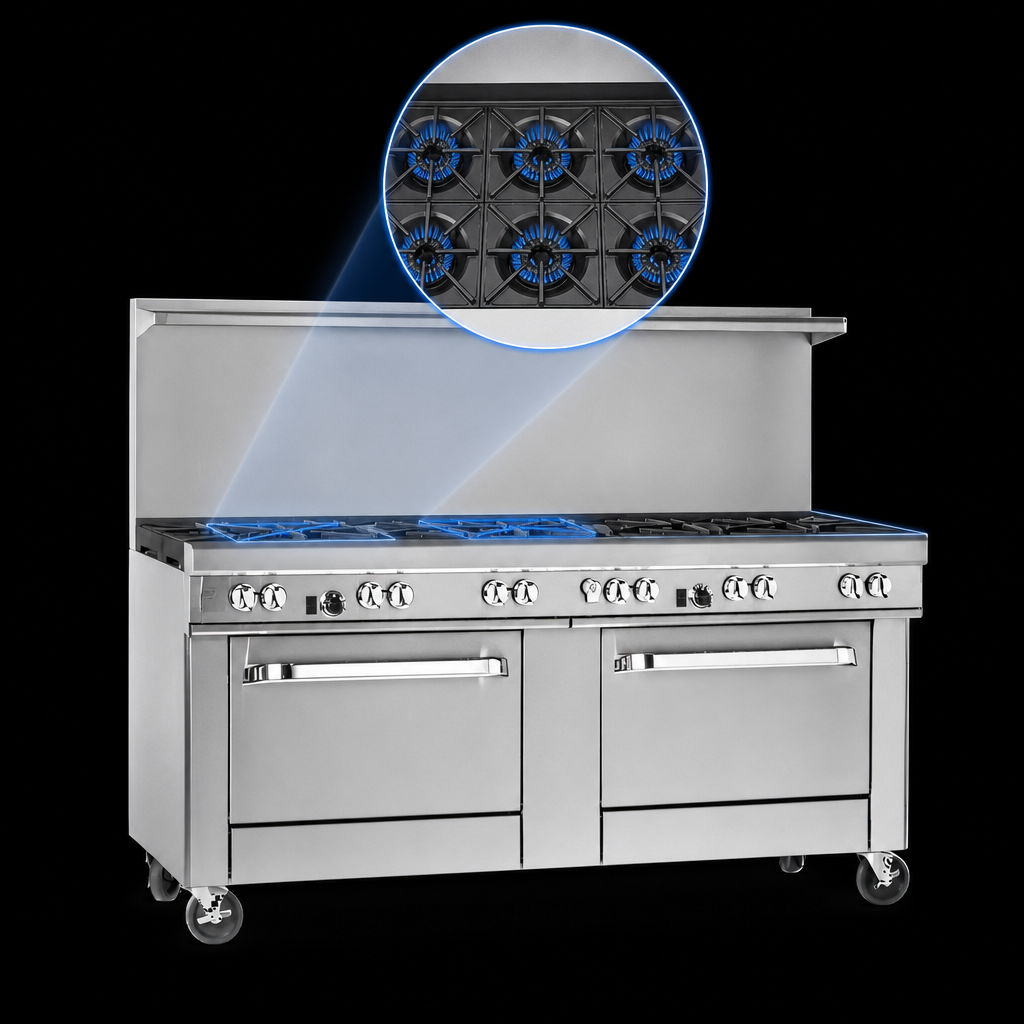

- Five open burners:
- (3) 33,000 BTU sauté burners in front for rapid heat response
- (2) 40,000 BTU Pyromax burners in rear handle stock pots up to 14"

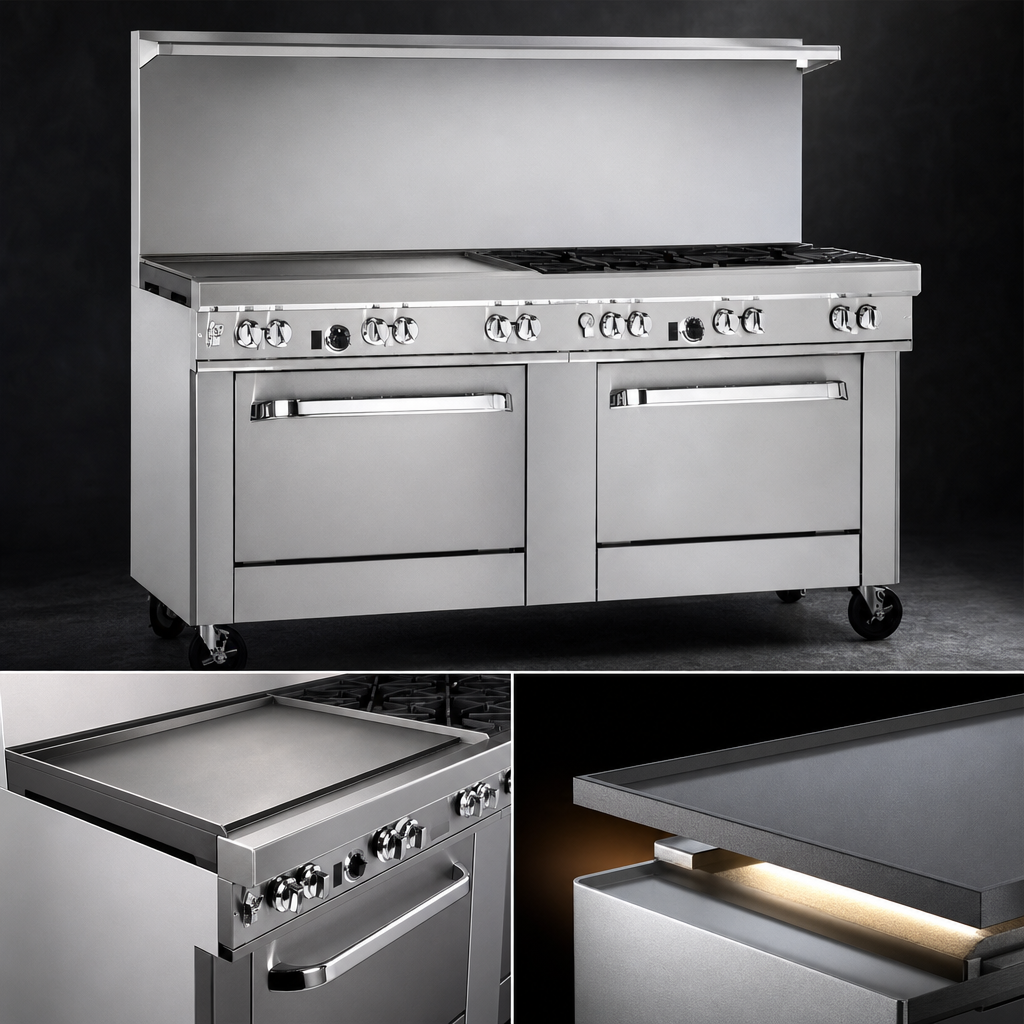

- Right-side 36" griddle, ½" cold-rolled steel plate with thermostatic controls for exact temperature dialing
- Dual 32,000 BTU convection ovens with battery-spark ignition – three racks and five positions per cavity
- 22½" flue riser with heavy-duty stainless shelf keeps pans and spices within arm’s reach
- 4" deep front rail plus two front-mounted manual gas shut-offs for fast, safe service
- All-stainless front, sides, shelf, and six 6" adjustable legs for long-lasting good looks and easy sanitation
- Factory-installed regulator and standing pilots on all open burners
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation compliance
- One-year parts & labour warranty backed by Southbend’s nationwide service network
At-a-Glance Specs
| Overall width | 72" (nominal) / 73" actual |
|---|---|
| Depth (to front rail) | 42.13" |
| Cooking surface height | 37" |
| Height w/ flue riser | 59.5" |
| Total BTU input | 307,000 BTU/hr |
| Open burners | 3 × 33 k & 2 × 40 k BTU |
| Griddle section | 36" W, thermostatic, 64 k BTU |
| Ovens (2) | Convection, 32 k BTU each Interior 26" W × 24" D × 14" H |
| Gas connection | ¾" NPT, rear – min. 7" WC NG / 11" WC LP |
| Electrical (ovens) | 115 V, 1-phase, 5.9 A, 6' cord & 3-prong plug |
| Shipping weight | Approx. 1,075 lb |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Why Choose the Ultimate Series?
- Heavy-duty cast-iron grates and Pyromax burners built to thrive under continuous, high-heat operation
- Coved, porcelain-enameled oven interiors for effortless wipe-down and even airflow
- Field-proven battery ignition eliminates the need for external power at start-up
- Modular design pairs seamlessly with Southbend salamanders, cheesemelters, and charbroilers
Warranty & Service
One-year limited parts & labour warranty. Installation must follow local codes and Southbend guidelines. Commercial use only. Full terms available on the Southbend website.
Need flexible payments? Ask us about Middleby Equipment Financing and turn this powerhouse into affordable monthly installments.
