Southbend (Middleby)

Ultimate 72-Inch Gas Restaurant Range with 5 Burners, 36-Inch Griddle, and Dual Convection Ovens

SKU: 4725AA-3G
$22,369.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Ultimate 72-Inch Gas Restaurant Range with 5 Burners, 36-Inch Griddle, and Dual Convection Ovens

73-inch wide stainless steel body with 22-1/2-inch flue riser and shelf

A high-output stainless steel range that combines versatile top cooking with two convection ovens for one complete heavy-duty kitchen station.

  • 72-inch gas restaurant range with five top burners and a 36-inch griddle
  • Dual convection ovens with battery spark ignition and three racks per oven
  • 307,000 BTU total output for demanding high-volume service
  • Stainless steel front, sides, and shelf with 6-inch adjustable legs
  • 22-1/2-inch flue riser with shelf/backriser adds utility behind the range
  • Standing pilot burners plus a factory-installed regulator and front gas shut-offs

Overall Dimensions:

73.0"W x 41.8"D x 59.5"H

Product Weight:

1320.0 lb

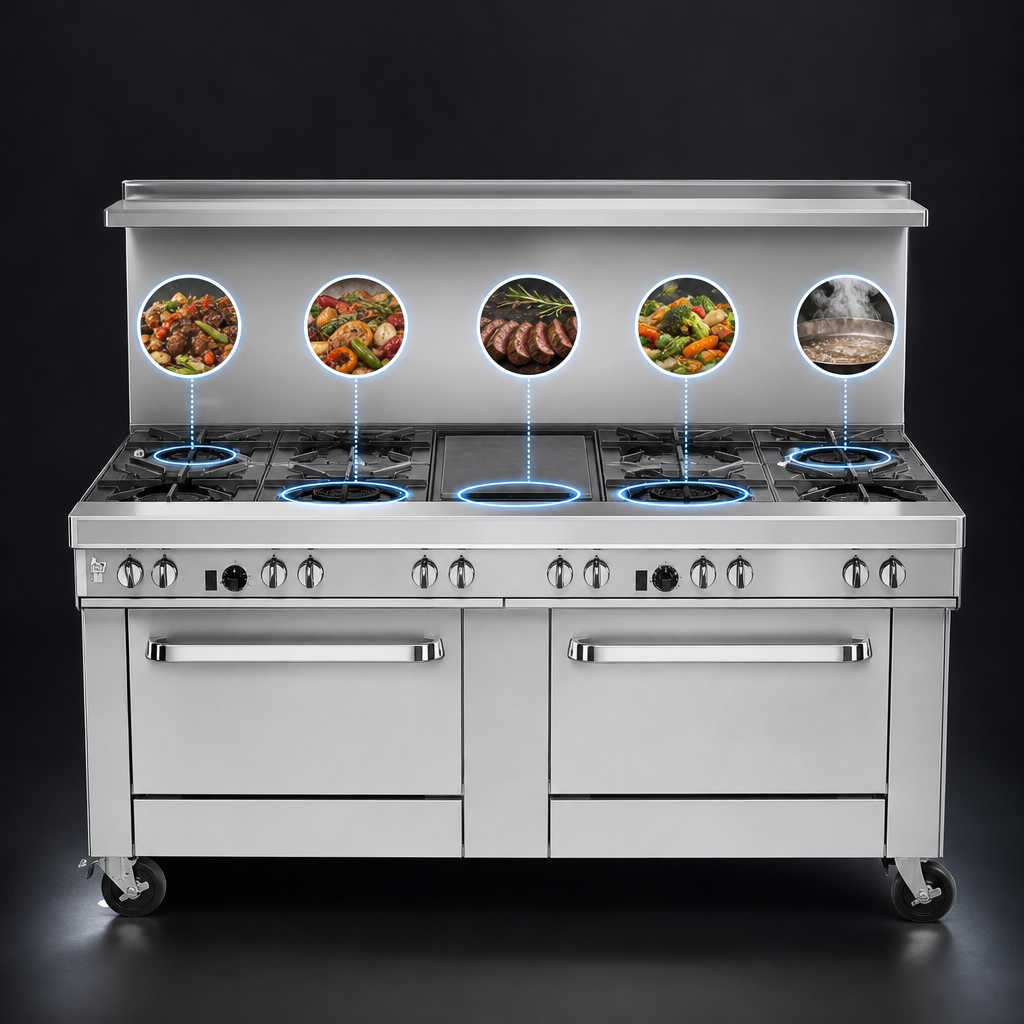

Five-Burner Top Configuration

Three front sauté burners and two rear Pyromax burners provide flexible open-top cooking zones.

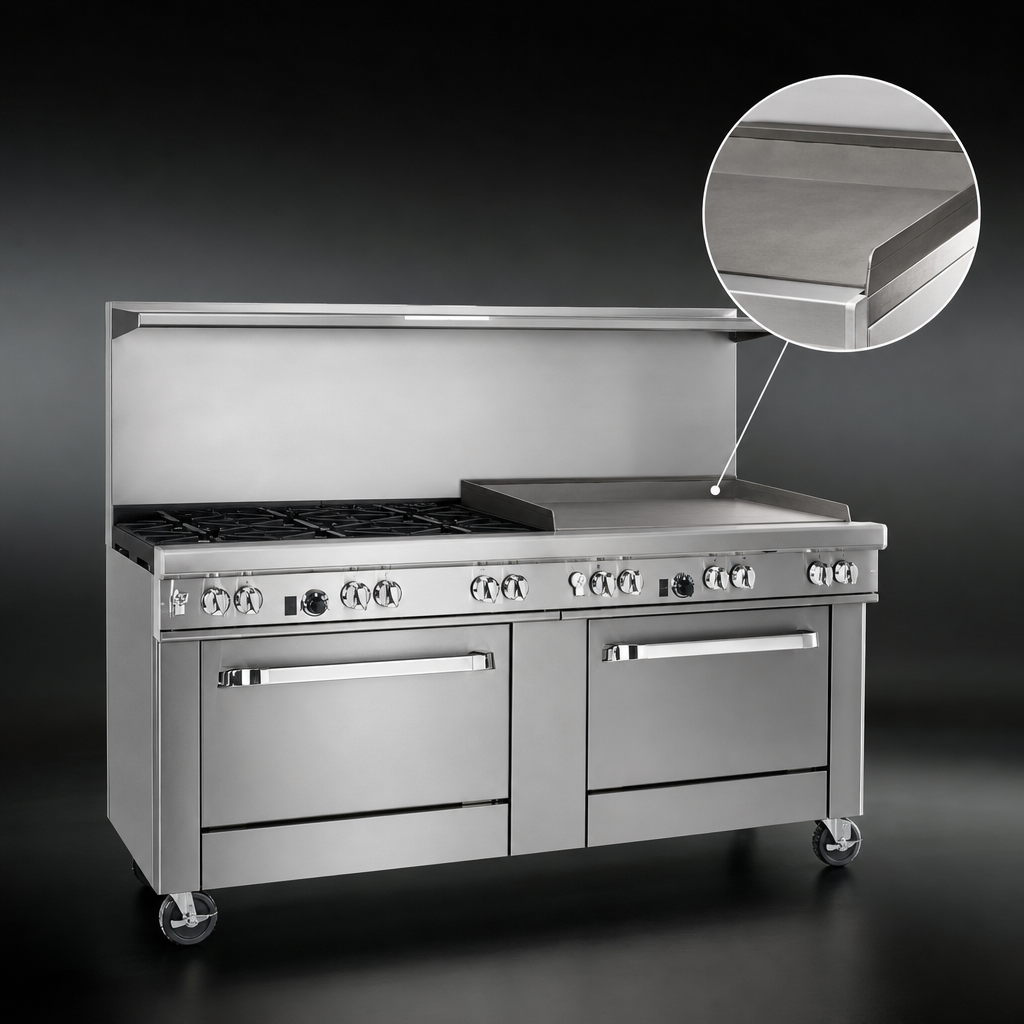

36-Inch Griddle Section

Includes a 1/2-inch thick cold-rolled steel griddle plate for flat-top cooking.

Dual Convection Ovens

Two oven bases are included with battery spark ignition for added baking and roasting capacity.

Oven Rack Package

Three racks are included per oven for a total of six oven racks.

Wide Temperature Range

Convection ovens operate from 175°F to 550°F for versatile baking performance.

Stainless Steel Construction

Stainless steel front, sides, and shelf provide durability and easier cleanup.

Flue Riser With Shelf

The 22-1/2-inch flue riser includes a heavy-duty shelf/backriser.

Factory-Installed Gas Hardware

Includes a factory-installed regulator and front-located manual gas shut-off valves.

Adjustable Support Legs

Six 6-inch stainless steel adjustable legs are standard for leveling the range.

Standing Pilot Ignition

Standing pilot ignition is used for the open top burners.

Type Restaurant Range
Style Open Burner / Griddle / Convection Oven
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain Enamel
Finish Stainless Steel
BTU 307,000 BTU
Gas Type Natural Gas
Voltage 115 Volts
Hertz 60 Hz
Shipping Width 73 Inches
Shipping Depth 42 Inches
Shipping Height 60 Inches
Shipping Weight 1320 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has five top burners, one 36-inch griddle, and two convection oven bases.
Each convection oven includes three racks.
The convection ovens are thermostatically controlled from 175°F to 550°F.
The convection oven motors use 115V AC power at 60 Hz.
Southbend's limited warranty provides 1 year of parts and labor from the date of original purchase.
