Southbend (Middleby)  |  Ultimate  |  SKU: 4725AA-3CL

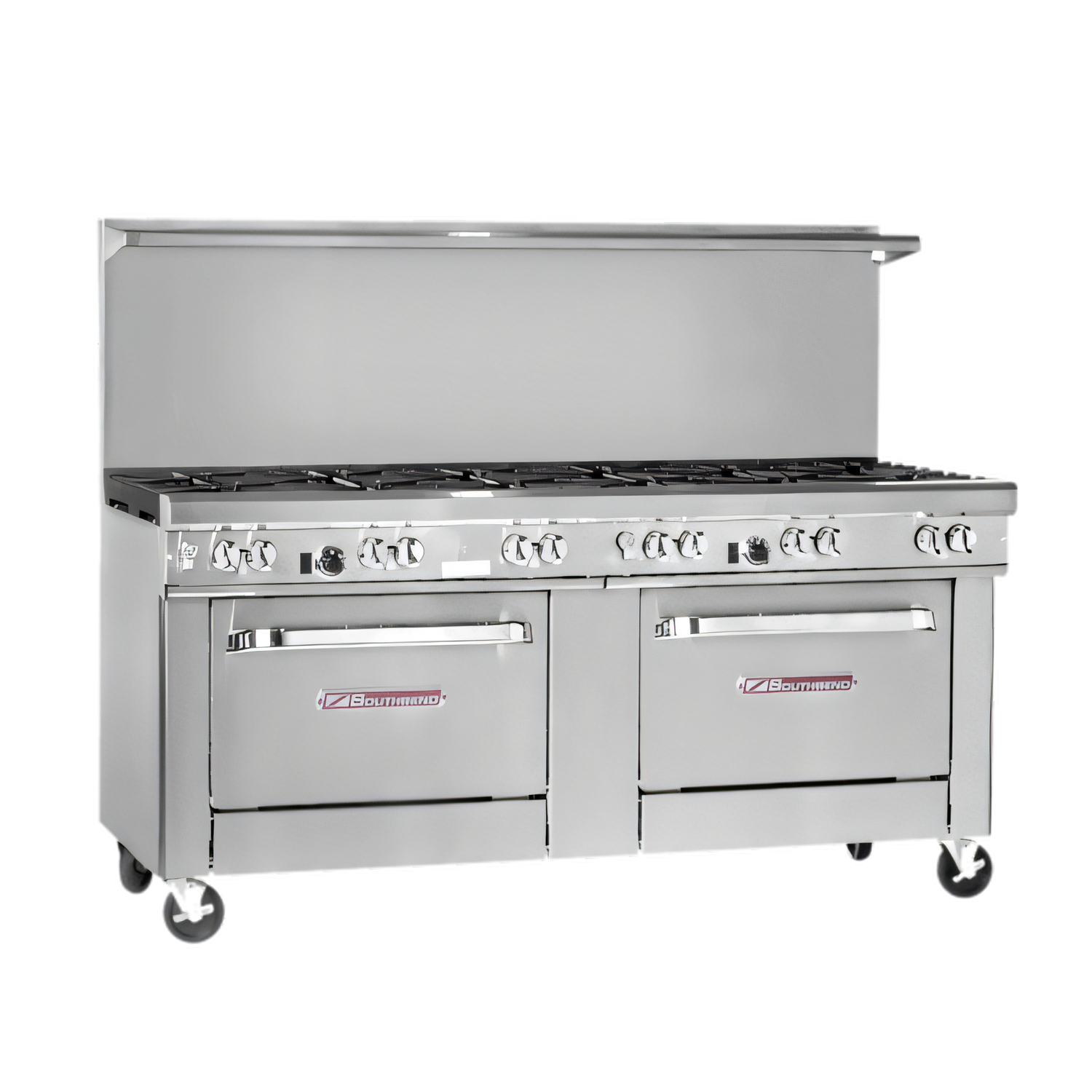

Southbend (Middleby) 4725AA-3CL Ultimate Gas Ranges

$22,982.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 72" Gas Restaurant Range

3 Sauté Burners • 2 Pyromax Burners • 36" Charbroiler • Dual Convection Ovens

Replace a crowded cook line with one rugged, all-in-one workhorse. The Southbend Ultimate 72" Range combines blazing open-top heat, a high-output charbroiler, and two full-size convection ovens—delivering the versatility a busy kitchen needs, in the footprint it has.

Performance & Construction Highlights

  • 339,000 total BTU for fast recovery during the dinner rush
  • (3) 33,000 BTU front sauté burners – instant heat control for pans & sauces
  • (2) 40,000 BTU rear Pyromax burners – perfect for woks & 14" stock pots
  • Left-mounted 36" charbroiler (96,000 BTU) with removable cast-iron grates
  • Dual 32,000 BTU convection ovens with battery spark ignition & 5-position rack guides (3 racks included per oven)
  • 22-1/2" flue riser with heavy-duty storage shelf keeps chef’s pans within reach
  • 4" deep stainless front rail plus stainless front, sides & shelf for lasting durability
  • Standing pilots on top section; factory regulator & front gas shut-off valves
  • 6" stainless steel adjustable legs level the unit on uneven floors
  • Certified CSA & NSF; backed by a 1-year parts & labor warranty

Technical Specifications

Cooking surface 72" W × 27" D
Overall dimensions (w/ riser) 73" W × 42.13" D × 59.5" H
Cooking height 37"
Oven interior (each) 26" W × 24" D × 14" H
Total BTU input 339,000 BTU/hr (natural gas)
Gas connection 3/4" NPT, min. 7" W.C. natural / 11" W.C. LP
Electrical (ovens) 115 V, 5.9 A, 6' cord with 3-prong plug
Certifications CSA, NSF
Warranty 1-year parts & labor
Installation & Safety Note: Install beneath a vented hood and on a suitable commercial floor. Never cover the charbroiler grate with a sheet pan during cleaning—excess heat can cause permanent damage and void the warranty.

Perfect For

  • Steakhouses & chop houses
  • High-volume restaurants & hotel kitchens
  • Catering commissaries & culinary schools
  • Any operation that needs the output of multiple pieces in one footprint

Upgrade your line with the power and reliability chefs have trusted since 1898—order the Southbend Ultimate 72" Range today.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

73.0in

Depth

41.8in

Shipping Weight

1320.0lbs

Top

(5) open burners, (1) 36" charbroiler

Vent

backriser with hi-shelf

Base

(2) convection ovens

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 72", (3) sauté burners front, (2) pyromax burners rear, (1) 36" charbroiler left, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 339,000 BTU, CSA, NSF
