Southbend (Middleby) 4721DD Ultimate Gas Ranges
Description

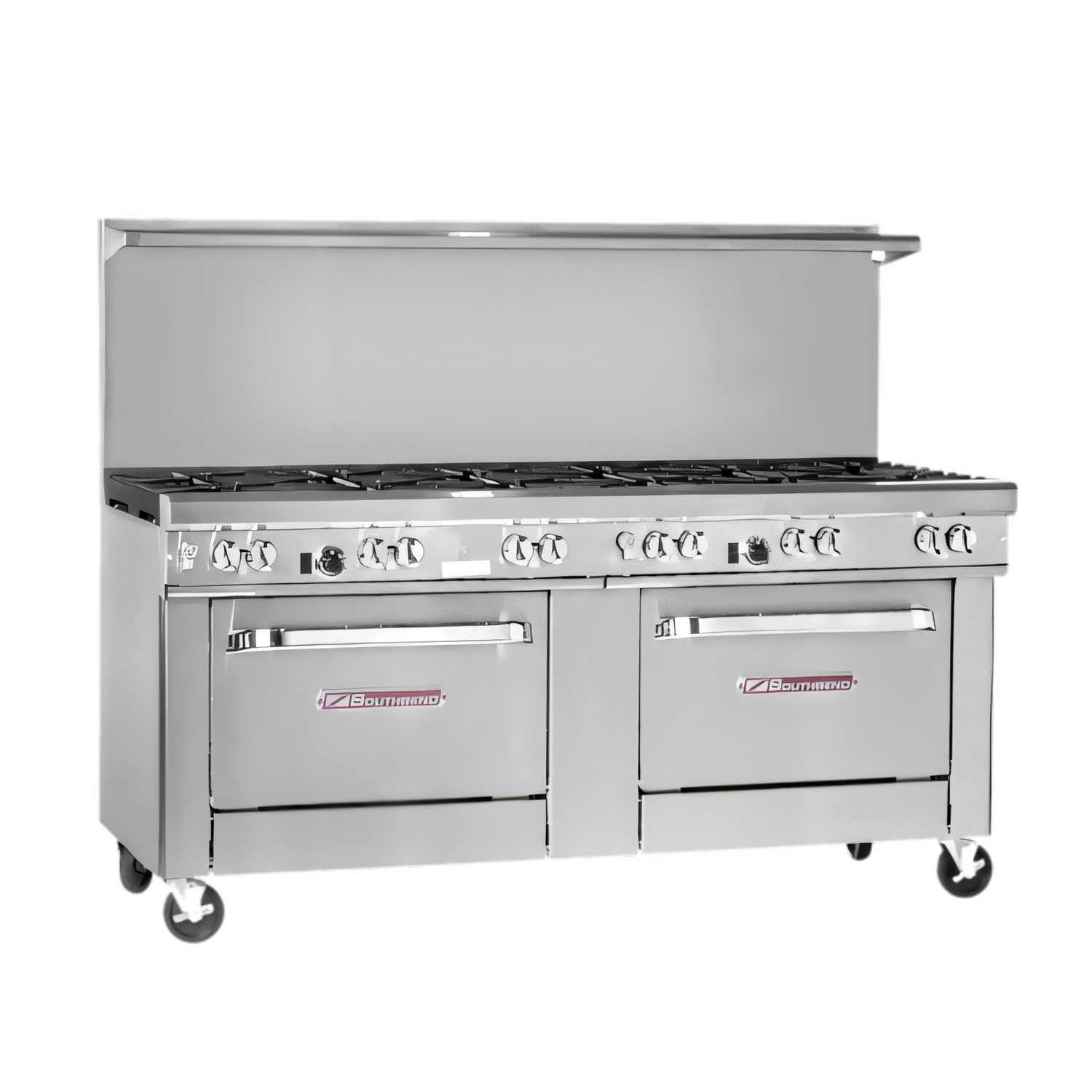

Southbend Ultimate 72" Gas Restaurant Range – 12-Burner, Double Standard Oven
Model 472-DD | 486,000 BTU | CSA & NSF ListedDesigned for the busiest commercial kitchens, the Southbend Ultimate Series gives you uncompromising power, capacity and durability in one 72-inch footprint. Twelve lifetime-clog-free burners, twin full-size ovens and a built-in 22 ½" flue riser with shelf make this range the ultimate all-in-one cooking station.
Key Performance Features

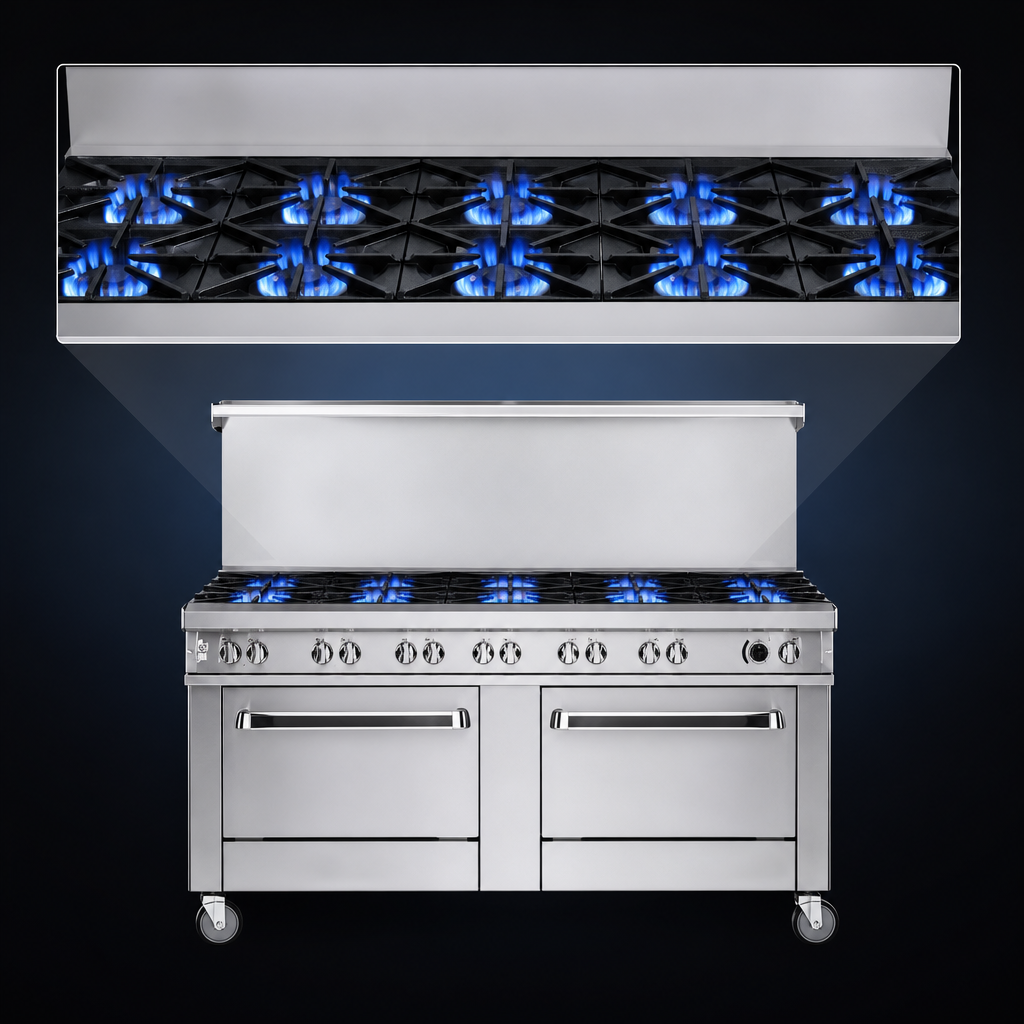

- 12 patented non-clog cast-iron burners, 33,000 BTU each (396,000 BTU total)
- Standing pilots for instant lighting; battery spark ignition for both ovens

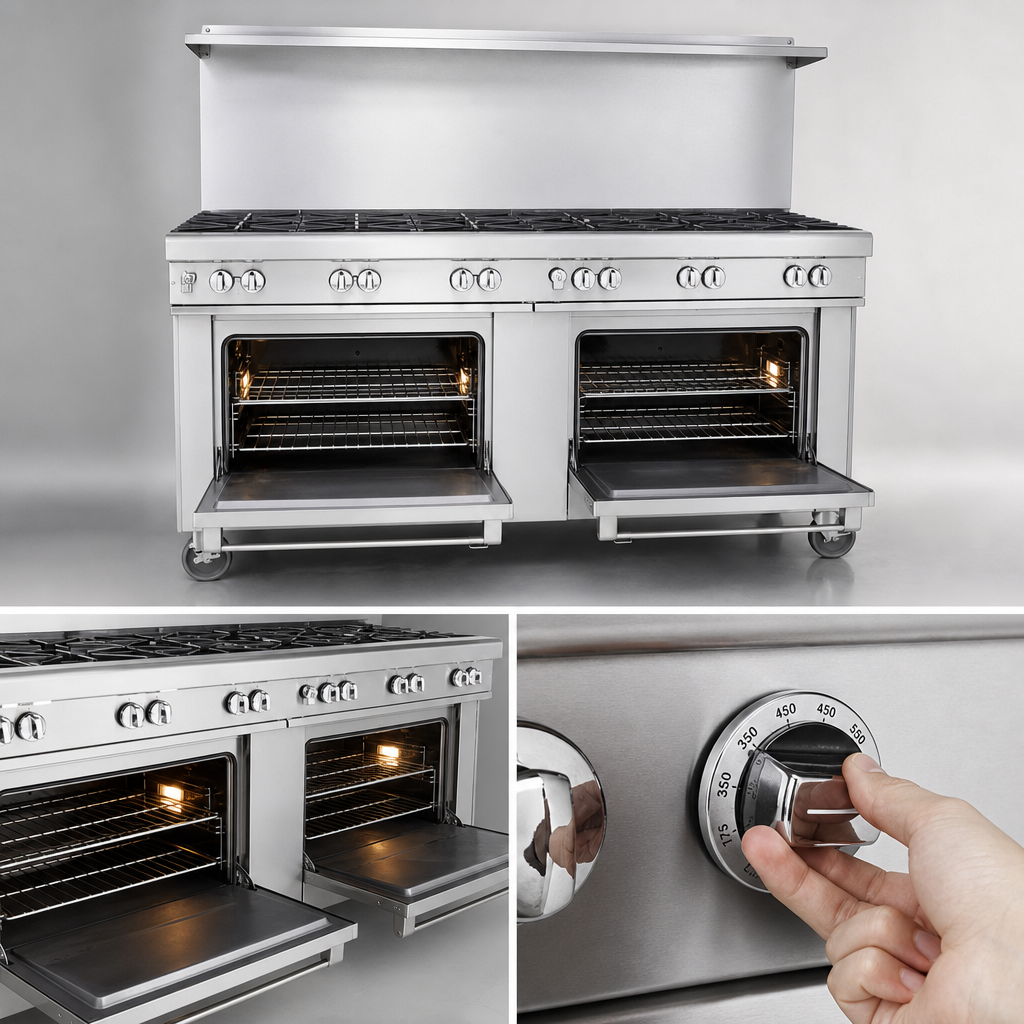

- Two standard ovens, 45,000 BTU each, 175 – 550 °F thermostat range
- Full porcelain-enameled oven cavities with coved corners for even heat & easy cleaning
- (1) chrome oven rack included per oven; fits full-size sheet pans either direction
- 27" deep cooking surface with removable cast-iron grates — rear sections hold up to 14" stock pots
- 22 ½" stainless flue riser & heavy-duty shelf for pans, spices & tools
- 4" wide stainless front rail plus two front-mounted manual gas shut-off valves
- All-stainless front, sides & shelf; six 6" adjustable stainless steel legs
- Factory-installed gas pressure regulator; ¾" NPT rear gas connection
At-a-Glance Specifications
| Overall Width | 73" (1854 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Height w/ Riser & Shelf | 59.5" (1511 mm) |
| Total BTU Input | 486,000 BTU/hr (Natural Gas) |
| Oven Interior (each) | 26" W × 26.5" D × 14" H (660 × 673 × 356 mm) |
| Gas Connection | ¾" NPT, min. 7" W.C. (Natural) |
| Ignition | Standing pilots (top) & battery spark (ovens) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Popular Upgrades & Accessories (sold separately)
- All-swivel locking casters
- 5" or 10" flue risers (without shelf)
- Quick-disconnect gas hose kits (3 ft, 4 ft or 5 ft)
- Extra chrome oven racks
- Salamander & cheesemelter mounting kits
