Southbend (Middleby)  |  Ultimate  |  SKU: 4721DD-5R

Southbend (Middleby) 4721DD-5R Ultimate Gas Ranges

$12,058.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

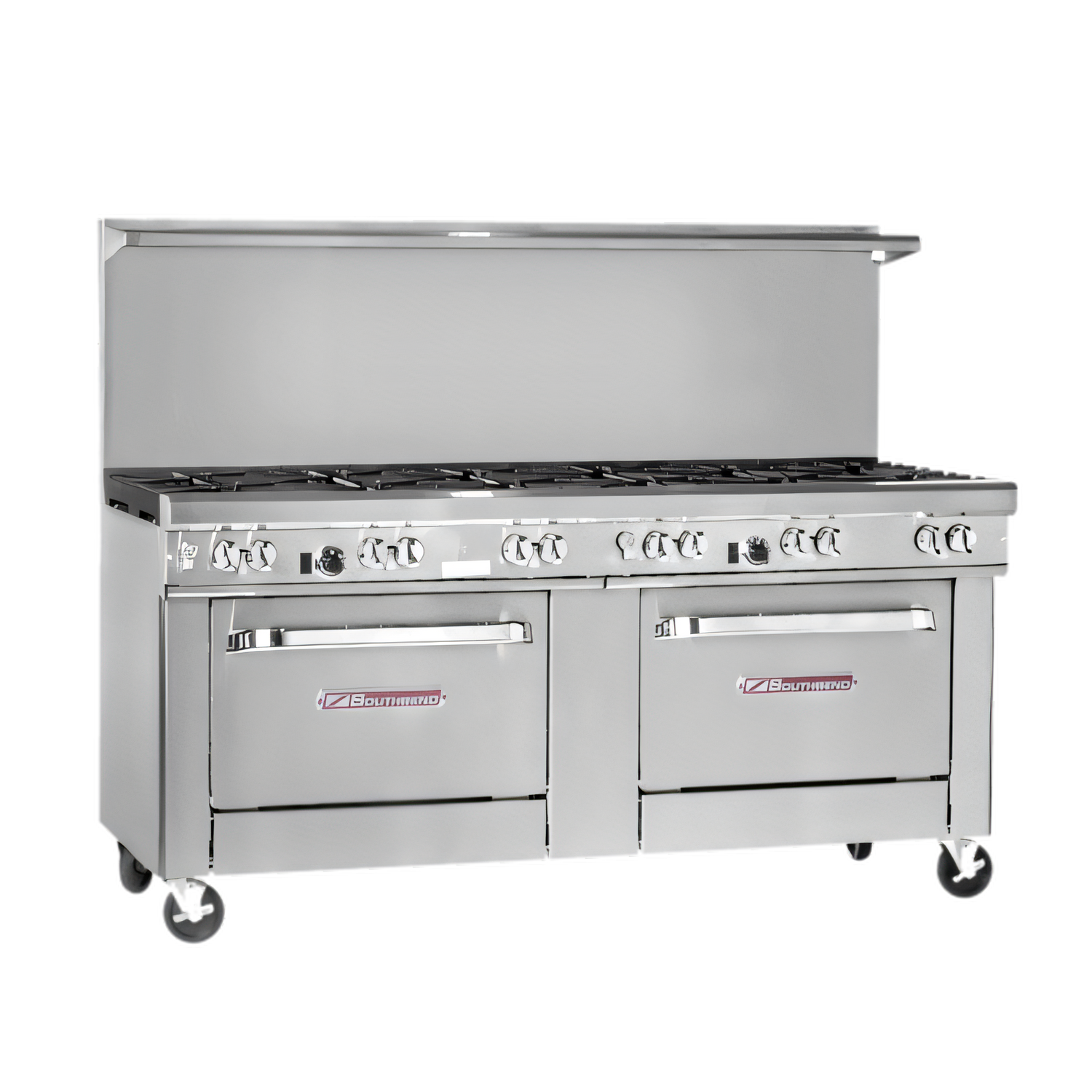

Southbend Ultimate 72" Gas Restaurant Range

Model 4721-DD | 3/2/6 Burner Configuration

Harness 467,000 BTU of precision power in one rugged, all-stainless platform. The Southbend Ultimate 72" range blends nine clog-free restaurant burners, two rear Pyromax™ stock-pot burners, and a pair of full-size ovens—making it the workhorse your kitchen deserves.

Key Features
  • 72" (73") wide commercial gas range with a 37" high, 27" deep cooking surface

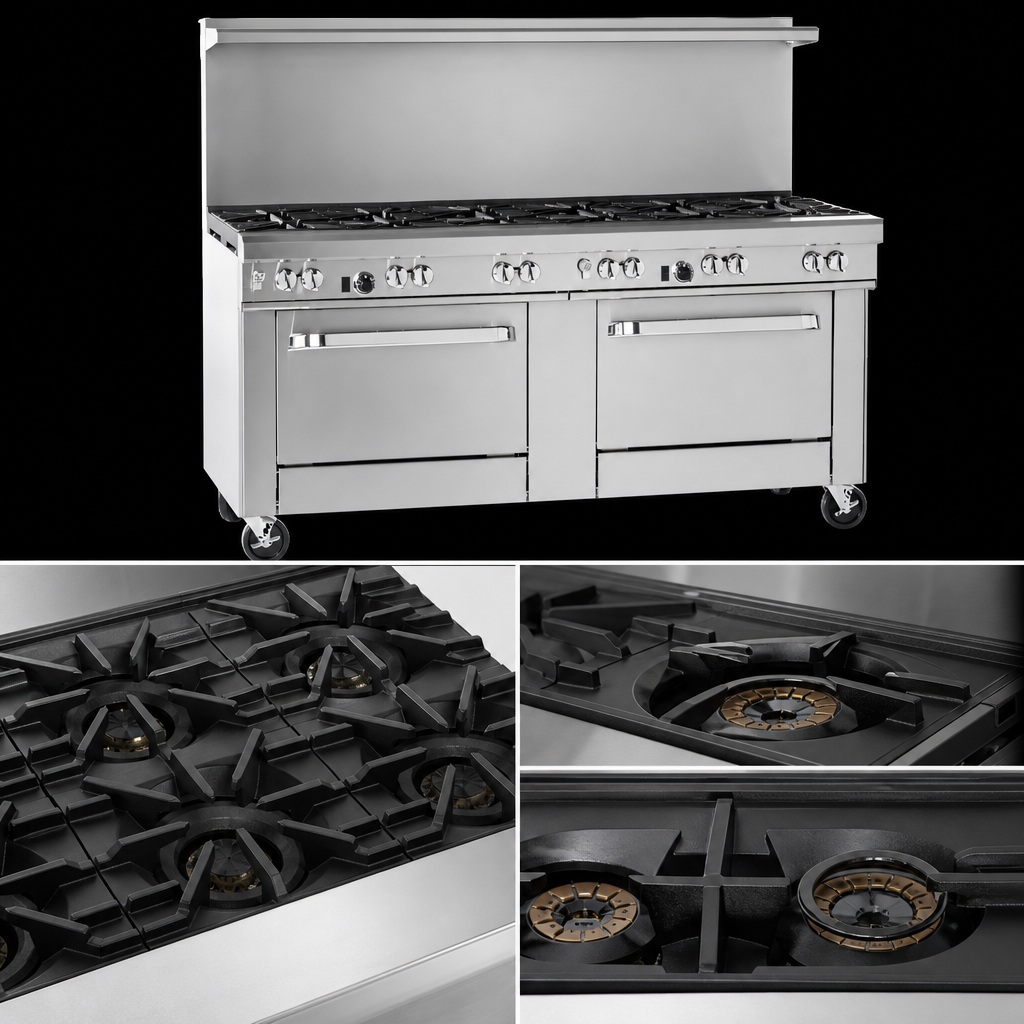

  • (9) patented, one-piece, lifetime non-clog cast-iron burners @ 33,000 BTU each
  • (2) rear Pyromax™ burners @ 40,000 BTU each for rapid boiling & stock-pot work

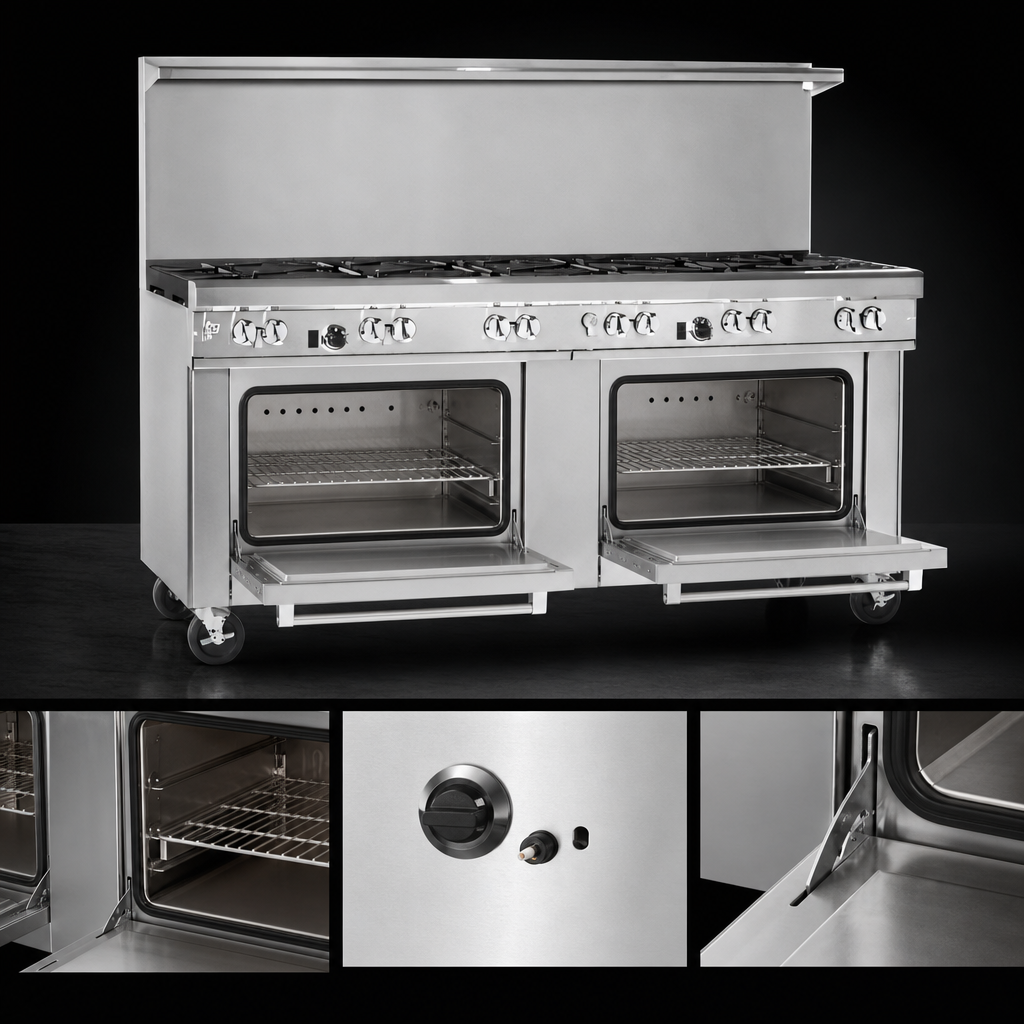

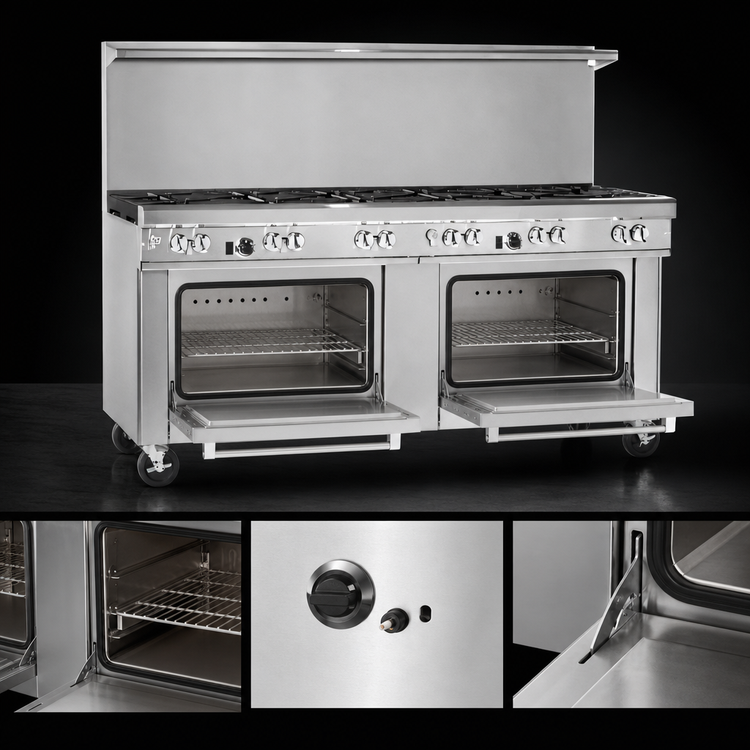

  • (2) standard ovens @ 45,000 BTU each, 175-550 °F thermostat, battery spark ignition
  • Includes one chrome rack per oven (two total)
  • 22 ½" stainless flue riser with heavy-duty plate shelf keeps plates & pans warm
  • Standing pilots for open tops; front-mounted manual gas shut-off valves (one per side)
  • Stainless steel front, sides & 4" front rail—easy to clean, built to last
  • (6) adjustable 6" stainless steel legs for perfect leveling on any surface
  • Factory-installed pressure regulator; CSA & NSF listed
Why Choose the Ultimate Range?
  • 467,000 total BTU handles everything from delicate sauté to high-heat searing
  • Porcelain-enameled, coved-corner ovens bake evenly and wipe clean fast
  • Lifetime non-clog burners slash maintenance downtime and service calls
  • Mix stock-pot burners with restaurant burners on one 72" footprint—no extra equipment needed
Specifications
Width 73" (1854 mm)
Depth 34" (864 mm)
Cooking Surface Height 37" (940 mm)
Overall Height w/ Riser 59.5" (1511 mm)
Total BTU Input 467,000 BTU/hr (natural gas)
Open Burners (9) × 33,000 BTU non-clog
Pyromax Burners (2) × 40,000 BTU rear stock-pot
Ovens (2) standard ovens, 45,000 BTU each
Oven Interior (each) 26" W × 26.5" D × 14" H; porcelain enamel
Thermostat Range 175 °F – 550 °F (79 °C – 288 °C)
Gas Connection 3/4" NPT (rear); 7" W.C. NG inlet pressure
Legs (6) adjustable 6" stainless steel
Certifications CSA, NSF
Warranty 1-year parts & labor (see Southbend terms)
Included With Your Range
  • (2) chrome oven racks
  • 22 ½" flue riser with shelf
  • Factory pressure regulator
  • Installation & user manual
Popular Options (sold separately)
  • Swivel casters with front locks
  • Additional oven racks
  • 3'–5' quick-disconnect gas hose kits
  • 5" or 10" flue riser alternatives
  • Cheesemelter or salamander mounts
  • Flame-failure safety system
Important: For non-quarry tile floors, consult Southbend for approved mounting methods. Limit oversized cookware (12" Ø+) to rear burners to avoid heat damage to the front rail. Unit must be installed under a code-compliant vent hood.

Need flexible payments? Ask about Middleby Equipment Financing for fast approvals and fixed monthly plans.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

73.0in

Depth

34.0in

Shipping Weight

1320.0lbs

Vent

backriser with hi-shelf

Top

(11) open burners

Exterior Finish

stainless steel front & sides

Base

(2) standard ovens

Specifications

Ultimate Restaurant Range, gas, 72", (3) non-clog burners front right, (2) pyromax burners rear right, (6) non-clog burners left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 467,000 BTU, CSA, NSF
