Southbend (Middleby) 4721DD-5L Ultimate Gas Ranges

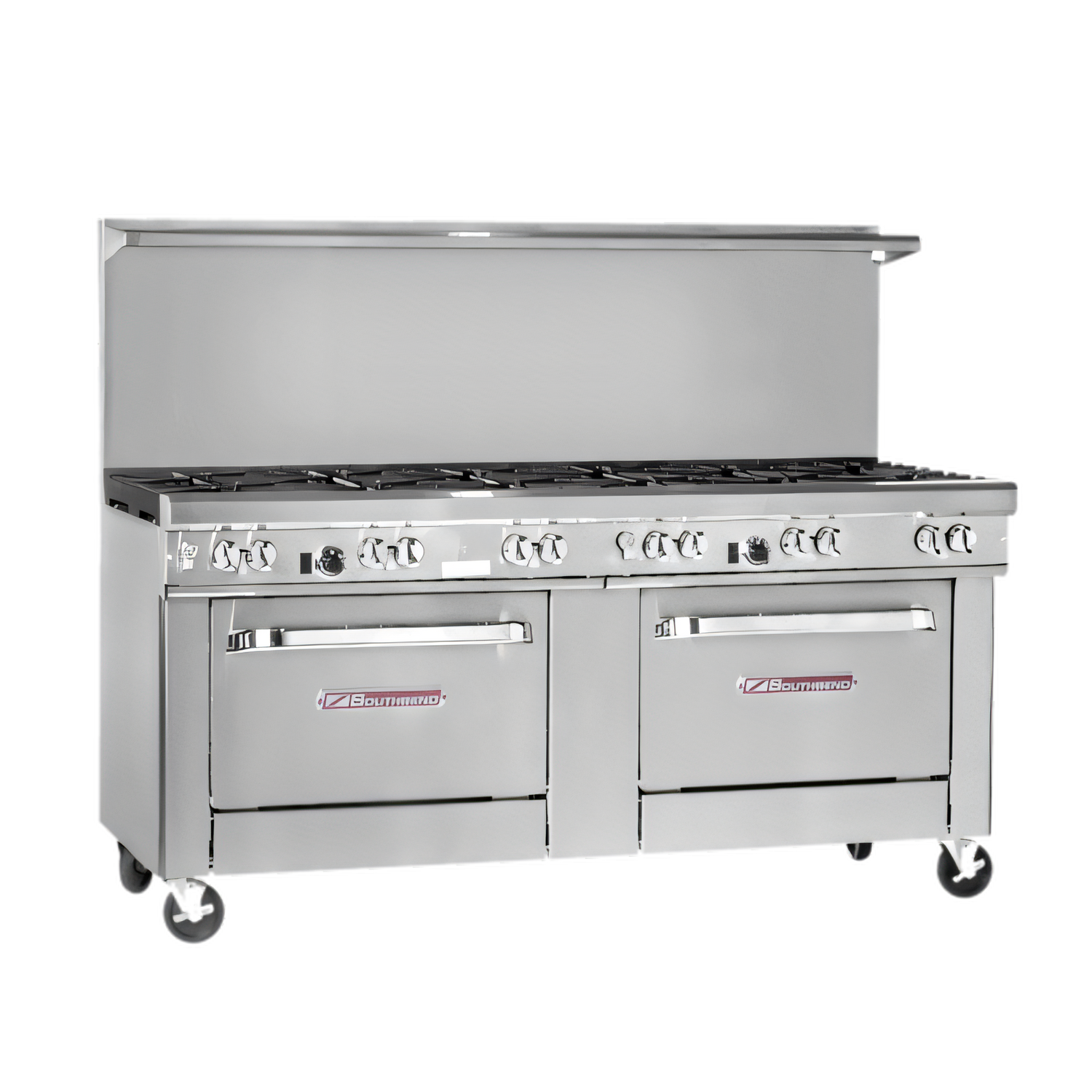

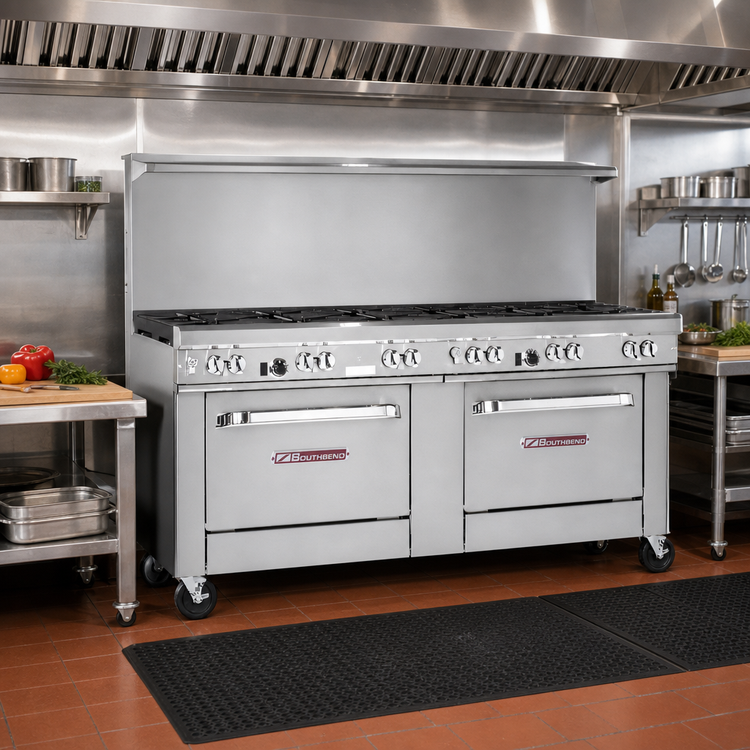

Southbend “Ultimate” 72" Restaurant Range

Engineered for high-volume kitchens, the Ultimate Series 72" range delivers uncompromising power, capacity, and durability in one space-saving footprint. Eleven open burners—including two high-speed Pyromax™ burners—sit above a pair of full-size standard ovens, giving chefs the versatility to sauté, sear, simmer, and bake from a single station.

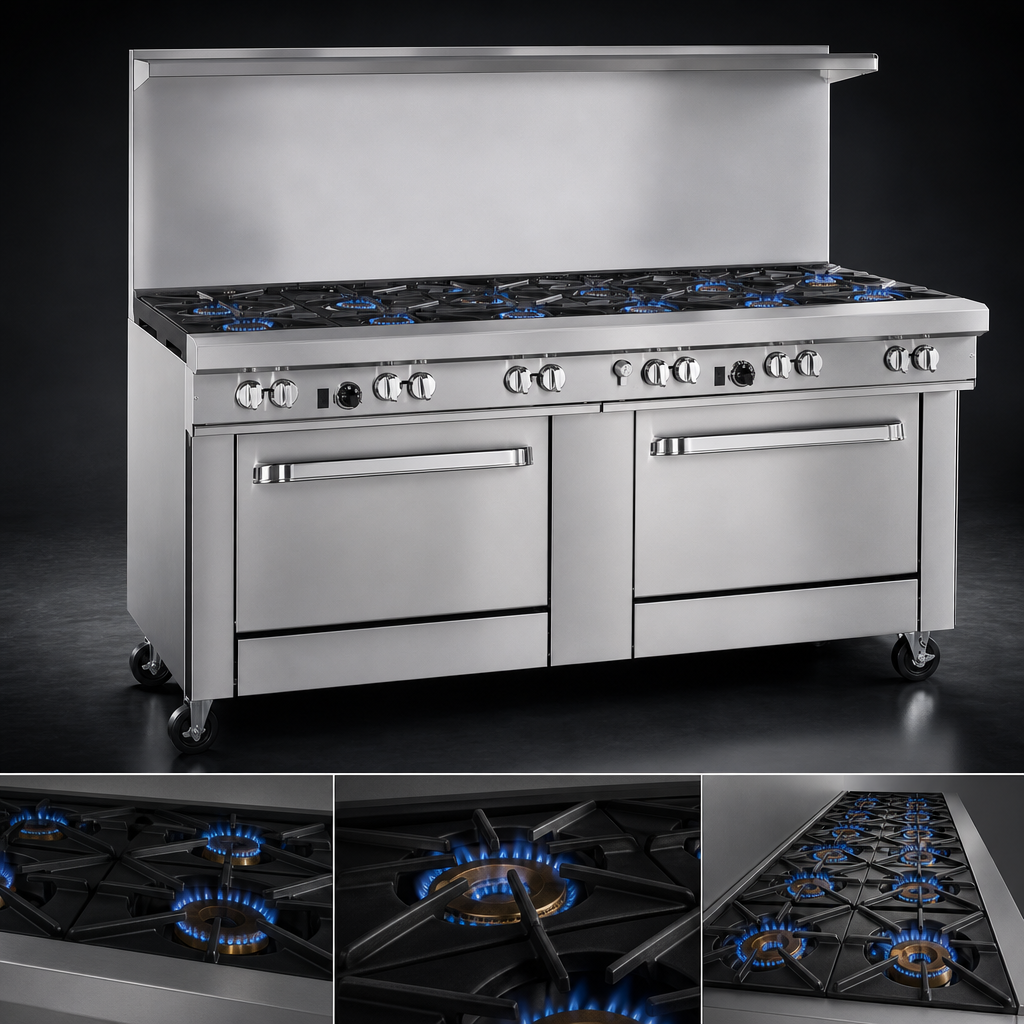

Open-Top Firepower

• Front left: (3) lifetime clog-free 33,000 BTU cast-iron burners
• Rear left: (2) 40,000 BTU Pyromax™ burners for rapid stock-pot heating
• Right side: (6) lifetime clog-free 33,000 BTU burners
• Standing pilots for instant, match-free lighting
• Total cook-top input: 377,000 BTU/hr

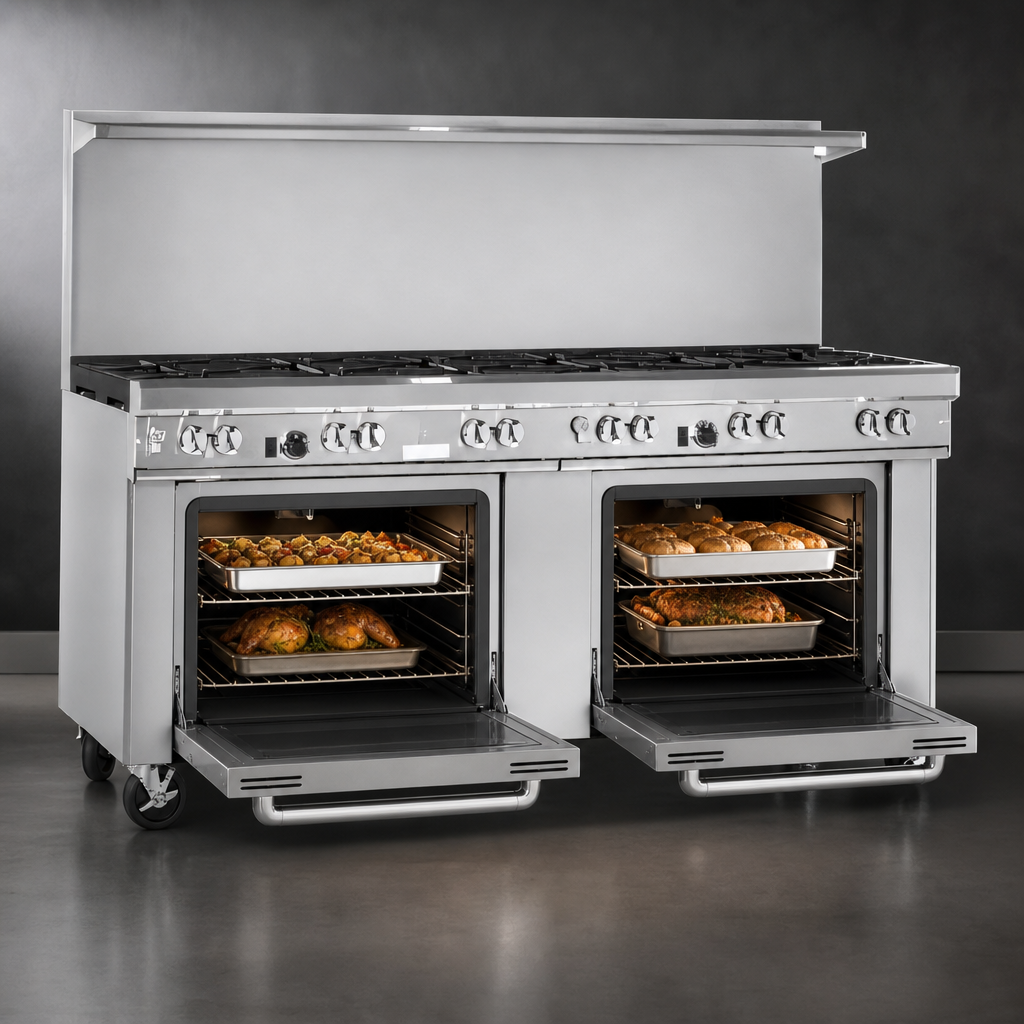

Twin Standard Ovens

• 45,000 BTU each with reliable battery spark ignition—no cord required
• Temperature range : 175 °F – 550 °F (79 °C – 288 °C)
• Porcelain-enameled interiors (14" H × 26" W × 26.5" D) fit full-size sheet pans both ways
• Includes one oven rack per cavity; two-position guides
• Spring-assisted, stay-open doors for safe loading

Built to Outlast the Rush

• All stainless-steel front, sides, and 22.5" flue riser with heavy-duty shelf
• 4" deep stainless front rail keeps plates and utensils within reach
• Four removable drip trays speed end-of-shift clean-up
• (6) 6" adjustable stainless legs for level installation (optional casters available)
• Factory regulator & dual front gas shut-offs pre-installed
• 1-year limited parts & labor warranty backed by Southbend’s nationwide service network

At-a-Glance Specifications

*The 472 series base is paired here with a 3-3-2-6 burner configuration (3 standard + 2 Pyromax + 6 standard). Other layouts available on request.

Included with Your Purchase

• (2) chrome oven racks
• Factory pressure regulator
• Owner’s manual & quick-start guide

Popular Add-Ons (sold separately)

• Swivel casters with front locks
• Quick-disconnect gas hose kits (3′, 4′, or 5′)
• Cheesemelter or salamander mounting kits
• Extra oven racks

Need Financing?

Middleby Equipment Financing can turn this purchase into one easy monthly payment. Preserve cash flow and take advantage of potential Section 179 tax savings.

Full warranty terms available at southbendnc.com/service-and-parts.
