Description

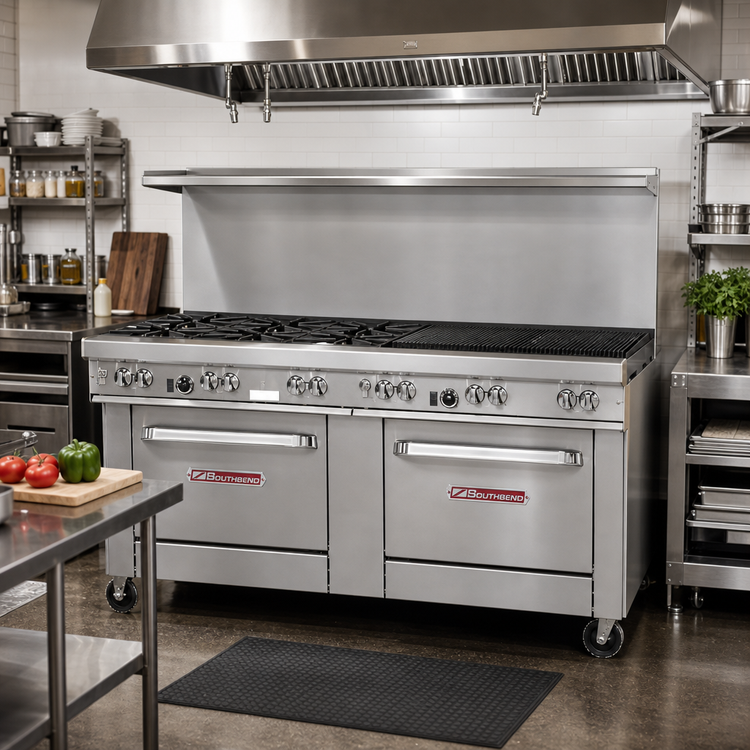

Southbend Ultimate 72" Gas Restaurant Range
6 Non-Clog Burners • 36" Right-Side Charbroiler • Dual Standard Ovens • 384,000 BTUBring maximum menu versatility to a single footprint. Southbend’s Ultimate Series combines open-top power, true charbroiling, and full-size baking in one indestructible, stainless-steel range that’s built for the busiest commercial kitchens.
Key Features

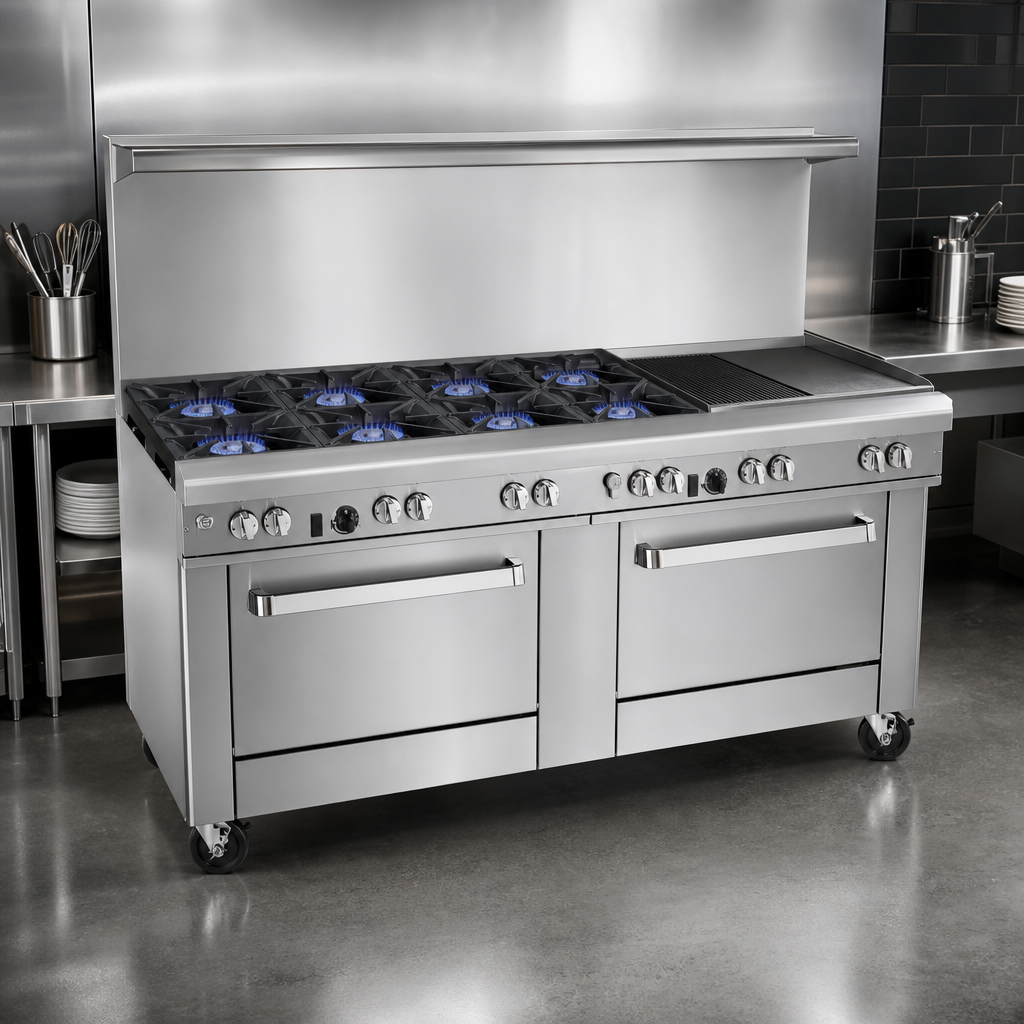

- Six 33,000 BTU lifetime, clog-free cast-iron burners with standing pilots.

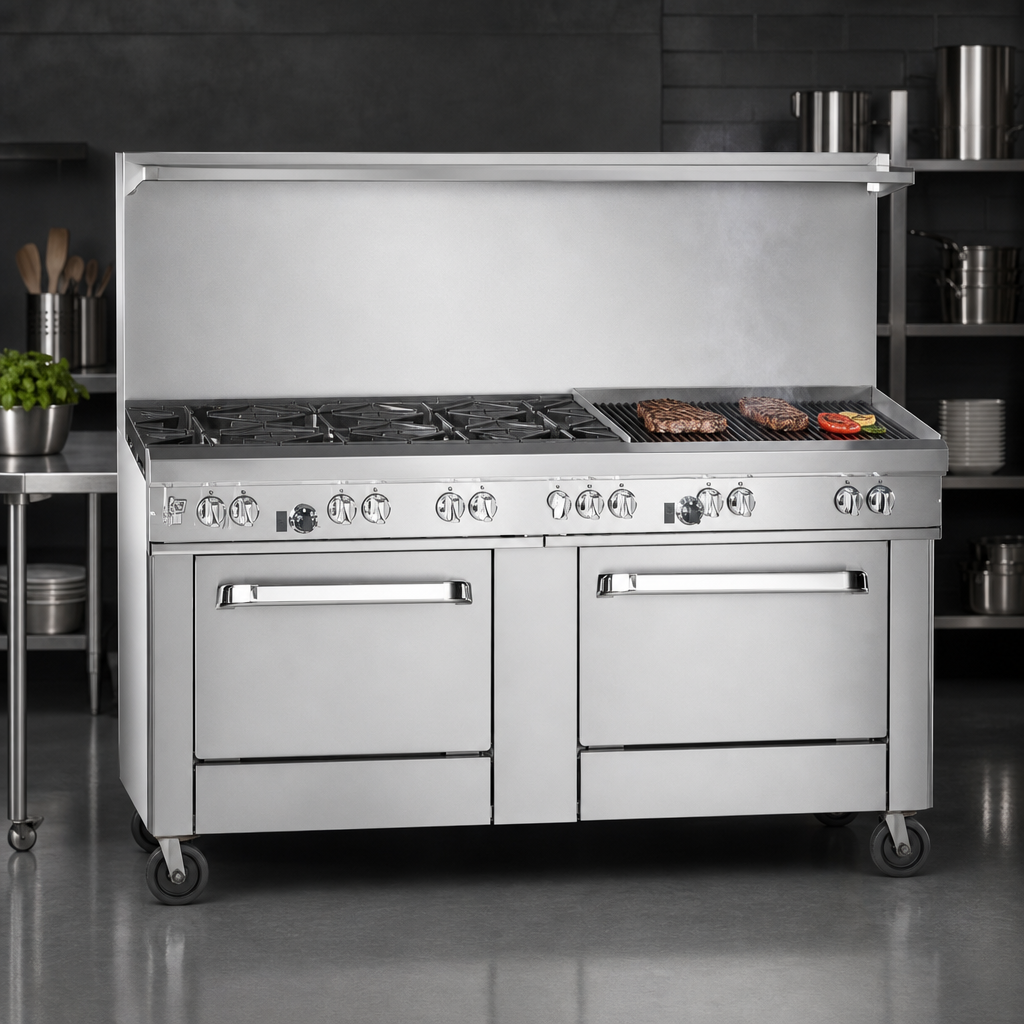

- 36" charbroiler (right side) delivers 96,000 BTU of steak-house searing power with removable cast-iron grates.
- Two 45,000 BTU standard ovens (battery-spark ignition) each include one rack and hold full-size sheet pans either direction.
- 22½" flue riser with heavy-duty shelf keeps plates & spices right where the action is.
- Stainless-steel front, sides and top shelf for unmatched durability and easy clean-up.
- (2) Front-mounted manual gas shut-off valves—independent control for each side of the range.
- Four removable drip trays under the cooktop make nightly cleaning fast and thorough.
- 6" stainless-steel adjustable legs level the unit on any surface (casters optional).
- Factory-installed ¾" gas pressure regulator; CSA Gas & NSF Listed.
Performance Specifications
| Total Input | 384,000 BTU/hr (Natural Gas) |
|---|---|
| Open-Top Burners | 6 × 33,000 BTU non-clog cast iron |
| Charbroiler | 36" right-mounted, 96,000 BTU, removable cast-iron grates |
| Ovens | 2 × 45,000 BTU standard ovens, 175-550 °F thermostat range |
| Ignition | Standing pilots (top) • Battery spark (ovens) |
| Gas Inlet | ¾" NPT (rear) |
Dimensions & Capacities
| Overall Width | 73" / 1,854 mm |
|---|---|
| Overall Depth | 34" / 864 mm |
| Cooking Height | 37" / 940 mm |
| Flue Riser Height | 22.5" / 572 mm |
| Oven Interior (each) | 14"H × 26"W × 26.5"D | fits full pans both ways |
| Shipping Weight | Approx. 1,075 lb / 488 kg |
| Minimum Clearances* | 10" sides & rear to combustibles; 0" to non-combustibles (charbroiler must be under a hood) |
*Refer to the installation manual & local codes for complete clearance and ventilation requirements.
What’s Included
- (2) Oven racks (one per cavity)
- 22½" flue riser with storage shelf (factory installed)
- Gas pressure regulator
- One-year limited parts & labor warranty
Popular Options (sold separately)
- Swivel casters with front locks
- Additional oven racks
- Salamander or cheesemelter mounting kits
- ¾" quick-disconnect hoses (3-, 4- or 5-ft)
Certifications & Warranty
- CSA Gas Certified
- NSF Listed
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network
Important:
Never cover the charbroiler grates with sheet pans while burners are on—reflected heat can cause irreparable damage and void the warranty.
When using cookware 12" or larger, keep it on the rear grates to prevent excess heat on the front rail.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
73.0in
Depth
34.0in
Shipping Weight
1320.0lbs
Vent
backriser with hi-shelf
Top
(6) open burners, (1) 36" charbroiler
Exterior Finish
stainless steel front & sides
Base
(2) standard ovens
Specifications
Ultimate Restaurant Range, gas, 72", (6) non-clog burners, (1) 36" charbroiler right, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 384,000 BTU, CSA, NSF
