Southbend (Middleby) 4721AA Ultimate Gas Ranges
Southbend (Middleby) 4721AA Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4721AA Ultimate Gas Ranges
Description

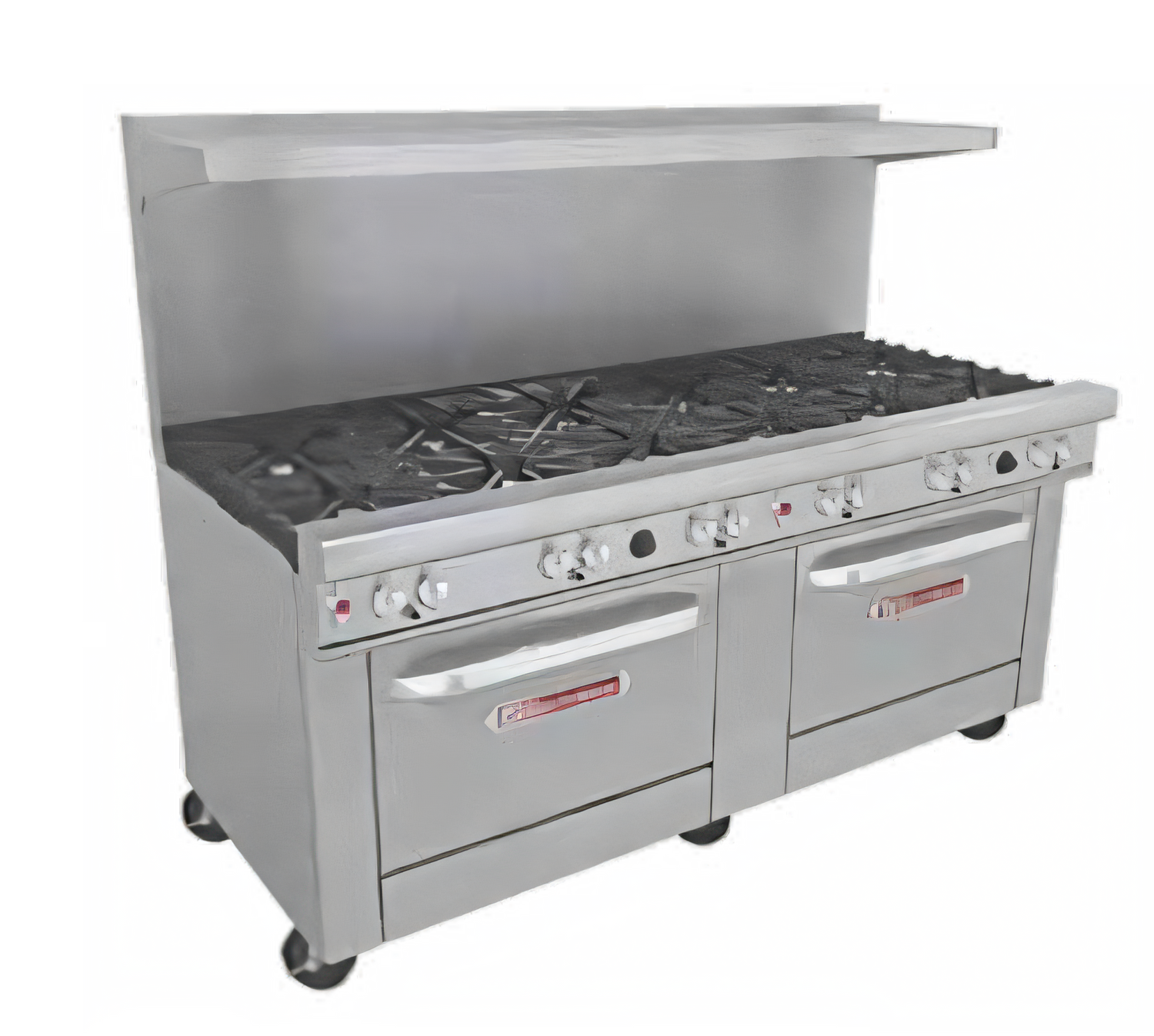

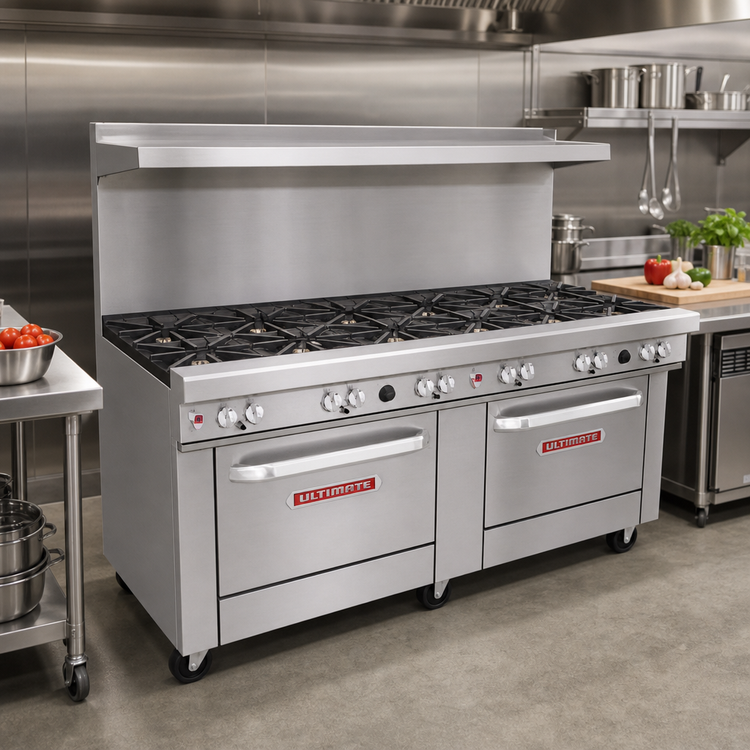

Southbend Ultimate 72" Gas Restaurant Range – 12-Burner / Dual Convection
Model 4721DD • 460,000 BTU • CSA & NSF CertifiedBuilt for the busiest commercial kitchens, the Southbend Ultimate 72" range combines a high-performance 12-burner cook-top with two full-size convection ovens—delivering 460,000 BTU of cooking power in one rock-solid workstation. Heavy-gauge stainless construction, lifetime non-clog burners and a factory-installed regulator mean you can depend on this range shift after shift, year after year.
Key Features

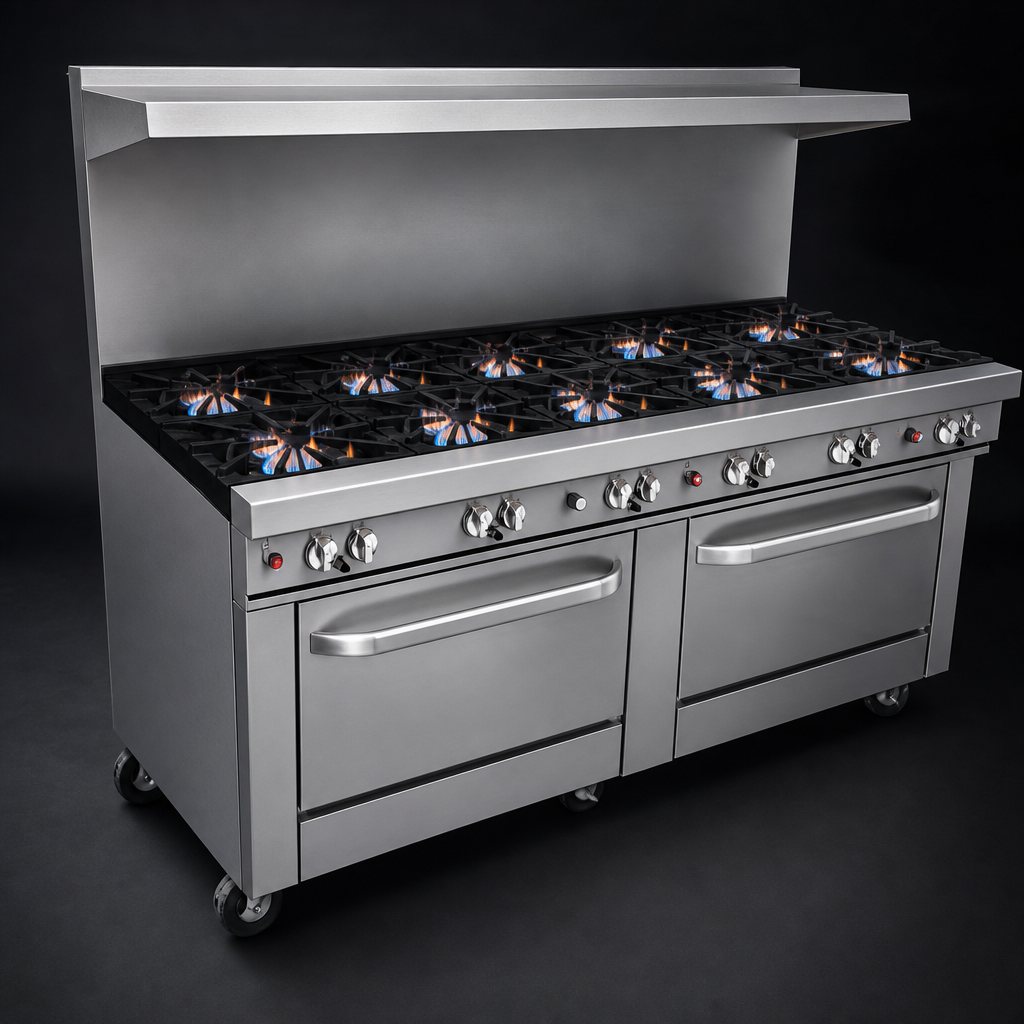

- 12 patented cast-iron 33,000 BTU non-clog open burners (lifetime clog-free design)

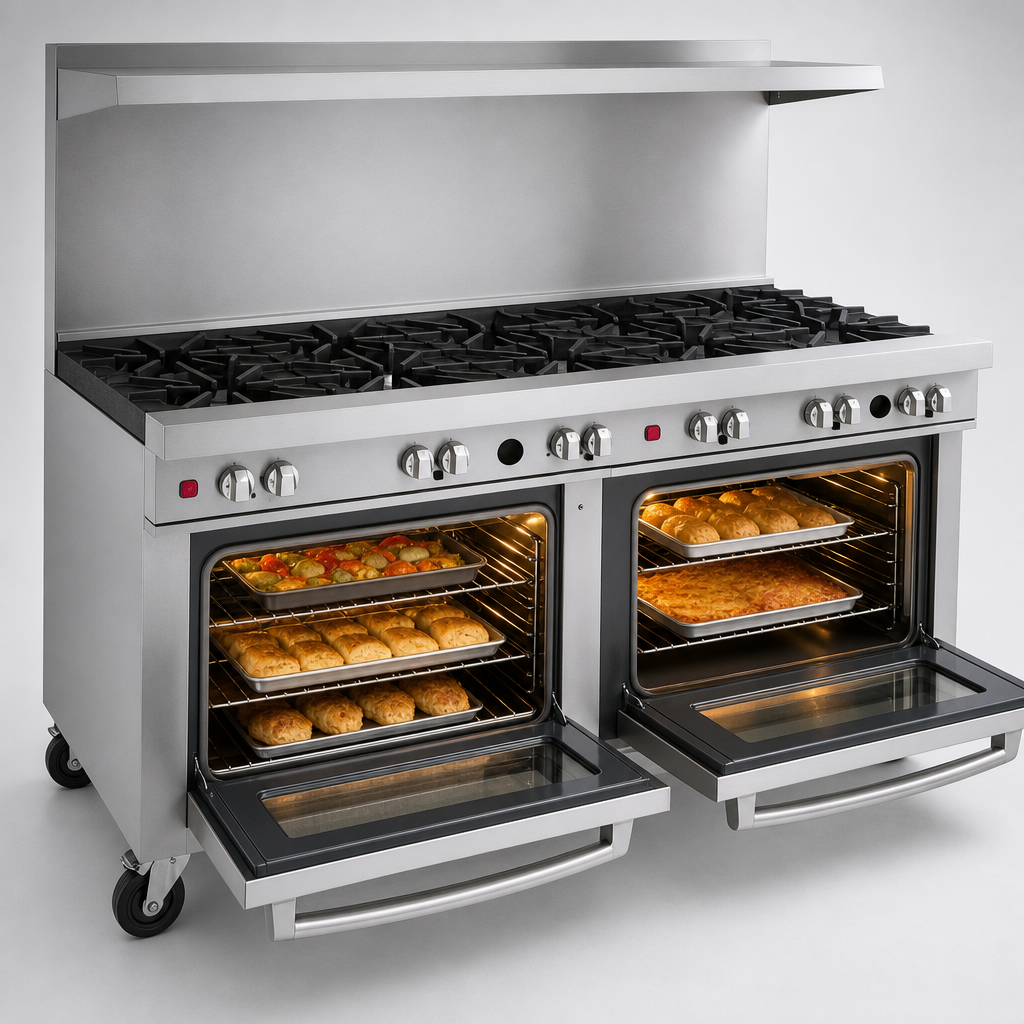

- (2) 32,000 BTU gas convection ovens with battery spark ignition & 3 chrome racks each
- 27" deep cooking surface with removable grates—rear grate handles stock pots up to 14"
- 22-½" flue riser with heavy-duty integrated shelf for plating & cookware
- Front-mounted gas shut-off valves for left and right cook-top sections
- Rugged stainless steel front, sides, 4" rail and single-piece drip trays for fast clean-up
- 6" adjustable stainless legs (optional locking casters available)
- Factory-installed 3/4" gas regulator, standing pilots on burners
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Performance at a Glance
| Total input | 460,000 BTU/hr (Natural Gas) |
|---|---|
| Open burners | 12 × 33,000 BTU non-clog cast-iron |
| Oven cavities | 2 convection ovens, 32,000 BTU each; 175 °F – 550 °F thermostat |
| Oven interior (each) | 26" W × 24" D × 14" H porcelain-enameled, 5 rack positions |
| Cooking surface height | 37" |
| Overall dimensions | 73" W × 34" D × 59.5" H (to top of flue) |
| Gas connection | 3/4" NPT, rear; min. inlet 7" W.C. NG / 11" W.C. LP |
| Electrical (convection fans) | 115 V, 5.9 A, supplied with 6' cord & 3-prong plug |
| Shipping weight | Approx. 1,075 lb |
What’s in the Box
- (4) removable cast-iron grate tops
- (2) porcelain drip trays
- (6) chrome oven racks (3 per cavity)
- (6) 6" stainless adjustable legs
- Battery pack for spark ignition
- Factory-installed gas pressure regulator
Popular Add-Ons (sold separately)
- 36" manual or thermostatic griddle (left or right)
- 36" charbroiler top with removable cast-iron grates
- Hot-top plates (replace two burners)
- Rear step-up burner kits
- Extra oven racks & rack guides
- Salamander or cheesemelter mounting kits
- All-swivel or locking caster sets
- 3/4" quick-disconnect gas hoses (3-, 4- or 5-ft)
Looking for a custom configuration? Ask our equipment experts about factory-built griddle, charbroiler or Pyromax burner options for the Ultimate Series.
Warranty
1-year limited parts & labor warranty. Full details available at southbendnc.com.
