Southbend (Middleby) 4721AA-5R Ultimate Gas Ranges
Description

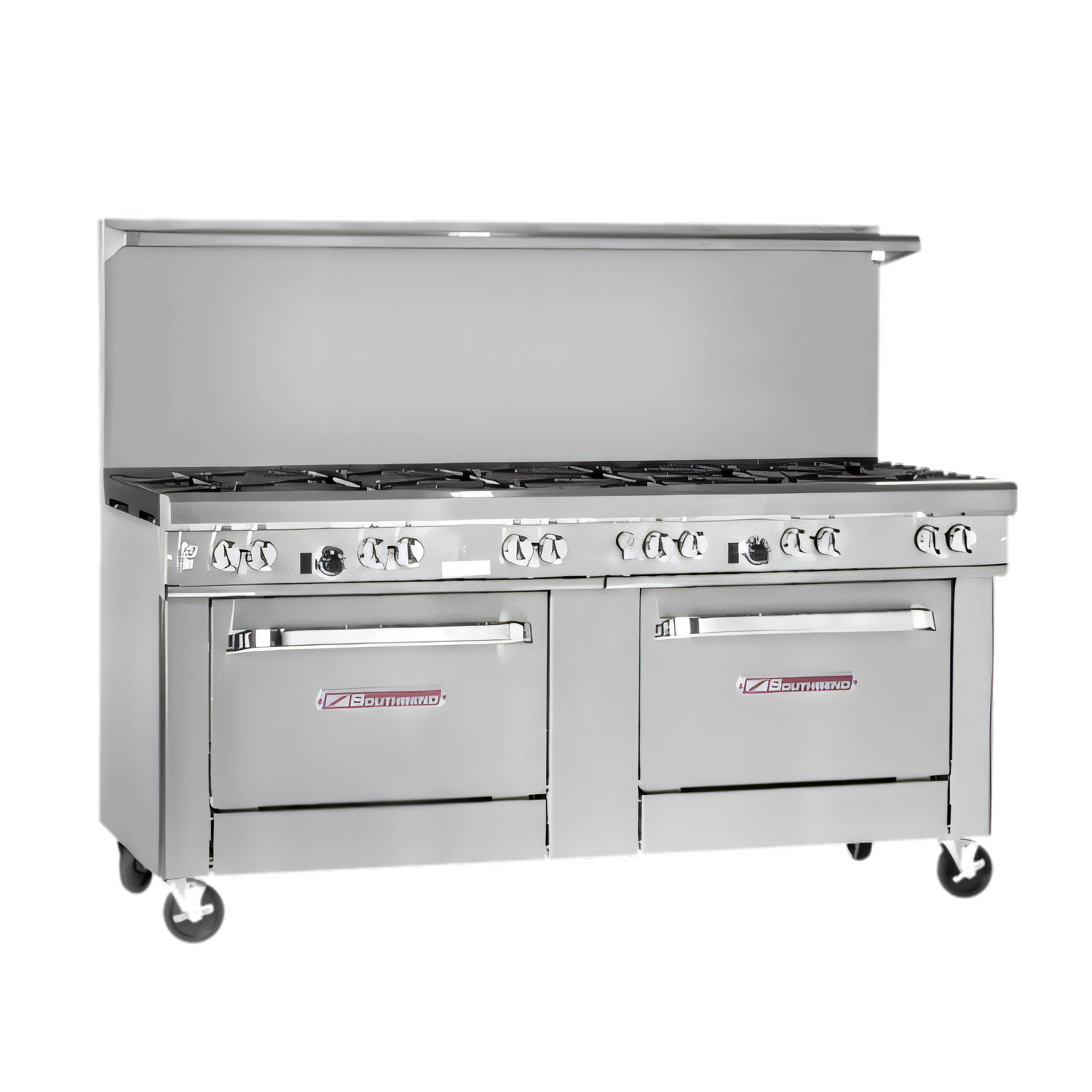

Southbend Ultimate 72" Gas Restaurant Range
11-Burner Top • Double Convection Ovens • 441,000 BTUBuilt for chefs who need maximum burner space and reliable baking power in one footprint, the Southbend Ultimate 72" range delivers a massive 441,000 BTU of precision-controlled performance. Durable stainless construction, patented clog-free burners, and two true convection ovens make this a powerhouse for high-volume kitchens.
Key Performance Features

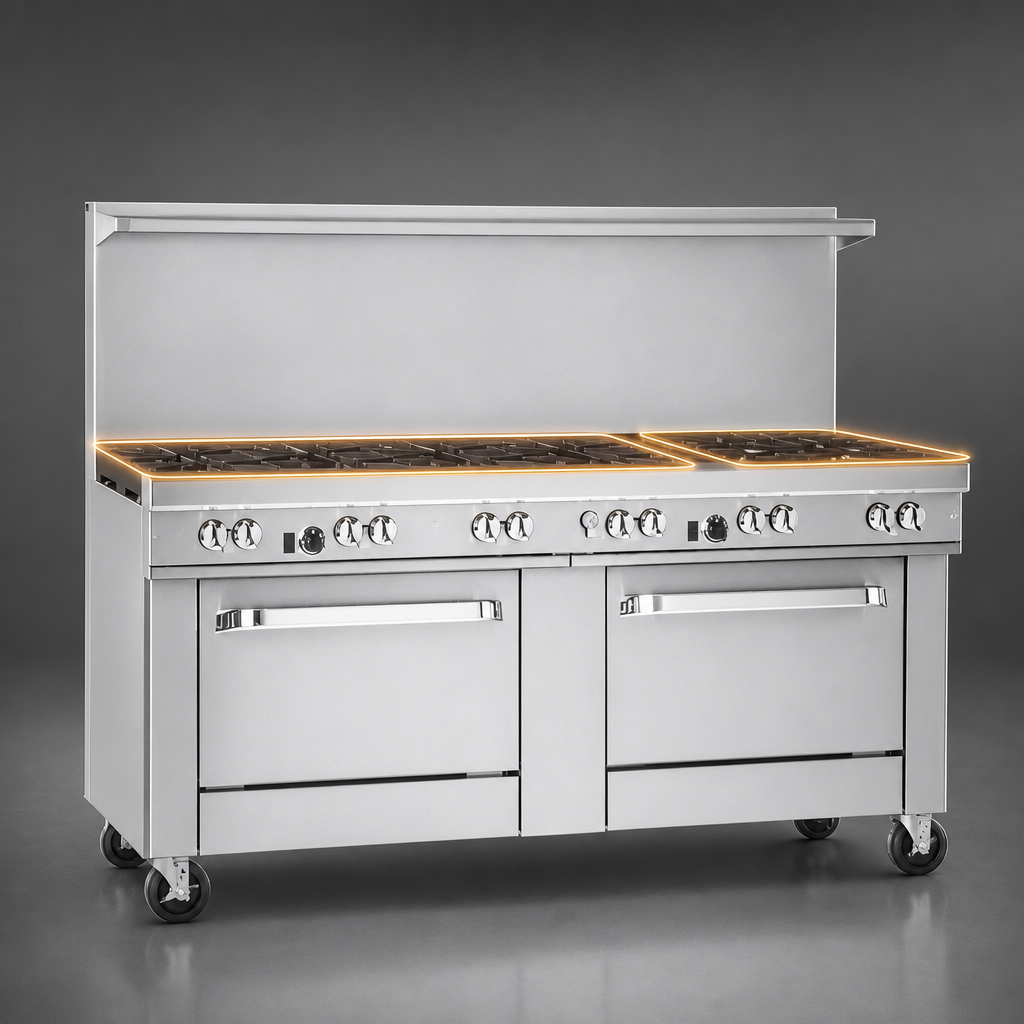

- 11 open burners on a 27" deep cooking surface:
- Left bank: (6) 33,000 BTU non-clog burners
- Right front: (3) 33,000 BTU non-clog burners
- Right rear: (2) 40,000 BTU Pyromax rapid-boil burners
- Patented one-piece cast-iron burner design is lifetime clog-free
- Standing pilots for instant burner re-light; manual gas shut-off valves on both sides

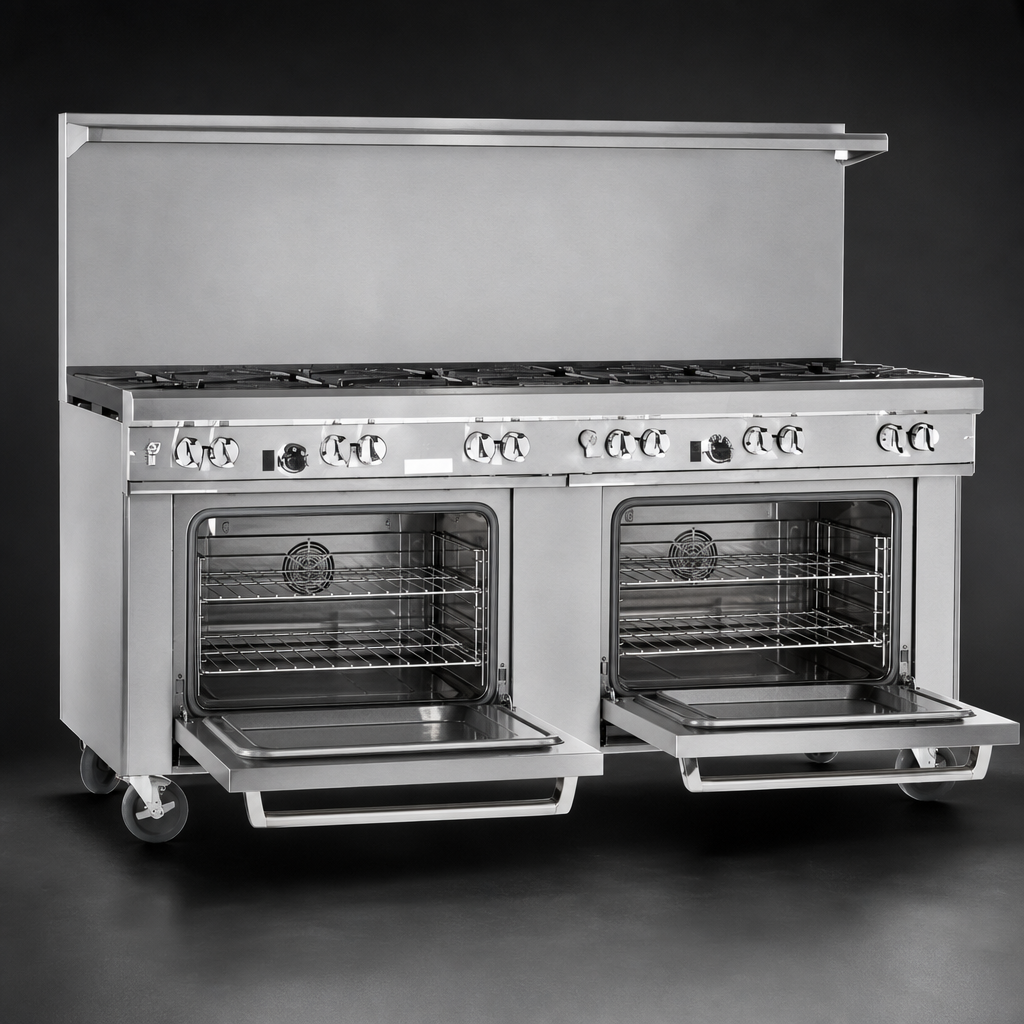

- Two 32,000 BTU convection ovens with battery-spark ignition
- Porcelain-enameled oven cavities (14"H x 26"W x 24"D) with 3 chrome racks each & 5 rack positions
- 22.5" flue riser with heavy-duty integrated shelf—great for small pans & spices
- 4" stainless front rail plus removable drip trays for quick cleanup
- Six 6" stainless steel adjustable legs (optional swivel casters available)
- Factory-installed 3⁄4" regulator; CSA & NSF listed for commercial use
At-a-Glance Specifications
| Model | Ultimate 472-AA (double convection) |
|---|---|
| Overall width | 73" (1854 mm) |
| Overall depth | 42.1" (1070 mm) |
| Cooktop height | 37" (940 mm) |
| Height w/ flue riser | 59.5" (1511 mm) |
| Total input | 441,000 BTU/hr (Natural or LP) |
| Oven cavities | (2) convection, 32,000 BTU each, 175–550°F |
| Gas connection | 3⁄4" NPT; 7" W.C. NAT / 11" W.C. LP (min. inlet) |
| Electrical (each oven) | 115 V, 60 Hz, 1-ph, 5.9 A, 6' cord & NEMA 5-15P plug |
| Shipping weight | Approx. 488 lb (221 kg) |
What’s Included
- (11) removable cast-iron grates
- (6) chrome oven racks (3 per cavity)
- Factory pressure regulator & standing pilots
- One-year limited parts & labor warranty
- Southbend’s lifetime warranty on non-clog burner heads
Need financing? Competitive equipment financing is available through Middleby— ask your sales rep or apply online.
Warranty & Important Use Notes
- 1-year parts & labor on the entire range; additional lifetime warranty on burner heads.
- Designed for commercial installations only—minimum 10" clearance to combustibles on sides & rear.
- When using cookware 12" or larger, keep pots to the rear burners to prevent front-rail overheating.
