Southbend (Middleby)  |  Ultimate  |  SKU: 4721AA-5L

Southbend (Middleby) 4721AA-5L Ultimate Gas Ranges

$19,263.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

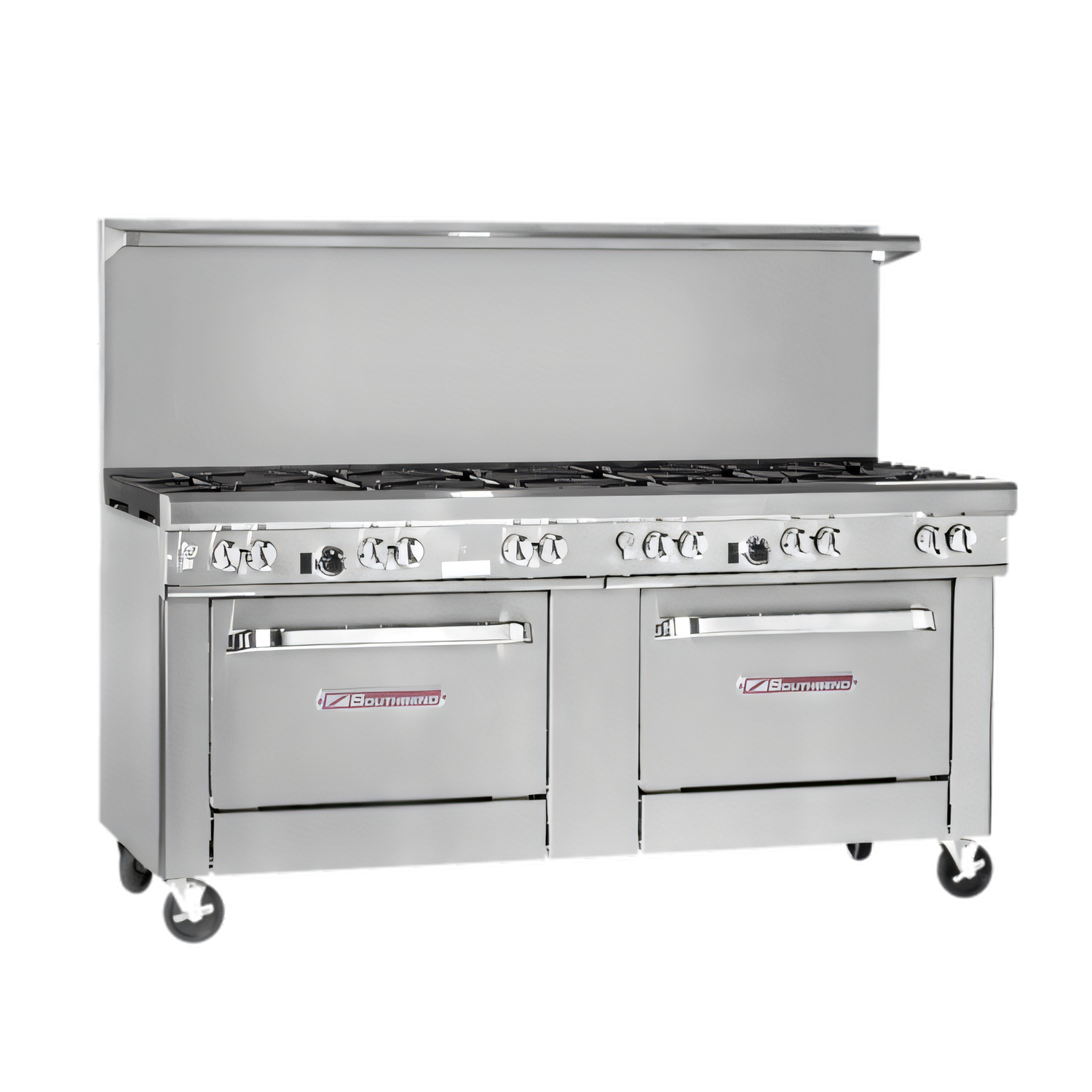

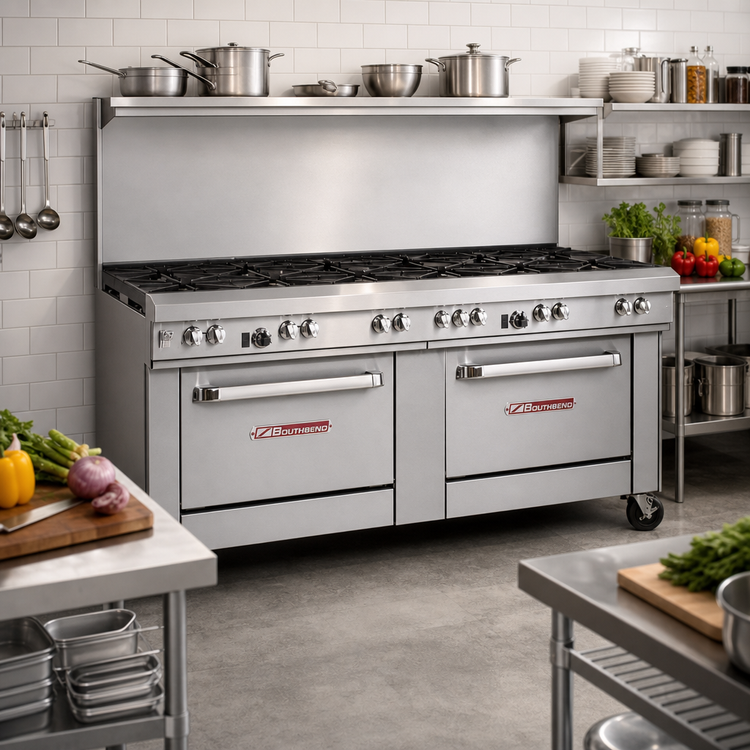

Southbend Ultimate 72" Gas Restaurant Range

Model 472AA-5 • 441,000 BTU • Dual Convection Ovens

Built for high-volume kitchens, the Ultimate Series gives you unmatched burner power, true convection baking, and the legendary durability operators expect from Southbend.

Why You’ll Love It

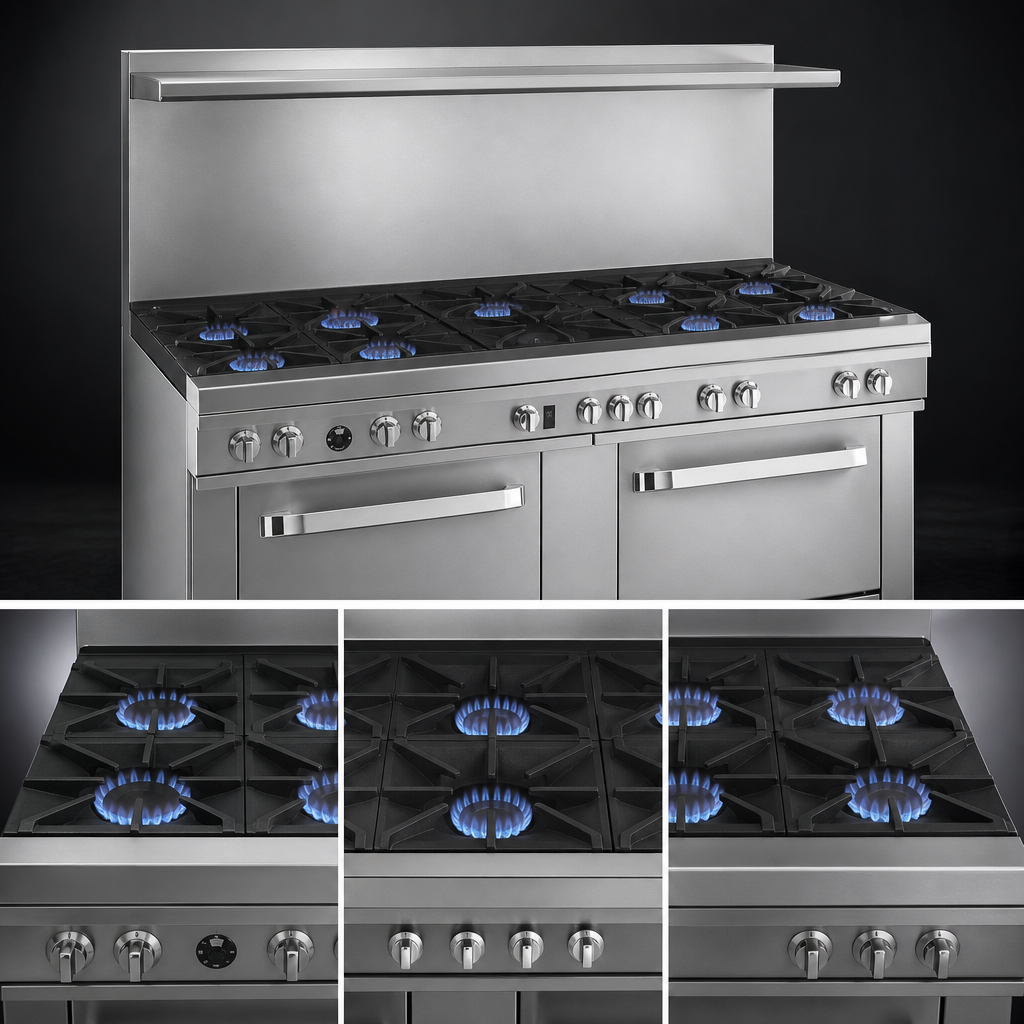

  • 14-point cooktop capacity: (3) 33,000 BTU non-clog burners front left, (2) 40,000 BTU Pyromax burners rear left, plus (6) 33,000 BTU non-clog burners right.
  • One-piece, lifetime clog-free cast-iron burners—no cleaning rods required.

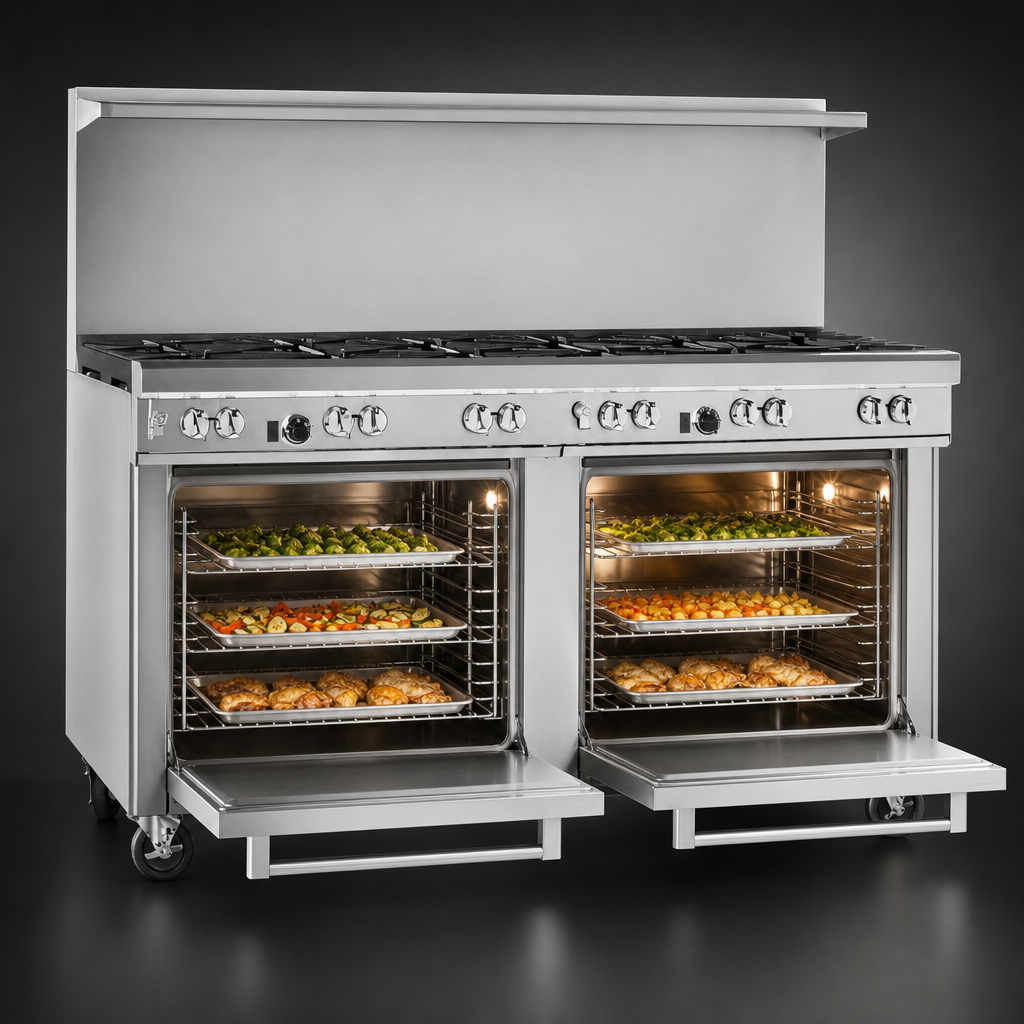

  • Two 32,000 BTU convection ovens with battery spark ignition; each includes three racks and 5-position slides.
  • 22-1/2" flue riser with heavy-duty shelf keeps plates warm and utensils within reach.
  • Stainless steel front, sides & 4" rail stand up to daily scrubbing.
  • (6) 6" adjustable stainless legs standard; optional all-swivel locking casters available.
  • Front-mounted gas shut-off valves for independent control of left & right cooktop sections.
  • Factory regulator & standing pilots on all open burners for simple installation.
  • Backed by a 1-year parts & labor warranty and nationwide Southbend service network.

Specifications

Overall width 73" (1854 mm)
Overall depth 42.13" (1070 mm)
Cooktop height 37" (940 mm)
Total input 441,000 BTU/hr (Natural Gas)
Burners 9 × 33 k BTU non-clog  |  2 × 40 k BTU Pyromax
Convection ovens 2 × 32 k BTU, 175–550 °F thermostat, battery spark
Oven interior (each) 26" W × 24" D × 14" H – fits full-size pans left-to-right or front-to-back
Gas connection 3/4" NPT (rear)  |  7" W.C. minimum inlet (NG)
Electrical (each oven) 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & 3-prong plug
Certifications CSA, NSF
Warranty 1-year parts & labor

Need casters, salamander, or quick-disconnect hose? Ask about factory options and Middleby financing to keep cash flow cooking.

Important: For commercial use only. Install under a vented hood with 10" clearance from combustibles (sides & rear) and follow all local codes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

73.0in

Depth

41.8in

Shipping Weight

1320.0lbs

Vent

backriser with hi-shelf

Top

(11) open burners

Exterior Finish

stainless steel front & sides

Base

(2) convection ovens

Specifications

Ultimate Restaurant Range, gas, 72", (3) non-clog burners front left, (2) pyromax burners rear left, (6) non-clog burners right, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 441,000 BTU, CSA, NSF
