Southbend (Middleby) 4721AA-3TR Ultimate Gas Ranges
$23,103.00
Unit price
/
Unavailable
Description
Southbend Ultimate 72" Gas Restaurant Range
6 Non-Clog Burners • 36" Right-Side Thermostatic Griddle • Dual Convection Ovens – 326,000 BTUEngineered for the busiest kitchens, the Ultimate Series combines rugged construction, precise controls and incredible cooking versatility in one space-saving chassis. From simmering sauces to high-volume baking, this heavy-duty range keeps pace with every rush.
Performance & Convenience Highlights

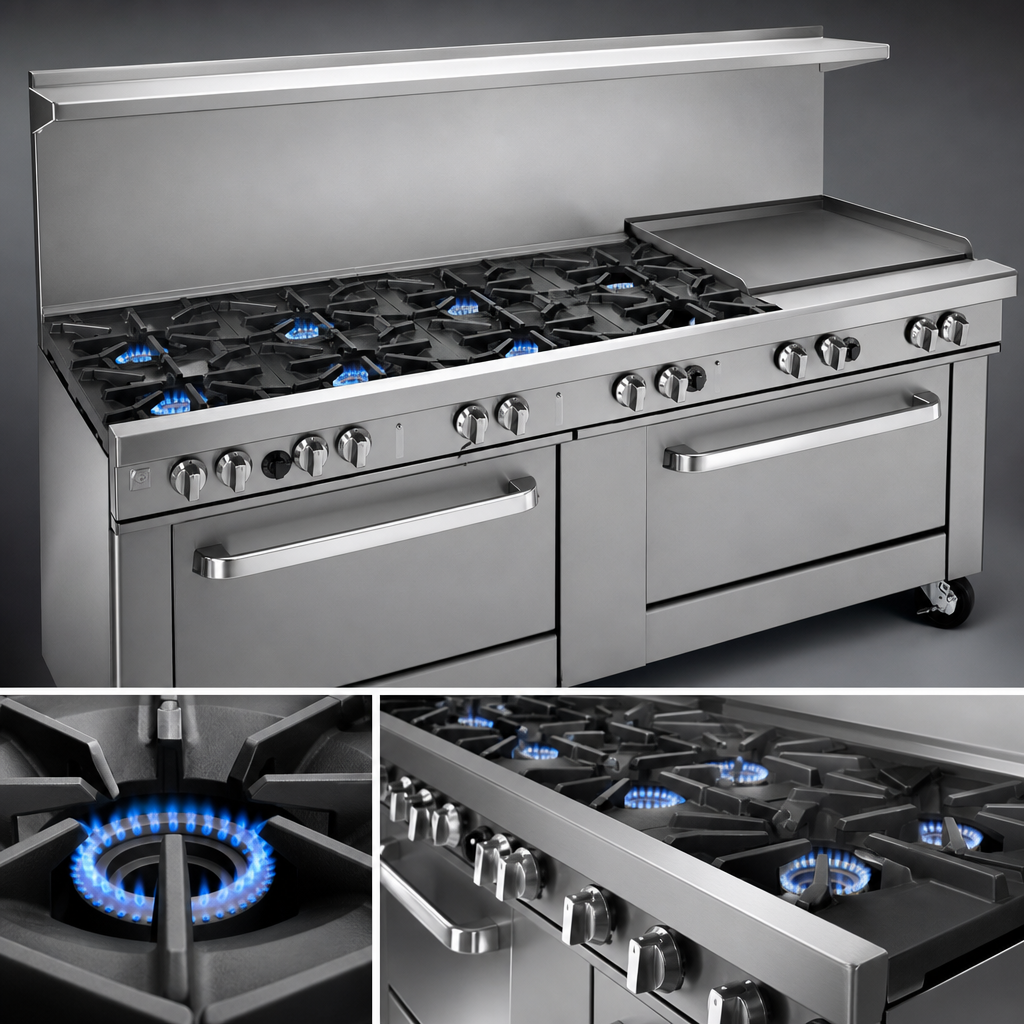

- (6) 33,000 BTU patented non-clog cast-iron burners – lifetime warrantied for clog-free flame.
- 36" x ½" cold-rolled steel griddle (right-side) with thermostatic controls for perfect pancakes, proteins and panini.
- Dual full-size convection ovens (32,000 BTU each) with battery spark ignition, 175-550 °F thermostats, and three racks per cavity.
- 22 ½" stainless flue riser with integrated plate shelf keeps essentials within reach.
- (2) Front-mounted manual gas shut-off valves – one for each side of the range.
- 4" deep stainless front rail plus removable drip trays for fast clean-ups.
- Standing pilots for burners; battery spark ignition for ovens (no electrical outlet needed for the cooktop).
- Factory-installed regulator and (6) adjustable 6" stainless legs included.
- Stainless steel front, sides and shelf resist dents, spills and corrosion.
- Certified cCSAus, CSA Flame, CSA Star and NSF.
At-a-Glance Specifications
| Cabinet Width | 73" (72" class) |
|---|---|
| Depth | 42 ¹⁄₈" |
| Cooking Height | 37" |
| Total Input | 326,000 BTU/hr (natural gas) |
| Open Burners | (6) × 33,000 BTU non-clog cast iron |
| Griddle Section | 36" W, thermostatic, 64,000 BTU |
| Oven Cavities | (2) convection, 32,000 BTU each; 14" H × 26" W × 24" D; 3 racks (5 positions) per oven |
| Gas Connection | ¾" NPT (rear) – 7" W.C. NG / 11" W.C. LP minimum |
| Electrical | 115 V / 60 Hz / 1 ph, 5.9 A per convection oven (6' cord & 3-prong plug supplied) |
| Construction | Stainless front, sides, 4" rail & flue shelf; (6) adjustable 6" legs |
| Warranty | 1-year parts & labor, factory-authorized service |
What’s Included
- Complete Southbend Ultimate range as described
- (6) removable cast-iron grate tops & drip trays
- (3) oven racks per cavity (6 total)
- Factory-installed gas pressure regulator
- Attached power cord(s) for ovens
- Owner’s manual & warranty documentation
Installation Notice: For non-quarry tile floors, oversized cookware and cleaning practices, please review the warranty guidelines in the owner’s manual to prevent voiding coverage.
Need flexible payment options? Ask about Middleby Equipment Financing for quick approvals and fixed monthly plans.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
73.0in
Depth
41.8in
Shipping Weight
1320.0lbs
Plate Thickness
.500" = 1/2"
Base
(2) convection ovens
Vent
backriser with hi-shelf
Top
(6) open burners, (1) 36" griddle with thermostats
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 72", (6) non-clog burners, (1) 36" griddle right, thermostatic controls, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 326,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
