Southbend (Middleby) 4721AA-3GR Ultimate Gas Ranges
Description

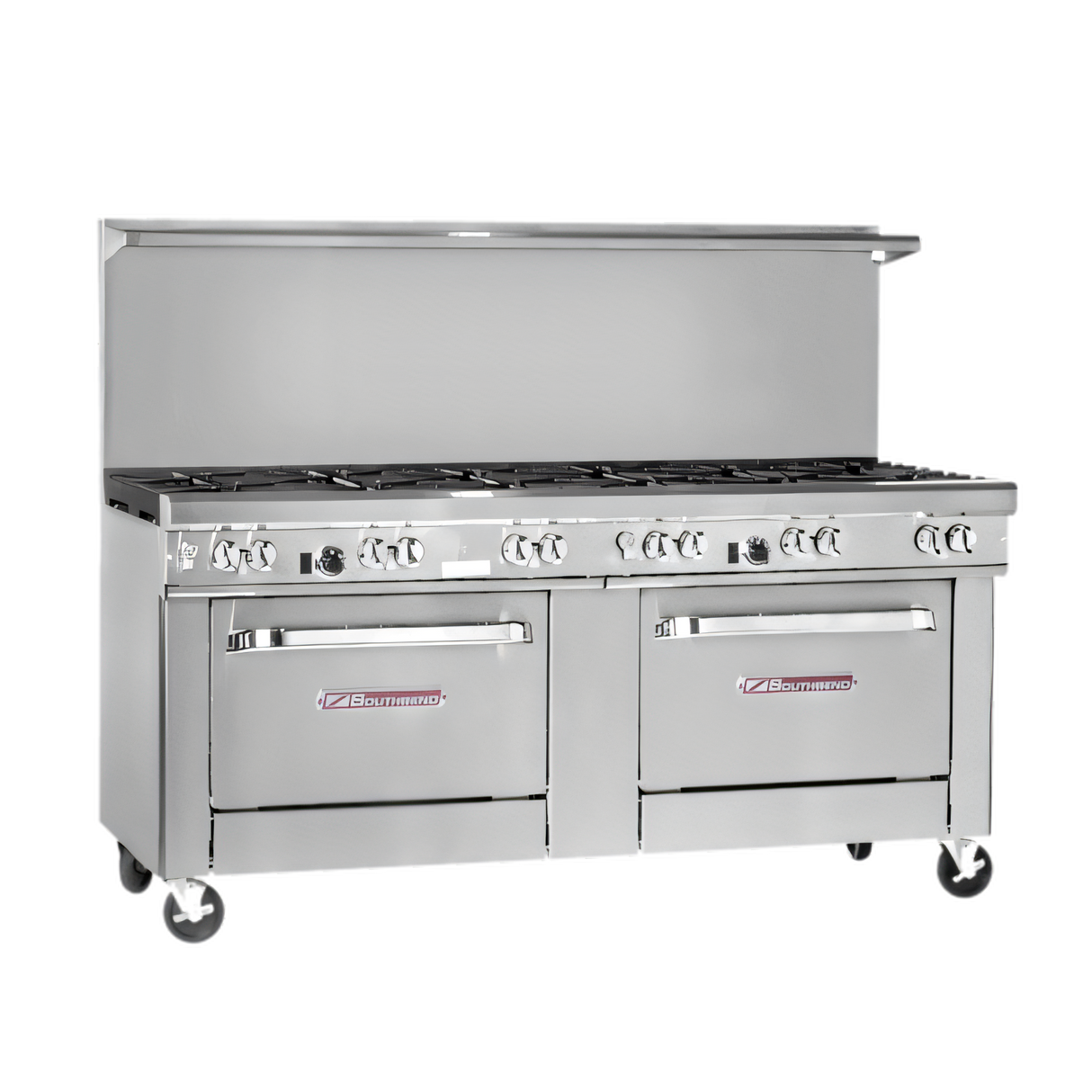

Southbend “Ultimate” 72" Gas Restaurant Range
6 Non-Clog Burners • 36" Right-Side Griddle • Dual Convection OvensBuilt for the toughest commercial kitchens, the Southbend Ultimate Series combines the versatility of open-top cooking, high-output griddling and high-performance convection baking in one heavy-duty package. Stainless steel construction, lifetime non-clog burners and a total of 326,000 BTU make this range a true workhorse you can count on every shift.
Performance & Construction Highlights
- Six patented 33,000 BTU non-clog cast-iron burners

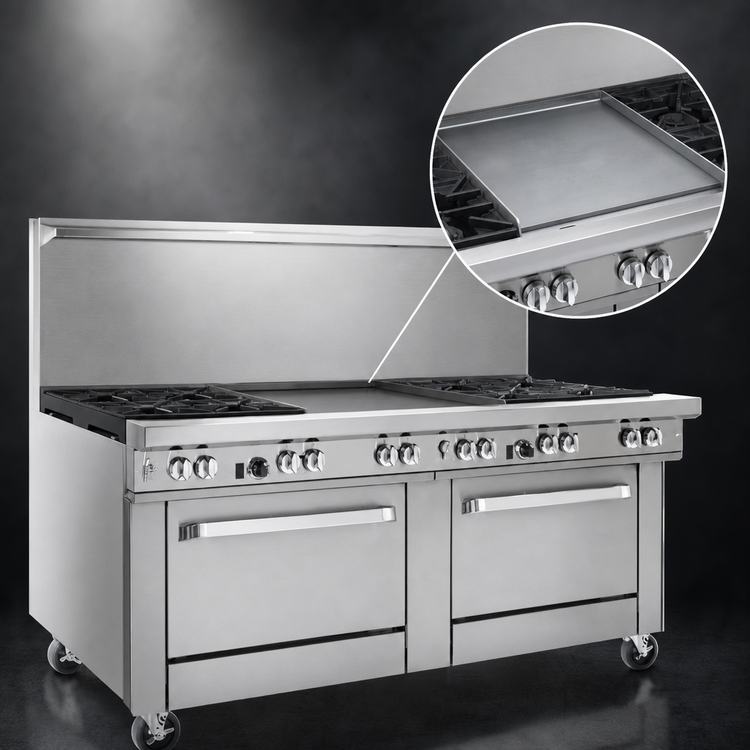

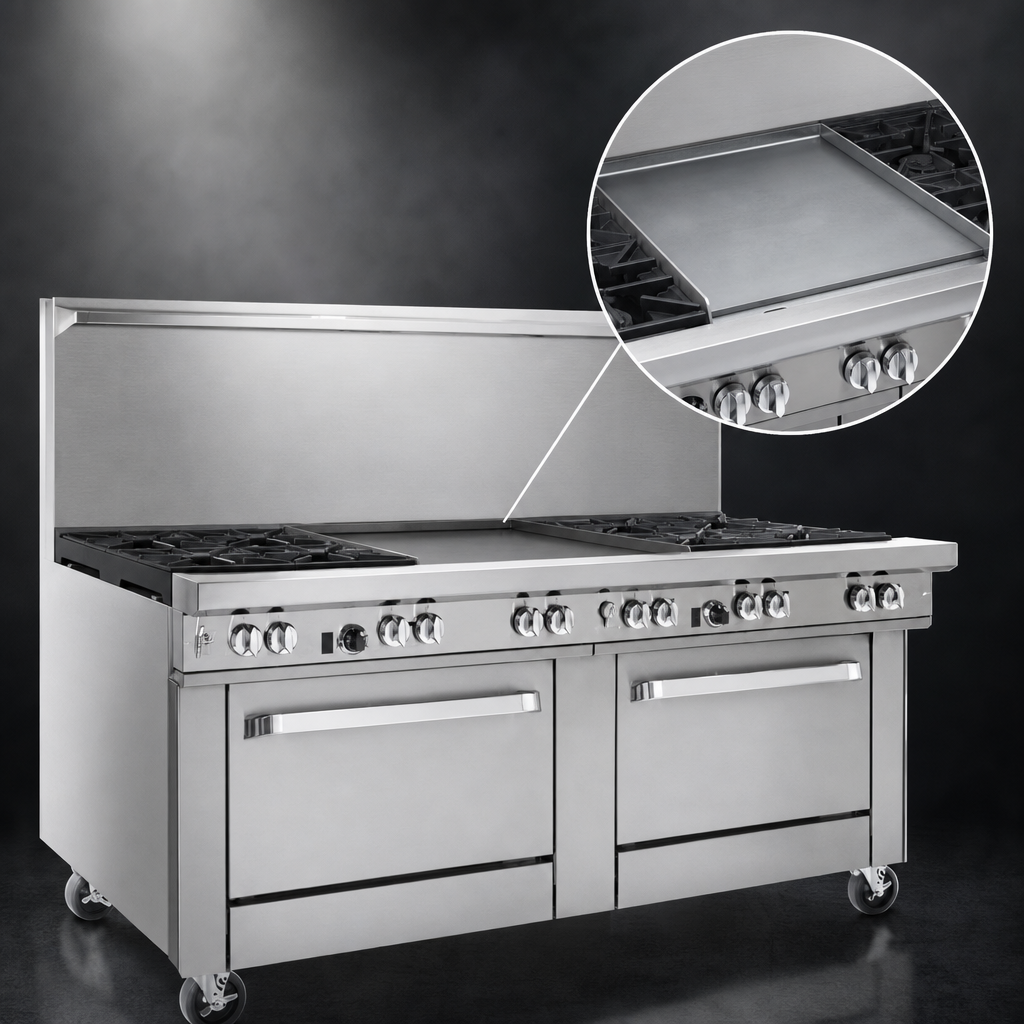

(lifetime clog-free design – 198,000 BTU total) - 36" right-hand griddle with ½" cold-rolled steel plate, 64,000 BTU
- Two 32,000 BTU convection ovens with battery spark ignition
- Porcelain enamel interiors (14" H × 26" W × 24" D)
- (3) racks & (5) rack positions in each cavity
- 175 °F – 550 °F thermostat & independent ON/OFF fan switch
- 22½" flue riser with heavy-duty integrated shelf adds plating & utensil space
- 4" deep stainless front rail plus two front-mounted manual gas shut-off valves
- Removable cast-iron top grates (rear grate accepts up to 14" stock pots)
- Two full-width, one-piece drip trays for fast cleanup
- Six 6" stainless steel adjustable legs (optional locking casters available)
- Factory-installed regulator, standing pilots for burners
- One-year limited parts & labor warranty
Technical Specifications
| Overall width | 73" (1854 mm) |
|---|---|
| Overall depth | 42 ⅛" (1070 mm) |
| Work-top height | 37" (940 mm) |
| Cooking surface depth | 27" (686 mm) |
| Open burners | 6 × 33,000 BTU non-clog (198,000 BTU) |
| Griddle | 36" W, ½" plate, 64,000 BTU (right side) |
| Ovens | 2 convection, 32,000 BTU each • 14" H × 26" W × 24" D interior |
| Total input | 326,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT (rear) • Min. inlet 7" W.C. |
| Electrical | 115 V / 60 Hz / 1 ph, 5.9 A (6' cord, NEMA 5-15P) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Shipping weight | Approx. 1,075 lb (488 kg) |
